Nevi Gaming Desk
How to install your Nevi Gaming Desk

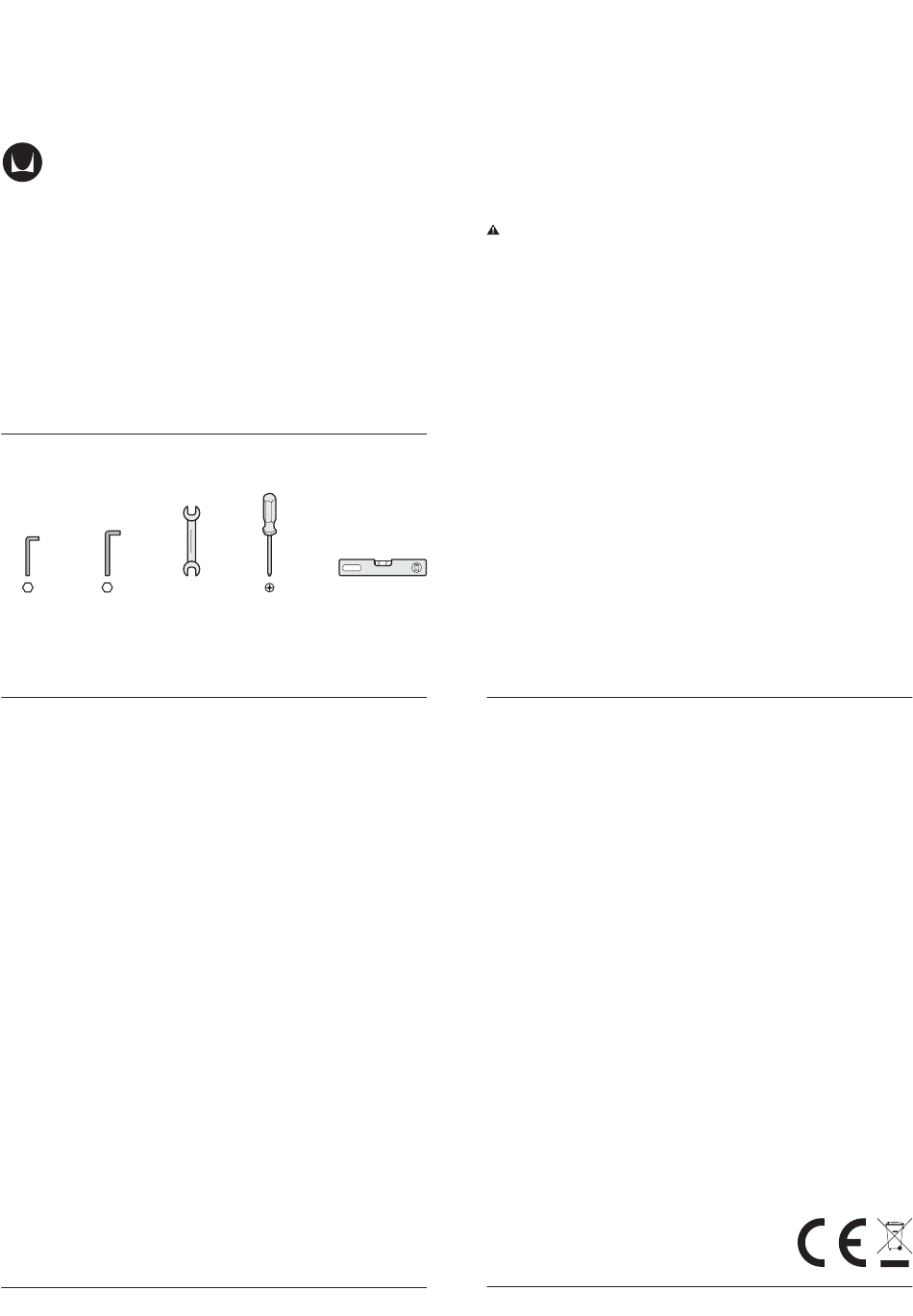

Tools Required
Hex Allen Key
Hex Allen Key
Open Spanner
Size 5
Size 8
Size 9
Contents
Motor Cable and E-Beam Clip Connection
Work Surface and Motor Housing Position
Control Box, Motor Retaining Bracket and
Cable Routing
Motor Housing Attachment
Leg and Spacer Plate Position
Foot, Glide and Centre Beam Attachment
Levelling
Height-Adjustment System Set-Up/Reset
Trouble Shooting and Feedback Click Codes
Herman Miller Nevi Gaming Desk
Star-headed
Spirit Level
Magnetic
Screwdriver
2
3
4
5
6
7
8
9
10
13
14
15
18
19
20
20
21
21
22
23
IMPORTANT!
PLEASE READ THIS GUIDE THOROUGHLY BEFORE
BEGINNING INSTALLATION.
IT IS STRONGLY RECOMMENDED THAT INSTALLATION BE
PERFORMED BY AT LEAST 2 PEOPLE. FAILURE TO DO SO MAY
RESULT IN PRODUCT DAMAGE AND/OR PERSONAL INJURY.
PLEASE SAVE THESE INSTRUCTIONS FOR DISASSEMBLY
OR RECONFIGURATION.
WARNING
PRODUCT IS NOT MADE FOR CHILDREN'S USE!
DO NOT LET YOUR CHILD USE THE HEIGHT
ADJUSTMENT UNATTENDED!
Translations
For translated versions of this document please visit the following links:
UK. cdn.shopify.com/s/files/1/0338/5360/3885/files/
nevi_gaming_desk_instructions_en-gb.pdf
FR. cdn.shopify.com/s/files/1/0338/5360/3885/files/
nevi_gaming_desk_instructions_fr-fr.pdf
DE. cdn.shopify.com/s/files/1/0338/5360/3885/files/
nevi_gaming_desk_instructions_de-de.pdf
IT. cdn.shopify.com/s/files/1/0338/5360/3885/files/
nevi_gaming_desk_instructions_it-it.pdf
ES. cdn.shopify.com/s/files/1/0338/5360/3885/files/
nevi_gaming_desk_instructions_es-es.pdf
Z and Y are among the registered trademarks of Herman Miller, Inc.
Printed in the UK. Please recycle.
© 2020 Herman Miller, Inc.
All rights reserved.
1
Part # 1 BRZZ 5 Rev C
Assembly Instructions
Advertisement
Table of Contents
Related Manuals for HermanMiller Nevi
Summary of Contents for HermanMiller Nevi
-
Page 1: Table Of Contents
PLEASE SAVE THESE INSTRUCTIONS FOR DISASSEMBLY OR RECONFIGURATION. WARNING PRODUCT IS NOT MADE FOR CHILDREN’S USE! DO NOT LET YOUR CHILD USE THE HEIGHT ADJUSTMENT UNATTENDED! How to install your Nevi Gaming Desk Tools Required Hex Allen Key Hex Allen Key Open Spanner Star-headed... -
Page 2: Safety Information
MAINTAIN A 25 MM GAP FROM ALL SIDES OF THE WORK SURFACE EDGE MOVING WORK SURFACE IS A CRUSH HAZARD REQUIRES TWO PEOPLE TO LIFT 25 MM 25 MM 25 MM 25 MM MAXIMUM DESK HEIGHT MINIMUM DESK HEIGHT Herman Miller Nevi Gaming Desk Assembly Instructions... -
Page 3: Parts Included
E. Controller Switch (x1) T. Self Adhesive Clip (x4) U. E-Beam Cable Clip (x2) F. Work Surface Support (x2) G. Foot (x2) X. Collision Sensor (x1) H. Control Box (x1) J. Mains Cable (x1) Herman Miller Nevi Gaming Desk Assembly Instructions... -
Page 4: Identifying The Work Surface Holes
S. Cable Tray Bracket (x 2) F. Work Surface Support (x 1) K. Centre Beam (x 1) E. Controller Switch (x 1) F. Work Surface Support (x 1) L. Motor Housing Beam (x 1) Herman Miller Nevi Gaming Desk Assembly Instructions... - Page 5 Please note the motor may be supplied pre-connected, if so please move to step 2. L. Motor Housing Beam N. Motor Cable N. Motor Cable Step 2. Add the E-Beam Cable Clips L. Motor Housing Beam N. Motor Cable U. E-Beam Cable Clip N. Motor Cable Herman Miller Nevi Gaming Desk Assembly Instructions...
- Page 6 Step 3. Position the Work Surface Assemble on a carpet/rug to protect work surface during assembly. A. Work Surface Step 4. Position the Motor Housing L. Motor Housing Beam Herman Miller Nevi Gaming Desk Assembly Instructions...
- Page 7 R. Pan Head Screw (x2) Step 6. Attach the Motor Retaining Brackets and Controller Switch V. Motor Retaining Bracket (x2) W. Pan Head Screw (x4) E. Controller Switch R. Pan Head Screw (x2) Herman Miller Nevi Gaming Desk Assembly Instructions...
- Page 8 Step 7. Route the Cables – Front View J. Mains Cable N. Motor Cable X. Collision Sensor E. Controller Switch Step 8. Route the Cables – Back View E. Controller Switch N. Motor Cable J. Mains Cable Herman Miller Nevi Gaming Desk Assembly Instructions...
- Page 9 Handle with care to avoid damaging cables. L. Motor Housing Beam Step 10. Attach the Motor Housing Handle with care to avoid damaging cables. L. Motor Housing Beam R. Pan Head Screw (x8) Herman Miller Nevi Gaming Desk Assembly Instructions...
- Page 10 Step 11. Position the Legs (with Spacer Plate) If no spacer plate is included, please move to step 15. B. Leg C. Spacer Plate Step 12. B. Leg Herman Miller Nevi Gaming Desk Assembly Instructions...
- Page 11 Step 13. Remove the Legs B. Leg Step 14. Add the Spacer Plate B. Leg C. Spacer Plate (x4) Herman Miller Nevi Gaming Desk Assembly Instructions...
- Page 12 Step 15. Align the Legs B. Leg Step 16. Insert the Legs B. Leg Herman Miller Nevi Gaming Desk Assembly Instructions...
- Page 13 Step 17. Position the Work Surface Supports F. Work Surface Support P. Button Head Screw (x8) Hex Allen Key (Size 5) Step 18. Attach the Work Surface Supports F. Work Surface Support R. Pan Head Screw (x12) Herman Miller Nevi Gaming Desk Assembly Instructions...
- Page 14 Step 19. Attach the Feet and Glides G. Foot (x2) Q. Socket Head Screw (x4) D. Glide (x4) Hex Allen Key (Size 8) Step 20. Attach the Centre Beam K. Centre Beam (x1) R. Pan Head Screw (x8) Herman Miller Nevi Gaming Desk Assembly Instructions...
- Page 15 Step 21. Attach the Cable Tray Brackets S. Cable Tray Bracket (x2) R. Pan Head Screw (x4) Step 22. Open the Cable Tray Brackets S. Cable Tray Bracket (x2) Herman Miller Nevi Gaming Desk Assembly Instructions...
-
Page 16: Cable Tray Attachment
Step 23. Position the Cable Tray M. Cable Tray Step 24. Close the Cable Tray Brackets Herman Miller Nevi Gaming Desk Assembly Instructions... - Page 17 Step 25. Attach the Cable Tray Brackets R. Pan Head Screw (x4) Step 26. Operating the Cable Tray Open Close Herman Miller Nevi Gaming Desk Assembly Instructions...
-
Page 18: Final Assembly
Step 27. Final Assembly Step 28. Rotate the Desk on to the Feet REQUIRES TWO PEOPLE TO LIFT Herman Miller Nevi Gaming Desk Assembly Instructions... - Page 19 Step 29. Level the Desk Step 30. Identify Mains power Herman Miller Nevi Gaming Desk Assembly Instructions...
-
Page 20: Control Switch
Please follow these instructions each time the desk is reconnected to power, following a fault, or after reconnecting the drives and the controller. Control Switch Lower desk Raise desk Herman Miller Nevi Gaming Desk Assembly Instructions... -
Page 21: Wiring Diagram
Motor Cable N Motor 2 Motor 1 Mains Power (240v) Mains Cable J Control Box H Collision Sensor X Control Switch E Control Box Motor 2 Motor 1 Mains Power (240v) Collision Sensor Control Switch Herman Miller Nevi Gaming Desk Assembly Instructions... -
Page 22: Notes
1 minute of continuous use. 2. The work surface stops automatically when it reaches the lower limit. Nevi Gaming Desk should be installed with a minimum safety gap 3. Press both arrow keys at the same time. - Page 23 Confirmation of the limit position having been successfully deleted (only with the simple hand switch without a display). Table moves at an angle Error: The drives do not have the same height. Run set-up process. Herman Miller Nevi Gaming Desk Assembly Instructions...
