HermanMiller
Nevi Link Installation
How to assemble your Nevi Link

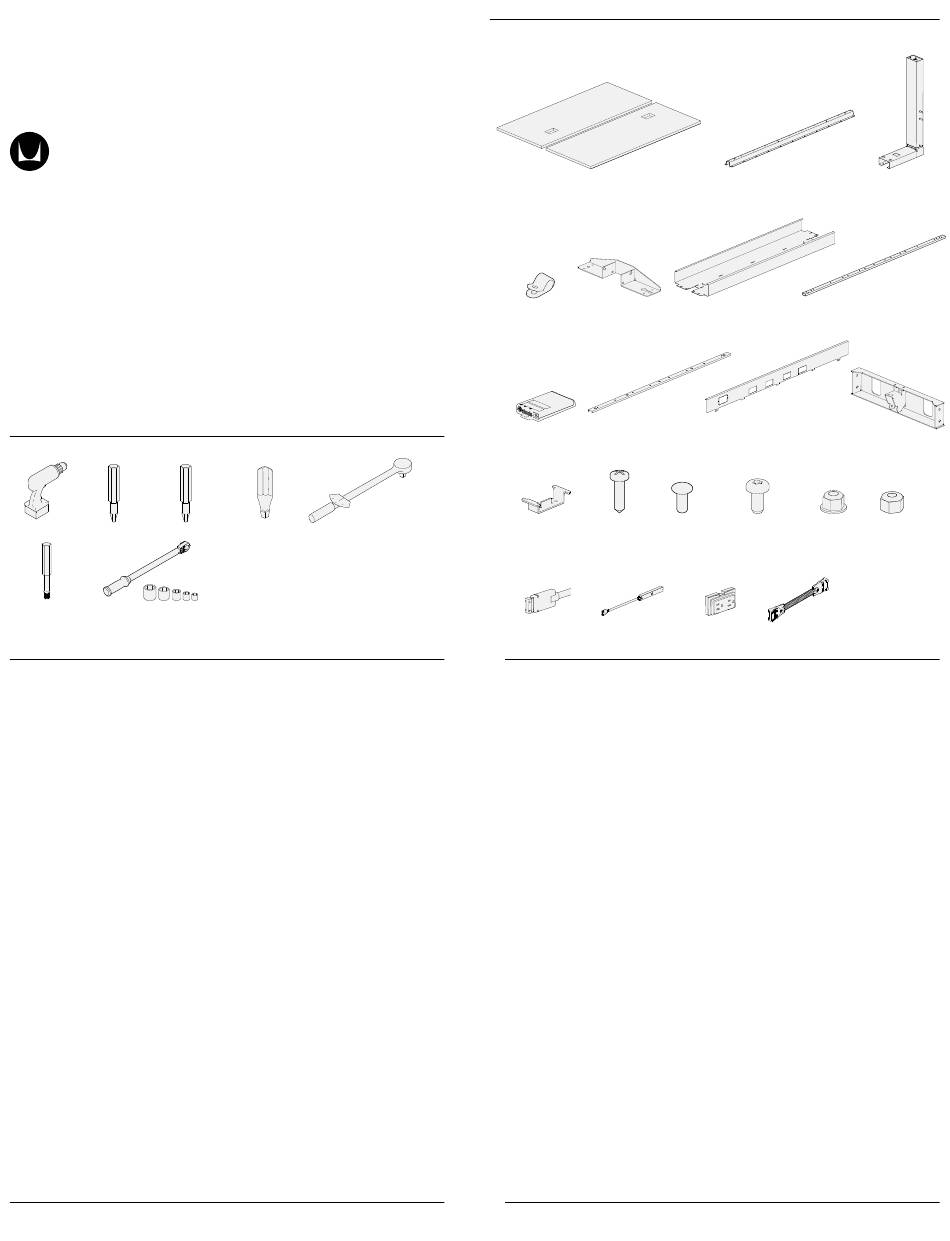

Tools Required
Power Driver
Phillips #2 Bit
Phillips #3 Bit
Torx Bit Size:
Socket Wrench Kit
T40 & T30
(13 mm, 7/16")
Use extension bit if required, Magnetic bits are recommended.
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical furnishing, basic precautions should always be followed,
including the following:
Read all instructions before using this furnishing.
Please follow the intialization instructions, shown on the last page of this
instruction prior to using this furnishing.
DANGER
- To reduce the risk of electric shock always unplug this furnishing from
the electrical outlet before cleaning.
WARNING
- To reduce the risk of burns, fire, electric shock, or injury to persons:
Close supervision is necessary when this furnishing is used by, or near children,
invalids, or disabled persons.
Sitting or standing on product may cause risk of personal injury (use for chairs,
tables consider obvious misuse of product).
Use this furnishing only for its intended use as described in these instructions.
Do not use attachments not recommended by the manufacturer.
Never operate this furnishing if it has a damaged cord or plug, if it is not working
properly, if it has been dropped or damaged, or dropped into water. Return the
furnishing to a service center for examination and repair.
HermanMiller
Square-Recess
Torque Wrench
Bit Size #2
SAVE THESE INSTRUCTIONS
Parts Included
Worksurface (2)
Wire Clip (8)
Support End (4)
Control Box (2)
Top Electrical Cover
Pan Head
Top Tube
Electrical
Machine Screw
Screw (4)
Mounting
Bracket
Power Entry
Junction Box
Power Entry
Failure to fully tighten screws (bolts) may cause injury by causing the Nevi
bench to collapse. Unless otherwise specified, Tighten screws (bolts) until they
stop plus a quarter turn.
Periodically check to make sure legs are properly aligned. Failure to do so may
cause risk of personal injury.
If using power drive set on low torque.
Keep the cord away from heated surfaces.
Never drop or insert any object into any opening.
Do not use outdoors.
Do not operate where aerosol (spray) products are being used or where oxygen
is being administered.
This furnishing is intended for commercial use
control box rating: 5A, 120V
Max FPDU rating: 15A, 120V
Duty cycle: 2min on, 18min off
1
1BNY5G rev B
Stiffeners (2)
Leg Assembly (4)
Trough
Top Tube
Side Electrical Covers (2)
Leg Brace
Weldment (2)
M8 Lock
T30 1/4-20 Thread
1/4-20 Lock
Forming Fastener (2)
Nut (8)
Receptacle
Jumper
Assembly Instructions
Nut (8)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Nevi Link and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HermanMiller Nevi Link

  • Page 1 Worksurface (2) Stiffeners (2) Leg Assembly (4) Wire Clip (8) Support End (4) Trough Top Tube How to assemble your Nevi Link Control Box (2) Top Electrical Cover Side Electrical Covers (2) Leg Brace Weldment (2) Tools Required Pan Head...
  • Page 2: Grounding Instructions

    They will be tightened fully in step 7.4. installation. Leg Assembly Support End 3.2 Orient the legs with threaded studs toward the inside – see images below. Stiffener HermanMiller 1BNY5G rev B Assembly Instructions...
  • Page 3 7a.3 Have licensed electrician wire per local codes flow drilled holes approximately two turns from fully seated. They will be fully tightened in step 7.2. Electrical Mounting Bracket Top Tube Screw Top Tube HermanMiller 1BNY5G rev B Assembly Instructions...
  • Page 4 Trough into the underside of the leg brace. Start by assembling the end of 9.2 Plug jumper into power blocks the trough with 4 location holes using the phillips ¼-20 fasteners and lock nuts included in trough hardware pack. Trough HermanMiller 1BNY5G rev B Assembly Instructions...
  • Page 5 10.4 Fully tighten M8 lock nuts to 10 ft-lbs on leg braces. 11.1 System: Once the trough has been installed onto the system, flip the system over, plug in the control box, calibrate both sides of the table (see initial calibration). HermanMiller 1BNY5G rev B Assembly Instructions...
  • Page 6 13.3 On the opposite side of the trough, insert the T30 1/4-20 13.4 Insert 4 phillips 1/4-20 holes in the 4 remaining trough holes fully threadforming fasteners into the two locater holes and tighten until seated. tightening the fastener. HermanMiller 1BNY5G rev B Assembly Instructions...
  • Page 7 1. Raise or lower the table to the new stop height. 2. Repeat holding the button for 10 full seconds. There will be a single click. The new stop location is now voided. UL recommended load limit: 200 lbs including worksurface. HermanMiller 1BNY5G rev B Assembly Instructions...
  • Page 8 To disassemble product, reverse steps. For more information about our products and services please visit us at hermanmiller.com or call (800) 851 1196. ©2019 Herman Miller, Inc., Zeeland, Michigan Printed in U.S.A. Part No. 1BNY5G – B HermanMiller...
