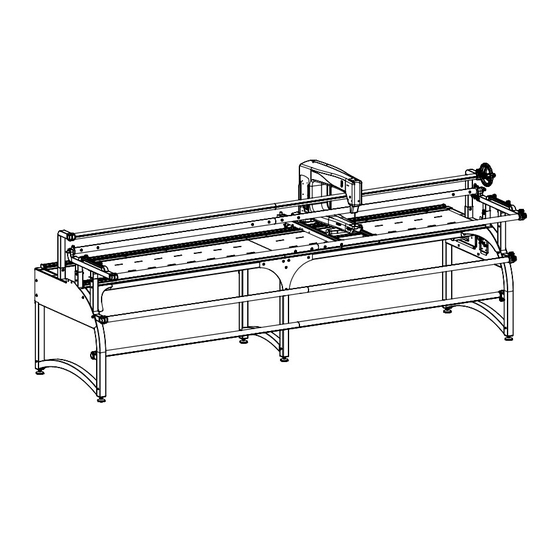

Summary of Contents for Baby Lock Momentum BLQM
-
Page 2: Table Of Contents
Assembly and Use Instruction Manual Table of Contents Assembly and Use Instruction Manual ........................1 Safety Instruction ..............................2 Parts List ................................... 3 Corner Supports & Middle Leg Support Inner Box (Box 1) ..................3 Hardware Box (Box 1) ............................... 3 Corner Supports &... -
Page 3: Safety Instruction
• Keep the machine and frame free from the accumulation of lint, dust, and loose cloth. • Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord. If you have any questions contact your authorized Baby Lock retailer. Page. 2... -
Page 4: Parts List
Parts List Box 1 Contents Leveling Foot (6) (Pre-installed on Frame Ends and Middle Leg) 03-10943 Left Frame End (1) Middle Leg (1) Right Frame End (1) A100091 A100092 A100093 Corner Supports & Middle Leg Support Inner Box (Box 1) Corner Support (2) Middle Leg 04-10708... -
Page 5: Hardware Box Continued (Box 1)
Hardware Box Continued (Box 1) Fabri-Fast Tubing (4) Fabri-Fast Tool (1) Bungee Clamp (4) Open Wrench Open Wrench 17mm 05-10439 05-10417 08-10572 13mm and 10mm and 13mm 03-10743 03-10948 5mm Allen 6mm Allen 4mm Allen 3mm Allen Wrench (1) Wrench (1) Wrench (1) Wrench (1) 03-10741... -
Page 6: Step 1: Ratchet And Rail Holder Installation
Frame Assembly Step 1: Ratchet and Rail Holder Installation Parts Needed 1- Right Frame End 1- Left Frame End 1- Top Rail Ratchet Assembly Top Rail Ratchet 1- Rail Holder Assembly Assembly (Right) Fig. 1-1 Tools Required 4mm Allen Wrench Right Frame End Left Frame End Fig. -
Page 7: Step 3: King Table To Frame Ends
Step 3: King Table to Frame Ends Parts Needed: 1- Right Frame End Table Assembly Front Track Profile 1- Left Frame End 1- Middle Leg 2- Table Assembly 8- M8 x 16mm SBHCS Note: The Table Assemblies have Table Assembly a Pro-Stitcher Compatible Track Right Frame End which is wider than the rear track. -
Page 8: Step 4: Corner Brace For King Assembly
Step 4: Corner Brace for King Assembly Parts Needed: Corner Support Long Edge 1- Front Leg Brace Left 1- Front Leg Brace Right 2- Corner Support 2- Middle Leg Brace 26- M8 x 16mm SBHCS Tools Required: Middle Leg Brace 5mm Allen Wrench Fig. -
Page 9: Step 5: Track Assembly For King Size Frame
4-2-C: Attach the Front Leg Braces to the Table As- M8 x 16mm SBHCS Front Leg Brace Left semblies and Frame Ends. (Fig. 4-2-C) 4-3-C: Securely fasten all the M8 x 16mm SBHCS in this Step and from Step 3-C. Step 5: Track Assembly for King Size Frame Parts Needed: 2- Track Coupler... -
Page 10: Step 5-C: Track Assembly For Crib Size Frame
Step 5-C: Track Assembly for Crib Size Frame Back Track Support Parts Needed: M6 Connector Bolt Front Track Support M6 Plastic Washer 4- 5 ft Plastic Track Tools Required: 4mm Allen Wrench 5-1-C: Detach the pre-installed Track Support from the Table Assembly by unfastening the M6 Connector Bolts with a 4mm Allen Wrench. -
Page 11: Step 7: Take Up Rail Bracket Assembly
6-2: Fasten a set of M8 x 50mm SBHCS and M8 Nylock Nuts through the second hole from the bottom of the Rail Brackets as a default. (Fig. 6-2 and Fig. 6-3) M8 Nylock Nut M8 x 50mm SBHCS Step 7: Take Up Rail Bracket Assembly Parts Needed: Fig. -
Page 12: Step 9: Track Adjustment
8-3: Position the Master Board Box so that the two ports are facing the front of the carriage. Peel the tape from the back of the Master Board Box and attach the box to the side of the Car- riage Assembly. (Fig. 8-3) 8-4: Plug the Front Cable into the Front Port Master Board Box and Rear Cable into the Rear Port on the Master... -
Page 13: Step 10: Rail Assembly For King
Step 10: Rail Assembly for King Parts Needed: 4- Rail Ratcheting End 4- Rail Non-Ratcheting End 4- Rail Coupler 2- Clamp Rail Coupler 1- Idler Rail Clamp Locking Assembly 3mm Allen Wrench Fig. 10-1 1- Idler Clamp Floating Assembly 24 - M6 x 10mm Set Screws (Pre- installed in the Rail Couplers) Rail Non-Ratcheting Rail Ratcheting End... -
Page 14: Step: 10-C: Rail Assembly For Crib
Step: 10-C: Rail Assembly for Crib Parts Needed: 4- Rail Ratcheting End Fig. 10-1-C Rail Ratcheting End 4- Rail Non-Ratcheting End Non-Ratcheting End Insert 1- Idler Rail Clamp Locking Assembly Hinge 1- Idler Clamp Floating Assembly Hinge 8 - M6 x 10mm Set Screws (Pre- installed in the Rail Couplers) Tools Required: 3mm Allen Wrench... -
Page 15: Step 12: Idler Rail Clamp Attachment To Frame
Step 12: Idler Rail Clamp Attachment to Frame Parts Needed: 1- Idler Rail Assembly 1- Rail Clamp Lock Pin Assembly 1- M6 x 16mm SBHCS Tools Required: 4mm Allen Wrench Foward Note: This assembly step is universal for Idler Rail Assembly clamp locking end both Crib and King size frames. -
Page 16: Step 13: Rail Attachment To Frame
Step 13: Rail Attachment to Frame Non-Ratcheting End Rail Ratchet End Rail Holder Ratching End Parts Needed: 4- Rail Assembly Rear Note: This assembly step is universal for both Crib and King size frames. 13-1: Insert the Rail Assembly through Front the throat of the machine and Ratcheting Take Up Rail Right Arm Ratchet End... -
Page 17: Step 16: Wire Connection
Step 16: Wire Connection Parts Needed: 1- Ethernet Cable Short 2- Ethernet Cable Long (Pre-installed on frame ends) 1- Power Supply 2- Motor Cable (Pre-installed on frame ends) 16-1: Plug the Ethernet Cable Short into the Ethernet Fig. 16-1 Ethernet Cable Short Middle Leg ports on the underside of the Table Assemblies between the Middle Leg. -
Page 18: Step 17: Speed Control
16-6: Plug the 12V power supplies into an available 110 – 220 VAC power outlet or extension cord. Step 17: Speed Control Note: The Speed Control knob is located on the side of the Right Frame End. 17-1: Switching the Speed Control Knob setting away from STOP turns the sliding rail on and controls the speed at which the sliding rails move. -
Page 19: Frame Rail Diagram
Quilting Setup Frame Rail Diagram Take up Rail Idler Rail Backing Rail Top Rail Batting Rail Section 1: Fabri-Fast System Tools Required: Fabri-Fast Tool 1- Fabri-Fast Tool Fabri-Fast Tube 4- Fabri-Fast Tube Fig-S. 1-1 Note: This assembly step is universal for both Crib and King size frames. Section 1-1: Lay the fabric over the Fabri-Fast Slot of a rail assembly and secure the fabric by pressing in the Fabri-Fast Tubing with a Fabri-Fast Tool. -
Page 20: Section 2: Leader Cloth
Section 2: Leader Cloth Leader Cloth Diagram Section 2-1: High thread count fab- Top Leader ric such as Muslin is recommended for 3/4" Casing Leader Cloth material. Thick fabric may be difficult to install in the rail Fabri-Fast Backing Leader Slot. -
Page 21: Section 3: Attaching Fabric On The Frame Rails
Section 3: Attaching Fabric on the Frame Rails Tools Required: Take up Rail 1- Fabri-Fast Tool 4- Fabri-Fast Tube (Crib or King) Note: This assembly step is universal for both Crib and King size frames. Section 3-1: Move the sewing machine back so that the Take Up Rail moves to the rear position. - Page 22 Section 3-7: Important! Disengage the Clamp Rail Lock Pin and tighten the Idler Rail Assembly by turning the rail Counterclockwise a full rotation. Re-engage the Clamp Rail Lock Pin ensuring the fabric is wrapped on Take Up Leader the Idler Rail. (Fig-S. 3-5) Note: Section 3-7 will make the Quilting Surface flat and taut during quilting while the sliding rail operates.
-
Page 23: Section 4: Bungee Clamps
Section 4: Bungee Clamps Press to Unlock Tools Required: 4- Bungee Clamp Bungee Clamp Note: This assembly step is universal for both Crib and King size frames. Section 4-1: Depress the bungee stop that is built into the Bungee Track System and pass the end of the bungee cord through the bungee stop hole. -
Page 24: Trouble Shooting Guide
Trouble Shooting Guide Sliding Rail not moving: Check if the Speed Control Knob is switched away from stop. The cables to the Master Board Box, Frame Ends, and Table Structure must be attached correctly in their respective ports. (Step 8: Bottom Carriage Assembly, Step 15: Wire Connection, and Step 16: Speed Control) There is also a built-in sleep mode when the machine is not in operation.
