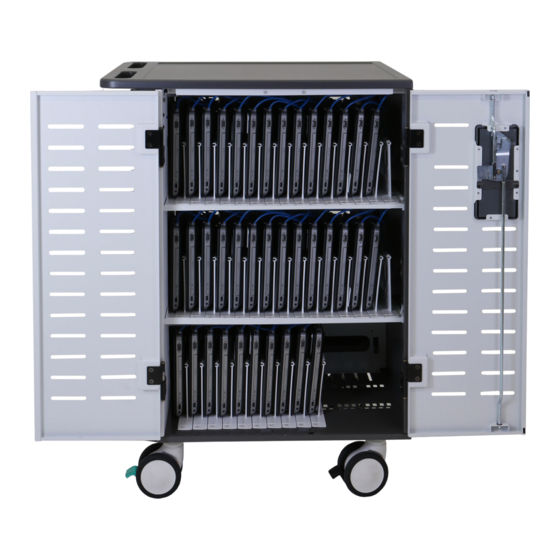

Ergotron Zip40 Service Manual

Cart, replace controller box
Hide thumbs Also See for Zip40:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual

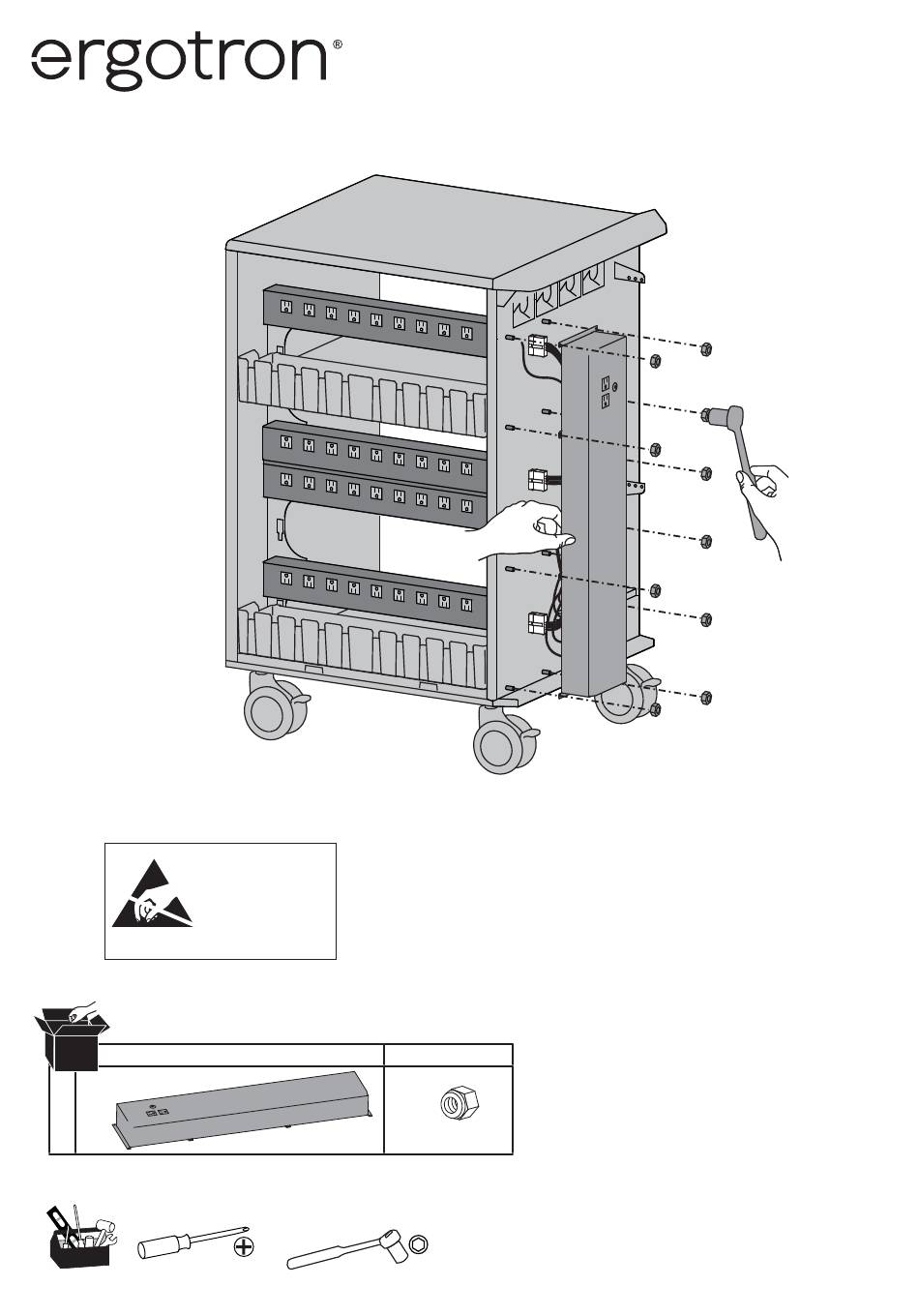

Zip40 Cart, Replace Controller Box
This product uses semiconductors that can be damaged by electrostatic discharge (ESD).
Always handle with care to avoid damage to electrostatic-sensitive components.
ATTENTION
OBSERVE PRECAUTIONS
SENSITIVE DEVICES
Components
1x
1
Tools Needed
888-06-012-G-00 rev. B • 03/20
To prevent equipment damage, discharge body static before handling
the printed circuit boards or any module containing a printed
circuit board. To discharge body static, use a conductive wrist strap
ELECTROSTATIC
attached to a good earth ground or discharge body static by touching
a grounded bare metal surface. Handle printed circuit boards or
827-181-00
modules by their edges once removed from protective antistatic bags.
A
B
10x
M4
7mm
Service Manual
1 of 6

Advertisement

loading
Need help?

Need help?

Do you have a question about the Zip40 and is the answer not in the manual?

Questions and answers

Related Manuals for Ergotron Zip40

Summary of Contents for Ergotron Zip40

  • Page 1 Service Manual Zip40 Cart, Replace Controller Box This product uses semiconductors that can be damaged by electrostatic discharge (ESD). Always handle with care to avoid damage to electrostatic-sensitive components. To prevent equipment damage, discharge body static before handling ATTENTION the printed circuit boards or any module containing a printed OBSERVE PRECAUTIONS circuit board.

  • Page 2: Hazard Symbols

    Hazard Symbols Symbol Signal Word Level of Hazard Review A NOTE indicates important information that helps you NOTE make better use of this product. These symbols alert users of a safety condi- tion that demands attention. All users should A CAUTION indicates either potential damage to be able to recognize and understand the CAUTION hardware or loss of data and tells you how to avoid the...
  • Page 3 Open doors. Remove back panel. 888-06-012-G-00 rev. B • 03/20 3 of 6...
  • Page 4 Unplug power cable from cart and remove side cover. WARNING MOVING PARTS CAN CRUSH AND CUT Unplug power cord. DO NOT place hands on or near fans. Placing hands on or near fans may cause equipment damage and/or serious personal injury. 828-196 Remove Controller Box: a.
  • Page 5 Replace Controller Box: a. Plug in new controller box. b. Attach controller box with 10 M4 nuts. c. Plug cables into controller box. 888-06-012-G-00 rev. B • 03/20 5 of 6...
  • Page 6 Attach side cover. Attach back panel. www.ergotron.com | USA: 1-800-888-8458 Europe: +31 (0)33-45 45 600 China: 400-120-3051 Japan: japansupport@ergotron.com 888-06-012-G-00 rev. B • 03/20 6 of 6...
