Pr.22 OL Trip Time the overload trip time (OL Trip Time), the inverter output is either blocked
according to the preset mode from Pr. 17 or slows to a stop after
deceleration.
Note

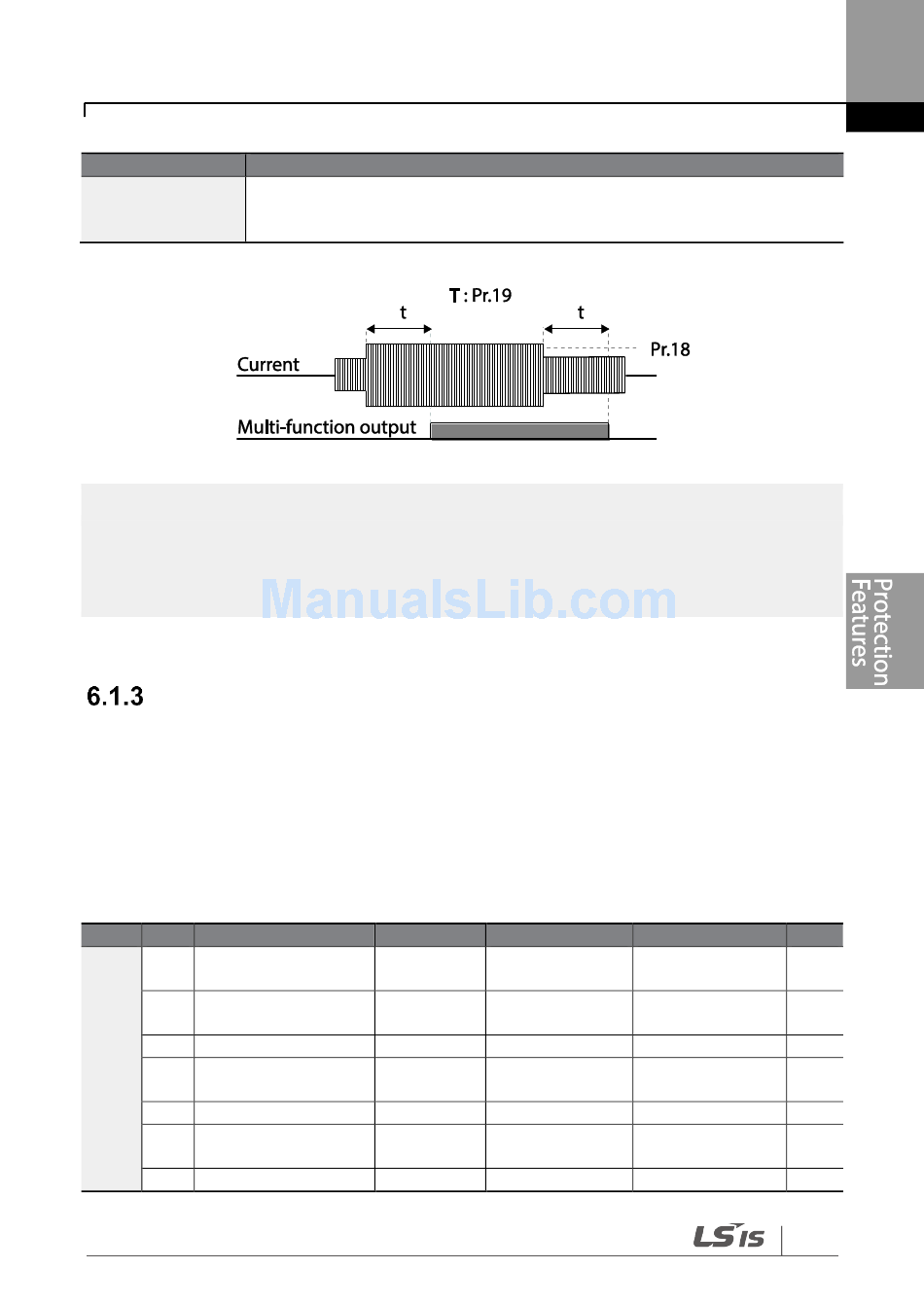

Overload warnings warn of an overload before an overload fault trip occurs. The overload
warning signal may not work in an overload fault trip situation, if the overload warn level (OL
Warn Level) and the overload warn time (OL Warn Time) are set higher than the overload trip
level (OL Trip Level) and overload trip time (OL Trip Time).

Stall Prevention and Flux Braking

The stall prevention function is a protective function that prevents motor stall caused by
overloads. If a motor stall occurs due to an overload, the inverter operation frequency is
adjusted automatically. When stall is caused by overload, high currents are induced in the
motor may cause motor overheat or damage the motor and interrupt operation of the motor-
driven devices.
To protect the motor from overload faults, the inverter output frequency is adjusted
automatically, based on the size of load.
Group Code
Stall prevention and
50
flux braking
51 Stall frequency 1
52 Stall level 1
Pr
53 Stall frequency 2
54 Stall level 2
55 Stall frequency 3
56 Stall level 3
Name LCD Display Parameter Setting
Stall Prevent 0000*
Stall Freq 1
Stall Level 1 180
Stall Freq 2
Stall Level 2 180
Stall Freq 3
Stall Level 3 180
Learning Protection Features
Description
Setting range
Start frequency–
60.00
Stall Freq 1
Stall Freq 1–Stall
60.00
Stall Freq 2–Stall
60.00
Unit
- bit
Hz
30-250 %
Hz
Freq 3
30-250 %
Hz
Freq 4
30-250 %
253
