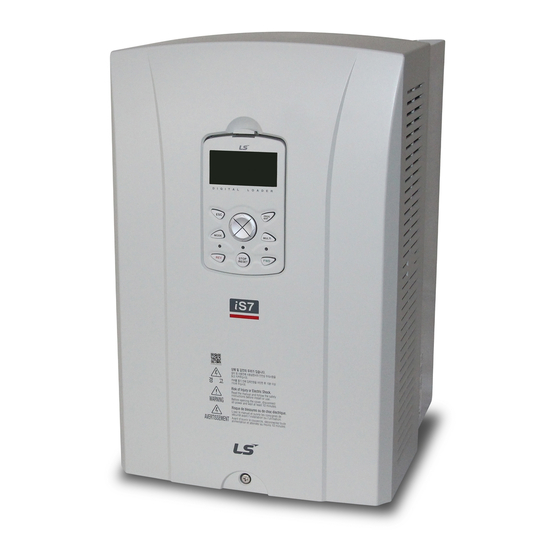

LSIS SV-iS7 series User Manual

Profibus option board
Hide thumbs Also See for SV-iS7 series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Manual

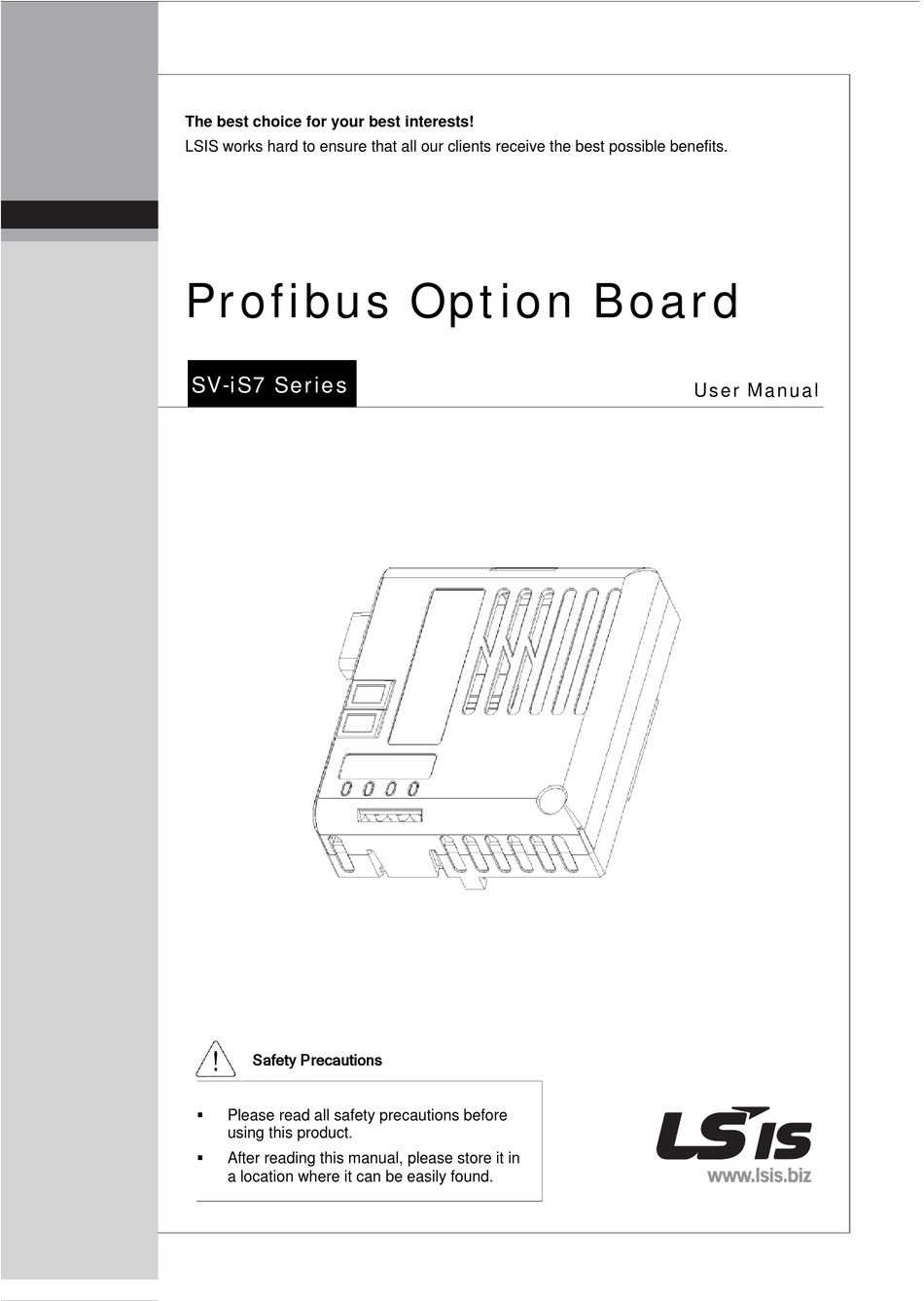

The best choice for your best interests!
LSIS works hard to ensure that all our clients receive the best possible benefits.
Profibus Option Board
SV-iS7 Series
Safety Precautions
Please read all safety precautions before
using this product.
After reading this manual, please store it in
a location where it can be easily found.
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SV-iS7 series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LSIS SV-iS7 series

Summary of Contents for LSIS SV-iS7 series

  • Page 1 The best choice for your best interests! LSIS works hard to ensure that all our clients receive the best possible benefits. Profibus Option Board SV-iS7 Series User Manual Safety Precautions  Please read all safety precautions before using this product.

  • Page 3: Instructions To Users

    INSTRUCTIONS TO USERS INSTRUCTIONS TO USERS Thank you for your selecting our Profibus-DP option. This instruction includes how to use the product and the instruction during handling. Your wrong handling of this product may cause damage and then it reduces the duration of the product.

  • Page 4: Safety Precautions

    Safety Precautions Safety Precautions Safety Precautions are for using the product safe and correct in order to prevent the accidents and danger, so please go by them. The precautions explained here only apply to the iS7 Profibus Option. For safety precautions on the Inverter system, refer to the iS7 User’s manual.
  • Page 5 Safety Precautions Caution  Be sure to check the rated voltage and terminal arrangement for the module and observe them correctly. It can cause fire, electric shock and malfunction.  Tighten up the terminal screw firmly to defined torque when wiring. If the terminal screw looses, it can cause fire and electric shock.

  • Page 6: Precautions For Use

    Precautions for use Precautions for use  This option card is for SV-iS7 only. Don’t install it to any other device than SV-iS7.  When using the product, use the inverter with grounded. For the method of GND, please refer to the instruction manual of inverter body. ...

  • Page 7: Table Of Contents

    Table of Contents Table of Contents INSTRUCTIONS TO USERS ....................III SAFETY PRECAUTIONS ....................IV PRECAUTIONS FOR USE ....................VI TABLE OF CONTENTS ..................... VII SUMMARY ......................1-1 Introduction ......................... 1-1 Construction of Product ..................... 1-1 PRODUCT SPECIFICATION .................. 2-1 Basic Communication Specification of Profibus Option ..........

  • Page 8: Table Of Contents

    Table of Contents Max. Transmitting Distance Specification ..............8-1 ENVIRONMENT CONFIGURATION & OTHER FUNCTIONS ........ 9-1 GSD Files (Electronic Data Sheets) ................9-1 User Parameter Setting ..................... 9-2 Extended Diagnostic ....................9-2 COMMUNICATION PARAMETER ................ 10-1 10.1 Map Structure of Whole Communication Parameter in European Style....10-1 10.2 Parameter Group for Periodical Transmission ............

  • Page 9: Introduction

    1. Summary Summary Introduction You can connect SV-iS7 inverter to Profibus network using Profibus option. With Profibus option board built in, inverter control and monitoring by PLC sequence program or optional master module is available. As a number of inverters in connection operate through one communication line only, It reduces the installation cost compared with communication being unused.
  • Page 10 1. Summary...

  • Page 11: Product Specification

    2. Product Specification Product Specification Basic Communication Specification of Profibus Option  Device Type : Profibus DP Slave  Auto Baud Rate Detect : Support  Sync Mode : Support  Freeze Mode : Support  Max Input Length : 8 words ...

  • Page 12: Dimension

    2. Product Specification Dimension 22.5mm 69mm 93mm...

  • Page 13: Appearance And Name Of Each Part

    3. Appearance and Name of Each Part Appearance and Name of Each Part ④ ⑤ ① ② ③ Figure 1. Exterior Appearance LED Display  Name Application ① DATA_EX LED Always “On” when Profibus is Online status. ② ERROR LED “On”...
  • Page 14 3. Appearance and Name of Each Part Communication Line Connecting Terminal  Pin No. Signal Description Shield Protective Ground Line 24V Output GND RxD/TxD-P Send/Receive Data Plus CTRL-P Control Signal for Repeater DGND Signal GND 5V for Terminating Resistance 24V Output Plus RxD/TxD-N Send/Receive Data Negative CTRL-N...

  • Page 15: Option Installation Method

    4. Option Installation Method Option Installation Method How to install option to inverter 1. Power off. 2. Connect connector after isolating front cover from iS7 as shown in Figure below. 3. Fix by enclosed volt. 4. Power On and Check “Profibus” at parameter, “CNF 31: Option-1 Type”. ...
  • Page 16 4. Option Installation Method...

  • Page 17: Profibus Parameter

    5. Profibus Parameter Profibus Parameter Station Address Setting Minimum Value Max. Value Position on Keypad Field Bus ID No. 7 of COM Group ※ Station address is a peculiar value distinguishing each node in the Profibus Network, and therefore each different device cannot jointly possess the same value.

  • Page 18: Address Of Input Data Setting

    5. Profibus Parameter Address of Input Data Setting Determines the address setting in the number of data to be input. Minimum Value Max. Value Position on Keypad Para Ctrl 1~8 0h0000 0hFFFF Nos. 51~58 of COM Group I/O Data Send/Receive Output data set in the keypad of the inverter is transmitted to Profibus Master Module (Control Program of PLC or PC) through Profibus Option Module.

  • Page 19: Basic Feature

    6. Basic Feature Basic Feature When turning on the inverter power or when reset occurs;  CPU LED flashes if power supply is in normal state.  ERR LED is On if power supply is in abnormal state.  Conduct configuration using the keypad. ...
  • Page 20 6. Basic Feature...

  • Page 21: Unusual Operation And Measures

    7. Unusual Operation and Measures Unusual Operation and Measures The status of device and network is displayed through three (3) LED (DATA_EX, ERR, CPU) lights located at the lower part of the Product. The current status can be checked through the display of LED. DATA_EX LED Operation and Measures against Error Status...

  • Page 22: Cpu Led Operation And Measures Against Error

    7. Unusual Operation and Measures CPU LED Operation and Measures against Error Status Cause Help Check for the condition of inverter power inverter power supply. Power supply defect/ Supply Defect of Contact Check for error of inverter. Defect between inverter Check for the contact between inverter and and option connector.

  • Page 23: Construction Of System & Transmission Specification

    8. Construction of System & Transmission Specification Construction of System & Transmission Specification Installation of Terminating Resistance and its Specification Max. Transmitting Distance Specification Communication Speed(Kbps) Max. Segment Length Max. Extended Distance 9.60 1000 m / 3278 feet 10000 m / 32786 feet 19.20 1000 m / 3278 feet 10000 m / 32786 feet...

  • Page 25: Environment Configuration & Other Functions

    This is the file including the information of inverter Profibus Option Module. This file is required in the Profibus Configuration Software. Be sure to use iS7- use GSD file. The relevant file can be downloaded from the homepage of LSIS Co., Ltd. (http://www.lsis.biz). ...

  • Page 26: User Parameter Setting

    9. Environment Configuration & Other Functions User Parameter Setting You may set Profibus-use User Parameter including Sycon in Profibus Master. (1) Data Word Format Inverter data is word, which is sent divided into byte at the time of data transmission. At this time, whether transmitting to MSB-LSB or to LSB-MSB will be elected.

  • Page 27: Communication Parameter

    10. Communication Parameter Communication Parameter 10.1 Map Structure of Whole Communication Parameter in European Style Category Address Type of Parameter iS5 Series Compatible 0h0000~0h00FF Common Category 0h0100~0h01FF Parameter registered on COM Grp 0h0200~0h023F Parameter registered on Usr Grp Parameter Registered Type Category 0h0240~0h027F Parameter registered on Macro Grp...

  • Page 28: Parameter Group For Periodical Transmission

    10. Communication Parameter 10.2 Parameter Group for Periodical Transmission Parameter Group that can make Communication using the Address registered in Communication Function Group (COM) 0h100 ~ 0h107: Inverter Status Parameter registered on Status Para # of KeyPad Parameter COM Group 0h110 ~ 0h117: Inverter Control Parameter registered on Control Para # of KeyPad Parameter COM Group All other categories (0h108 ~ 0h10F, 0h117 ~ 0h1FF) are invalid addresses.

  • Page 29: Parameter Group For User & Macro Grp Transmission

    10. Communication Parameter Address Parameter Value Allotted by Bit Parameter value 0h0116 Control Parameter #7 registered on COM-57 Parameter value 0h0117 Control Parameter #8 registered on COM-58 0h118~0h1FF Invalid address Category not used 10.3 Parameter Group for User & Macro Grp Transmission 0h200 ~ 0h23F: User Grp Parameter Currently Registered Address...

  • Page 30: 0H240 ~ 0H27F: Macro Grp Parameter Currently Configured

    10. Communication Parameter 10.4 0h240 ~ 0h27F: Macro Grp Parameter Currently Configured Address Parameter Value Allotted by Bit 0h0240 Macro Grp. Code 1 Parameter value registered on U&M>MC->1 0h0241 Macro Grp. Code 2 Parameter value registered on U&M>MC->2 0h0242 Macro Grp. Code 3 Parameter value registered on U&M>MC->3 0h0243 Macro Grp.

  • Page 31: Parameter Description

    11. Parameter description Parameter description 11.1 List of iS7 Profibus Communication Related Parameters Code Parameter Name Initial Value Range CFG-30 Option-1 Type 0. Keypad 1. Fx/Rx-1 DRV-06 Cmd Source 0(Fx/Rx-1) 2. Fx/Rx-2 3. RS485 4. FieldBus 0. Keypad-1 1. Keypad-2 2.
  • Page 32 11. Parameter description Code Parameter Name Initial Value Range COM-33 Para Status-3 0h000F 0~0hFFFF COM-34 Para Status-4 0h0000 0~0hFFFF COM-35 Para Status-5 0h0000 0~0hFFFF COM-36 Para Status-6 0h0000 0~0hFFFF COM-37 Para Status-7 0h0000 0~0hFFFF COM-38 Para Status-8 0h0000 0~0hFFFF COM-50 Para Ctrl Num COM-51 Para Control-1...

  • Page 33: Description Of Is7 Profibus Communication Related Parameters

    11. Parameter description 11.2 Description of iS7 Profibus Communication Related Parameters 11.2.1 Mounted Communication Card Information – Option-1 Type (CNF-30) The kind of communication card mounted on iS7 is automatically displayed. When iS7 Profibus communication card is mounted, CNF-30 “Profibus” is automatically displayed.
  • Page 34 11. Parameter description 11.2.6 Display of LED Status Indicating Communication Status–Fbus LED(COM-9) It is a parameter that displays flashing status of DATA_EX, ERROR and CPU LEDs mounted on the Profibus communication cards. LED status is displayed in the order of RESERVED, DATA_EX, ERROR and CPU LEDs from right to left on the keypad.
  • Page 35 11. Parameter description The discordance between the number of output data established in master configuration and that of COM-31 Para Status Num leads to communication failure. (4) Establishment of Output Data Address– Para Control 1~8 (COM- 51~58) The Para Status address is set to meet the number established in OM-50 Para Ctrl Num, and only available inverter address is to be entered from 1 to 8.
  • Page 36 11. Parameter description (2) Communication Command Loss Determination Time– Lost Cmd Time (PRT-13) The loss of communication command is perceived when communication loss occurs during the time established as ‘communication command loss determination time’. To use communication command loss function, DRV-06 Cmd Source needs to be set into “Fieldbus’, or RV-07 Freq Ref Src as “Fieldbus”.

  • Page 37: Existing Is5/Ig5/ Ig5A Compatible Common Area Parameter

    12. Existing iS5/iG5/ iG5A compatible common area parameter Existing iS5/iG5/ iG5A compatible common area parameter Address Parameter Scale unit Allotment for Bits 0h0000 Inverter model B: iS7 0: 0.75kW 1: 1.5kW 2: 2.2kW 3: 3.7kW 4: 5.5kW 5: 7.5kW 6: 11kW 7: 15kW 8: 18.5kW 9: 22kW...
  • Page 38 12. Existing iS5/iG5/ iG5A compatible common area parameter Address Parameter Scale unit Allotment for Bits 24: V2 25: I2 26: Reserved 27: Built-in485 28: Communication option 29: PLC option 30: JOG 31: PID 0: Keypad 1: FX/RX-1 2: FX/RX-2 3: Built-in 485 4: Communication option 5: PLC option Reserved...
  • Page 39 12. Existing iS5/iG5/ iG5A compatible common area parameter Address Parameter Scale unit Allotment for Bits (Built-in type, Option) 1: Run command by comm. (Built-in type, Option) B12 Reverse direction run command B11 Forward direction run command B10 Brake open signal Jog mode Stop DC Braking...
  • Page 40 12. Existing iS5/iG5/ iG5A compatible common area parameter Address Parameter Scale unit Allotment for Bits Reserved Reserved Reserved Reserved Reserved Level Type Trip Reserved Reserved Latch Type Trip B15 Reserved B14 Reserved B13 Reserved B12 Reserved B11 Reserved B10 P11 (extended I/O) P10 (extended I/O) Input terminal 0h0010...
  • Page 41 12. Existing iS5/iG5/ iG5A compatible common area parameter Address Parameter Scale unit Allotment for Bits B15 Reserved B14 Reserved B13 Reserved B12 Reserved B11 Reserved B10 Reserved Reserved Reserved output terminal 0h0011 information Reserved Reserved Relay 5(extended I/O) Relay 4(extended I/O) Relay 3(extended I/O) Relay 2 Relay 1...
  • Page 42 12. Existing iS5/iG5/ iG5A compatible common area parameter Address Parameter Scale unit Allotment for Bits ~0h0019 0: Hz unit 0h001A Hz/rpm selection 1: rpm unit Motor poles 0h001B Motor poles displayed displayed 12-12...
  • Page 43 12. Existing iS5/iG5/ iG5A compatible common area parameter 12-13...

  • Page 44: Is7 Extended Common Area Parameter

    13. iS7 Extended common area parameter iS7 Extended common area parameter 13.1.1 Inverter Monitoring Area Parameter (Reading only) Address Parameter Scale unit Allotment for Bits 0h0300 Inverter model iS7: 000Bh 0.75kW: 3200h 1.5kW: 4015h, 2.2kW: 4022h, 3.7kW: 4037h, 5.5kW: 4055h, 7.5kW: 4075h, 11kW: 40B0h 15kW: 40F0h, 18.5kW: 4125h, 22kW: 4160h, 0h0301 Inverter capacity...
  • Page 45 13. iS7 Extended common area parameter Address Parameter Scale unit Allotment for Bits 0h0304 Reserved 0: normal status 4: Warning status 8: Fault status (operates according to set value of PRT-30 Trip Out Mode) 0h0305 Inverter operating status 1: Speed search 2: Accelerating 3: Steady speed 4: Decelerating...
  • Page 46 13. iS7 Extended common area parameter Address Parameter Scale unit Allotment for Bits Frequency command source 0: Keypad speed 1: Keypad torque 2~4:Up/Down run speed 5: V1 6: I1 7: V2 8: I2 9: Pulse 10: Built-in485 11: Communication option 12: App(PLC) 13: Jog 14: PID...
  • Page 47 13. iS7 Extended common area parameter Address Parameter Scale unit Allotment for Bits 0h0318 PID reference 0h0319 PID feedback Number of No.1 motor 0h031A Number of No.1 motor display display Number of No.2 motor 0h031B Number of No.2 motor display display Number of selected motor 0h031C...
  • Page 48 13. iS7 Extended common area parameter Address Parameter Scale unit Allotment for Bits P1 (Basic I/O) BI5 Reserved BI4 Reserved BI3 Reserved BI2 Reserved BI1 Reserved BI0 Reserved Reserved Reserved 0h0321 Digital output information Reserved Reserved Relay 5 (Extended I/O) Relay 4 (Extended I/O) Relay 3 (Extended I/O) Q1 (Basic I/O)
  • Page 49 13. iS7 Extended common area parameter Address Parameter Scale unit Allotment for Bits Virtual DI 10 (COM79) Virtual DI 9 (COM78) Virtual DI 8 (COM77) Virtual DI 7 (COM76) Virtual DI 6 (COM75) Virtual DI 5 (COM74) Virtual DI 4 (COM73) Virtual DI 3 (COM72) Virtual DI 2 (COM71) Virtual DI 1 (COM70)
  • Page 50 13. iS7 Extended common area parameter Address Parameter Scale unit Allotment for Bits BI5 Fuse Open Trip BI4 Overheat Trip BI3 Arm Short BI2 External Trip BI1 Overvoltage Trip BI0 Overcurrent Trip NTC Trip Overspeed Deviation 0h0330 Latch type trip information-1 Overspeed Input open-phase trip Output open-phase trip...
  • Page 51 13. iS7 Extended common area parameter Address Parameter Scale unit Allotment for Bits No MotorTrip External Brake Trip Basic IO board contact defectiveness Pre PID Fail Error on Parameter Write Reserved FAN Trip PTC (Thermal sensor) Trip Encoder Error Trip MC Fail Trip B15 Reserved B14 Reserved...
  • Page 52 13. iS7 Extended common area parameter Address Parameter Scale unit Allotment for Bits Lost Command B15 Reserved B14 Reserved B13 Reserved B12 Reserved B11 Reserved B10 Reserved Reserved Reserved 0h0333 H/W Diagnosis Trip information Reserved Reserved Reserved Gate Drive Power Loss Watchdog-2 error Watchdog-1 error EEPROM error...
  • Page 53 13. iS7 Extended common area parameter Address Parameter Scale unit Allotment for Bits B11 Reserved B10 Reserved Auto Tuning fail Keypad Lost Encoder miss-wiring Encoder miss-installation FAN operation Lost command Inverter Overload Underload Overload 0h0335~ Reserved 0h033F 0h0340 On Time date Total number date of inverter power On Total minute except for total date of inverter On 0h0341...
  • Page 54 13. iS7 Extended common area parameter Address Parameter Scale unit Allotment for Bits 0h0349 Reserved 0: None 1: Reserved 0h034A Option 1 2: Reserved 3: Profibus, 0h034B Option 2 4: Reserved 5: Reserved 6: Reserved 7: RNet, 8: Reserved 9: Reserved 0h034C Option 3 10: PLC,...
  • Page 55 13. iS7 Extended common area parameter 13.1.2 Inverter Control Area Parameter (Reading and Writing Available) Address Parameter Scale unit Allotment for Bits 0h0380 Frequency command 0.01 command frequency setting 0h0381 RPM command command RPM setting B7 Reserved B6 Reserved B5 Reserved B4 Reserved B3 01: free run stop 0h0382...
  • Page 56 13. iS7 Extended common area parameter Address Parameter Scale unit Allotment for Bits B8 Virtual DI 9 (COM78) B7 Virtual DI 8 (COM77) B6 Virtual DI 7 (COM76) B5 Virtual DI 6 (COM75) B4 Virtual DI 5 (COM74) B3 Virtual DI 4 (COM73) B2 Virtual DI 3 (COM72) B1 Virtual DI 2 (COM71) B0 Virtual DI 1 (COM70)
  • Page 57 13. iS7 Extended common area parameter Address Parameter Scale unit Allotment for Bits B1 Relay2 (basic I/O, OUT32:None) B0 Relay1 (basic I/O, OUT31:None) 0h0387 Reserved Reserved 0h0388 PID reference PID reference command released 0h0389 PID feedback value PID feedback value 0h038A Reserved ~0h038F...
  • Page 58 13. iS7 Extended common area parameter 13.1.3 Inverter Memory Control Area Parameter(Reading and Writing Available) In this area, if the parameter is set, it is not only reflected in the inverter but saved. Parameters of other areas, if set by communication, are reflected in the inverter but not saved.
  • Page 59 13. iS7 Extended common area parameter Shift Address Parameter Scale unit during Function operation Initial parameter easy 0h03E9 0: No 1:Yes setting Consumed power note1) 0h03EA 0: No 1:Yes initialization Cumulative inverter note1) 0h03EB 0: No 1:Yes operating time initialization Cumulative cooling fan note1) 0h03EC...

  • Page 61: Warranty

    Phone Number Notes This inverter has been manufactured by LSIS using strict quality control and inspection processes. The warranty period is 18 months from the date of installation. A period of 18 months from the date of manufacture will be applied if the date of installation has not been entered.

  • Page 62: Manual Revision History

    Manual Revision History Manual Revision History Date of Publication Contents Changed Version Number Remarks First Edition V1.0...
  • Page 64 T el: 86-532-8501-6568, F ax: 86-532-583-3793, e-mail: lirj@lsi s.com.cn ※ LSIS constantly endeavors to improve its products. The information in this manual is subject to change without notice. SV-iS7 Series ⓒ LSIS Co., Ltd 2011 All Rights Reserved.
