- Page 1 S m a r t I n s t r u c t i o n s S m a r t P R O S m a r t C O M ® SWISS MADE BY UWATEC AG...
-
Page 2: List Of Chapters I Safety Considerations
• Only make dives that are appropriate to your level of dive training. The Smart does not increase your knowledge of diving. • Avoid repeated ascents and descents (yo-yo diving). • Avoid repeated heavy workload whilst at depth. • Plan the dives to be shorter if they are made in cold water. I Uwatec ® Smart dive computers... - Page 3 Pro and Smart Com concerning depth gauge and combined depth and time measuring devices. The fun- ctional and safety requirements test methods are an European diving standard draft. Any information on decompression obligation displayed by equipment covered by this standard is explicitly excluded from its scope. EN 1000-4-2 BZT I Uwatec ® Smart dive computers...
-
Page 4: Introduction
Further information on Uwatec Smart dive computers and other products by UWATEC can be found on our web page at www.uwatec.com. To make this manual easier to read we will use the term 'Smart' for 'Uwatec Smart dive computers' through- out the booklet. -
Page 5: Quick Reference / Operating Scheme

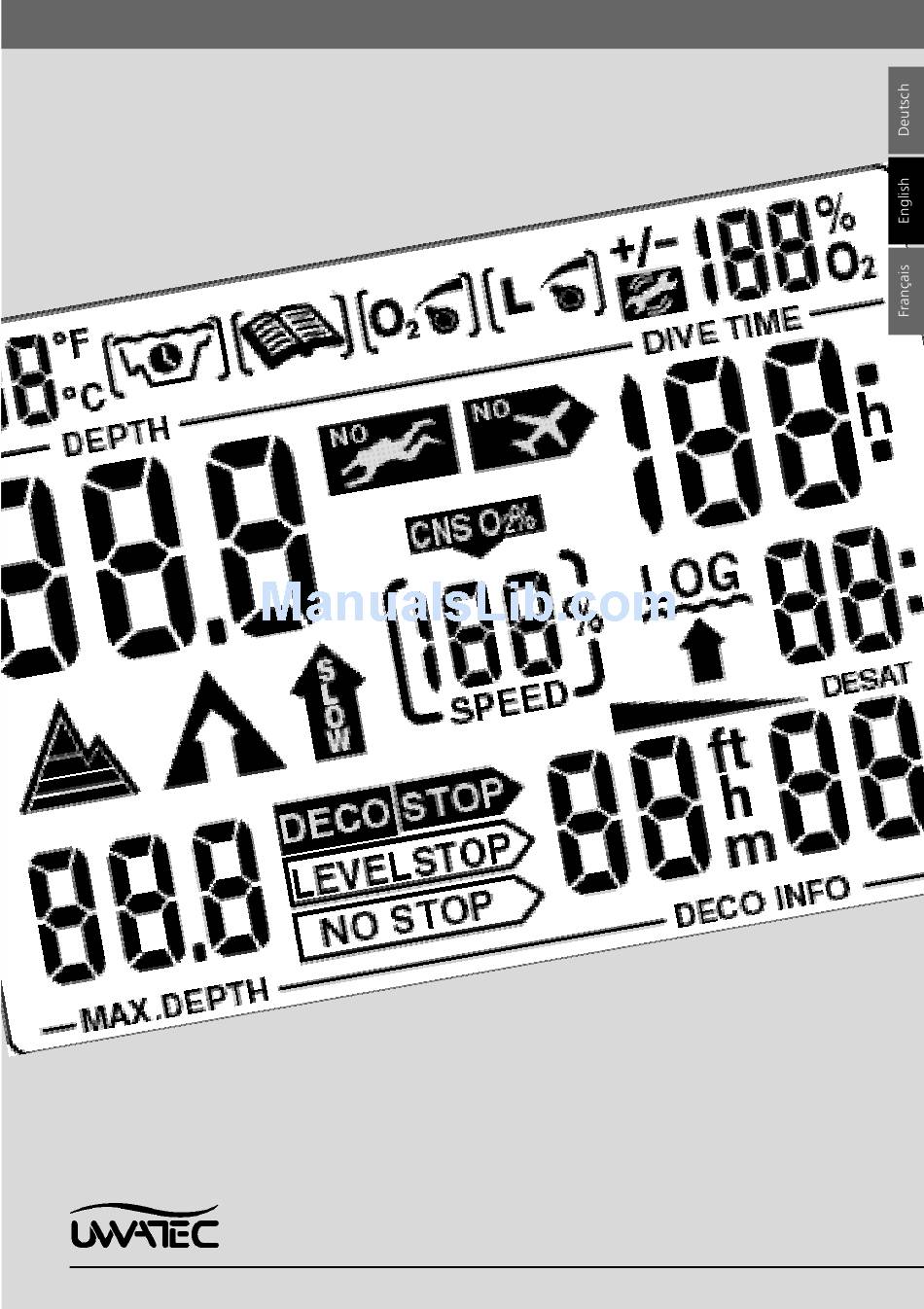

3 minutes without operation. • The backlight can be switched on by pres- Display + / Navigate switched off sing the Smart Pro above the display, and – / Navigate the Smart Com at the right hand side of MAX.DEPTH DECO INFO the display. -
Page 6: Table Of Contents
__________________________________18 4.10 Decompression information __________________________________18 Decompression values __________________________________19 Total time of ascent __________________________________19 5 Functions at the Surface __________________________________20 5.1 End of a dive __________________________________20 5.2 Desaturation time __________________________________20 5.3 No fly time __________________________________20 I Uwatec ® Smart dive computers... - Page 7 3 Leaving the Dive Planner __________________________________28 VI Logbook __________________________________29 1 Survey __________________________________29 2 Operating __________________________________29 VII Appendix __________________________________30 1 Technical Information __________________________________30 2 Maintenance __________________________________30 3 COM Conversion of tank pressure __________________________________30 4 Warranty __________________________________31 5 Index __________________________________31 I Uwatec ® Smart dive computers...
-
Page 8: System And Operation
(IrDA) and the SmartTrak software to a Windows personal computer. The SmartTrak CD ® software is included with the SmartTrak Package. Infrared interfaces are available in PC-stores. A list of recommended interfaces is available on the Uwatec homepage (www.uwatec.com). SmartTrak Smart Com Smart Pro... -
Page 9: Switching On The Display
E. The remaining capacity is displayed during 3 seconds as a percenta- ge. If the value reaches 0%, the battery warning gets activated (see page 13) and the battery has to be replaced by an authorised Scubapro-Uwatec dealer. DIVE TIME... -
Page 10: Active Backlight
The display of the Smart can be illuminated both on the surfa- ce and underwater. The backlight can be switched on by pres- sing the Smart Pro above the display, and the Smart Com at the right hand side of the display. The light will turn off automati- cally after 8 seconds or after the time selected in the SmartTrak software. -
Page 11: Diving With Smart
Prescribed duration of the Including decompression Remaining Bottom Time, RBT decompression stop at the stops in minutes. Allowing for ascent time to the displayed decompression surface and all deco stops if present stage (minutes). (minutes). III Uwatec ® Smart dive computers... -
Page 12: Nitrox Information (O -Information)
CNS O value comes to 100%, the closer the limit, where symptoms can occur. See page 17. Nitrox diving may only be attempted by experienced divers after proper training WARNING from an internationally recognized agency. III Uwatec Smart dive computers ®... -
Page 13: Attention Messages And Alarms
Diving with Microbubble-Levels (L1-L5): capacity reaches 0%. • Level-stop ignored Take the unit to your aut- • Microbubble-level reduced DIVE TIME horised Scubapro Uwatec • Begin decompression obligation retailer. * without acoustic attention beep *without acoustic alarm III Uwatec ®... -
Page 14: Preparation For The Dive
DECO STOP the Smart only if all elements of the display are activated. LEVELSTOP NO STOP MAX.DEPTH DECO INFO TANK DATA 3. COM Check the connections and instruments for leaks. Never dive with leaky equipment! III Uwatec Smart dive computers ®... -
Page 15: Functions During The Dive
The Smart provides an acoustic alarm if the ascent rate is 110% or greater. The SPEED intensity of the alarm increases in direct proportion to the degree that the pre- scribed ascent rate is exceeded. NO STOP MAX.DEPTH DECO INFO ascent speed % III Uwatec ® Smart dive computers... -
Page 16: Partial Pressure Of Oxygen
Ascend to a shallower depth in order to diminish the danger of oxygen poisoning. • The allowed maximum depth should not be exceeded. Disregarding the WARNING warning can lead to oxygen poisoning. • ppO should not be set higher than 1.6 bar 2 max III Uwatec Smart dive computers ®... -
Page 17: Oxygen Toxicity
Messages: In case of increased workload, the Smart 4 sec TANK DATA WARNING Com displays a lung symbol in the lower display and an acoustic warning occurs. Response: In order to prevent additional saturation, reduce exertion, relax and breathe more slowly. III Uwatec ® Smart dive computers... -
Page 18: Com Remaining Bottom Time (Rbt)
In order to prevent a decompression dive, you must DEPTH DIVE TIME ascend a few metres (feet) after this message. CNS O Do not use the Smart for planned decompression NO STOP WARNING MAX.DEPTH DECO INFO dives! III Uwatec Smart dive computers ®... -
Page 19: Decompression Values
Com detects a higher workload. MAX.DEPTH DECO INFO Total time of ascent On all dives with the Smart, make a safety stop for WARNING at least three minutes at a depth of 5 m (15 feet). III Uwatec ® Smart dive computers... -
Page 20: Functions At The Surface
If the dive is made in spite of the bubble warning, the diver must cope with a clearly shorter no-stop time or an extension of decompression. The duration of the bubble warning at the end of the dive can increase considerably. III Uwatec Smart dive computers ®... -
Page 21: Diving In Mountain Lakes
This has the consequence, that the RBT (COM) and the dive planner are not avai- • COM no RBT lable anymore. The oxygen toxicity and the tank pressure (COM) are still indica- ted. TANK DATA III Uwatec Smart dive computers ®... -
Page 22: Diving With Microbubble-Level (Mb)
PFO (patent foramen ovale), an open connection between the right and left atrium of the heart. With Smart Uwatec has developed a new technology to keep the formation of microbubbles in check. The diver chooses – according to his/her needs – an MB-level and influences through it the suppression of micro- bubbles. -
Page 23: Terminology
MB No-stop phase Level-stop phase The duration of a level-stop To complete the dive without being at a given level-stop depth reduced to a lower MB level all will be displayed. requested level-stops must be observed. IV Uwatec ® Smart dive computers... -
Page 24: Preparation For A Dive With Microbubble-Levels (Mb-Levels)
When a level-stop has been finished, the next higher level-stop – if necessary – is displayed. When all level-stops have been made, the arrow extin- LEVELSTOP guishes and the arrow reappears. The indication of time on the NO STOP lower right shows the MB no-stop time again. IV Uwatec Smart dive computers ®... -
Page 25: Total Time Of Ascent
8 seconds. CNS O Response: In order to prevent a dive with long decompression DECO LEVELSTOP stops it is recommended that you ascend a few MAX.DEPTH DECO INFO metres/feet on seeing this message. IV Uwatec ® Smart dive computers... -
Page 26: Level-Stop And Deco Stop
If during a dive a level-stop is being ignored and the diver starts another des- cent shortly afterwards, Smart might immediately request level-stops. To com- plete the dive with the initially set MB-level all level-stops must be observed. IV Uwatec Smart dive computers ®... -
Page 27: Dive Planner
(ppO ) has not yet reached the set maximum value or the CNS O value has not exceeded 100%. On page 20 you will find further information and safety considerations regarding the microbubble warning. V Uwatec ® Smart dive computers... -
Page 28: Planning A Nitrox-Dive
MAX.DEPTH DECO INFO DEPTH DECO INFO maximum dive time. 3 Leaving the Dive Planner With the contacts B and E you can leave the Dive Planner. This also occurs after three minutes without operation. V Uwatec Smart dive computers ®... -
Page 29: Logbook
VI Logbook 1 Survey Smart Pro records dive profiles of about 100 hours of diving and the Smart Com records the profiles of about 50 hours. This information can be transferred with the standard infrared-interface (IrDA) and the Windows software SmartTrak to a PC. Up to 99 dives can be displayed directly on the dive computer. -
Page 30: Appendix
Take the dive computer to an authorised Uwatec dealer in order to change WARNING the batteries. The actual change of the batteries is made by Uwatec or a Scubapro Uwatec subsidiary. The Smart is checked for its technical functioning at the same time. Do not attempt to have the batteries changed by anyone other than an authorised Scubapro Uwatec dealer. -
Page 31: Warranty
