PSW2 PSW1
Service
Test
Switch
Switch
www.seuservice.com

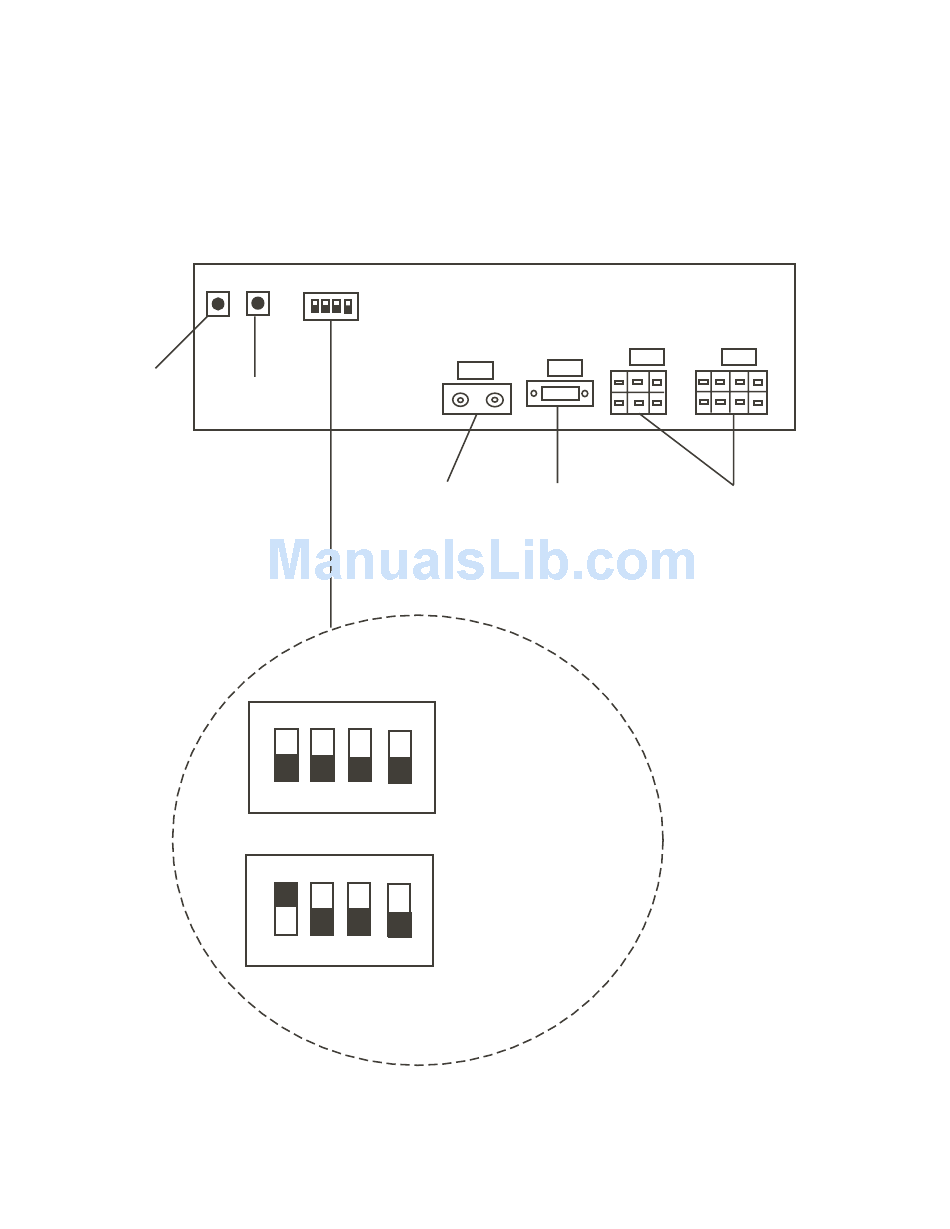

Sega Naomi System
Filter Board Information
Connector Description etc.
DIPSW1
Preamp Level
Audio Out
1
2
3
4
1
2
3
CN3
CN4
VGA Level
Video Out
Setting for High
Resolution 31KHZ
1 -4 off
Setting for Standard
Resolution 15KHZ
1 on 2-4 off.
10
CN2
CN1
Power Connectors
