PAVER KIT INFO – ADRENALINE - CONT.
Figures 25, 26 and 27 show an example side view of a slide round pedestal, step pedestal
and exit section and a wedge anchor used in a paver installation. Pavers can be a maximum
of 3" thick. Pavers must be mechanically attached to the concrete pad using a setting mate-
rial (such as mortar or thinset for example) that is no thicker than 3/8".
1-1/4" of each 3/8" wedge anchor needs to be exposed above the final deck surface for
the round pedestal and 1-3/4" for the step pedestal and exit section. (See Figures 25, 26
and 27.) You will need to factor in the thickness of your paver (3" MAX.) and the thickness
of your setting material (3/8" MAX.) for your individual installation.
You will need a 3/8" masonry bit for the Adrenaline™ slide.
Inter-Fab Inc. will not be responsible for damage to pavers caused by drilling or
mechanically attaching to concrete pad. Refer to paver manufacturer's specific
installation instructions before beginning.
NOTE: All Adrenaline™ wedge anchors (17 ea.) are 3/8" x 7".

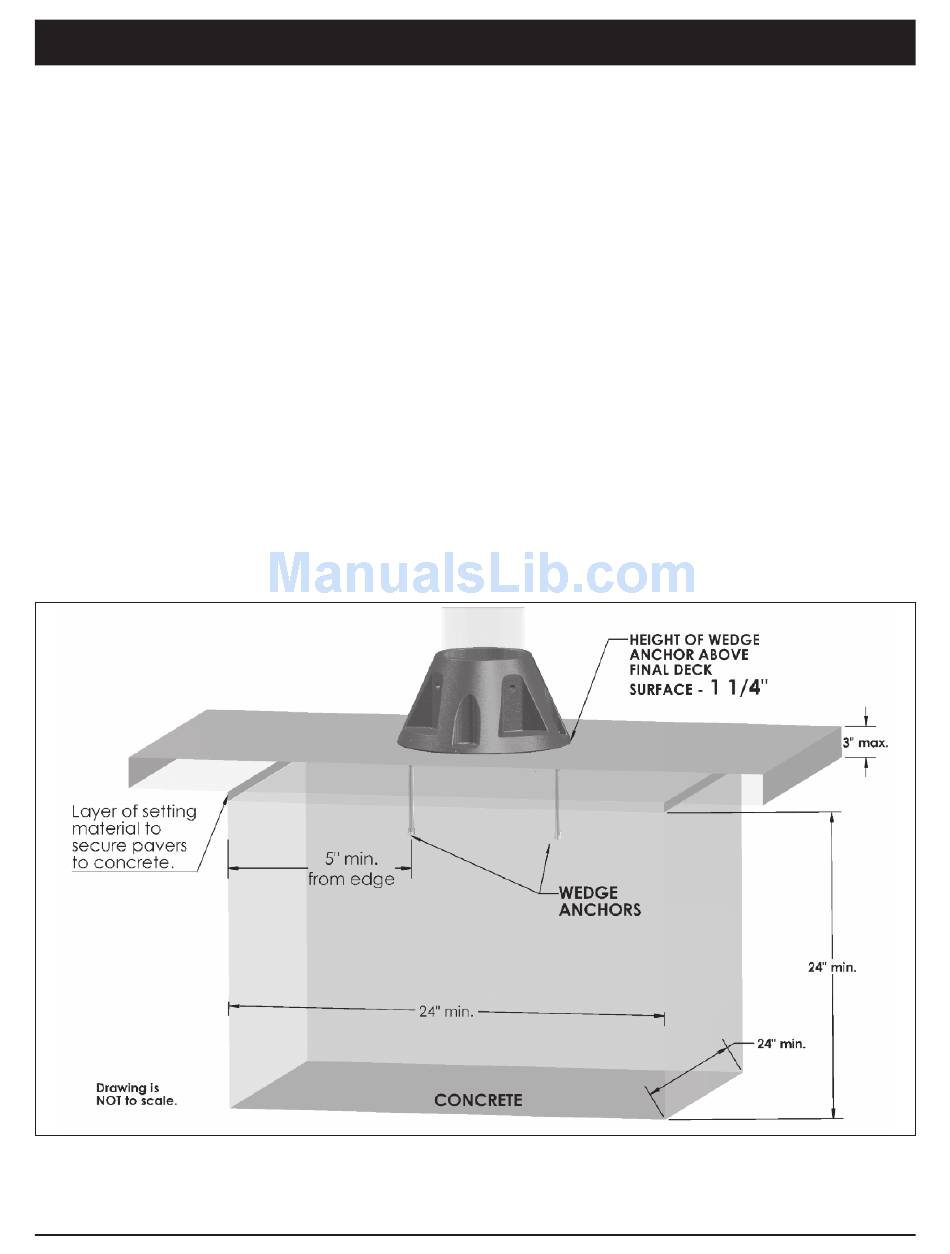

Fig. 25 – Example of Round Pedestal on Concrete Pad (side view)
