I N S T A L L A T I O N M A N U A L
STEP TWO:
ttach the Handrails to the Ladder and Entry Section - CONT.
Insert the correct length of all-thread into the nuts embedded in the handrails then attach
the handrails as illustrated. (See Fig. 6 and 7)

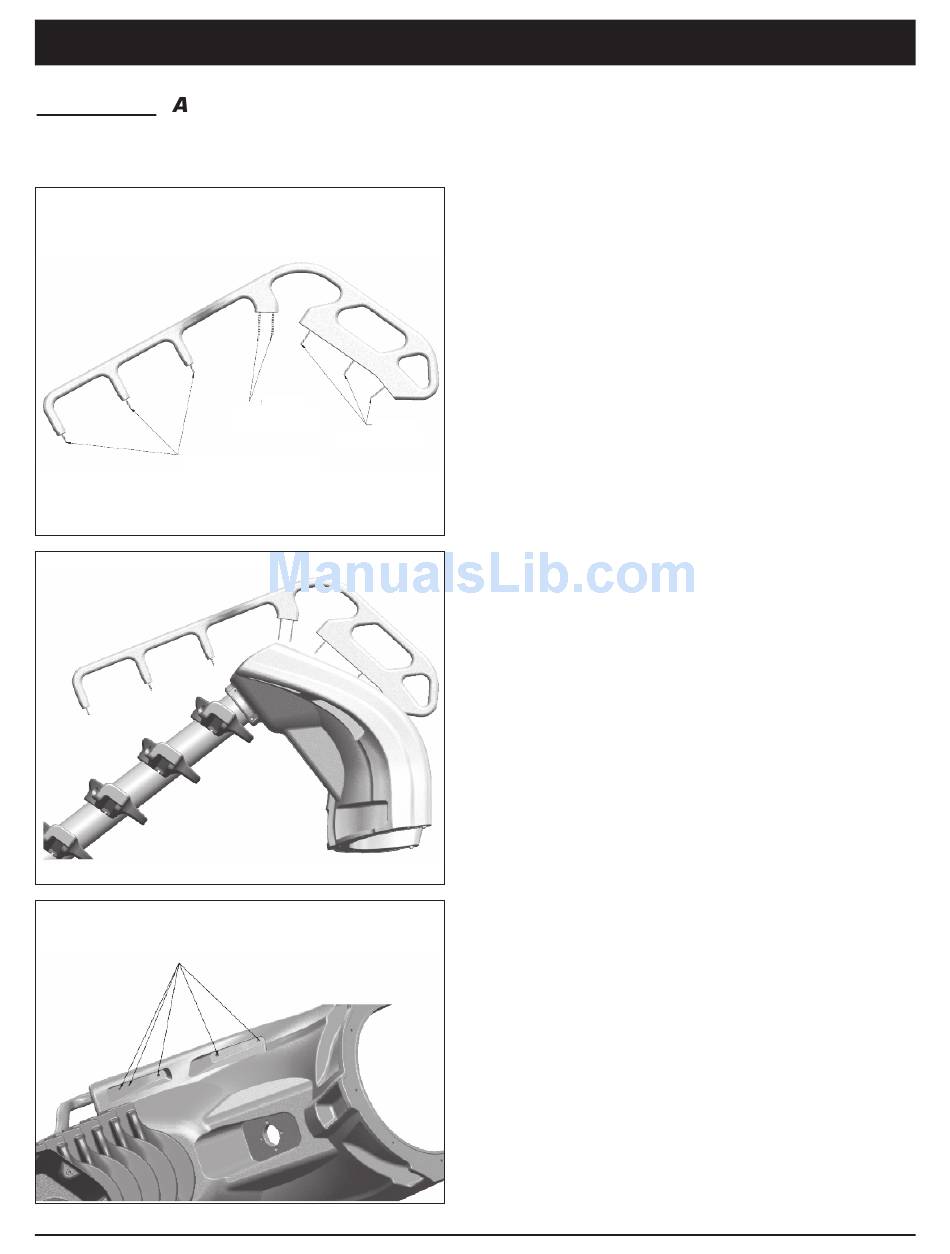

Fig. 6
5/16"x2-1/2"
Fig. 7
Fig. 8
ADR1-IM Rev. 4/16 (ADR-INSTALL)
5/16"x5"
5/16"x4"
A D R E N A L I N E ™ S L I D E
Hand tighten all-thread into each of the 8
locations on the handrails. Ensure correct
length of all-thread is used at each location.
(See Fig. 5 on page 9.)
5/16" x 2-1/2" all-thread (3 each as shown)
5/16" x 4" all-thread (3 each as shown)
5/16" x 5" all-thread (2 each as shown)
Make sure to use provided anti-seize on the
all-thread before inserting into the embedded
nuts.
Insert handrail into the top section first as
illustrated. Push or pull the handrail apart
until the all-threads pass through the 5
holes in the entry section and through the
holes drilled in the upper 3 steps.
These 5 locations on the entry section that
receive a flange nut only. (See Fig. 8) Make sure
to use the provided anti-seize on the all-threads
before attaching the flange nuts. A flat washer
is not needed. Hand tighten.
10
