2.1

Pocket sensor set

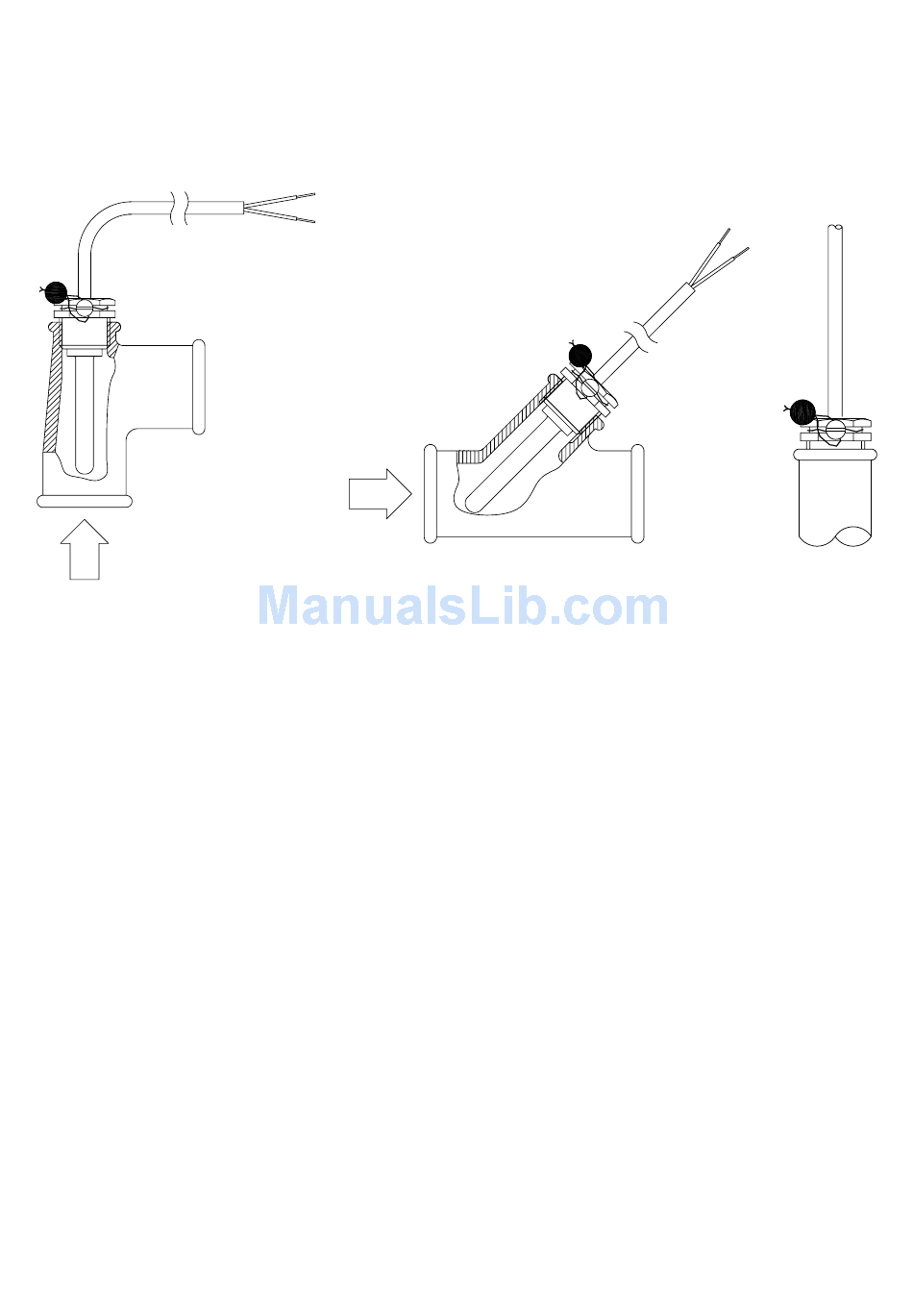

Preferably, sensor pockets must be mounted in tee-pieces or in 45° lat-
eral Y-pieces. The tip of the sensor pocket must point against the flow
direction and be placed in the middle of the water flow.
Temperature sensors should be inserted to the bottom of the pockets.
If a short response time is required, "non-hardening" heat conducting
paste can be used.
Push the plastic sleeve on the sensor cable into the sensor pocket and
secure the cable with the enclosed M4 sealing screw. Fasten the screw
with your fingers only. Seal the pockets using seal and locking wire.
