Do you have a question about the MULTICAL 602 and is the answer not in the manual?
Questions and answers
mohamed fawzy
February 3, 2025

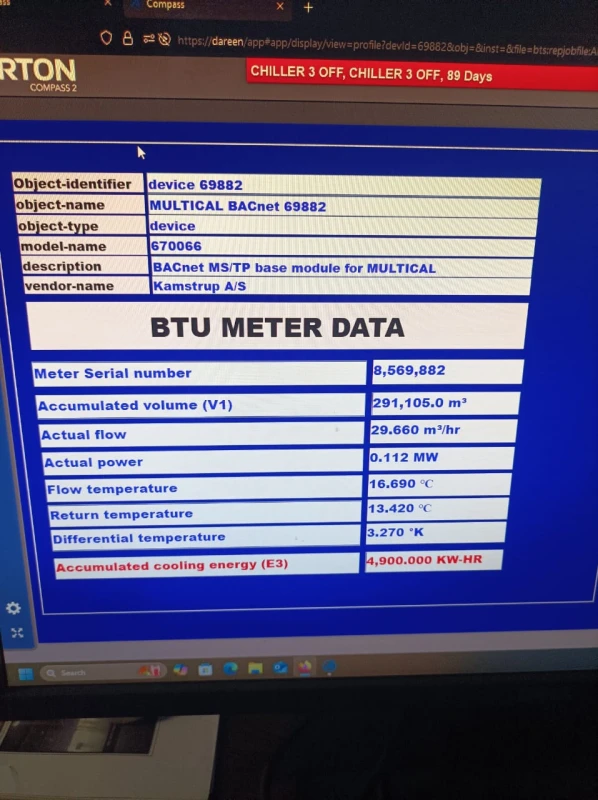

i need to know the calculation equation for that system based on the data which is given by the meter like T1 and T2and actual flow with accumulated volume as i have one meter like that but the reading i think it is not right so how i calibrate the reading or make some calculation to know the error
2 comments:
Mr. Anderson
February 10, 2025
The Kamstrup MULTICAL 602 system calculates power using the equation:
P = q (T1 – T2) × k [kW or MW]
Where: - P = Power - q = Actual water flow (e.g., in l/h) - T1 = Temperature at the inlet - T2 = Temperature at the outlet - k = Water's heat coefficient, calculated according to EN 1434:2007
To check for errors in the readings, compare the measured actual flow q and accumulated volume-based average temperatures E8 and E9. E8 and E9 accumulate the product of m³ × °C, which helps verify consistency over time if the volume register is read simultaneously.
This answer is automatically generated
mohamed fawzy
February 12, 2025
@Mr. Anderson thanks Mr Anderson.this is the instant value .but if I need to calculate the value monthly
Page 1

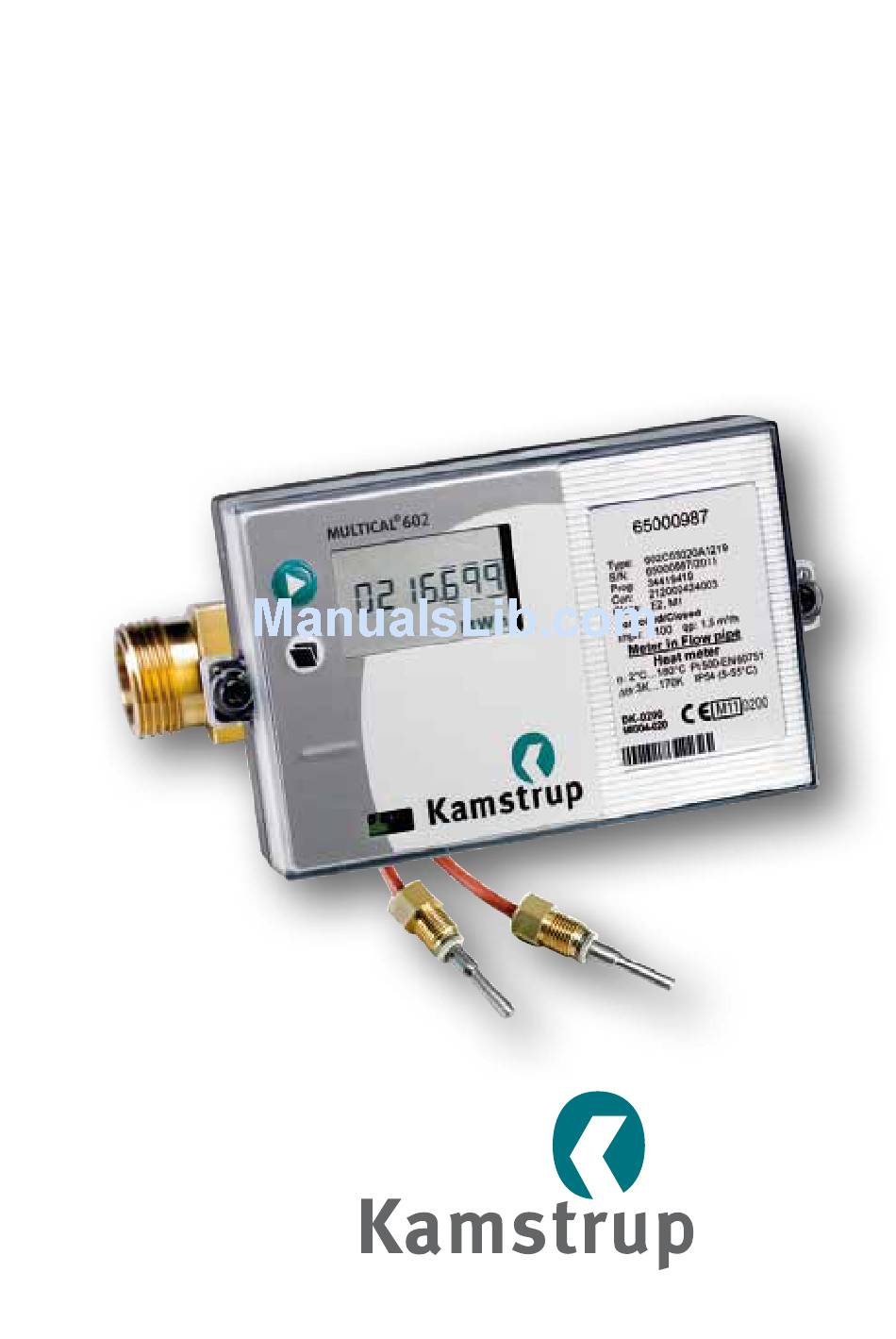

Installation and User Guide for MULTICAL® 602 & ULTRAFLOW® www.kamstrup.com...
Page 2
MULTICAL® 602, type 602-A must be connected to a temperature sensor pair type Pt100. Battery for replacement: Kamstrup type 66-00-200-100. MULTICAL® 602, type 602-A/B/C can be connected to flow sensor type ULTRAFLOW®, electronic pick-up, or flow sensors with reed switch output.
Contents General information Mounting of temperature sensors Pocket sensor pair Short direct temperature sensor pair Mounting of flow sensor Mounting ULTRAFLOW® ≤ DN100 Mounting of ULTRAFLOW® 54 ≥ DN150 Installation examples Humidity and condensation Mounting of calculator Compact mounting Separate/wall mounting Panel mounting Electrical connection, MULTICAL®...
1. General information Read this guide before installing the meter. Kamstrup's guarantee obligations do not apply in case of incorrect mounting. Please note that the following installation conditions must be obeyed: - Pressure stage ULTRAFLOW®: PN16/PN25/PN40, see marking. Flow sensor marking does not apply to enclosed accessories.
A/S can, furthermore, supply R½ and R¾ brass nipples fitting the short direct sensors. The short direct sensor can also be fitted directly into all Kamstrup's ULTRAFLOW® variants with G¾ and G1 thread on the meter case. Fasten the sensors' brass unions lightly (approx.
A Recommended flow sensor position B Recommended flow sensor position C Unacceptable position due to risk of air build-up D Acceptable in closed systems. Unacceptable position in open systems due to risk of air build-up in the system E A flow sensor ought not to be placed immediately after a valve, with the exception of block valves (ball valve type) which must be fully open when...
Mounting of ULTRAFLOW® 54 ≥ Dn150 See installation instructions No. 5512-887. Installation examples Threaded meter with MULTICAL®/Pulse Transmitter mounted on ULTRAFLOW®. Flow from the left Flow from the right Flange meter with MULTICAL®/Pulse Transmitter mounted on ULTRAFLOW®. Flow from the left Flow from the right 101 90 45°...
52 mm 6 mm holes in the wall. Panel mounting MULTICAL® 602 can be mounted direct in panels and control panels, via Kamstrup's panel mounting kit, No. 66-99-104 (192 x 144 mm). 5. Electrical connection, MULTICAL® and ULTRAFLOW® The polarity of temperature sensors T1, T2 and T3 is unimportant.
Connection example Examples of connection of ULTRAFLOW® and MULTICAL® (battery supplied). ø4.5...6 mm Heat meter with two flow sensors MULTICAL® 602 can be used in various applications with two flow sensors, including leak surveillance and open systems. When two ULTRAFLOW® are direct connected to one MULTICAL®...
(approx. 3.65 V). Therefore, it is not possible to determine the remaining capacity of the battery by measuring the voltage. The battery cannot and must not be charged and must not be short-circuited. Used batteries must be handed in for approved destruction, e.g. at Kamstrup A/S.
Mains modules The modules are protection class II. They are connected by means of a two-wire cable (without earth) through the cable bush of the calculator placed in the right side of the connecting base. Use connecting cable with 5-10 mm outer diameter and ensure correct dismantling as well as correct mounting of cable relief.
8. Information codes ”InFO” MULTICAL® 602 constantly monitors a number of important functions. In case of a serious error in measuring system or installation, "INFO" is displayed and an info-code can be read by activating the top front key until the measuring unit says "INFO".
The pulse inputs can be used for connection of electricity and water meters. Please pay attention to maximum pulse frequency as well as correct pulse coding (l/imp. and Wh/imp.), which is selected by means of the FF and GG configuration. 65 - 66 Input A 67 - 68...
Wireless M-Bus, type 67-00-30 The radio module has been designed to form part of the hand-held Wireless M-Bus Reader systems of Kamstrup A/S at license-free radio frequency (868 MHz). The module fulfils the C-mode specifications of prEN13757-4 and can thus form part of other systems using Wireless M-Bus C-mode communication.
9.1.13 High-Power RadioRouter + 2 pulse inputs (VA, VB), type 602-00-84 The High-Power RadioRouter module has built-in router functionality and is thus optimized to form part of a Kamstrup radio network, the read data being automatically transferred to system software via the network unit RF Concentrator.
Top modules Type 67-02: DEnergy calculation and hourly data logger This top module calculates the difference between forward and return energy, whereby an expression of the tapped energy in open systems is obtained. Differential energy dE=E4-E5. The module also includes an hourly data logger. The connection terminals of this module are not used.
Page 19
The RTC and pulse output functions of this top module are identical with the functions described for top module 602-0C (see below). The top module is prepared for use in a Kamstrup radio network together with High Power RadioRouter base module 6020084, read data being transferred to the system software via the network unit RF Concentrator.
10. Electrical connection of MULTICAL®, ULTRAFLOW® and Pulse Transmitter Connection MULTICAL® and ULTRAFLOW® ULTRAFLOW® MULTICAL® Blue (GND)/11A Red (supply)/9A Yellow (signal)/10A Connection via Pulse Transmitter Pulse Transmitter ULTRAFLOW® MULTICAL® Blue (GND)/11A Red (supply)/9A ...
Page 21
Electrical connection Connection to Pulse Transmitter Block diagram Pulse Transmitter output Frame Supply (3…10 VDC) Signal 0.2 mA If ULTRAFLOW® 54 is used as pulse transmitter for other equipment, connection must be made through a Pulse Transmitter.
11. setup via front keys Date, time and primary M-Bus address can be adjusted by means of the keys on the calculator's front. 1 In the display you select the reading you want to change 2 Lift off the calculator top 3 Wait until the meter has shut down (up to 2.5 minutes).
Need help?
Do you have a question about the MULTICAL 602 and is the answer not in the manual?
Questions and answers
i need to know the calculation equation for that system based on the data which is given by the meter like T1 and T2and actual flow with accumulated volume as i have one meter like that but the reading i think it is not right so how i calibrate the reading or make some calculation to know the error
The Kamstrup MULTICAL 602 system calculates power using the equation:
P = q (T1 – T2) × k [kW or MW]
Where:
- P = Power
- q = Actual water flow (e.g., in l/h)
- T1 = Temperature at the inlet
- T2 = Temperature at the outlet
- k = Water's heat coefficient, calculated according to EN 1434:2007
To check for errors in the readings, compare the measured actual flow q and accumulated volume-based average temperatures E8 and E9. E8 and E9 accumulate the product of m³ × °C, which helps verify consistency over time if the volume register is read simultaneously.
This answer is automatically generated
@Mr. Anderson thanks Mr Anderson.this is the instant value .but if I need to calculate the value monthly
