Installation and User Guide
MULTICAL® 62
Water meter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MULTICAL 62 and is the answer not in the manual?

Questions and answers

Related Manuals for Kamstrup MULTICAL 62

Summary of Contents for Kamstrup MULTICAL 62

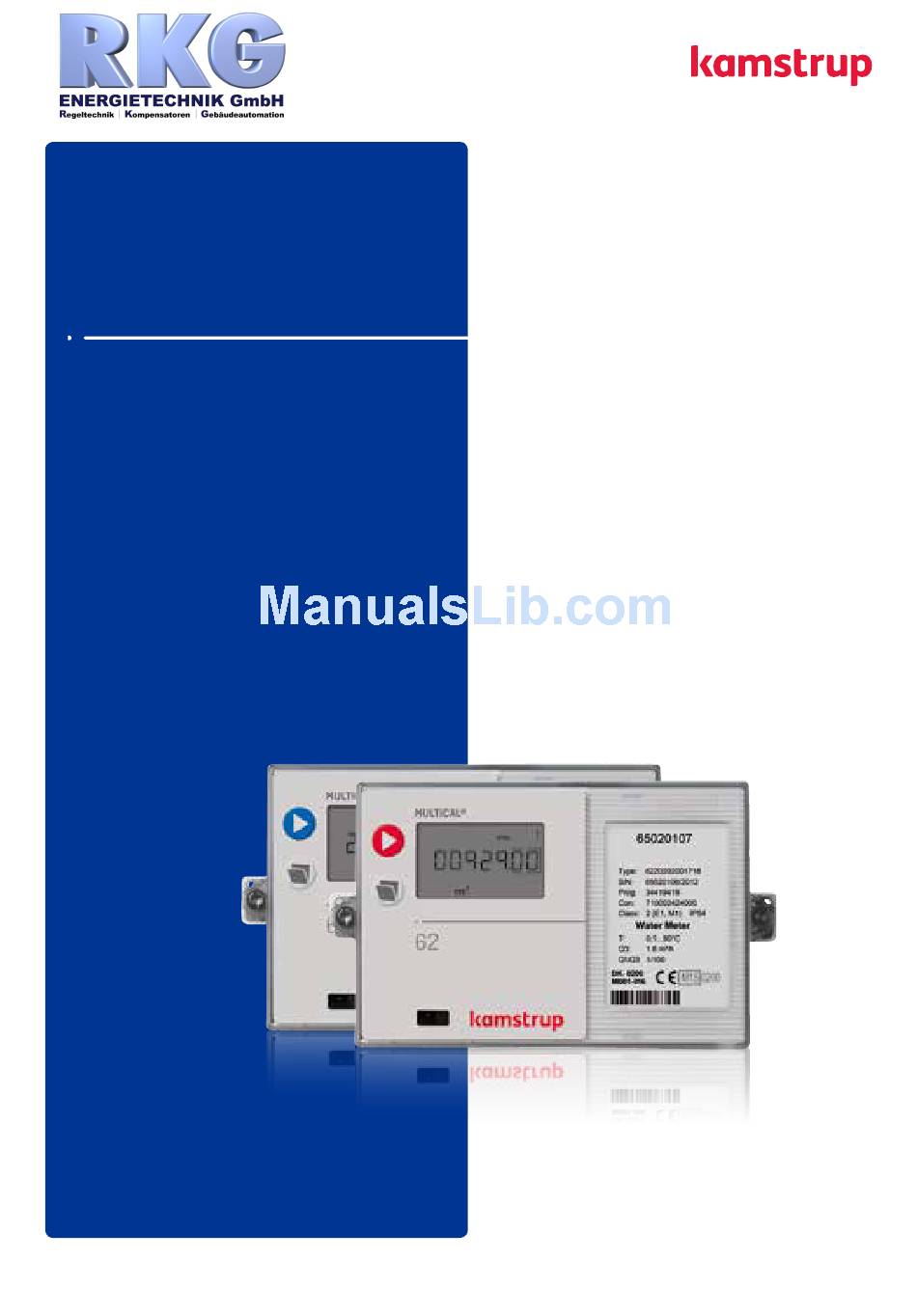

  • Page 1 Installation and User Guide MULTICAL® 62 Water meter...

  • Page 2: Table Of Contents

    1 General information Read this guide before installing the meter. In case of incorrect mounting Kamstrup’s guarantee obligations no longer apply. MULTICAL® 62 is a cold water meter (0.1...50 °C) or (0.1...30 °C) and a hot water meter (0.1...90 °C) consisting of a low sensor and a calculator.

  • Page 3: Permissible Operating Conditions

    Straight inlets or outlets are not required in order to comply with MID. A straight inlet section will only be necessary in case of heavy low disturbances before the meter. Kamstrup A/S • 55121068_B3_GB_03.2015...

  • Page 4: Mounting The Low Sensor 4

    Strainer, nonreturn valve and PE-gaskets must only be used in cold water meters. FLOW PE-Gasket Strainer Nonreturn valve PE-Gasket 2.2 Installation angle for ULTRAFLOW® 24 ULTRAFLOW® 24 can be mounted vertically, horizontally or at an angle. Kamstrup A/S • 55121068_B3_GB_03.2015...

  • Page 5: Mounting Of Calculator

    The cable must be mounted minimum 25 cm from other electric installations. Do not forget to seal the calculator. 52 mm 45° Mounted on low sensor with angle itting 3026-252 Wall mounted At risk of condensation, socket extender (65-61-332) can be used as an alternative to wall mounting. Kamstrup A/S • 55121068_B3_GB_03.2015...

  • Page 6: Power Supply

    3.65 V). Therefore, it is not possible to determine the remaining capacity by measuring the voltage. The battery cannot and must not be charged and must not be short-circuited! Used batteries must be handed in for approved destruction, e.g. at Kamstrup A/S. 3.2 Supply modules...

  • Page 7: Testing The Function

    Please note the maximum pulse frequency as well as correct pulse coding (l/imp. and Wh/ imp.), which are selected by means of the FF and GG conigurations. 65 - 66 Input A 67 - 68 Input B Kamstrup A/S • 55121068_B3_GB_03.2015...

  • Page 8: Power Supply 6

    All output values are updated every 10 seconds. The module must be mounted in MULTICAL® 62 and is powered by 24 VAC. Coniguration to be carried out via the “Base module” menu of METERTOOL. See installation instructions 5512-369 (DK-GB-DE). Kamstrup A/S • 55121068_B3_GB_03.2015...
  • Page 9 N2 Open from Johnson Controls is a widespread and established ield bus protocol used within building automation. The N2 module for MULTICAL® 62 ensures simple integration from Kamstrup’s water meters to N2 Open based systems. Address area is 1-255 determined by the last three digits of the meters customer number.
  • Page 10 MAC address. 5.1.12 Modbus RS485 RTU* Slave Module with 2 pulse inputs (VA, VB), type 67-00-67 The Modbus base module for MULTICAL® 62 ensures a simple integration from Kamstrup’s water meters into Modbus based systems.

  • Page 11: Top Modules

    The High-Power RadioRouter module has built-in router functionality and is thus optimized to form part of a Kamstrup radio network, the read data being automatically transferred to system soft- ware via the network unit RF Concentrator. Furthermore, the module can be read by Kamstrup’s hand-held reading systems, e.g.
  • Page 12 67-08. The top module is prepared for use in a Kamstrup radio network together with the Radi- oRouter base module 67-00-21-000-3xx, read data being transferred to the system software via the network unit RF Concentrator.

  • Page 13: Retroitting Modules

    METERTOOL. All other conigurations are made via LonWorks. Radio + pulse inputs (integral antenna) Pulse values of VA and VB are changed via METERTOOL. Radio + pulse inputs (connection for external Pulse values of VA and VB are changed via antenna) METERTOOL. Kamstrup A/S • 55121068_B3_GB_03.2015...
  • Page 14 APN is changed via GSM-TOOL 3G GSM/GPRS module (GSM8H) APN is changed via GSM-TOOL Ethernet/IP module (IP201) IP coniguration is changed via IP-TOOL High-Power Radio Router + pulse inputs Pulse values of VA and VB are changed via METERTOOL Kamstrup A/S • 55121068_B3_GB_03.2015...

  • Page 15: Information Codes "Info

    This prevents “infoevent” from counting during transportation and non-relevant data from being saved in the info logger. The irst time the meter totalizes the volume register after the installation, the info codes automatically become active. Kamstrup A/S • 55121068_B3_GB_03.2015...

  • Page 16: Troubleshooting

    If repair of the meter becomes necessary, we recommend you to replace parts like battery and communication modules only. Alternatively, the whole meter ought to be replaced. Major repairs must be made by Kamstrup A/S. Before sending in the meter for repair or check, please use the error detection table below to help you clarify the possible cause of the problem.

  • Page 17: Setup Via Front Keys

    It should be checked whether the value is valid for the reading in question. If so, the value is saved and an “OK” symbol is displayed. If not, the old value is maintained, no “OK” symbol appears, and the display reverts to legal reading. Kamstrup A/S • 55121068_B3_GB_03.2015...
  • Page 18 MULTICAL® 62 • Water meter Kamstrup A/S • 55121068_B3_GB_03.2015...
  • Page 20 Kamstrup A/S • 55121068_B3_GB_03.2015...
