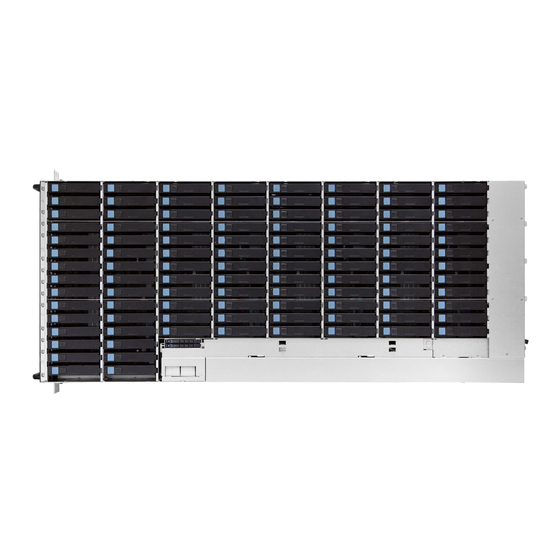

SB405-PV
Storage Server Barebone
User's Manual
UM_SB405-PV_v1_060518

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB405-PV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AIC SB405-PV

Summary of Contents for AIC SB405-PV

  • Page 1 SB405-PV Storage Server Barebone User's Manual UM_SB405-PV_v1_060518...

  • Page 2: Table Of Contents

    Chapter 3. Motherboard Settings ..........41 3.1 Motherboard Block Diagram ............41 3.2 Motherboard Placement ..............42 3.3 Motherboard Content List ..............43 3.4 Internal Connectors/Jumpers ............44 3.5 LEDs ....................49 Chapter 4. BIOS Configuration Settings ........53 4.1 Updating BIOS ...................55 Chapter 5. BMC Configuration Settings ........57 5.1 Method 1 (Use the BIOS Setup) ............57 5.2 Method 2 (Use a Dos Tool - Syscheck) ..........60 5.3 Connect to BMC ................62...

  • Page 3: Chapter 3. Motherboard Settings

    (SFF8643 x 1 + SATA x 2) Rear RJ45 Intel I350-AM2 PCIE x 4 PCIE x 4 Rear RJ45 SPI TPM SPI Interface SATA3 x 5 BRIDGE BOARD USB2_9 connector s lot 2 (USB2.0 x1 + S AT A x5) SB405-PV User's Manual...

  • Page 4: Motherboard Placement

    Chapter 3 Motherboard Settings 3.2 Motherboard Placement 16- Dimm Sockets 39 23 38 CPU0 CPU1 25 29 30 31 32 21 16 10 44 43 SB405-PV User's Manual...

  • Page 5: Motherboard Content List

    BIOS Recovery 17 Battery Socket BAT1 Mode 18 Intruder UART 19 SPI ROM Socket BMC RESET 20 BMC ROM Socket UID LED PCIE Hot-Plug 21 Speaker J2001 SMB (CPU0) FLASH Security PCIE Hot-Plug J2002 SMB (CPU1) override SB405-PV User's Manual...

  • Page 6: Internal Connectors/Jumpers

    COM4 Debug Port BMC Debug Port DDC_CLKO AVSYNCO VGA_5V AHSYNCO DACBO DDC_DATAO DACGO DACRO CLK_DP80 PCH_CS0_N RST_PERST_N PCH_ IO3 PCH_IO2 P3V3 PCH_IO1 PCH _IO0 SMB_PCH_SCL SMB_PCH_SDA P3V3_AUX ESPI_CS1 PCH_CLKRUN ESPI_RESET ESPI_ALERT0 ESPI_ALERT1 P3V3 ESPI_SMI ESPI_PME P5V_AUX ESPI_SEL SB405-PV User's Manual...
  • Page 7 Chapter 3 Motherboard Settings Connectors Location Front USB 2.0 BMC Debug Port BMC IPMB FAN Front SGPIO SSGPIO VRM SMB PCIE Hot-Plug SMB J2001 (CPU0) PCIE Hot-Plug SMB 25 29 30 16 10 J2002 (CPU1) J2001 J2002 SB405-PV User's Manual...
  • Page 8 Chapter 3 Motherboard Settings Connectors Location Front USB 3.0 Intruder BMC FAN INTRUDER SB405-PV User's Manual...
  • Page 9 J87 ： 12V & 5VSB 6A Power Supply per pin. Power Supply J86 ： 12V Front Panel AIC OPEN RACK Header MDI PHY Front +12V +12V +12V +12V +12V +12V +12V +12V +12V +5V_AUX POWER OK PS_ON# SB405-PV User's Manual...
  • Page 10 SATA DOM Set Up J20, J43 39 BIOS Recovery Mode UART BMC RESET 31 32 UID LED Setting Short FLASH Security override SPEAKER Open Normal (Default) Password Clear BMC Disable Setting Short BIOS Recovery Mode (Default) Open Normal SB405-PV User's Manual...

  • Page 11: Leds

    NMI, etc) No critical failures detected Green (Blinking) Disk activity detected Hard Disk No disk activity detected Green (Blinking) LAN1 activity detected LAN1_TRAFFIC LAN1 is not active Green (Blinking) LAN2 activity detected LAN2_TRAFFIC LAN2 is not active SB405-PV User's Manual...
  • Page 12 No Link Linked at 10 Mbps Link Green Active Blinking Green Linked at 100 Mbps Link Green Green Active Blinking Green Green Linked at 1000 Mbps Link Green Yellow Active Blinking Green Yellow LED2 LED1 LED4 LED3 SB405-PV User's Manual...
  • Page 13 LAN1 is not active Yellow (Blinking) LAN1 Link detected LED7 LAN1 is not Link Green LAN0 Link detected LED6 LAN0 is not Link Yellow (Blinking) LAN0 activity detected LED4 LAN0 is not active LED7 LED6 LED5 LED4 SB405-PV User's Manual...
  • Page 14 (Only for Rack) LED3 BMC Rack LAN is not active (Only for Rack) Blinking BMC is working LED18 BMC not working LED 3 LED 3 LED 2 LED 2 LED 18 LED 18 LED 1 LED 1 SB405-PV User's Manual...

  • Page 15: Chapter 4. Bios Configuration Settings

    Press ESC to run the setup procedure. There will be a message “Entering SETUP” displayed on the diagnostics screen. Caution: For the official released version, the last digit of the BIOS Version must end in an "0." SB405-PV User's Manual...
  • Page 16 Chapter 4 BIOS Configuration Settings Step 1 Identify the BIOS Version. Step 2 Load Optimal Default setting. Step 3 Save the setting and exit the BIOS setup utility. SB405-PV User's Manual...

  • Page 17: Updating Bios

    Chapter 4 BIOS Configuration Settings 4.1 Updating BIOS Important Notes: To identify the current BIOS version, please check the BIOS setup. SB405-PV User's Manual...
  • Page 18 To use this utility, you must include the flash.bat , H2OFFT-D.exe, and bin file in the same folder. Please follow the instructions to update whole flash part: Execute flash.bat to update Flash in the DOS environment. Reboot system. SB405-PV User's Manual...

  • Page 19: Chapter 5. Bmc Configuration Settings

    I nsert Ethernet LAN cable into the BMC LAN port. There are two methods to setup BMC IP: BMC management port 5.1 Method 1 (Use the BIOS Setup) Step 1 BIOS SETUP  Advanced  H2O IPMI configuration  BMC Configuration  IPv4 source  Static SB405-PV User's Manual...
  • Page 20 Chapter 5 BMC Configuration Settings SB405-PV User's Manual...
  • Page 21 Chapter 5 BMC Configuration Settings Step 3 Type in the subnet mask address. Step 4 Type in the gateway address. SB405-PV User's Manual...

  • Page 22: Method 2 (Use A Dos Tool - Syscheck)

    5.2 Method 2 (Use a Dos Tool - Syscheck) Step 1 Type in "sc –lanset." Step 2 Modify the IP setting. Note: type 1 for selecting static IP mode or type 2 for selecting DHCP mode. Step 3 Type in the IP address. SB405-PV User's Manual...
  • Page 23 The IP address below is an example using a default IP setting. The IP address is configurable. Step 5 Set gateway address to complete BMC IP configuration. Note: Type sc.exe –langet command to obtain BMC IP and MAC address. SB405-PV User's Manual...

  • Page 24: Connect To Bmc

    : The default user name and password are in lower-case characters. note : Users who login with the root user name and password will have full administrative power. The root password can be changed after login. SB405-PV User's Manual...
  • Page 25 Chapter 5 BMC Configuration Settings 3. Dashboard: 4. Server Health: Sensor Readings: 5. Configuration: Please refer to AIC BMC User Guide for more information on AIC BMC. SB405-PV User's Manual...
  • Page 26 Chapter 5 BMC Configuration Settings Mouse Mode Setting: • For Windows OS environment, set mode to absolute. • For Linux OS environment, set mode to relative. • For SLES-11 OS environment, set mode to other mode. 6. Remote Control: SB405-PV User's Manual...
  • Page 27 Chapter 5 BMC Configuration Settings Launch KVM: SB405-PV User's Manual...

  • Page 28: Updating Bmc Firmware

    2. IN SOME CRITICAL CONDITION, AFTER UPDATING BMC FIRMWARE OR CONFIG FILE, YOU MIGHT NEED TO UNPLUG AC POWER CORD 5 SECONDS AND THEN PLUG AC POWER CORD TO RESET BMC, THEN UPDATED NEW FUNCTION CAN WORK PROPERLY. SB405-PV User's Manual...

  • Page 29: Chapter 6 Hardware Specification

    6.1.1 Placement: 24 Bay U6 Sensor HDD 1 HDD2 HDD3 HDD4 HDD5 HDD6 HDD7 HDD8 HDD9 HDD10 HDD11 HDD12 Expander Expander Flash Flash HDD13 HDD14 HDD15 HDD16 HDD17 HDD18 HDD19 HDD20 HDD21 HDD22 HDD23 HDD24 U80 Sensor SB405-PV User's Manual...
  • Page 30 JFAN1 JEXP_UART1 LED-BD1 SASHD_S1 JPW1 SASHD_S2 JEXP_UART2 Fan connect for debug use Control for Expander JEXP_UART1 & JEXP_UART2 JFAN1 & JFAN2 +12V FAN_TACH FAN_PWM Front LED Board Control for Display HDD LED Status LED-BD1 Power Connector JPW1 SB405-PV User's Manual...
  • Page 31 No control bit is set or set by any of the following bits: 1. RQST OK 2. RQST RSVD DEVICE 3. RQST HOT SPARE 4. RQST ACTIVE 5. DO NOT REMOVE 6. RQST IDENT 7. DEVICE OFF SB405-PV User's Manual...
  • Page 32 Chapter 6 Hardware Specification 6.1.4 LED Locations: 24 Bay SASHD_S1 PHY Link LED SASHD_S2 PHY Link LED LEDA1 to LEDA8 LEDA9 to LEDA16 SB405-PV User's Manual...
  • Page 33 Chapter 6 Hardware Specification HDD Activity LED HDD Fault/Status LED     Expander Blinking LED  Expander HeartLED  SB405-PV User's Manual...

  • Page 34: Hdd Backplane: 30 Bay

    Slot ID 1 U11 Sensor HDD1 HDD2 HDD3 HDD4 HDD5 HDD6 HDD7 HDD8 HDD9 HDD10 HDD11 HDD12 HDD13 HDD14 HDD15 Expander Flash HDD16 HDD17 HDD18 HDD19 HDD20 HDD21 HDD22 HDD23 HDD24 HDD25 HDD26 HDD27 HDD28 HDD29 HDD30 U92 Sensor SB405-PV User's Manual...
  • Page 35 Chapter 6 Hardware Specification 6.2.1 Connector Location: 30 Bay JPW2 JEXP_UART1 SASHD_S1 JPW1 LED_BD1 Power Connector Control for Expander Front LED Board Control JPW2 JEXP_UART1 for Display HDD LED Status LED-BD1 Power Connector JPW1 SB405-PV User's Manual...
  • Page 36 No control bit is set or set by any of the following bits: 1. RQST OK 2. RQST RSVD DEVICE 3. RQST HOT SPARE 4. RQST ACTIVE 5. DO NOT REMOVE 6. RQST IDENT 7. DEVICE OFF SB405-PV User's Manual...
  • Page 37 Chapter 6 Hardware Specification 6.2.3 LED Locations: 30 Bay SASHD_S1 PHY Link LED LEDA1 to LEDA8 HDD Activity LED HDD Fault/Status LED SB405-PV User's Manual...
  • Page 38 Chapter 6 Hardware Specification   Expander Blinking LED  Expander Heartbeat LED  SB405-PV User's Manual...

  • Page 39: Chapter 7. Technical Support

    Chapter 1 Product Introduction Chapter 1 Product Introduction Chapter 7. Technical Support www.aicipc.com • TAIWAN Tel: +886 3 433 9188 Fax: +886 3 287 1818 Email: sales@aicipc.com.tw • CHINA Tel: +86.21.54961421, +86.21.54961422 Fax: Extension: 608 Email Technical Support: support@aicipc.com • AMERICA - West coast Tel: +1.909.895.8989 Fax: +1.909.895.8999 Email: sales@aicipc.com...
