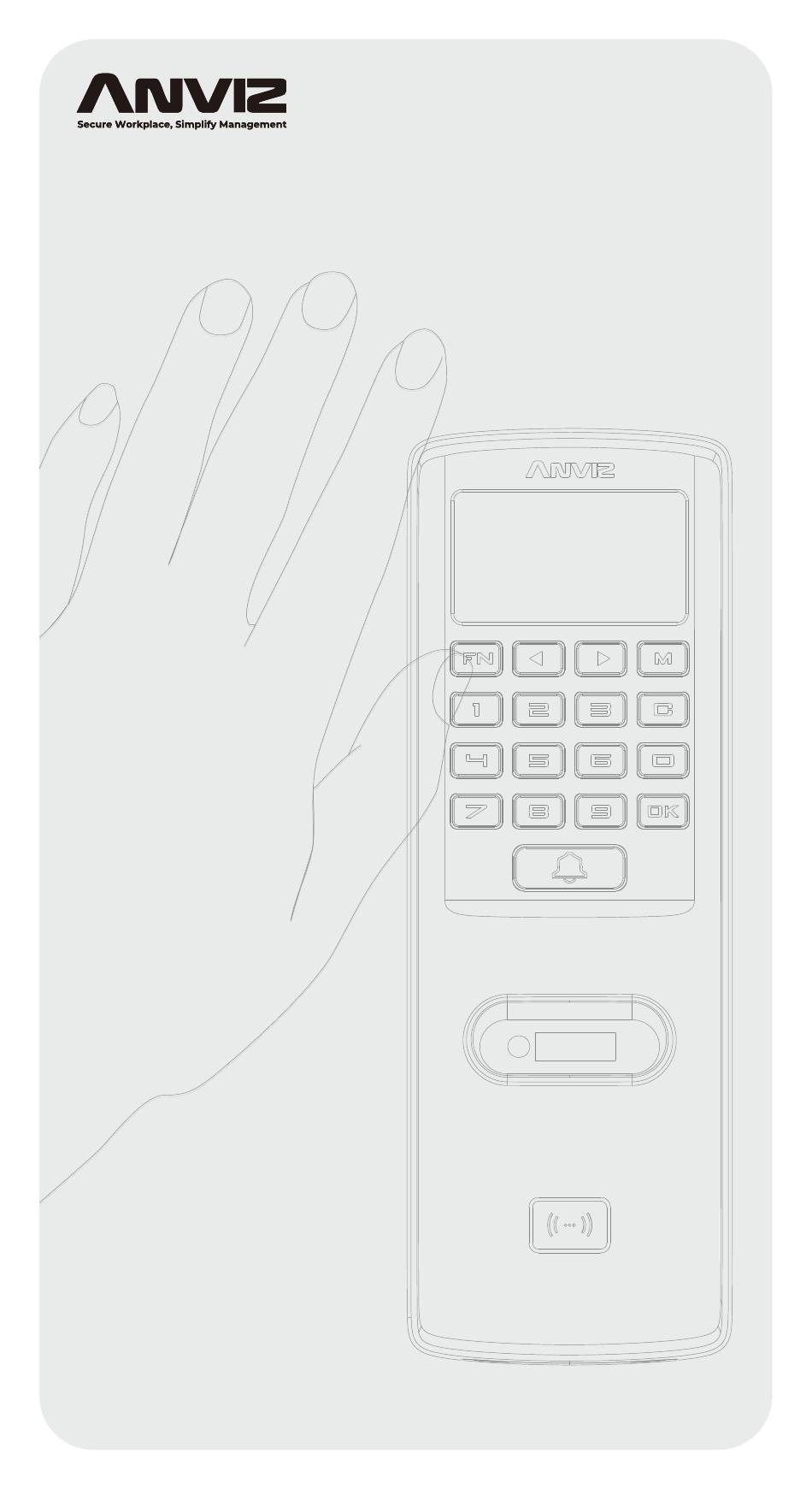

- Page 1 PALM User Guide ( V 1.0 ) Outdoor Standalone Access Control Terminal REV: 10/2024...
- Page 2 What’s in the box M7 Palm Terminal Screws Mini USB Cable RJ45 Connector Quick Guide RFID Cards...
- Page 3 Installation 150 ~ 300 mm Steps 1 Drill outlet hole on the wall for device wiring and 3 screw holes on the wall according to the mounting bracket. 1200 ~ 1500 mm Steps 2 Use the screws to fix the mounting bracket on the wall.
- Page 4 Registration & Identification 15° 150 ~ 300 mm Registration Tilt: The palm is parallel to the Palm Vein Camera. Naturally extend the palm, align the palm parallel to the module surface, center it, aim the palm at the Camera, keep the palm still to complete registration.
- Page 5 Wiring J1 Interface definition Series Definition Blue Purple Relay Yellow Power Black Series Definition Black BELL+ Active Doorbell White BELL- Door Switch White Black Door Sensor Green Series Definition Black Orange 485B RS485 Grey 485A Black Wiegand input or Blue Wiegand Output Brown...
- Page 7 Information OLED Screen Key Pad Palm Vein Sensor Card Reader Area 57.5 mm 33.5 mm Wiring Palm Vein Camera Distance Detections Sensor PoE TCP/IP (RJ45) Mini USB Port...
- Page 9 Terminal Menu Funciton List Enroll Dev ID Delete Time Verify Mode Calibration User Group Setup Language Mode WorkCode Admin Setup IP Address Scope Daylight Admin Clear Subnet Mask Saving Mac Address Anti-Back Gateway IP System Prevision Server IP Unlock Server Port Delete Door Alert Setup...
- Page 10 Activate M7 Palm Terminal - Enroll User Notice 1.One user supports register 2 Palm Veins, one password and one RFID card. 2.The dot indicates the 09 : 00 position of the palm. 09-09-24 MENU User Setup System Info Press [M] key to menu.
- Page 11 Terminal Administrator Setting For security use, please set up a device administrator. MENU User User Group Setup Setup Admin Setup System Info Admin Clear ◀ ▶ Selet “User” and Press [ ] or [ press [OK] to “User key, to selet the “Admin Management”...
- Page 12 Network Setup by Cable (LAN) Setup MENU System User Log Setup Setup Hardware Test System Info ◀ ▶ Selet “ Setup ” and Press [ ] or [ press [OK]. key, to select the “ System ” item. System Mode Server IP Address Anti-Back...
- Page 13 Others Congratulations! You've done the all configurations! If you need more support we suggest visiting Anviz Community community.anviz.com, a platform for sharing your Anviz products' experiences and interacting directly with Anviz employees. CrossChex Sandard Download M7 Palm Configuration Guide...
- Page 14 RMA number from Anviz technical support engineer. Products without a registered RMA number will not be repaired. Products shipped without an RMA number may be returned, and Anviz will not be held responsible for any loss or other damage caused by this.
- Page 15 (45) days of the product’s shipment (applicable for 50 or fewer logs). If the product’s defect occurred within 45 days of its shipment from Anviz, ask your technical support engineer for an RMA number. If Anviz has received the defective product and the case has...
- Page 16 24 Hours Answer Community Join community.anviz.com if you have any question Anviz brand and product are trademarked ana protected under law or the united states. Unauthorized use is prohibited. For more information visit www.anviz.com, or email support@anviz.com for further help.
