Ltech LT-811-10A Manual

LT-811-10A
16bit DMX CV Decoder

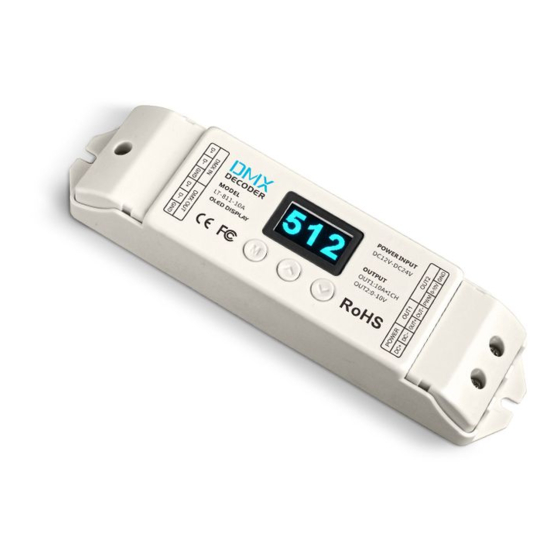

LT-811-10A is the world's first OLED display DMX decoder, designed for LED dimming, produce great lighting
effects, can be worked with any brand of DMX dimmer, outstanding performance with following features:
OLED real-time display.
16bit/8bit input.
3 dimming curve optional.
Frame rate is as high as 850 FPS.
Built-in protection circult of resistance to lightning stroke and ESD static electricity.
1. Product Parameter:
LT-811-10A 16bit DMX CV Decoder
Input Signal : DMX512
Input Voltage : DC12V-DC24V
Max Load Current : 10A×1CH+0-10V×1CH+10V PWM×1CH
Max Output Power : 120W/240W(12V/24V)
Dimming Range : 0~100%
2. Product Size:
175mm
170mm
LT-811-10A 16bit DMX CV Decoder Manual
warranty
5 years
Working Temperature : -30℃~55℃
: L175×W44×H30mm
Dimensions
: L178×W48×H33mm
Package Size
Weight (G.W.) :120g
1
3. Parts Figure:
DMX512 Signal Input Socket
DMX512 Signal Output Socket
4. OLED Screen Interface Diagram:
DMX Address DMX Address:001
DMX Value:65535
DMX Real-time Data
Resolution Resolution:16bit
Figure 1-A
Main Display Interface
Press "M" key, switch entries.
Press "∧" or "∨" key, adjust parameters.
DMX Address:001
Long press "M" key, return to
DMX Setup
the main display interface(Figure 1). Test
System
Exit: Return to the previous menu.
DMX Address:001 DMX Address:001
DMX Setup DMX Setup
Test Test
System Exit System Exit
Figure 3
DMX Address Setting
Range: 001~255
Resolution:8bit
1
Curve: Gamma
2
Figure 4
Smooth out : NO
3
Exit
1 2 3
Resolution:8bit Resolution:8bit
Resolution:8bit
Curve: Gamma
Curve: Gamma
Curve: Gamma
Smooth out : no
Smooth out : no Smooth out : NO
Exit
Exit Exit
Resolution:16bit Resolution:8bit Resolution:8bit
Curve: 1/Gamma
Curve: Gamma
Smooth out : no Smooth out : no
Smooth out : YES
Exit Exit
Exit
Resolution:8bit YES:
Curve: linear Achieve the expected
brightness slowly.
Smooth out : no
Exit
NO:
Achieve the expected
Switch the resolution.
Switch dimming curve.
brightness instantly.
LT-811-10A will run the test scenes only when you enter "self-test" interface.
Screensaver enable time: undo for 2 min in the main display interface (Figure 1).
：
[ estore the default parameters] R In the main display interface( Figure 1)，Long press "M"/"
will restore the default parameters, and the screen display"Device restore default" for 2s, then it will return to the main display interface (Figure 1)
LT-811-10A 16bit DMX CV Decoder Manual
OLED Screen
Connect to LEDs or Device drive
with PWM or 0-10V signal
Connection Socket
M
Power Input Socket
Function Keys
DMX Address:001 DMX Address
DMX Value:255 DMX Real-time Data
Resolution:8bit
Resolution
Curve:Gamma
Dimming Curve
Figure 1-B
Press "M" key to enter
the setting interface
Exit
Figure 2
DMX Address:001 DMX Address:001
DMX Setup DMX Setup
Test Test
System Exit System Exit
Dimmer:255 1 Screen:ON+ADDR
2 Buzzer:ON
Figure 5
Contrast:100
3
Exit Exit
Dimming Range：0-255
1 2
Screen:ON+ADDR
Screen:ON+ADDR
Screen:ON+ADDR
Buzzer:ON
Buzzer:ON
Buzzer:ON
Contrast:100
Contrast:100 Contrast:100
Exit
Exit
Exit
Screensaver open and
display address.
Screen:ON+Black Screen:ON+ADDR Screen:ON+ADDR
Buzzer:ON Buzzer:OFF
Buzzer:ON
Contrast:100 Contrast:100 Contrast:90
Exit Exit Exit
Screensaver open and
black.
Screen:OFF
Buzzer:ON
Contrast:100
Exit
The contrast of screen
The buzzer can be
Screensaver is not open.
on or off.
∧"/"∨" 3 keys simultaneously, LT-811-10A
2
LED Lamps
DC12V-24V
Figure 6
3
is adjustable.
