Dynojet POWER COMMANDER V Installation Instructions Manual page 5

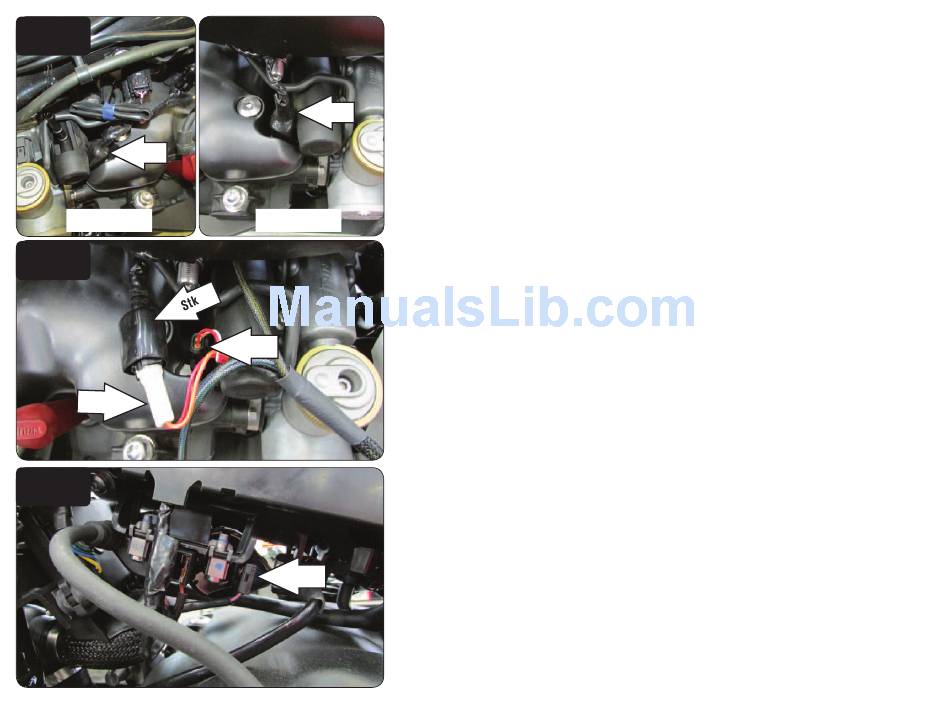

FIG.G
R.H side
FIG.H
PCV
FIG.I
21-023 www.powercommander.com
L.H side
PCV
10 Unplug the stock wiring harness from each injector (Fig. G).
These connections are under a rubber boot.
11 Plug the PCV in-line of stock injector and wiring harness (Fig. H).
The ORANGE colored wires go to cylinder #1 (left).
The YELLOW colored wires go to cylinder #2 (right).
12 Unplug the signal wire of stock wiring harness from the #2 ignition coil (Fig. I).
This wire is accessed from the left side of the motorcycle. It is the GREEN/PINK
wire.
2016 Triumph T120 PCV - 5
