Dynojet POWER COMMANDER V Installation Instructions Manual page 4

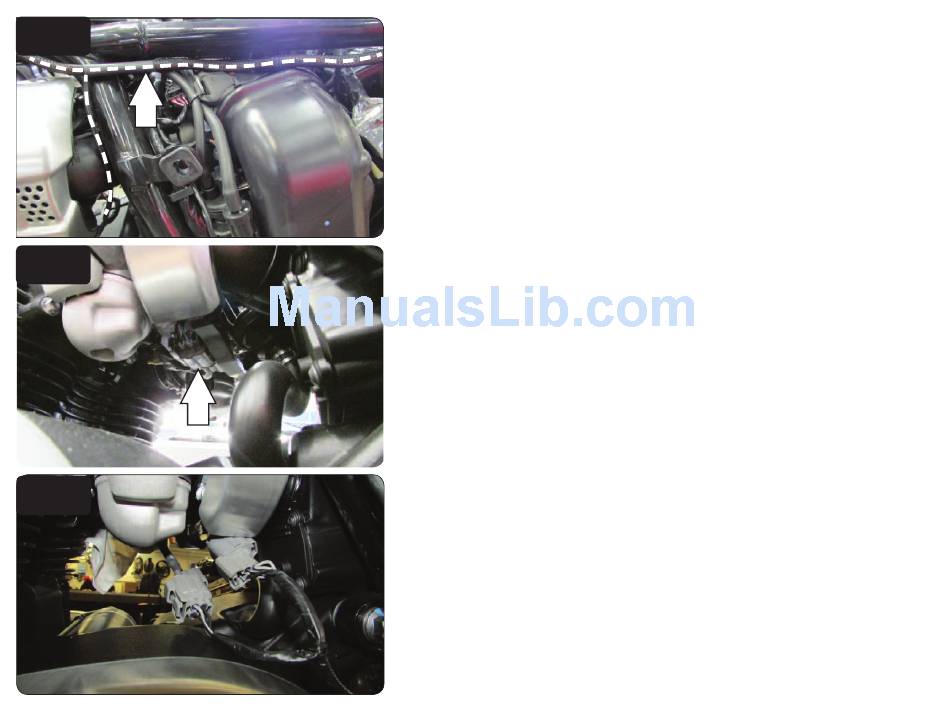

FIG.D
FIG.E
FIG.F
21-023 www.powercommander.com
7 Route the remaining branch of the PCV down the left side of the frame
(Fig. D).
8 Unplug the stock Throttle Position Sensor connector(Fig. E).
This is a GREY 4 pin connector at the bottom of the throttle bodies. You can
squeeze the right end of the connector and slide it to the right to get them off of
their bracket.
9 Plug the PCV in-line of the TPS and wiring harness (Fig. F).
Secure one set of connectors back onto the stock bracket
2016 Triumph T120 PCV - 4
