Summary of Contents for Chiayo SDR-8200M IrDA
- Page 1 SDR-8200M IrDA Operation manual SDR-8100M IrDA UHF 2-Way Sync Receiver Module www.cie-group.com...

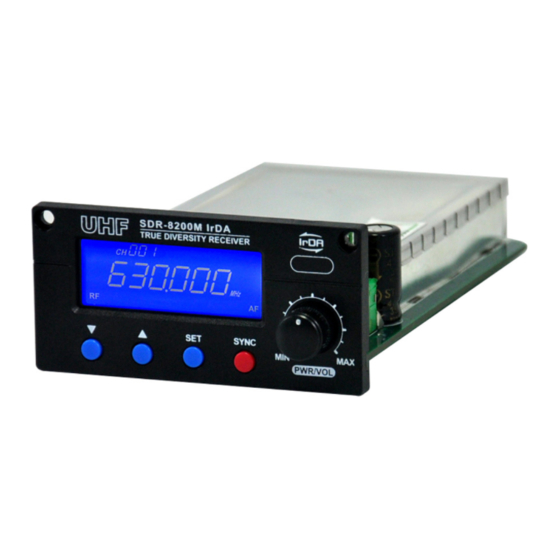

- Page 2 SDR-8200/8100M IrDA UHF 2-Way Sync Receiver Module Parts and functions 10 11 6747 5 0 1 LCD 5 IrDA synchronizing button 9 Diversity A/B antenna 2 DOWN button 6 Power switch/volume control 10 Transmitter battery power 3 UP button 7 IR sensor area 11 Audio signal meter 4 SET button 8 RF signal meter...
- Page 3 Instructions CHANNEL scanning For an interference- free operation, a cleaner channel might be necessary if the current one receives too much interference. To operate the scanning: Press ▲(up) or ▼(down) button to make Hold SET button until this icon the frequency icon appear on the flashes to denote readiness for setting.
- Page 4 CIE-Group Ltd 3 Widdowson Close, Blenheim Industrial Estate, Bulwell, Nottingham NG6 8WB Web: www.cie-group.com ｜ Email: info@cie-group.com Tel: +44(0)115 977 0075...
