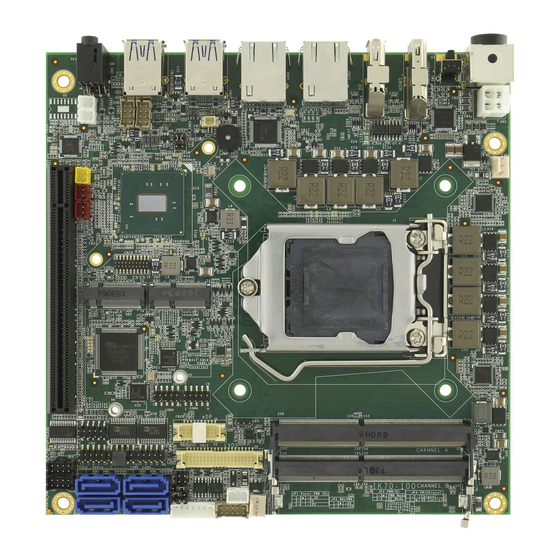

IK70 Motherboard
Mini-ITX SBC with Intel® 7th Generation Core i3/i5/i7 processor, HDMI, Display Port,
LVDS, Dual Giga Ethernet, USB 3.0 and NGFF Interface
V120
User Manual
Version 1.3
9171111I103R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IK70 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winmate IK70

Summary of Contents for Winmate IK70

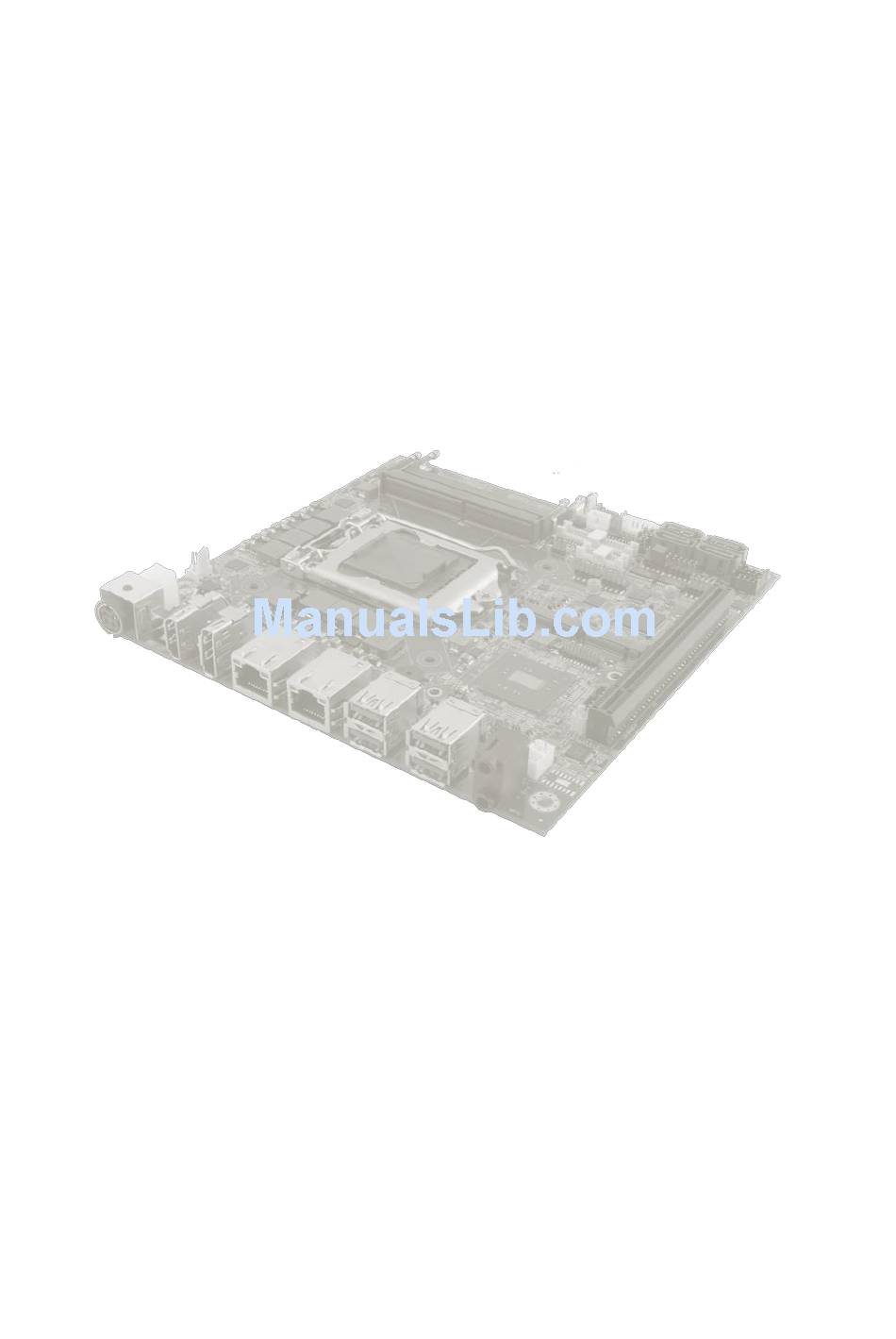

  • Page 1 IK70 Motherboard Mini-ITX SBC with Intel® 7th Generation Core i3/i5/i7 processor, HDMI, Display Port, LVDS, Dual Giga Ethernet, USB 3.0 and NGFF Interface V120 User Manual Version 1.3 9171111I103R...

  • Page 2: Table Of Contents

    IK70 Motherboard User Manual Contents PREFACE ..................................... 4 ABOUT THIS USER MANUAL ............................... 8 CHAPTER 1: GENERAL INFORMATION ............................9 1.1 I ................................... 10 NTRODUCTION 1.2 F ....................................10 EATURES 1.3 M ..............................11 OTHERBOARD PECIFICATIONS 1.4 F ................................13...
  • Page 3 Preface 3.5 E ..................................49 THERNET RIVER 3.6 W ..............................52 ATCHDOG RIVER NSTALLATION 3.7 D IO D ..............................56 IGITAL RIVER NSTALLATION CHAPTER 4: INSYDE H20 BIOS SETUP ............................59 4.1 H BIOS S ............................60 OW AND HEN TO ETUP 4.2 BIOS F ..................................

  • Page 4: Preface

    IK70 Motherboard User Manual Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer.
  • Page 5 Preface Packing List Before using this Motherboard, please make sure that all the items listed below are present in your package:  IK0 Motherboard  User Manual & Driver CD If any of these items are missing or damaged, contact your distributor or sales representative immediately. Customer Service We provide a service guide as below for any problem by the following steps: First, contact your distributor, sales representative, or our customer service center for technical support if you need additional assistance.
  • Page 6 IK70 Motherboard User Manual Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings.
  • Page 7 Preface Safety Precautions CAUTION Always ground yourself to remove any static charge before touching the CPU card. Modern electronic devices are very sensitive to static electric charges. As a safety precaution, use a grounding wrist strap at all times. Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis.

  • Page 8: About This User Manual

    IK70 Motherboard User Manual About This User Manual This User Manual provides information about using the IK70 Motherboard. The documentation set for the IK70 Motherboard provides information for specific user needs, and includes:  IK70 Motherboard User Manual – contains detailed description on how to use the motherboard, its components and features.

  • Page 9: Chapter 1: General Information

    Chapter 1: General Information Chapter 1: General Information This chapter includes the IK70 Motherboard background information. 1.1 Introduction 1.2 Features 1.3 Motherboard Specifications 1.4 Functional Description 1.5 Physical Description...

  • Page 10: Introduction

    USB 2.0 connectors(four pin headers). Additionally, IK70 SBC features build-in a 12V DC in power adapter. Abundant I/O connectors and expandability makes IK70 Motherboard to be the right fit in the majority of industrial computer applications such as machine vision and control, gaming, POS, KIOSK systems, industrial automation, and others.

  • Page 11: Motherboard Specifications

    1.3 Motherboard Specifications Model Name IK70 Socket LGA 1151 Intel® i7/ i5 / i3 processor Chipset Intel® C236 System 2 x SO-DIMM socket ® DDR4-1866/2133 ECC Memory Max. 32GB ( 2 x 16GB DIMMs) SATA3 x4 Storage M.2 SATA x 1 (KEY B)
  • Page 12 -20°C ~ 60°C Temp. Environment Storage -40°C ~ 70°C Considerations Temp. Operating 10% ~ 95%, non-condensing Humidity Power Input +12V Power Input Power Power Management Maximum 50W Consumption IK70-120 Single Board Computer Packing List Standard IK70 Manual & Driver CD...

  • Page 13: Functional Description

    1.4 Functional Description Function block (V120)

  • Page 14: Physical Description

    IK70 Motherboard User Manual 1.5 Physical Description Board Dimensions (V120)

  • Page 15: Chapter 2: Hardware Installation

    Chapter 2: Hardware Installation Chapter 2: Hardware Installation This chapter provides information on how to use jumpers and connectors on the IK70 motherboard. 2.1 Motherboard Components 2.2 Memory Module Installation 2.3 I/O Equipment Installation 2.4 Jumper Settings 2.5 Motherboard Connectors...

  • Page 16: Motherboard Components

    IK70 Motherboard User Manual 2.1 Motherboard Components 2.1.1 Component Side...

  • Page 17: I/O Side

    Chapter 2: Hardware Installation 2.1.2 I/O Side 2.1.3 Solder Side...

  • Page 18: Memory Module (So-Dimm) Installation

    IK70 Motherboard User Manual 2.2 Memory Module (SO-DIMM) Installation The IK70 SBC Motherboard has two 260-pin SODIMM slot. The socket supports DDR4. When installing the memory unit, please follow the steps below: 1. Firmly insert the SO-DIMM at an angle of about 30-degree into the slot. Align the SO-DIMM with the slot until it is fully inserted.

  • Page 19: I/O Equipment Installation

    2.3 I/O Equipment Installation 2.3.1 12V DC in The IK70 Motherboard allows plugging 12V DC-IN jack on the board without another power module converter under power consumption by Intel® 7th Generation Core i7/i5/i3 Processor and C236 chipset. 2.3.2 Serial COM Port Four COM Port Pin Headers build in the motherboard.

  • Page 20: Jumper Settings

    IK70 Motherboard User Manual 2.4 Jumper Settings This section explains how to set jumpers for correct configuration of the motherboard. Note: A pair of needle nose pliers may be helpful when working with jumpers. If you have any doubts about the best hardware configuration for your application, contact your local distributor or sales representative before you make any changes.

  • Page 21: Jp1: Panel Power Select

    Chapter 2: Hardware Installation 2.4.1 JP1: Panel Power Select Pin № Name 1-2 (Default) +3.3V +12V 2.4.2 JP2: Backlight Power Select Pin № Name 1-2 (Default) +12V 2.4.3 JP3: Backlight Dimming Select Pin № Name 1-2 (Default) PWM Mode DC Mode 2.4.4 JP4: Backlight Dimming Control Select Pin №...

  • Page 22: Clr_Rtc: Clear Rtc Jumper

    IK70 Motherboard User Manual 2.4.6 CLR_RTC: Clear RTC Jumper Pin № Function 1-2 (Default) Normal Clear RTC...

  • Page 23: Mainboard Connectors

    Chapter 2: Hardware Installation 2.5 Mainboard Connectors 2.5.1 Internal Front Side Connectors Connectors Label Function Note Power 4P Wafer Wafer 4p dip HDMI Port Connector QJ3119C-WFB1-4F vertical H:15mm Display Port Connector 3VD21203-H7U0-4H SHB Express PCIEx16 16x164p180°2EG08217-D2D NGFF M.2 KEY B Connector NGFF M.2 KEY B Connector NGFF M.2 KEY E Connector NXSE0-S6705-TP50...
  • Page 24 IK70 Motherboard User Manual 2.5.1.1 CN2: Power 4P Wafer Pin № Signal Name DC_GND DC_GND +12V +12V 2.5.1.2 CN6: SHB Express PCIEx16 Side B Description Side A Description SMB_SHB_CLK PCIE 12V power SMB_SHB_DATA External pull down Side B Side A...
  • Page 25 Chapter 2: Hardware Installation CLK_PCIE_SHB_B2_N PCIE Group A TX4- Side B Side A CLK_PCIE_SHB_B3_P PCIE Group A RX4+ Side B Side A CLK_PCIE_SHB_B3_N PCIE Group A RX4- Side B Side A CLK_PCIE_SHB_A0_P PCIE Group A TX5+ Side B Side A CLK_PCIE_SHB_A0_N PCIE Group A TX5- Side B...
  • Page 26 IK70 Motherboard User Manual 2.5.1.3 CN8: NGFF M.2 KEY E Connector IK70 Mini-PCIe connector supports 2 Mini-PCIe card application:  PCIe I/F + USB 2.5.1.4 CN9: Digital Input / Digital Output Pin № Pin № Signal Name Signal Name DIO_5V...
  • Page 27 Chapter 2: Hardware Installation 2.5.1.6 CN12: LVDS Connector CN12 Pin № Pin № Signal Name Signal Name LCDVDD LVDS0_TX0_N LCDVDD LVDS0_TX0_P LCDVDD LVDS0_TX1_N LVDS0_TX1_P LVDS0_TX2_N LVDS0_TX2_P LVDS0_CLK_N LVDS0_CLK_P LVDS0_TX3_N LVDS0_TX3_P LVDS1_TX0_N LVDS1_TX0_P LVDS1_TX1_N LVDS1_TX1_P LVDS1_TX2_N LVDS1_TX2_P LVDS1_CLK_N LVDS1_CLK_P LVDS1_TX3_N LVDS1_TX3_P...
  • Page 28 IK70 Motherboard User Manual 2.5.1.7 CN13: Backlight Connector Pin № Signal Name +BKLPWR_R +BKLPWR_R +BKLPWR_R BRIGHT BLON_5V 2.5.1.8 CN14: Backlight Brightness Control VR Knob Pin № Signal Name +V5S VRD_ADC 2.5.1.9 CN15, CN16, CN17: Power Output Wafer 2.5.1.10 CN18: RTC Wafer Pin №...
  • Page 29 Chapter 2: Hardware Installation 2.5.1.11 CN20, CN21: USB2.0 Wafer Signal Name Pin № Signal Signal Name Signal Name № Name № № USB_VCC USB_VCC9 USB_VCC8 USB_VCC USB_DN USB_DN USB_DN USB_DN USB_DP USB_DP USB_DP USB_DP 2.5.1.12 CN23: Speaker Left 2.5.1.13 CN24: Speaker Right 2.5.1.14 COM1, COM2, COM3, COM4: Internal RS232 COM The serial port which is Winbond I/O support is RS232 only.
  • Page 30 IK70 Motherboard User Manual Signal Name Pin № Signal Signal Signal Name № Name № Name № FK_NDCD5 FK_NDSR5 FK_NDCD6 FK_NDSR6 FK_NSIN5 FK_NRTS5 FK_NSIN6 FK_NRTS6 FK_NSOUT5 FK_NCTS5 FK_NSOUT6 FK_NCTS6 FK_NDTR5 FK_NRI5 FK_NDTR6 FK_NRI6 +V5S +V5S 2.5.1.15 PANEL 1: Front Panel Pin Header Pin №...
  • Page 31 Chapter 2: Hardware Installation 2.5.1.17 SATA_PWR1, SATA_PWR2: SATA Power Connector Pin № Pin № Signal Name Signal Name +V12S +V12S +V5S +V5S Pin № Pin № Signal Name Signal Name +V12S +V12S +V5S +V5S 2.5.1.18 FAN1, FAN2: Fan Connector FAN1 FAN2 2.5.1.19 J2: DDR4 SO-DIMM...

  • Page 32: External I/O Side Connectors

    Clear COM, Reset Button USB1, USB2 USB 3.0 USB Type A 2.5.2.1 CN1 (Power 4P Terminal Block Connector The DC power input for the IK70 Motherboard allows a voltage input of 12V DC. Pin № Pin № Signal Name Signal Name 12VDC...
  • Page 33 Chapter 2: Hardware Installation 2.5.2.2 CN3/ HDMI1 (HDMI 1.4a) Use HDMI 1.4a connector to connect the IK70 to an external monitor. Pin № Pin № Signal Name Signal Name TMDS_DATA2 TMDS_DATA2 TMDS_DATA1+ TMDS_DATA1- TMDS_DATA0 TMDS_DATA0 TMDS_CLOCK+ TMDS_CLOCK- DDC_CLOCK DDC_DATA Hot Plug...
  • Page 34 Lane 3+ Lane 3- AUX_EN_N AUX+ AUX- Hot Plug +3.3V 2.5.2.4 CN4 (Audio Jack) IK70 has two stereo audio ports with phone jack connectors, one is Line-out, and the other one is Mic-in. Color Signal Name Line-out Mic-in CN24 CN23...
  • Page 35 2.5.2.5 LAN1, LAN2 (Gigabit Ethernet) IK70 has two Ethernet connectors located on the front. Ethernet ports provide a standard RJ45 10/100/1000 Mbps jack connector with LED indicators on the front side to show its Active/ Link status and Speed status.

  • Page 36: Chapter 3: Driver Installation

    IK70 Motherboard User Manual Chapter 3: Driver Installation This chapter contains driver installation instructions for IK70 motherboard. 3.1 Chipset Driver Installation 3.2 Graphic Driver Installation 3.3 Management Engine (ME) and .NET Framework 3.4 Audio Driver Installation 3.5 Ethernet Driver Installation 3.6 RST Driver Installation...

  • Page 37: Chipset Driver

    Chapter 3: Driver Installation 3.1 Chipset Driver Follow instructions below to install Chipset driver. 1. Open the Driver CD (included in the package) and select Chipset driver.
  • Page 38 IK70 Motherboard User Manual 2. Installation window will pop up, select Next. 3. Select Accept to agree with the terms of license agreement.
  • Page 39 Chapter 3: Driver Installation 4. Check the ReadMe file information, select Install to continue. 5. Wait for the driver to be installed. When installation completed, select Restart Now to restart your computer.

  • Page 40: Graphic Driver

    IK70 Motherboard User Manual 3.2 Graphic Driver Follow instructions below to install Graphic driver. 1. Open the Driver CD (included in the package) and select Graphic driver. 2. Installation window will pop up, select Next.
  • Page 41 Chapter 3: Driver Installation 3. Select Accept to agree with the terms of license agreement. 4. Check the ReadMe file information, select Next to continue.
  • Page 42 IK70 Motherboard User Manual 5. Wait for the driver to be installed. 6. Select Next to continue.
  • Page 43 Chapter 3: Driver Installation 7. After installation is completed, select “Yes, I want to restart this computer now”, and click Finish.

  • Page 44: Management Engine (Me)

    IK70 Motherboard User Manual 3.3 Management Engine (ME) Follow instructions below to install Management Engine (ME) . 1. Open the Driver CD (included in the package) and select ME driver. 2. Select Next to start the installation.
  • Page 45 Chapter 3: Driver Installation 3. Select Next to agree with the terms of license agreement. 4. Wait for the driver to be installed.
  • Page 46 IK70 Motherboard User Manual 5. When installation completed, select Finish complete installation.

  • Page 47: Audio Driver

    Chapter 3: Driver Installation 3.4 Audio Driver Follow instructions below to install Audio driver. 1. Open the Driver CD (included in the package) and select Audio driver. 2. Select Next to continue.
  • Page 48 IK70 Motherboard User Manual 3. When installation completed, select Finish complete installation.

  • Page 49: Ethernet Driver

    Chapter 3: Driver Installation 3.5 Ethernet Driver Follow instructions below to install LAN driver. 1. Open the Driver CD (included in the package) and select LAN driver. 2. When compression is complete, select Next.
  • Page 50 IK70 Motherboard User Manual 3. Read the license agreement, and then select Next. 4. System displays the installed packages, select Next.
  • Page 51 Chapter 3: Driver Installation 5. Confirm the installation, select Install to start the installation. 6. When installation is completed, select Finish to close the window.

  • Page 52: Watchdog Driver Installation

    IK70 Motherboard User Manual 3.6 Watchdog Driver Installation For more details about Winmate Watchdog, please download Watchdog Guide from Winmate Downloads Center here. Follow instructions below to install Watchdog driver. Type “cmd” in the run box then the cmd.exe will appear in programs.
  • Page 53 Chapter 3: Driver Installation 4. When Windows Security dialog appear, select install to continue the Installation.
  • Page 54 IK70 Motherboard User Manual 5. Wait for installation to complete. When installation is complete, press any key to close. 6. Open the Driver CD (included in the package) and select Watchdog AP. 7. Select Next.
  • Page 55 Chapter 3: Driver Installation 8. The installed storage location is displayed, select Next to continue. 9. Select Next to start the installation. 10. When installation is completed, select Finish to close the window.

  • Page 56: Digital Io Driver Installation

    IK70 Motherboard User Manual 3.7 Digital IO Driver Installation For more details about Winmate Watchdog, please download Digital IO Guide from Winmate Downloads Center: Follow instructions below to install Digital IO river. Type “cmd” in the run box then the cmd.exe will appear in programs.
  • Page 57 Chapter 3: Driver Installation 6. Open the Driver CD (included in the package) and select Digital IO AP.
  • Page 58 IK70 Motherboard User Manual...

  • Page 59: Chapter 4: Insyde H20 Bios Setup

    Chapter 4: Insyde H20 BIOS Setup Chapter 4: Insyde H20 BIOS Setup This chapter describes the different settings available in the INSYDE BIOS that comes with the board. This chapter offers information on the Award BIOS installation utility. 4.1 How and When to Use BIOS Setup 4.2 BIOS Functions 4.3 Using Recovery Wizard to Restore Computer 4.4 How to Enable Watchdog...

  • Page 60: How And When To Use Bios Setup

    IK70 Motherboard User Manual 4.1 How and When to Use BIOS Setup To enter the BIOS setup, you need to connect an external USB keyboard, external monitor and press Del key when the prompt appears on the screen during start up. The prompt screen shows only few seconds so need press Del key quickly.
  • Page 61 Chapter 4: Insyde H20 BIOS Setup The following Keys can be used after entering the BIOS Setup. Function Help F5/ F6 Change Values Setup Defaults Save & Exit Exit Enter Select SubMenu ↑/ ↓ Select Item ← / → Select Item For items marked ►...

  • Page 62: Bios Functions

    IK70 Motherboard User Manual 4.2 BIOS Functions 4.2.1 Main Menu The Main menu displays the basic information about yoursystem including BIOS version, processor RC version, system language, time, and date. When you enter BIOS setup, the first menu that appears on the screen is the main menu.It contains the system information including BIOS version, processor RC version, system language, time, and date.

  • Page 63: Advanced

    Chapter 4: Insyde H20 BIOS Setup 4.2.2 Advanced Select the Advanced Tab from the setup menu to enter the advanced BIOS setup screen. You can select any of the items on the left frame of the screen to go to the sub menu for the item, such as CPU Configuration. You can use the <Arrow>...
  • Page 64 IK70 Motherboard User Manual 4.2.2.1 CPU Configuration BIOS Setting Description Setting Option Effect Intel (VMM) Virtualization Enable or disable Intel Enable/Disable When enabled, a VMM Technology Virtualization can utilized the Technology. additional hardware capabilities provided by Vanderpool Technology. Active Processor Cores...
  • Page 65 Chapter 4: Insyde H20 BIOS Setup 4.2.2.2 Power & Performance BIOS Setting Description Setting Option Effect CPU – Power Configure CPU – Power Enter Enters sub-menu Management Control Management Control parameters...
  • Page 66 IK70 Motherboard User Manual BIOS Setting Description Setting Option Effect Boot Configure Boot -Max non-turbo Select the performance state that the Performance Performance performance BIOS will set starting from reset vector Mode Mode -Max battery parameters -Turbo Performance Intel SpeedStep...
  • Page 67 Chapter 4: Insyde H20 BIOS Setup 4.2.2.3 System Agent (SA) Configuration BIOS Setting Description Setting Option Effect Graphics Configuration Configure Graphics Enter Opens sub-menu Configuration parameters PEG Port Configure PEG Port Enter Opens sub-menu Configuration Configuration parameters Vt-d Intel® Virtualization Enabled Vt-d capability Technology for...
  • Page 68 IK70 Motherboard User Manual 4.2.2.3.1 Graphics Configuration...
  • Page 69 Chapter 4: Insyde H20 BIOS Setup BIOS Setting Description Setting Option Effect Graphics Turbo Graphics Turbo 14-31 Select Graphics Turbo IMON Current IMON Current IMON Current values supported values supported Primary Display Select Primary Auto Select which of IGFX/PEG/ PCI Display IGFX Graphics device should be primary...
  • Page 70 IK70 Motherboard User Manual 4.2.2.3.2 PEG Port Configuration...
  • Page 71 Chapter 4: Insyde H20 BIOS Setup BIOS Setting Description Setting Option Effect Enable Root Port Configure Root Enabled Enable or disable Root Port Port Disabled Auto parameters Max Link Speed Select Max Link Auto Configure PEG 0:1:0 Max Speed Speed Gen1 Gen2 Gen3...
  • Page 72 IK70 Motherboard User Manual Test Mode Test Mode Enabled Loopback Mode settings PCIe Spread PCIe Spread Enabled Disabled Allow disabling Spread Spectrum Spectrum Spectrum Clocking for compliance testing Clocking Clocking Gen3 Root Port Gen3 Root Port Lane 0-Lane 15 Value for Lane 0- Lane 15...
  • Page 73 Chapter 4: Insyde H20 BIOS Setup 4.2.2.3.3 VT-d BIOS Setting Description Setting Option Effect Vt-d Intel® Virtualization Enabled Vt-d capability Technology for Disabled Directed I/O...
  • Page 74 IK70 Motherboard User Manual 4.2.2.4 PCH-IO Configuration BIOS Setting Description Setting Option Effect PCI Express Configure PCI Express Enter Opens sub-menu Configuration settings SATA And RST Configure SATA And Enter Opens sub-menu Configuratuion RST settings USB Configuration Configure USB settings...
  • Page 75 Chapter 4: Insyde H20 BIOS Setup 4.2.2.4.1 PCI Express Configuration BIOS Setting Description Setting Option Effect PCI Express Clock PCI Express Clock Enabled PCI Express Clock Gating Gating Gating settings Disabled Enable/ Disable for each root port PCI Port assigned to PCI Port assigned to Value Choose value...
  • Page 76 IK70 Motherboard User Manual...
  • Page 77 Chapter 4: Insyde H20 BIOS Setup BIOS Setting Description Setting Option Effect PCI Express Root Control the PCI Express Root Enter Opens sub-menu Port 4 Port 4 Topology Topology settings Unknown Identify the SATA Topology if it is Default or ISATA or Flex or DirectConnect or M2 SATA Express ASPM...
  • Page 78 IK70 Motherboard User Manual...
  • Page 79 Chapter 4: Insyde H20 BIOS Setup 4.2.2.4.2 USB Configuration BIOS Setting Description Setting Option Effect USB Port Disable USB Port Disable Disable Selectively Enable/ Override Override configuration Select Per-Pin Disable the corresponding USB port from reporting a Device Connection to the controller...
  • Page 80 IK70 Motherboard User Manual 4.2.2.4.3 State After G3 BIOS Setting Description Setting Option Effect State After G3 State After G3 S0 State Specify what state to go configuration S5 State to when power is re-applied after a power failure (G3 state)
  • Page 81 Chapter 4: Insyde H20 BIOS Setup 4.2.2.5 PCH-FW Configuration...
  • Page 82 IK70 Motherboard User Manual BIOS Setting Description Setting Option Effect ME State ME State Disabled When Disabled ME will be put into ME configuration Enabled Temporarily Disabled Mode Manageability Manageability Disabled Enable/ Disable Intel Manageability Features State Features State Enabled...
  • Page 83 Chapter 4: Insyde H20 BIOS Setup BIOS Setting Description Setting Option Effect USB Provisioning of USB Provisioning of Disabled Enable/ Disable of AMT USB Enabled provisioning Activate Remote Trigger CIRA Boot Value Note: Network Access must be Assistance Process activated first from MEBx Setup PET Progress PET Progress...
  • Page 84 IK70 Motherboard User Manual BIOS Setting Description Setting Option Effect PTT Capability/ State PTT Capability/ State Select whether or not the OS configuration you will boot to will be PTP aware PTP aware OS PTP aware OS PTP Aware Select whether or not the OS...
  • Page 85 Chapter 4: Insyde H20 BIOS Setup...
  • Page 86 IK70 Motherboard User Manual 4.2.2.6 SIO F81866A BIOS Setting Description Setting Option Effect Serial Port A ~ Serial Configure Serial port Disable No configuration Port D settings Enable User configuration Auto EFI/OS chooses configuration Watchdog Timer Disable Enable or disable Watchdog...
  • Page 87 Chapter 4: Insyde H20 BIOS Setup 4.2.2.6.1 Hardware Monitor BIOS Setting Description Setting Option Effect FAN1 Mode FAN1 Mode Manual Select FAN1 Mode configuration Linear configuration Stage...
  • Page 88 IK70 Motherboard User Manual 4.2.2.6.2 GPIO Configuration BIOS Setting Description Setting Option Effect Internal Resistance Internal Resistance Push Pull User can pull internal configuration Open Drain resistance push-pull / open-drain Input/ Output Mode GPIO pin configuration Input Set GPIO pin is input or output...
  • Page 89 Chapter 4: Insyde H20 BIOS Setup 4.2.2.7 Console Redirection BIOS Setting Description Setting Effect Option Console Serial Console Redirection Enabled Enable Console Redirection Function Redirect Function settings Disabled Terminal Type Console Redirection VT_100 Set Console Redirection Terminal Type Terminal Type settings VT_100+ VT_UTF8 PC_ANSI...
  • Page 90 IK70 Motherboard User Manual Stop Bits Console Redirection 1 Bit Set Console Redirection Stop Bits Stop Bits settings 2 Bits Flow Control Console Redirection None Set Console Redirection Stop Flow Stop Flow Control Type RTS/ CTS Control Type settings XON/ XOFF...

  • Page 91: Security

    Chapter 4: Insyde H20 BIOS Setup 4.2.3 Security BIOS Setting Description Setting Option Effect TrEE Protocol Version Choose TrEE Protocol TrEE Protovol Version: Version 1.0 or 1.1 When hidden don’t TPM Availability TPM Availability Available configuration Hidden exposes TPM to 0 TPM Operation TPM Operation Select one of the...

  • Page 92: Power

    IK70 Motherboard User Manual 4.2.4 Power BIOS Setting Description Setting Option Effect ACPI S3 ACPI S3 configuration Disabled Enable/ Disable ACPI Enabled S1/S3 Sleep state Auto Wake on S5 Auto Wake on S5 Disabled Auto Wake on S5, by configuration...
  • Page 93 Chapter 4: Insyde H20 BIOS Setup 4.2.2.10 Boot BIOS Setting Description Setting Effect Option Boot Type Boot Type UEFI Boot Select boot type to Dual type, Legacy type or UEFI configuration Type type Quick Boot Quick Boot Enabled Allows InsydeH20 to skip certain tests while booting. configuration Disabled This will decrease the time needed to boot the...
  • Page 94 IK70 Motherboard User Manual 4.2.5 Exit...

  • Page 95: Using Recovery Wizard To Restore Computer

    Chapter 4: Insyde H20 BIOS Setup 4.3 Using Recovery Wizard to Restore Computer Note: Before starting the recovery process, make sure to backup all user data. The data will be lost after the recovery process. Important: To enable quick one-key Before starting the recovery process, remove any expansion card.

  • Page 96: How To Enable Watchdog

    4.4 How to Enable Watchdog To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center or File Share. Refer to the User Manual for more details.
  • Page 97 Chapter 4: Insyde H20 BIOS Setup 3. In Watchdog utility window set countdown time and periodically feed time, or disable watchdog. Example: Every 10 min watchdog will monitor the system, in case any error occurs the system will restart automatically when the countdown time reaches 0.

  • Page 98: Chapter 5: Technical Support

    IK70 Motherboard User Manual Chapter 5: Technical Support This chapter contains directory to technical support. 5.1 Drivers 5.2 Software Development Kit (SDK)

  • Page 99: Drivers

    Free technical support is available from our engineers every business day. We are always ready to give advice on application requirements or specific information on the installation and operation of any of our products. If any problem occurs immediately contact us. 5.1 Drivers The list of drivers available for IK70 Motherboard: Item Driver Chipset Driver...
