Toto Link N150RH Quick Installation Manual

Quick Installation Guide
Wireless-N Broadband Router
Suitable for: N150RH, N300RH, N150RT, N151RT, N300RT
Information in this document is subject to change without prior notice.
Set Up PC
For Windows 2000 or Windows XP Operating System, please comply with following steps to set up.
Right-click "My Network Right-click "Local Area
Places", click "Properties" Connection", click "Properties"
Set Up Router
Please set up the router following below steps.
Run the Web browser.
Type 192.168.1.1 in the web browser, then press Enter key.
Enter User Name and Password (the default User Name and
Password are "admin"), then click OK or press Enter key.
Click Setup Wizard on the navigation bar on the left.
For more information, please go to www.totolink.net

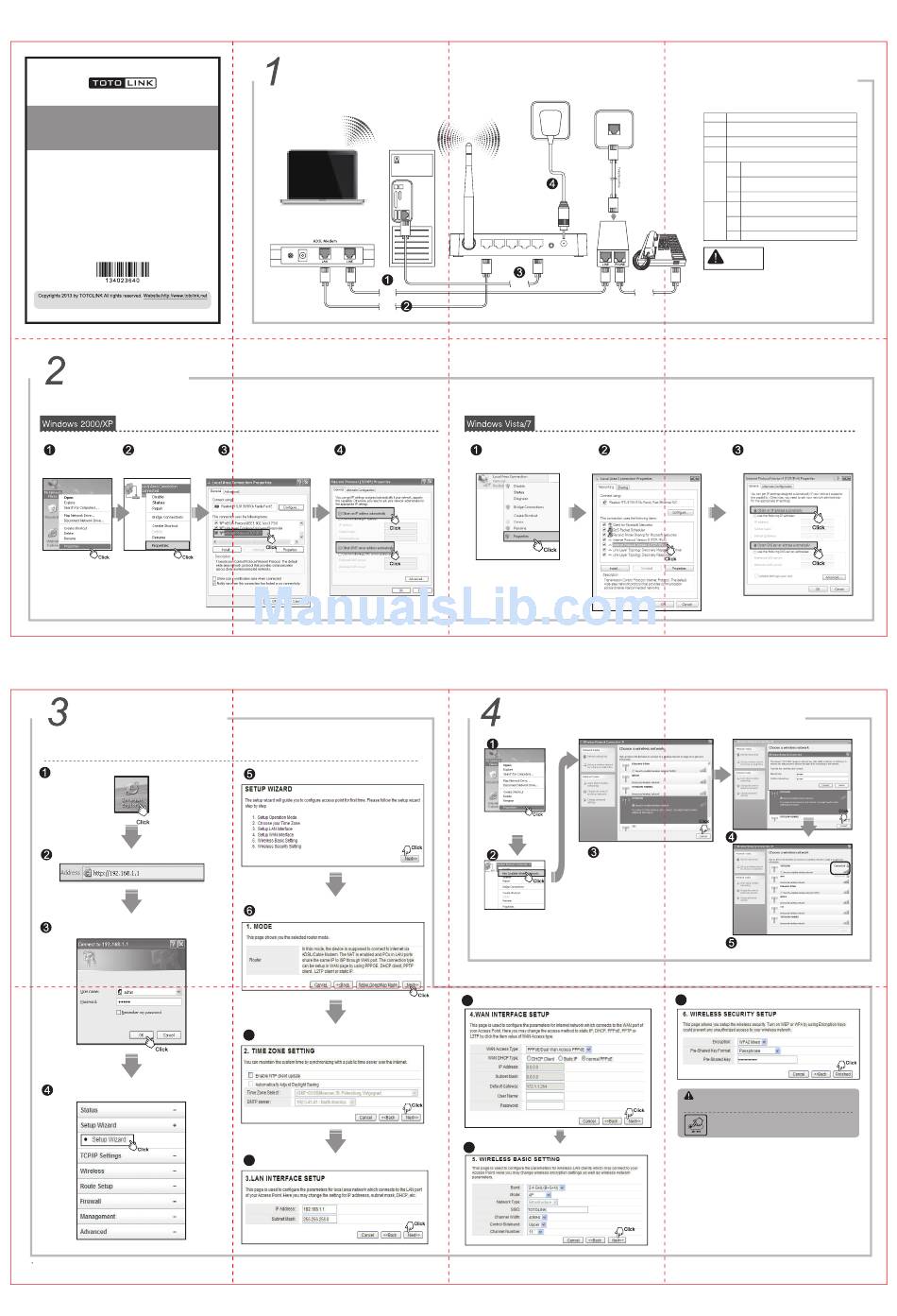

Hardware Installation

Telephone
Wire
Network
Cable
Double-click "Internet Protocol Choose "Obtain an IP address
(TCP/IP)" automatically" and "Obtain DNS
server address automatically",
click "OK"; go back to previous
interface and click "OK"
Click Next to begin setup wizard.
The default mode is Router. Click Setup Operation Mode Button if you
want to choose other modes. Else click Next.
7
You can specify the device's time zone according to GMT (Greenwich
Mean Time) and then click Next.
After Configured the IP address and Subnet Mask for LAN, please
8
click Next.
If you access Internet by ADSL, please comply with step 1, 2, 3 and 4 in below diagram in correct order; if you access Internet by
residential broadband, please comply with step 2, 3 and 4 to connect the WAN port of your router with the residential broadband directly.
Router
Network
Cable
For Windows Vista or Windows 7 Operating System, please comply with following steps to set up.
Click "Start— Control Panel— Network Double-click "Internet Protocol
and Internet— Network Connection", Version 4 (TCP/IPv4)"
right-click "Local Area Connection",
and choose "Properties".
Wireless Network Connection
Right-click "My Network
Places", click "Properties"
Confirm the wireless network SSID name,
choose one that you would like to connect,
then click "Connect"
Right-click "Wireless Network
Connection", and click "View
Available Wireless Networks"
Choose the WAN connection type and enter the parameters provided by
9
your ISP.
10
Enter the parameters of Wireless Basic Settings, click Next.
After connected, please check whether the indicator lights
are normal.
Name Normal Status
This indicator lights blue when the router powered on,
POWER
otherwise it is off.
This indicator blinks blue when router powered on.
CPU
This indicator blinks blue when there are wireless devices
WLAN
connected and transmitting data to the router.
When the WAN port is connected successfully the
On
indicator lights blue.
During transmitting or receiving data through the
WAN Blink
WAN port the indicator blinks blue.
Off There is no device linked to the WAN port.
When the LAN port has a successful connection,
On
the corresponding indicator lights blue.
1/2/3/4 During transmitting or receiving data through the
Blink
LAN port the corresponding indicator blinks blue.
LAN
Off There is no device linked to the LAN port.
NOTE:
1. Please disconnect the power adapter and all cables during
thunderstorm weather;
2. Keep away from heat source and keep well ventilated;
Telephone
3. Please pay attention to the waterproofing and moisture-proof
Wire
when storing, transporting and running.
4. The power supply must reach the rated current and power.
5. Put the router in flat places.
Choose "Obtain an IP address automatically"
and "Obtain DNS server address automatically",
click "OK"; go back to previous interface and
click "OK"
Input the encrytion key and click "Connect"
Have connected wireless network, you can access
Internet through wireless mode.
For a secure connection, WPA2 Mixed is recommended for you to protect
11
your network.
NOTE:
After you set the Pre-Shared Key, please remember your SSID and the
Pre-Shared Key to connect with your wireless LAN.
Press for about 2~3 seconds, the system LED indicator keep solid light,
it means WPS working, while press for about 10 seconds, all LEDs blinks
quickly, the device will restore to factory default settings.
