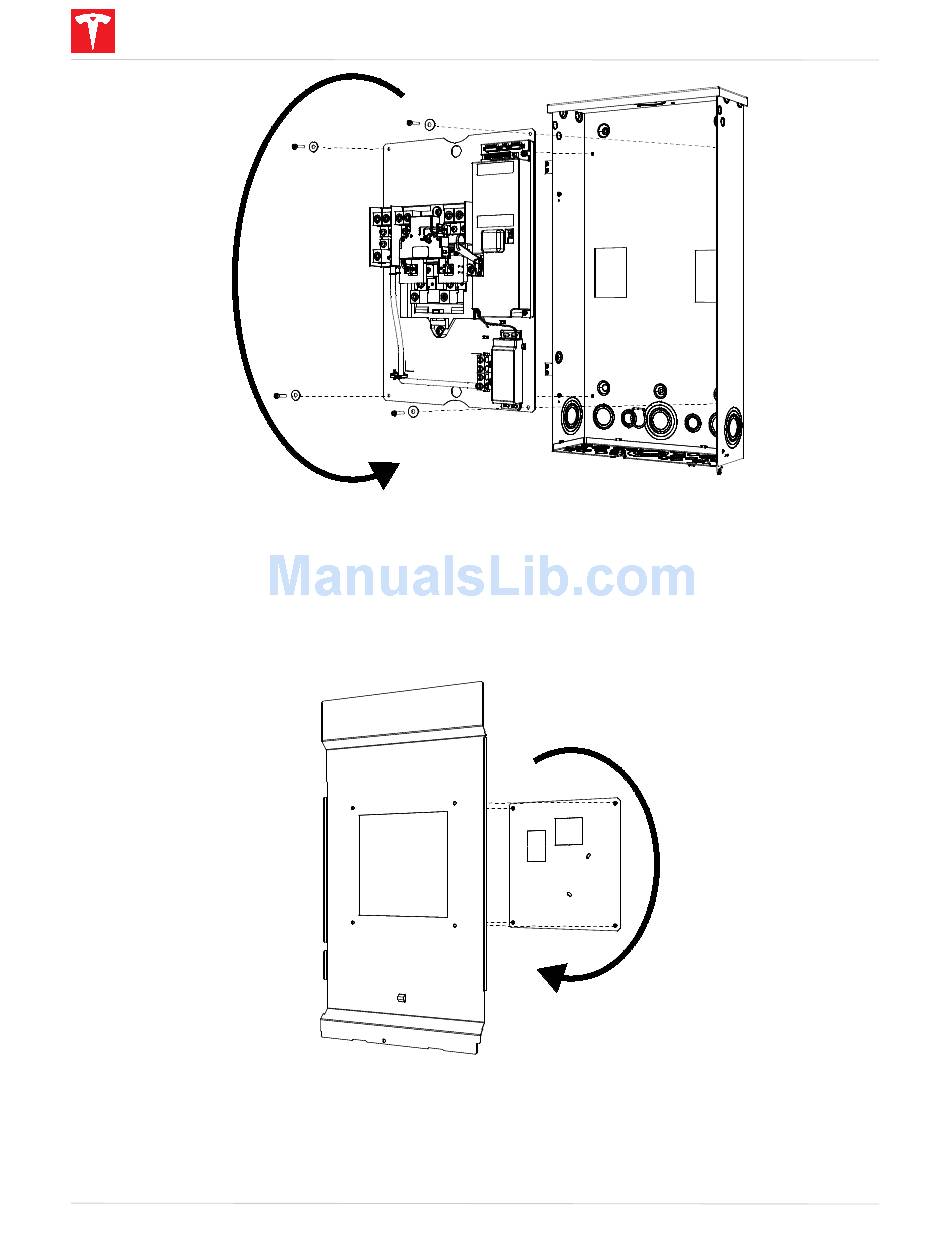

Figure 25: Rotating the Back Panel Assembly in the Enclosure
7. Determine if a circuit breaker is required for the installation:
•
If no circuit breaker is required, remove and rotate the dead front panel insert (and its
insulation) 180 degrees, and reattach it to compensate for the inverted back panel.
•
If a circuit breaker is required, proceed to the next step, "Install a Circuit Breaker in the
Backup Gateway."
26
Figure 26: Rotating the Dead Front Panel Insert
