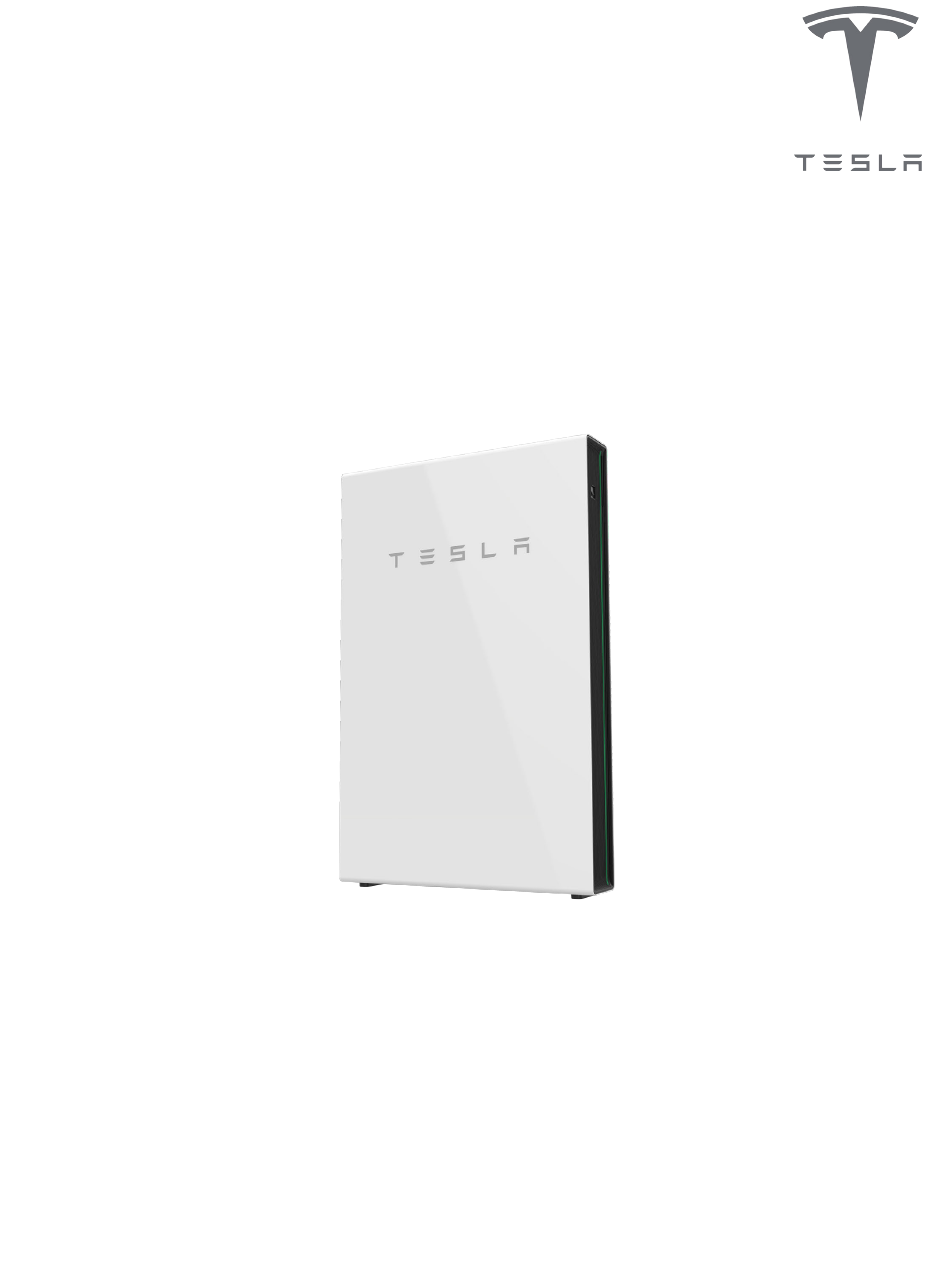

  • Page 1 Powerwall 2 AC Installation Manual with Backup Gateway 2...
  • Page 2 ©2020 TESLA, INC. All rights reserved. All information in this document is subject to copyright and other intellectual property rights of Tesla, Inc. and its licensors. This material may not be modified, reproduced or copied, in whole or in part, without the prior written permission of Tesla, Inc.
  • Page 3 Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with you national legislation. For Professional Users in the European Union If you wish to discard electrical and electronic equipment (EEE), please contact your dealer or supplier for further information.

  • Page 4: Table Of Contents

    About Energy Metering.............34 Powerwall Physical Requirements......... 10 Site and Solar Metering for Backup Gateway 2..34 Powerwall Identification............11 Install Tesla 100A CTs............35 Powerwall Optimum Temperature Range....11 STEP 7: Complete the Installation....36 Preparing for Installation........12 Plan Internet Connection for the Backup Gateway 2 In the Powerwall Box............
  • Page 5 CONTENTS Appendix E: Installing a Neurio Energy Meter................ 57 Neurio Energy Meter Overview........57 Wireless Communication to the Backup Gateway......................57 Wired Communication to the Backup Gateway..57 Meter Voltage Taps............. 59 Current Transformer Placement........59 Voltage Tap and Current Transformer Connections......................

  • Page 6: General Warnings And Information

    Powerwall, potentially rendering it inoperable. Important Safety Instructions This manual contains important instructions for the Tesla Powerwall 2 AC and Backup Gateway that must be followed during installation and maintenance of the system. Symbols Used...
  • Page 7 CAUTION: Do not use fluids, parts, or accessories other than those specified in this manual, including use of non-genuine Tesla parts or accessories, or parts or accessories not purchased directly from Tesla or a Tesla-certified party. CAUTION: Do not place Powerwall in a storage condition for more than one (1) month, or permit the electrical feed on the Powerwall to be severed for more than one (1) month, without placing Powerwall into a storage condition in accordance with Tesla’s storage specifications.

  • Page 8: Specifications

    1150 mm x 753 mm x 147 mm (45.3 in x 29.6 in x 5.75 in) Dimensions 114 kg (251.3 lbs) Weight Mounting Floor or wall mount Dimensions and weight differ slightly if manufactured before March 2019. Contact Tesla for additional information. Powerwall 2 AC Installation Manual...
  • Page 9 3000 m (9843 ft) Environment Indoor and outdoor rated Enclosure Type NEMA 3R Ingress Rating IP67 (Battery & Power Electronics) IP56 (Wiring Compartment) Wet Location Rating Noise Level @ 1m <  40 dBA at 30°C (86°F) Powerwall 2 AC Installation Manual...

  • Page 10: Backup Gateway 2 Specifications

    Wall mount, Semi-flush mount Environmental Specifications Operating Temperature –20°C to 50°C (–4°F to 122°F) Operating Humidity (RH) Up to 100%, condensing Maximum Elevation 3000 m (9843 ft) Environment Indoor and outdoor rated Enclosure Type NEMA 3R Powerwall 2 AC Installation Manual...

  • Page 11: Registering Powerwall

    Tesla. If an Internet connection is not established or is interrupted for an extended period, and Tesla is unable to contact the owner, the warranty may be limited to 4 years. To ensure that the owner can receive the full 10-year warranty, be sure to complete the commissioning process so that registration information is sent to Tesla.

  • Page 12: Site Requirements And Pre-Installation Guidance

    It requires adequate clearance for installation and cabling or conduit. Wiring and conduit (where required) must be provided by the installer and the installation must comply with local codes and UL514B requirements. Powerwall 2 AC Installation Manual...

  • Page 13: Powerwall Physical Requirements

    SITE REQUIREMENTS AND PRE-INSTALLATION GUIDANCE Figure 1. Powerwall 2 AC and Backup Gateway 2 Dimensions Powerwall Physical Requirements Powerwall can be mounted on a floor or wall, and includes a mounting bracket to support either configuration. Mounting Powerwall must follow the guidance outlined in this document. Mounting...

  • Page 14: Powerwall Identification

    • For cold climates Tesla strongly recommends installing Powerwall indoors when possible (particularly when long outages are expected). • For hot climates Tesla recommends keeping Powerwall out of direct sunlight. Installation in full sun raises the temperature inside the enclosure above ambient temperature. This temperature rise is not a safety risk, but may impact battery performance.

  • Page 15: Preparing For Installation

    PREPARING FOR INSTALLATION In the Powerwall Box In the Powerwall Accessory Bag Powerwall Accessory Bag: Tesla P/N 1104517-00-x Wiring compartment (1) 4-pin terminal (1) 4-pin terminal block (1) AC power (3) Wago 2- cover with (4) screws block connector connector with 120-Ohm...

  • Page 16: In The Backup Gateway 2 Box

    In the Backup Gateway 2 Box In the Backup Gateway 2 Accessory Bag (1) Main circuit breaker adhesive label (1) Tesla 100 A CT (4) Sealing washers (1) Tesla CT extension cable harness [10 ft/3 m] (1) Owner’s Guide Powerwall 2 AC Installation Manual...

  • Page 17: Required Tools

    Tesla 100 A CT Additional Tesla 100A CT (1 count) 1467274-00-x Tesla 100 A CT Extension Tesla 100A CT Extension (10 ft / 3 m) 1529623-00-x Internal Panelboard Kit Optional internal panelboard kit with wire jumpers and breaker hold-down bar 1549184-00-x 2"...
  • Page 18 (North America) American market (1 accessory bag is included with every Powerwall) 1112154-00-x Powerwall 2 Stack Kit Powerwall 2 Stack Kit for stacked Powerwall installs Figure 3. Optional Internal Panelboard Kit Figure 4. Conduit Hub Kit Powerwall 2 AC Installation Manual...

  • Page 19: Step 1: Plan The Installation Site

    Determine whether cables will be routed into the Backup Gateway from the top, bottom, sides, or rear of the enclosure. NOTE: For cable entry at the top of the Backup Gateway enclosure, a Tesla Top Hub must be used in order to maintain enclosure ingress protection.

  • Page 20: Plan Distance Between Components

    Up to 330 ft (100 m) Using 20 AWG (0.5 mm ) or larger twisted pair conductors Using Tesla 100 A CT Extension (10 ft/3 m) (Tesla P/N 1467274-00-x) Up to 330 ft (100 m) Neurio 200 A CTs (Remote Metering)

  • Page 21: Step 2: Mount Powerwall And The Backup Gateway

    1. Using a drill and level, mount the bracket to the selected wall. See Mounting Bracket Anchoring Details on page 42 for additional details on the type and number of fasteners to use. Figure 5. Mounting Bracket Dimensions Powerwall 2 AC Installation Manual...

  • Page 22: Mount Powerwall On The Bracket

    Mount Powerwall on the Bracket 1. Switch off Powerwall. WARNING: Switching off will ensure Powerwall does not grid form. However, AC voltage may still be present from the grid. Ensure all equipment is safely de-energized before working. Powerwall 2 AC Installation Manual...
  • Page 23 For back cable entry installations, remove the plug from the back cable entry port and place it in the side cable entry port. NOTE: The plug must always be placed in either the back or side cable entry port. Powerwall 2 AC Installation Manual...
  • Page 24 +/– 2 degrees side-to-side and within +/– 5 degrees front-to-back. 8. If wall-mounting Powerwall, remove the feet from the unit (applicable only to updated versions of Powerwall, see Powerwall 2 Identification by Mounting Bracket Height on page 11). Powerwall 2 AC Installation Manual...

  • Page 25: Mount The Backup Gateway

    ¾” in diameter but can be expanded to 2”. Figure 7. Cable Access Drill Guides 2. If using top cable entry, remove the Top Hub Cap from the enclosure and install the Tesla Top Hub (Tesla P/N 1549184-00-A (2-inch kit) or Tesla P/N 1549184-01-A (1.25-inch kit)).
  • Page 26 23. Do not mount the Backup Gateway enclosure horizontally or upside down. Figure 8. Backup Gateway Enclosure Mounting Holes 4. Locate the Backup Gateway serial number on the label on the dead front cover. Record the serial number for reference. Powerwall 2 AC Installation Manual...

  • Page 27: Step 3: Configure The Backup Gateway For Wiring

    WARNING: To ensure safe operation in Backup Mode, a local earth connection must be present on the site such as by earth rod or ground electrode. Connection of earth rod must comply with local codes. Powerwall 2 AC Installation Manual...

  • Page 28: Step 4: Make Ac Power Connections

    3. For partial home backup with Non-Backup loads under 100 A, a Non-Backup panel can be connected. Connect the conductors (L1, L2, Neutral, and Ground) from the Non-Backup panel to the Backup Gateway’s Non-Backup terminals according to Conductor Connections on page 26 and the accompanying table. Powerwall 2 AC Installation Manual...
  • Page 29 120 in-lbs (14 N-m) Design Considerations Refer to Appendix F: Feature Notes on page 63 for information on the Backup Gateway load shedding feature, which can be used to interrupt any 60 V circuit when operating off-grid. Powerwall 2 AC Installation Manual...

  • Page 30: Install Optional Internal Panelboard In The Backup Gateway

    Install Optional Internal Panelboard in the Backup Gateway The Internal Panelboard kit (Tesla P/N 1529623-00-x) may be installed in the Backup Gateway 2 and connected to either the Backup or the Non-Backup terminals by feeding a two pole breaker on the bussing.
  • Page 31 125 A maximum. The Powerwall connection to the Backup Gateway always requires a 30 A circuit breaker. This breaker serves as circuit protection for the Powerwall. Breaker sizing and installation must comply with the National Electric Code. Powerwall 2 AC Installation Manual...

  • Page 32: Step 5: Make Communications Connections

    4. At the Powerwall, strip the ends of the AC conductors and attach them to the corresponding leads on the AC power harness. 5. Plug the AC power harness into the AC connector in the Powerwall wiring compartment. Ensure that the connector clicks into place. Figure 11. Powerwall 2 AC Power Harness Connection Powerwall 2 AC Installation Manual...
  • Page 33 (labeled “OUT”) in the Powerwall wiring compartment. (In multi-Powerwall installations, use this connector only in the last Powerwall in the chain.) 11. On the Powerwall side, strip the end of the equipment grounding conductor and wrap the communication cable drain wire around the grounding conductor lead. Powerwall 2 AC Installation Manual...
  • Page 34 Figure 13. Powerwall Earth / Ground and Communication Connections with a Terminating Resistor NOTE: The Tesla Powerwall system supports ESS Operating Mode of Import Only, where it will not export active power from the battery to the Area EPS. The installer and the customer can select three standard modes of operation for the Powerwall: Backup, Solar Self-Powered, and Time of Use.

  • Page 35: Install Optional Remote Disable Switch

    Figure 15. Wiring a Remote Disable Switch to the Backup Gateway AUX Port 1. Remove the factory-installed jumper from pins 1 and 2 of the 5-position “AUX” connector inside the Gateway 2. See Appendix B: Wiring Reference on page 45 for a diagram of the connector location. Powerwall 2 AC Installation Manual...
  • Page 36 • Should be Installed externally in a readily accessible location preferably by utility meter • The maximum low voltage wire run from switch to Gateway should not exceed 150 feet (45 m) • Should observe 12V, 0.1 A ratings Powerwall 2 AC Installation Manual...

  • Page 37: Step 6: Install Energy Metering For The System

    Accessory Kit). Additional Tesla 100 A CTs (Tesla P/N 1467316-00-x) may be ordered individually. The Tesla 100 A CTs may be extended a max distance of 330 ft (100 m) by splicing twisted pair or using the Tesla 100A CT Extension (10 ft/3 m) (Tesla P/N 1467274-00-x). Use 20 AWG (0.5 mm ) conductors or larger to extend CTs up to 330 ft (100 m).

  • Page 38: Install Tesla 100A Cts

    Failure to de-energize the system may compromise operator and equipment safety. 1. Plug the Tesla 100A CT into the terminal in the Backup Gateway. Ensure the connector is fully seated in the terminal.

  • Page 39: Step 7: Complete The Installation

    Plan Internet Connection for the Backup Gateway 2 Internet connectivity is required to receive the full 10-year Powerwall warranty, and for the customer to see their system in the Tesla App. For best performance, ensure Ethernet and Wi-Fi connections are both configured during commissioning.
  • Page 40 Powerwall establishes communication with the Backup Gateway, the LED on the right side of Powerwall illuminates. CAUTION: Always leave site with Powerwall breaker closed for battery to maintain a base level of charge. Leaving the Powerwall disconnected from AC for extended periods increases risk of damage. Powerwall 2 AC Installation Manual...

  • Page 41: Step 8: Commission The System

    NOTE: If the Backup Gateway Wi-Fi network doesn’t appear or the connection to the Backup Gateway fails, power cycle the Backup Gateway using the Reset button, wait 2 minutes, and try connecting again. Powerwall 2 AC Installation Manual...
  • Page 42 WARNING: Software updates may take several minutes, especially for installations with multiple Powerwalls. Never power down during an update, as it may result in damage to the system. 8. Follow the Commissioning Wizard steps to complete the commissioning process. Powerwall 2 AC Installation Manual...

  • Page 43: Finish And Demonstrate The Installation

    3. Ask the homeowner to download and install the Tesla mobile app and connect to the system. 4. Demonstrate the capabilities of the Tesla mobile app, such as how to change the operation mode.

  • Page 44: Appendix A: Powerwall Mounting Details

    NOTE: Powerwall has a pump and fan that produce a gentle hum during operation, comparable to a typical refrigerator. The noise level depends on the ambient temperature and the power level of operation. Consider these noise levels when choosing where to install Powerwall. Powerwall 2 AC Installation Manual...

  • Page 45: Mounting Bracket Anchoring Details

    4 in blocks, end-nailed into studs with two 16d nails or toe- nailed into studs with four 8d nails. Use at least four (one in each corner) 1/4-inch wood screws with washers, of sufficient length for at least 2.5 in embedment into the blocking. Powerwall 2 AC Installation Manual...
  • Page 46 25 gauge, and backing must be minimum 22 gauge. Use at least eight (two in each corner) #14 sheet metal screws with washers, of sufficient length to penetrate at least 3 threads beyond the backing. Powerwall 2 AC Installation Manual...
  • Page 47 3 threads beyond the studs. To attach the bracket to the struts, use at least four (one in each corner) 1/4-inch hex head screws with washers and strut nuts. Powerwall 2 AC Installation Manual...

  • Page 48: Appendix B: Wiring Reference

    Powerwall can be used to convert from 10 to 8 AWG cables. Follow all code wiring requirements. NOTE: Suitable wire ferrules may be used with Wago connectors, but are not required. Powerwall 2 AC Installation Manual...

  • Page 49: Backup Gateway 2 Wiring

    G Load / Generation Neutral Terminals White 14-6 AWG, 14 AWG – 1/0 H Neutral-Ground Bonding Strap I Non-Backup Loads (L1, L2) Black, Red 14-2 AWG J RESET button * Use copper or aluminum conductors. Powerwall 2 AC Installation Manual...

  • Page 50: Backup Gateway 2 Communication Wiring

    24–16 AWG (0.2-1.5 mm 3 RS485 LO #1 Black 24–16 AWG (0.2-1.5 mm 4 GND (Earth)/Shield 24–16 AWG (0.2-1.5 mm 5 RS485 HI #2 24–16 AWG (0.2-1.5 mm 6 RS485 LO #2 Black 24–16 AWG (0.2-1.5 mm Powerwall 2 AC Installation Manual...

  • Page 51: Eaton Breakers

    Eaton # BWH2125: 125A Circuit Breaker; 2-Pole, 120V/240V, 25kAIC, Bolt On BWH2150 Eaton # BWH2150: 150A MB; 2-Pole, 120V/240V, 25kAIC, Bolt On BWH2175 Eaton # BWH2175: 175A MB; 2-Pole, 120V/240V, 25kAIC, Bolt On BWH2200 Eaton # BWH2200: 200A MB; 2-Pole, 120V/240V, 25kAIC, Bolt On Powerwall 2 AC Installation Manual...

  • Page 52: Appendix C: System Wiring Diagrams

    • All loads and generation are downstream of the Backup Gateway contactor. • Site-level metering by integrated Site CTs. • Internal panelboard kit may be used for Generation breakers. • Neutral-Ground Bonding Strap installed only if Gateway is main service equipment. Powerwall 2 AC Installation Manual...
  • Page 53 APPENDIX C: SYSTEM WIRING DIAGRAMS Figure 20. Whole Home Backup with Standalone Meter Powerwall 2 AC Installation Manual...
  • Page 54 APPENDIX C: SYSTEM WIRING DIAGRAMS Figure 21. Whole Home Backup with Meter Load Center Powerwall 2 AC Installation Manual...

  • Page 55: Partial-Home Backup

    100 A CTs on L1/L2 of non-backup circuit, or by remote meters at point of interconnection. • Internal panelboard kit may be used for Generation breakers or Non-Backup loads. • Neutral-Ground Bonding Strap installed only if Gateway is main service equipment. Powerwall 2 AC Installation Manual...
  • Page 56 APPENDIX C: SYSTEM WIRING DIAGRAMS Figure 22. Partial Home Backup with Standalone Meter Powerwall 2 AC Installation Manual...
  • Page 57 APPENDIX C: SYSTEM WIRING DIAGRAMS Figure 23. Partial Home Backup with Standalone Meter - Option Using Secondary Load Lugs Powerwall 2 AC Installation Manual...
  • Page 58 APPENDIX C: SYSTEM WIRING DIAGRAMS Figure 24. Partial Home Backup with Meter Load Center Powerwall 2 AC Installation Manual...

  • Page 59: Appendix D: Configure Energy Metering

    APPENDIX D: CONFIGURE ENERGY METERING Powerwall 2 AC Installation Manual...

  • Page 60: Appendix E: Installing A Neurio Energy Meter

    Commissioning. Wireless Communication to the Backup Gateway The Neurio Energy Meter (Tesla P/N 1112484-00-x) may be wirelessly paired with Backup Gateway as part of the normal Powerwall commissioning process within the Commissioning Wizard. Wired Communication to the Backup Gateway...
  • Page 61 RS485 LO 24-16 AWG (0.2–1.5 mm ) or CAT5 (24 AWG) RS485 HI 24-16 AWG (0.2–1.5 mm ) or CAT5 (24 AWG) (Harness shield) (Earth/Shield) 4 24-16 AWG (0.2–1.5 mm ) or CAT5 (24 AWG) Powerwall 2 AC Installation Manual...

  • Page 62: Meter Voltage Taps

    Figure 27. Voltage Tap Port (left) and Four CT Ports (right) on Bottom of Meter Phase Meter Voltage Tap Port Meter CT Port Site L1 Site L2 B/C* Solar L1 Solar L2 Powerwall 2 AC Installation Manual...

  • Page 63: Meter Placement And Ct Wire Lengths

    • For a total extended length of up to 15 ft (4.5 m): CT wiring can be extended with up to one Neurio CT Extension (10 ft/3 m) (Tesla P/N 1125547-03-x) • For a total extended length of up to 50 ft (15 m): CT wiring can be extended by using wire with the following properties: ◦...
  • Page 64 Figure 30. Y-Cables Connecting CTs on the Same Phase 800 A CTs are also available for larger service sizes (Tesla P/N 1447689-00-x). The 800 A CTs can be used with the standard Neurio Energy meter, but the 800 A CT option must be selected in the Commissioning Wizard drop down menu on the CT page.

  • Page 65: Metering Split-Phase Solar With A Single Ct

    • Place a CT on the corresponding power wire in the main distribution board, after the utility meter and ahead of any loads. • If the site includes solar equipment, place an additional CT on the solar wire in the main distribution board. Powerwall 2 AC Installation Manual...

  • Page 66: Appendix F: Feature Notes

    When commissioned for load shedding and the Powerwall system is on-grid, the low voltage control circuit is closed and the load is powered. When commissioned for load shedding and the system is operating off- grid, the low voltage control circuit is open and the load is OFF. Powerwall 2 AC Installation Manual...
  • Page 67 NOTE: The low voltage control circuit will be opened briefly during firmware updates and under abnormal fault conditions. NOTE: The load shed relay is rated up to 60 V (DC or AC) and 2 A. Powerwall 2 AC Installation Manual...

  • Page 68: Appendix G: Installation Troubleshooting

    • If the “toward source” CT label is correctly facing the solar inverter but power flow is negative, a voltage- current mismatch is likely. • Physically move the CT to the correct phase with the label facing the correct direction. Do not use the Flip checkbox in this case. Powerwall 2 AC Installation Manual...
  • Page 69 Solar (1 CT x2) option. If it is absolutely necessary to install solar and a small amount of loads together without independent metering, you must install the solar CT on the phase without any downstream loads. Use a handheld clamp or fork meter to verify CT readings. Powerwall 2 AC Installation Manual...

  • Page 70: Reset The Backup Gateway

    To power the system off : 1. Turn off solar equipment. 2. Turn off all Powerwalls. 3. Open breakers feeding Powerwall and solar. 4. Open breaker feeding Gateway. 5. Disconnect communication wiring. Reverse steps to power the system on. Powerwall 2 AC Installation Manual...

  • Page 71: Appendix H: Multi-Powerwall Installations

    • Multi-Powerwall installations may require larger Powerwall communication wire between the Backup Gateway and the Powerwall units. Please refer to the Powerwall 2 AC / Gateway Communication Wiring application note on communication cable requirements, as your install may require up to #16 AWG or 1.3 wire.
  • Page 72 Switch the tester to the appropriate impedance measurement mode and take the following readings: ◦ Line-Neutral ◦ Line-Ground NOTE: The Line-Neutral impedance measurement is the value referenced in Impedance Requirements for Multi-Powerwall Systems on page Powerwall 2 AC Installation Manual...
  • Page 73 0.07 Ohms 13 to 14 ** 0.06 Ohms 15 to 17 ** 0.05 Ohms 18 to 20 ** 0.04 Ohms *Maximum number of Powerwalls supported for a single Gateway **11 to 20 Powerwalls require multiple Gateways Powerwall 2 AC Installation Manual...
  • Page 74 When wiring the load panel, ensure that combined loads do not exceed main breaker continuous or peak current ratings, whether the system is on-grid or off-grid. When the grid is operational, power can flow from both the grid and the generation panel to the load panel. Powerwall 2 AC Installation Manual...
  • Page 75 Figure 33. Power Flow from Grid and Generation Panel when On-Grid When there is a grid outage, power can flow from the generation panel to the load panel. Figure 34. Power Flow from Generation Panel when Off-Grid Powerwall 2 AC Installation Manual...

  • Page 76: Multi-Powerwall Installations With The Stack Kit

    APPENDIX H: MULTI-POWERWALL INSTALLATIONS Multi-Powerwall Installations with the Stack Kit In the Powerwall Stack Kit Powerwall Stack Kit: Tesla P/N 1112154-00-x (2) Side clips (1) Top cover (1) Conduit nipple (2) Conduit insulation bushings (2) Conduit sealing O- (1) Bridge piece...

  • Page 77: Site Requirements

    Figure 35. Dimensions for 2-unit and 3-unit Powerwall Stacks Installation Instructions These instructions assume that at least one Powerwall has been installed and additional Powerwall units are being installed using the Powerwall 2 Stack Kit (Tesla P/N 1112154-00-x). See STEP 1: Plan the Installation Site on page 16 for complete installation instructions.

  • Page 78: Step 1: Prepare For Installation

    Powerwall, it may be necessary to remove the small plastic insert at the bottom of the covers to help with removal. For the right (LED) side covers, do not disconnect the switch and LED leads. Turn the cover to one side and rest it against the Powerwall chassis. Powerwall 2 AC Installation Manual...

  • Page 79: Step 2: Choose A Wiring Option

    Powerwall. To use this wiring method, skip to Step 4, “Join the Powerwall Units.” Step 3: Prepare for Concealed Wiring 1. Disconnect all wiring from the wiring compartment of the first Powerwall. Powerwall 2 AC Installation Manual...
  • Page 80 3. Attach the included drill guide to the front of the first Powerwall by bracing the inside half of the guide against the bottom of its wiring compartment. 4. Clip the outside half of the drill guide to the inside half so that the guide engages the hem of the Powerwall enclosure. Powerwall 2 AC Installation Manual...
  • Page 81 12. Peel back the protective film from the feet of the second Powerwall before moving it into place. 13. Remove the plug from the back cable entry port of the second Powerwall and place it in the side cable entry port of the same Powerwall. Powerwall 2 AC Installation Manual...

  • Page 82: Step 4: Join The Powerwall Units

    Powerwall chassis. ◦ Install the assembly between the two Powerwalls so it spans the two wiring compartments. ◦ Thread an insulation bushing onto each end of the conduit nipple, but do not fully tighten the bushings. Powerwall 2 AC Installation Manual...
  • Page 83 4. Slide the side clip into the gap between the two Powerwalls so that its flanges engage the side hem of each enclosure. NOTE: The Powerwall enclosure hems have cutouts that mate with tabs in the clip. Powerwall 2 AC Installation Manual...
  • Page 84 ◦ Turn the top cam 90 degrees clockwise until it clicks into place and stops rotating. ◦ Turn the bottom cam toward the wall (toward the first Powerwall) so that the cam indicator notch on the hex camshaft head points toward the wall, until the cam clicks into place. Powerwall 2 AC Installation Manual...
  • Page 85 The cover is held in place by the magnets on the tops of the side clips. 9. (Concealed wiring installations only) Tighten the insulation bushing on each side of the conduit nipple to secure the bridge between the two Powerwall wiring compartments. Powerwall 2 AC Installation Manual...

  • Page 86: Step 5: Wire The Powerwall Units

    ◦ Attach the provided Phoenix connector to one end of the cable, and attach the extra Phoenix connector that came with the Powerwall to the other end of the cable. See Appendix B: Wiring Reference on page 45 for additional wiring information. Powerwall 2 AC Installation Manual...

  • Page 87: Step 6: Close The Wiring Compartments And Replace The Covers

    Tighten the fasteners using a Torx T20 bit. Torque to 1.5 Nm. 4. Replace each of the side covers on the Powerwalls by pushing the top into place and working toward the bottom to reattach it to the clips along the length of the unit. Powerwall 2 AC Installation Manual...
  • Page 88 6. Place a magnetic camshaft cap on each of the four hex camshaft heads Powerwall 2 AC Installation Manual...

  • Page 89: Step 7: Turn On And Commission The System

    NOTE: During commissioning, ensure that when scanning for Powerwalls, the Commissioning Wizard shows all Powerwalls in the system. 4. After installation is complete, remove the protective film from the second Powerwall. Powerwall 2 AC Installation Manual...

  • Page 90: Appendix J: Revision Log

    APPENDIX J: REVISION LOG Revision Date Description 2020-05-23 Initial release 2020-06-26 • Added Powerwall and Backup Gateway 2 specifications • Updated multi-Powerwall communication wiring instructions for clarity Powerwall 2 AC Installation Manual...
  • Page 91 Published June 2020 Revision 1.1...
