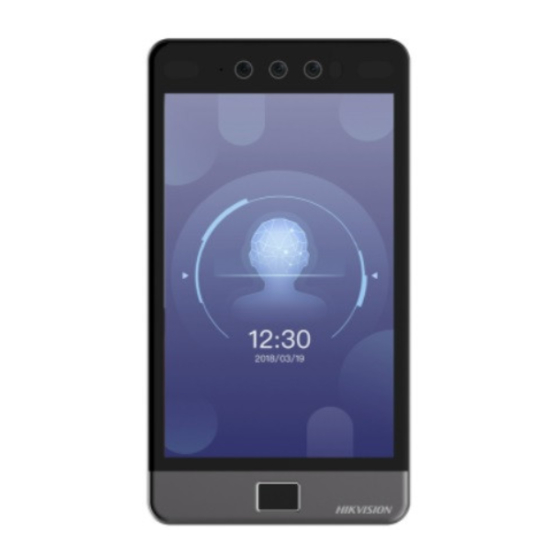

DS-K1T981 Series Access Control Terminal
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-K1T981 Series and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-K1T981 Series

Summary of Contents for HIKVISION DS-K1T981 Series

  • Page 1 DS-K1T981 Series Access Control Terminal User Manual...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 During the use of device, personal data will be collected, stored and processed. To protect data, the development of Hikvision devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method;...
  • Page 4 DS-K1T981 Series Access Control Terminal User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Indicates a hazardous situation which, if not avoided, will or could Danger result in death or serious injury.
  • Page 5 DS-K1T981 Series Access Control Terminal User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 6 DS-K1T981 Series Access Control Terminal User Manual under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU,the RoHS Directive 2011/65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
  • Page 7 DS-K1T981 Series Access Control Terminal User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Dangers and Cautions: Dangers: Neglecting any of the warnings may cause serious injury or death.
  • Page 8 DS-K1T981 Series Access Control Terminal User Manual Cautions: Do not drop the device or subject it to physical shock, and do not expose it to high ● electromagnetism radiation. Avoid the equipment installation on vibrations surface or places subject to shock (ignorance can cause equipment damage).
  • Page 9 DS-K1T981 Series Access Control Terminal User Manual Available Models Product Name Model Access Control Terminal DS-K1T981M DS-K1T981MF Use only power supplies listed in the user instructions: Model Manufacturer Standard C2000IC12.0-24P-DE MOSO Power Supply Technology Co., Ltd. C2000IC12.0-24P-GB MOSO Power Supply Technology Co., Ltd.

  • Page 10: Table Of Contents

    DS-K1T981 Series Access Control Terminal User Manual Contents Chapter 1 Overview ........................1 1.1 Overview ..........................1 1.2 Features ..........................1 1.2.1 Features (Normal Series) ....................1 Chapter 2 Appearance ........................ 3 Chapter 3 Installation ......................... 5 3.1 Installation Environment ......................5 3.2 Flush Mounting with Gang Box ....................
  • Page 11 DS-K1T981 Series Access Control Terminal User Manual 6.1 Set Application Mode ......................30 6.2 Set Network Parameters ...................... 31 6.3 Access to Platform ....................... 32 6.4 Privacy Settings ........................33 6.5 Set Administrator ......................... 35 Chapter 7 Basic Operation ......................37 7.1 Login ............................
  • Page 12 DS-K1T981 Series Access Control Terminal User Manual 7.4.3 Export Data ......................... 55 7.5 Identity Authentication ......................56 7.5.1 Authenticate via Single Credential ................56 7.5.2 Authenticate via Multiple Credential ................57 7.6 Basic Settings ........................57 7.7 Set Biometric Parameters ....................59 7.8 Set Access Control Parameters ....................
  • Page 13 DS-K1T981 Series Access Control Terminal User Manual 8.5.4 Set DST ........................76 8.5.5 View Open Source Software License ................77 8.5.6 Upgrade and Maintenance ..................77 8.5.7 Log Query ........................78 8.5.8 Security Mode Settings ....................78 8.5.9 Certificate Management ..................... 79 8.5.10 Change Administrator's Password ................
  • Page 14 DS-K1T981 Series Access Control Terminal User Manual 9.3.2 Import Resources to Group ..................115 9.4 Person Management ......................116 9.4.1 Add Organization ...................... 116 9.4.2 Import and Export Person Identify Information ............116 9.4.3 Get Person Information from Access Control Device ..........119 9.4.4 Issue Cards to Persons in Batch .................

  • Page 15: Chapter 1 Overview

    DS-K1T981 Series Access Control Terminal User Manual Chapter 1 Overview 1.1 Overview Access control terminal is a kind of access control device for iris recognition and face recognition, which is mainly applied in security access control systems, such as logistic centers, airports, university campuses, alarm centrals, dwellings, etc.
  • Page 16 DS-K1T981 Series Access Control Terminal User Manual Support mask wearing detection ● Supports tamper alarm, door opening alarm by external force, duress card and duress password ● alarm Support multiple display modes, including normal mode, advertisement mode, and simple ●...

  • Page 17: Chapter 2 Appearance

    DS-K1T981 Series Access Control Terminal User Manual Chapter 2 Appearance Refer to the following contents for detailed information of the access control terminal: Figure 2-1 Access Control Terminal Diagram Table 2-1 Description of Access Control Terminal Name USB Interface Loudspeaker...
  • Page 18 DS-K1T981 Series Access Control Terminal User Manual Name Debugging Port (For debugging only) Tamper Network Interface Wiring Terminal...

  • Page 19: Chapter 3 Installation

    DS-K1T981 Series Access Control Terminal User Manual Chapter 3 Installation 3.1 Installation Environment Install the device at least 2 meters away from the light, and at least 3 meters away from the ● window or the door. Make sure the environment illumination is more than 100 Lux.
  • Page 20 DS-K1T981 Series Access Control Terminal User Manual Figure 3-1 Install Gang Box 3. Secure the mounting plate on the bracket with 2 supplied screws (SC-K1M4X6-SUS). Figure 3-2 Install Mounting Plate 4. Route the cable through the cable hole, wire the cables and insert the cables in the gang box.
  • Page 21 DS-K1T981 Series Access Control Terminal User Manual Figure 3-3 Apply Silicone Sealant Note Apply Silicone sealant among the cable wiring area to keep the raindrop from entering. 5. Align the device with the mounting plate, and secure the device on the mounting plate with 1...

  • Page 22: Surface Mounting

    DS-K1T981 Series Access Control Terminal User Manual Figure 3-4 Secure Device 6. After installation, for the proper use of the device (outdoor use), stick the protection film (parts of models supplied) on the screen. 3.3 Surface Mounting Steps Note The additional force shall be equal to three times the weight of the equipment. The equipment ad its associated mounting means shall remain secure during the installation.
  • Page 23 DS-K1T981 Series Access Control Terminal User Manual Figure 3-5 Mounting Template 2. Drill 2 holes on the wall or other surface according to the Hole 1 on the mounting template. 3. Insert the plastic sleeve of the provided expansion screw into the punched hole.
  • Page 24 DS-K1T981 Series Access Control Terminal User Manual Figure 3-6 Install Bracket 5. Align the holes to the mounting plate and secure the mounting plate on the bracket with the 2 supplied screws (SC-K1M4×6-SUS). Figure 3-7 Install Mounting Plate 6. Route the cable through the cable hole, wire the cables and insert the cables.
  • Page 25 DS-K1T981 Series Access Control Terminal User Manual Note If the device is installed outdoor, you should apply silicone sealant to the wiring exit to avoid water from entering. Figure 3-8 Apply Silicone Sealant 7. Align the device with the mounting plate and hang the device on the mounting plate.

  • Page 26: Mount With Bracket

    DS-K1T981 Series Access Control Terminal User Manual Figure 3-9 Secure Device 9. After installation, for the proper use of the device (outdoor use), stick the protection film (parts of models supplied) on the screen. 3.4 Mount With Bracket 3.4.1 Preparation before Mounting with Bracket Steps 1.

  • Page 27: Bracket Mounting

    DS-K1T981 Series Access Control Terminal User Manual Figure 3-10 Drill Holes on Turnstile 2. If the installation angle needs to be 180° perpendicular to the body of the turnstile, the following operations are required. 1) Take off the 3 screws shown in the following figure.
  • Page 28 DS-K1T981 Series Access Control Terminal User Manual Figure 3-13 Install Mounting Template 2. Remove the back cover plate, route the cables through the cable hole, and connect them to the corresponding external devices' cables. 3. Install the back cover plate back, and install the device on the bracket with 1 supplied screw (SC- KM3×6-T10-SUS).

  • Page 29: Mount With Cylinder Bracket

    DS-K1T981 Series Access Control Terminal User Manual 3.4.3 Mount With Cylinder Bracket Preparation before Mounting with Bracket Make sure you have drilled holes on the turnstile. If not, follow the steps below to drill holes. Steps 1. Use 4 screws (M3 or M4), secured by flange nuts, to install the reinforcing board on the inner surface of the turnstile.
  • Page 30 DS-K1T981 Series Access Control Terminal User Manual Figure 3-16 Solder Tubes Cylinder Bracket Mounting Steps 1. Install the base on the turnstile. 1) Align the hole on the turnstile and place the base on the turnstile. 2) Rotate the base to the acquired place and make sure the device will face a correct direction.
  • Page 31 DS-K1T981 Series Access Control Terminal User Manual Figure 3-18 Fix Mounting Plate 3. Route the cables through the cable hole on the turnstile. 4. Fix the face recognition terminal into the mounting plate with 1 SC-KM3×6-T10-SUS screw. Figure 3-19 Fix Mounting Plate 5.

  • Page 32: Chapter 4 Wiring

    DS-K1T981 Series Access Control Terminal User Manual Chapter 4 Wiring The device supports connecting to the RS-485 terminal, the door lock, the exit button, the alarm output/input devices, the Wiegand card reader, the access controller, and the power supply. You can wire the peripherals according to the descriptions below.
  • Page 33 DS-K1T981 Series Access Control Terminal User Manual Figure 4-1 Terminal Diagram The descriptions of the terminals are as follows: Table 4-1 Terminal Descriptions Group Function Color Name Description Group A Power Input +12 V 12 VDC Power Supply Black Ground...

  • Page 34: Wire Normal Device

    DS-K1T981 Series Access Control Terminal User Manual Group Function Color Name Description Yellow/Red Group C RS-485 Yellow 485+ RS-485 Wiring Blue 485- Black Ground Wiegand Green Wiegand Wiring 0 White Wiegand Wiring 1 Black Ground Group D Door Lock White/Purple...

  • Page 35: Wire Secure Door Control Unit

    DS-K1T981 Series Access Control Terminal User Manual Note If connects to an access controller, you should set the Wiegand direction as Output to transmit ● authentication information to the access controller. For details about Wiegand direction settings, see Set Wiegand Parameters .
  • Page 36 DS-K1T981 Series Access Control Terminal User Manual Type 1 Note The fire system controls the power supply of the access control system. Figure 4-4 Wire Device Figure 4-5 Wire Secure Door Control Unit Type 2 Note The fire system (NO and COM, normally open when powering off) is connected with the lock and the power supply in series.

  • Page 37: Wiring Diagram Of Door Locked When Powering Off

    DS-K1T981 Series Access Control Terminal User Manual Figure 4-6 Wiring Device Figure 4-7 Wiring Secure Door Control Unit 4.4.2 Wiring Diagram of Door Locked When Powering Off Lock Type: Cathode Lock, Electric Lock, and Electric Bolt (NC) Security Type: Door Locked When Powering Off...
  • Page 38 DS-K1T981 Series Access Control Terminal User Manual Figure 4-8 Device Wiring Figure 4-9 Wiring Diagram...

  • Page 39: Chapter 5 Activation

    DS-K1T981 Series Access Control Terminal User Manual Chapter 5 Activation You should activate the device before the first login. After powering on the device, the system will switch to Device Activation page. Activation via the device, SADP tool and the client software are supported.
  • Page 40 DS-K1T981 Series Access Control Terminal User Manual Figure 5-1 Activation Page Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 41: Activate Via Web Browser

    Get the SADP software from the supplied disk or the official website http:// ● www.hikvision.com/en/ , and install the SADP according to the prompts. The device and the PC that runs the SADP tool should be within the same subnet.

  • Page 42: Activate Device Via Ivms-4200 Client Software

    DS-K1T981 Series Access Control Terminal User Manual Caution STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.
  • Page 43 DS-K1T981 Series Access Control Terminal User Manual 5. Click Activate to open the Activation dialog. 6. Create a password in the password field, and confirm the password. Caution The password strength of the device can be automatically checked. We highly recommend you...

  • Page 44: Chapter 6 Quick Operation

    DS-K1T981 Series Access Control Terminal User Manual Chapter 6 Quick Operation 6.1 Set Application Mode After activating the device, you should select an application mode for better device application. Steps 1. On the Welcome page, select Indoor or Others from the drop-down list.

  • Page 45: Set Network Parameters

    DS-K1T981 Series Access Control Terminal User Manual If you do not configure the application mode and tap Next, the system will select Indoor by ● default. If you activate the device via other tools remotely, the system will select Indoor as the ●...

  • Page 46: Access To Platform

    DS-K1T981 Series Access Control Terminal User Manual Wired Network Note Make sure the device has connected to a network. If enable DHCP, the system will assign the IP address and other parameters automatically. If disable DHCP, you should set the IP address, the subnet mask, and the gateway.

  • Page 47: Privacy Settings

    DS-K1T981 Series Access Control Terminal User Manual Figure 6-3 Access to Hik-Connect 2. Tap Next. Note If you tap Previous to return to the Wi-Fi configuration page, you need to tap the connected Wi- Fi or connect another Wi-Fi to enter the platform page again.
  • Page 48 DS-K1T981 Series Access Control Terminal User Manual Figure 6-4 Privacy Upload Captured Pic. When Auth. (Upload Captured Picture When Authenticating) Upload the pictures captured when authenticating to the platform automatically. Save Captured Pic. When Auth. (Save Captured Picture When Authenticating) If you enable this function, you can save the picture when Authenticating to the device.

  • Page 49: Set Administrator

    DS-K1T981 Series Access Control Terminal User Manual Tap Next to complete the settings. 6.5 Set Administrator After device activation, you can add an administrator to manage the device parameters. Before You Start Activate the device and select an application mode.
  • Page 50 DS-K1T981 Series Access Control Terminal User Manual : Face forward at the camera. Make sure the face is in the face recognition area. Click capture and click to confirm. : Press your finger according to the instructions on the device screen. Click to confirm.

  • Page 51: Chapter 7 Basic Operation

    DS-K1T981 Series Access Control Terminal User Manual Chapter 7 Basic Operation 7.1 Login Login the device to set the device basic parameters. 7.1.1 Login by Administrator If you have added an administrator for the device, only the administrator can login the device for device operation.

  • Page 52: Login By Activation Password

    DS-K1T981 Series Access Control Terminal User Manual Figure 7-2 Home Page Note The device will be locked for 30 minutes after 5 failed fingerprint or card attempts. 3. Optional: Tap and you can enter the device activation password for login.

  • Page 53: Communication Settings

    DS-K1T981 Series Access Control Terminal User Manual - If you haven't added an administrator for the device, enter the password. 3. Tap OK to enter the home page. Note The device will be locked for 30 minutes after 5 failed password attempts.

  • Page 54: Set Wired Network Parameters

    DS-K1T981 Series Access Control Terminal User Manual 7.2.1 Set Wired Network Parameters You can set the device wired network parameters, including the IP address, the subnet mask, the gateway, and DNS parameters. Steps 1. Tap Comm. (Communication Settings) on the Home page to enter the Communication Settings page.
  • Page 55 DS-K1T981 Series Access Control Terminal User Manual Steps Note The function should be supported by the device. 1. Tap Comm. (Communication Settings) on the Home page to enter the Communication Settings page. 2. On the Communication Settings page, tap. Figure 7-5 Wi-Fi Settings 3.

  • Page 56: Set Rs-485 Parameters

    DS-K1T981 Series Access Control Terminal User Manual - If disable DHCP, you should enter the IP address, the subnet mask, and the gateway manually. 6. Tap OK to save the settings and go back to the Wi-Fi tab. 7. Tap to save the network parameters.

  • Page 57: Set Wiegand Parameters

    DS-K1T981 Series Access Control Terminal User Manual Note If you select Access Controller: If connect the device to a terminal via the RS-485 interface, set the RS-485 address as 2. If you connect the device to a controller, set the RS-485 address according to the door No.
  • Page 58 DS-K1T981 Series Access Control Terminal User Manual Before You Start Make sure your device has connect to a network. Steps 1. Tap Comm. → ISUP . Figure 7-8 ISUP Settings 2. Enable the ISUP function and set the ISUP server parameters.

  • Page 59: Platform Access

    DS-K1T981 Series Access Control Terminal User Manual Set the ISUP server's port No. Note Port No. Range: 0 to 65535. Device ID Set device serial no. Password If you choose V5.0, you should create an account and ISUP key. If you choose other version, you should create an ISUP account only.
  • Page 60 DS-K1T981 Series Access Control Terminal User Manual Steps 1. Long tap on the initial page for 3 s and slide to the left/right by following the gesture and enter the device backend. 2. Tap User → + to enter the Add User page.

  • Page 61: Add Face Picture

    DS-K1T981 Series Access Control Terminal User Manual Note For details about adding a face picture, see Add Face Picture . ● For details about adding a fingerprint, see Add Fingerprint . ● For details about adding a card, see Add Card .
  • Page 62 DS-K1T981 Series Access Control Terminal User Manual Figure 7-9 Add Face Picture 6. Look at the camera. Note Make sure your face picture is in the face picture outline when adding the face picture. ● Make sure the captured face picture is in good quality and is accurate.

  • Page 63: Add Fingerprint

    DS-K1T981 Series Access Control Terminal User Manual Normal User The User is the normal user. The user can only authenticate or take attendance on the initial page. 10. Tap to save the settings. 7.3.3 Add Fingerprint Add a fingerprint for the user and the user can authenticate via the added fingerprint.

  • Page 64: Add Card

    DS-K1T981 Series Access Control Terminal User Manual Normal User The User is the normal user. The user can only authenticate or take attendance on the initial page. 8. Tap to save the settings. 7.3.4 Add Card Add a card for the user and the user can authenticate via the added card.

  • Page 65: Add Iris

    DS-K1T981 Series Access Control Terminal User Manual The user is the administrator. Except for the normal attendance function, the user can also enter the Home page to operate after authenticating the permission. Normal User The User is the normal user. The user can only authenticate or take attendance on the initial page.
  • Page 66 DS-K1T981 Series Access Control Terminal User Manual Figure 7-10 Add Iris 6. Look at the camera. Note Make sure your eyes in frame when adding the iris. ● Make sure the captured iris is in good quality and is accurate.

  • Page 67: View Pin Code

    DS-K1T981 Series Access Control Terminal User Manual The User is the normal user. The user can only authenticate or take attendance on the initial page. 10. Tap to save the settings. 7.3.6 View PIN code Add a PIN code for the user and the user can authenticate via the PIN code.

  • Page 68: Set Authentication Mode

    DS-K1T981 Series Access Control Terminal User Manual 7.3.7 Set Authentication Mode After adding the user's face picture, password, or other credentials, you should set the authentication mode and the user can authenticate his/her identity via the configured authentication mode. Steps 1.

  • Page 69: Delete Data

    DS-K1T981 Series Access Control Terminal User Manual 7.4.1 Delete Data Delete user data. On the Home page, tap Data → Delete Data → User Data . All user data added in the device will be deleted. 7.4.2 Import Data Steps 1.

  • Page 70: Identity Authentication

    DS-K1T981 Series Access Control Terminal User Manual 2. On the Home page, tap Data → Export Data . 3. Tap Face Data, Event Data, User Data, Access Control Parameters or Iris Data. Note The exported access control parameters are configuration files of the device.

  • Page 71: Authenticate Via Multiple Credential

    DS-K1T981 Series Access Control Terminal User Manual Note Authentication via QR code should be supported by the device. Password Enter the password to authenticate via password. If authentication completed, a prompt "Authenticated" will pop up. 7.5.2 Authenticate via Multiple Credential Before You Start Set the user authentication type before authentication.
  • Page 72 DS-K1T981 Series Access Control Terminal User Manual Figure 7-11 Basic Settings Page Shortcut Key Choose the shortcut key that displayed on the authentication page, including the QR code function, the call function, call type, and the password entering function. Note You can select call type from Call Room, Call Center, Call Specified Room No.

  • Page 73: Set Biometric Parameters

    DS-K1T981 Series Access Control Terminal User Manual Note You can set the voice volume between 0 and 10. Time Settings Set the time zone, the device time and the DST. Sleeping (s) Set the device sleeping waiting time (minute). When you are on the initial page and if you set the sleeping time to 30 min, the device will sleep after 30 min without any operation.
  • Page 74 DS-K1T981 Series Access Control Terminal User Manual Parameter Description Note You can input the number from 1 to 10. Wide Dynamic It is suggested to enable the WDR function if installing the device outdoors. When there are both very bright and very dark areas simultaneously in the view, you can enable the WDR function to balance the brightness of the whole image and provide clear images with details.

  • Page 75: Set Access Control Parameters

    DS-K1T981 Series Access Control Terminal User Manual Parameter Description Must Wear If the person do not wear the hard hat when authenticating, the device will pop up a prompt and the door will keep closed. None If the person do not wear the hard hat when authenticating, the device will not prompt a notification.
  • Page 76 DS-K1T981 Series Access Control Terminal User Manual Figure 7-13 Access Control Parameters The available parameters descriptions are as follows: Table 7-3 Access Control Parameters Descriptions Parameter Description Terminal Auth. Mode (Terminal Select the device's authentication mode. You can also customize Authentication Mode) the authentication mode.

  • Page 77: Time And Attendance Status Settings

    DS-K1T981 Series Access Control Terminal User Manual Parameter Description Open Duration Set the door unlocking duration. If the door is not opened for the set time, the door will be locked. Available door locked time range: 1 to 255 s.

  • Page 78: Set Auto Attendance Via Device

    DS-K1T981 Series Access Control Terminal User Manual Before You Start Add at least one user, and set the user's authentication mode. For details, see User Management. Steps 1. Tap T&A Status to enter the T&A Status page. 2. Set the Attendance Mode as Manual.
  • Page 79 DS-K1T981 Series Access Control Terminal User Manual Steps 1. Tap T&A Status to enter the T&A Status page. 2. Set the Attendance Mode as Auto. Figure 7-16 Auto Attendance Mode 3. Enable the Attendance Status function. 4. Enable a group of attendance status.

  • Page 80: Set Manual And Auto Attendance Via Device

    DS-K1T981 Series Access Control Terminal User Manual 7.9.4 Set Manual and Auto Attendance via Device Set the attendance mode as Manual and Auto, and the system will automatically change the attendance status according to the configured schedule. At the same time you can manually change the attendance status after the authentication.

  • Page 81: System Maintenance

    DS-K1T981 Series Access Control Terminal User Manual Note The attendance status will be valid within the configured schedule. Result On the initial page and authenticate. The authentication will be marked as the configured attendance status according to the schedule. If you tap the edit icon on the result tab, you can select a status to take attendance manually, the authentication will be marked as the edited attendance status.

  • Page 82: Video Intercom

    DS-K1T981 Series Access Control Terminal User Manual Note The page may vary according to different device models. Refers to the actual page for details. Capacity You can view the number of user, face picture, card, event, fingerprint and iris. Upgrade Plug the USB flash drive in the device USB interface.

  • Page 83: Call Center From Device

    DS-K1T981 Series Access Control Terminal User Manual 1) Tap on the device initial page. 2) Enter 0 in the pop-up window. 3) Tap to call the client software. 6. Tap Answer on the pop-up page of the client software and you can start two-way audio between the device and the client software.

  • Page 84: Call Room From Device

    DS-K1T981 Series Access Control Terminal User Manual Note For details about adding device, see Add Device. 5. Enter the Live View page and double-click the added device to start live view. Note For details about operations in the Live View page, see Live View in the user manual of the client software.
  • Page 85 DS-K1T981 Series Access Control Terminal User Manual 1) Tap on the device initial page. 2) Tap to call the mobile client.

  • Page 86: Chapter 8 Operation Via Web Browser

    DS-K1T981 Series Access Control Terminal User Manual Chapter 8 Operation via Web Browser 8.1 Login You can login via the web browser. Note Make sure the device is activated. Obtain the IP address from the device after Wi-Fi is enabled. Make sure the IP segment of the device and the computer is the same.

  • Page 87: Person Management

    DS-K1T981 Series Access Control Terminal User Manual Select the image size when starting live view. Set the volume when starting live view. Note If you adjust the volume when starting two-way audio, you may hear a repeated sounds. You can capture image when starting live view.

  • Page 88: Search Event

    DS-K1T981 Series Access Control Terminal User Manual Click Save to save the settings. Add Fingerprint Click User → Add to enter the Add Person page. Click Add Fingerprint, and press your finger on the fingerprint module of the device to add your fingerprint.

  • Page 89: Configuration

    DS-K1T981 Series Access Control Terminal User Manual Figure 8-2 Search Event Enter the search conditions, including the event type, the employee ID, the name, the card No., the start time, and the end time, and click Search. The results will be displayed on the right panel.

  • Page 90: View Device Information

    DS-K1T981 Series Access Control Terminal User Manual 8.5.2 View Device Information View the device name, language, model, serial No., QR code, version, number of channels, alarm input, alarm output, lock and RS-485, device capacity, etc. Click Configuration → System → System Settings → Basic Information to enter the configuration page.

  • Page 91: View Open Source Software License

    DS-K1T981 Series Access Control Terminal User Manual 2. Check Enable DST. 3. Set the DST start time, end time and bias time. 4. Click Save to save the settings. 8.5.5 View Open Source Software License Go to Configuration → System → System Settings → About , and click View Licenses to view the device license.

  • Page 92: Log Query

    DS-K1T981 Series Access Control Terminal User Manual Default The device will restore to the default settings, except for the device IP address and the user information. Unlink APP Account Unlink the Hik-Connect account from the platform. Import and Export Parameters Click Configuration →...

  • Page 93: Certificate Management

    DS-K1T981 Series Access Control Terminal User Manual Select a security mode from the drop-down list, and click Save. Security Mode High security level for user information verification when logging in the client software. Compatible Mode The user information verification is compatible with the old client software version when logging in.

  • Page 94: Change Administrator's Password

    DS-K1T981 Series Access Control Terminal User Manual Install Other Authorized Certificate If you already has an authorized certificate (not created by the device), you can import it to the device directly. Steps 1. Go to Configuration → System → Security → Certificate Management .

  • Page 95: View Device Arming/Disarming Information

    DS-K1T981 Series Access Control Terminal User Manual Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. 8.5.11 View Device Arming/Disarming Information View device arming type and arming IP address. Go to Configuration → User Management → Arming/Disarming Information .
  • Page 96 DS-K1T981 Series Access Control Terminal User Manual Figure 8-5 TCP/IP Settings Page Set the parameters and click Save to save the settings. DHCP If uncheck the function, you should set the IPv4 address, IPv4 subnet mask and IPv4 default gateway.
  • Page 97 DS-K1T981 Series Access Control Terminal User Manual DNS Server Set the preferred DNS server and the Alternate DNS server according to your actual need. Set Port Parameters Set the HTTP, RTSP, HTTPS and Server port parmaeters. Click Configuration → Network → Basic Settings → Port .
  • Page 98 DS-K1T981 Series Access Control Terminal User Manual 2) Set the IP address, subnet mask, and default gateway. Or check Enable DHCP and the system will allocate the IP address, subnet mask, and default gateway automatically. 5. Click Save. Report Strategy Settings You can set the center group for uploading the log via the ISUP protocol.

  • Page 99: Set Video And Audio Parameters

    DS-K1T981 Series Access Control Terminal User Manual Note Hik-Connect is an application for mobile devices. With the App, you can view live image of the device, receive alarm notification and so on. 3. Check the checkbox of Enable to enable the function.
  • Page 100 DS-K1T981 Series Access Control Terminal User Manual Figure 8-7 Video Settings Page Set the video channel, the stream type, the video type, resolution, the bitrate type, video quality, the frame rate, the Max. bitrate, the video encoding, and I frame interval.

  • Page 101: Customize Audio Content

    DS-K1T981 Series Access Control Terminal User Manual Figure 8-8 Set Audio Parameters Drag the block to adjust the device input and output volume. Click Save to save the settings after the configuration. You can also enable Voice Prompt. Note The functions vary according to different models. Refers to the actual device for details.
  • Page 102 DS-K1T981 Series Access Control Terminal User Manual Figure 8-9 Customize Audio Content 2. Set the appellation. 3. Enable the function. 4. Set the time duration when authentication succeeded. 1) Click Add. 2) Set the time duration and the language. Note If authentication is succeeded in the configured time duration, the device will broadcast the configured content.

  • Page 103: Set Image Parameters

    DS-K1T981 Series Access Control Terminal User Manual 2) Select the importing path, and click Import. 7. Click Save to save the settings. 8.5.15 Set Image Parameters Set the video standard, WDR, brightness, contrast, and saturation. Steps 1. Click Configuration → Image Adjustment .

  • Page 104: Time And Attendance Settings

    DS-K1T981 Series Access Control Terminal User Manual Figure 8-10 Supplement Light Settings Page 2. Select a supplement light type and mode from the drop-down list. If you select the mode as ON, you should set the LED light brightness. 8.5.17 Time and Attendance Settings...
  • Page 105 DS-K1T981 Series Access Control Terminal User Manual 3. Optional: Edit Schedule Name according to the actual needs. 4. Drag mouse to set the schedule. Note Set the schedule from Monday to Sunday according to the actual needs. 5. Optional: Select a timeline and click Delete. Or click Delete All to clear the settings.

  • Page 106: General Settings

    DS-K1T981 Series Access Control Terminal User Manual 3. Enable the Attendance Status function. 4. Enable a group of attendance status. Note The Attendance Property will not be changed. 5. Optional: Select an status and change its name if required. 6. Set the status' schedule. Refers to Time Settings for details.
  • Page 107 DS-K1T981 Series Access Control Terminal User Manual Note The functions vary according to different models. Refers to the actual device for details. Click Save to save the settings after the configuration. Card Reader Select Main Card Reader or Sub Card Reader from the drop-down list.
  • Page 108 DS-K1T981 Series Access Control Terminal User Manual Authentication Select an authentication mode according to your actual needs from the drop-down list. Recognition Interval If the interval between card presenting of the same card is less than the configured value, the card presenting is invalid.
  • Page 109 DS-K1T981 Series Access Control Terminal User Manual Delete Old Events by Specified Time Set a time and all events will be deleted on the configured time. Overwriting The earliest 5% events will be deleted when the system detects the stored events has been over 95% of the full space.
  • Page 110 DS-K1T981 Series Access Control Terminal User Manual All registered pictures in the device will be deleted. Clear Captured Pictures All captured pictures in the device will be deleted. Set Face Recognition Parameters You can set face recognition parameters for accessing.

  • Page 111: Video Intercom Settings

    DS-K1T981 Series Access Control Terminal User Manual After enable the DESFire card content reading function, the device can read the DESFire card content. Enable FeliCa Card The device can read the data from FeliCa card when enabling the FeliCa card function.
  • Page 112 DS-K1T981 Series Access Control Terminal User Manual Figure 8-11 Device No. Settings Device Type The device can be used as a door station or outer door station. Select a device type from the drop-down list. Note If you change the device type, you should reboot the device.
  • Page 113 DS-K1T981 Series Access Control Terminal User Manual Set the device building No. Unit No. Set the device unit No. Note If you change the No., you should reboot the device. If set the device type as Outer Door Station, you can set the period No., outer door station No., and community No.

  • Page 114: Access Control Settings

    DS-K1T981 Series Access Control Terminal User Manual Note If you check Call Management Center and set the call No. as well, call management center has higher privilege than call No. 8.5.20 Access Control Settings Set Door Parameters Click Configuration → Access Control → Door Parameters .
  • Page 115 DS-K1T981 Series Access Control Terminal User Manual Open Duration Set the door unlocking duration. If the door is not opened for the set time, the door will be locked. Door Open Timeout Alarm An alarm will be triggered if the door has not been closed within the configured time duration.
  • Page 116 DS-K1T981 Series Access Control Terminal User Manual Figure 8-13 RS-485 Page Check Enable RS-485, and set the parameters. Click Save to save the settings after the configuration. Set the RS-485 No. Peripheral Type Select a peripheral from the drop-down list according the actual situation. You can select from Card Reader, Extension Module, Access Controller, or Disable.
  • Page 117 DS-K1T981 Series Access Control Terminal User Manual Note If you select Access Controller: If connect the device to a terminal via the RS-485 interface, set the RS-485 address as 2. If you connect the device to a controller, set the RS-485 address according to the door No.

  • Page 118: Iris Settings

    DS-K1T981 Series Access Control Terminal User Manual 4. Click Save to save the settings. Note If you change the peripheral, and after you save the device parameters, the device will reboot automatically. 8.5.21 Iris Settings Steps 1. Click Configuration → Smart → Smart .
  • Page 119 DS-K1T981 Series Access Control Terminal User Manual Figure 8-15 Smart Settings Page Click Save to save the settings after the configuration. Face Anti-spoofing Enable or disable the live face detection function. If enabling the function, the device can recognize whether the person is a live one or not.
  • Page 120 DS-K1T981 Series Access Control Terminal User Manual Note Biometric recognition products are not 100% applicable to anti-spoofing environments. If you require a higher security level, use multiple authentication modes. Live Face Detection Security Level After enabling the face anti-spoofing function, you can set the matching security level when performing live face authentication.
  • Page 121 DS-K1T981 Series Access Control Terminal User Manual Set the matching threshold when authenticating via 1:1 matching mode. The larger the value, the smaller the false accept rate and the larger the false rejection rate. 1:N Matching Threshold Set the matching threshold when authenticating via 1:N matching mode. The larger the value, the smaller the false accept rate and the larger the false rejection rate.

  • Page 122: Set Theme

    DS-K1T981 Series Access Control Terminal User Manual If the person do not wear a face mask when authenticating, the device prompts a notification and the door will open. Must Wear If the person do not wear a face mask when authenticating, the device prompts a notification and the door keeps closed.
  • Page 123 DS-K1T981 Series Access Control Terminal User Manual You can click + in the frame and upload the screen saver pictures from the local PC. Note By now, there is only one theme can be added. Play Schedule After you have created a theme, you can select the theme and draw a schedule on the time line.

  • Page 124: Chapter 9 Client Software Configuration

    DS-K1T981 Series Access Control Terminal User Manual Chapter 9 Client Software Configuration 9.1 Configuration Flow of Client Software Follow the flow diagram below to configure on the client software. Figure 9-1 Flow Diagram of Configuration on Client Software 9.2 Device Management The client supports managing access control devices and video intercom devices.

  • Page 125: Add Device

    DS-K1T981 Series Access Control Terminal User Manual 9.2.1 Add Device The client provides three device adding modes including by IP/domain, IP segment, and ISUP protocol. The client also supports importing multiple devices in a batch when there are large amount of devices to be added.
  • Page 126 DS-K1T981 Series Access Control Terminal User Manual Note This function should be supported by the device. ● If you have enabled Certificate Verification, you should click Open Certificate Directory to ● open the default folder, and copy the certificate file exported from the device to this default directory to strengthen the security.

  • Page 127: Reset Device Password

    DS-K1T981 Series Access Control Terminal User Manual Enter the device user name. By default, the user name is admin. Password Enter the device password. Caution The password strength of the device can be automatically checked. We highly recommend you change the password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 128: Manage Added Devices

    DS-K1T981 Series Access Control Terminal User Manual characters) in order to increase the security of your product. And we recommend you change your password regularly, especially in the high security system, changing the password monthly or weekly can better protect your product.

  • Page 129: Add Group

    DS-K1T981 Series Access Control Terminal User Manual Example For example, on the 1st floor, there mounted 16 doors, 64 alarm inputs, and 16 alarm outputs. You can organize these resources into one group (named 1st Floor) for convenient management. You can control door status, and do some other operations of the devices after managing the resources by groups.

  • Page 130: Person Management

    DS-K1T981 Series Access Control Terminal User Manual 9.4 Person Management You can add person information to the system for further operations such as access control, video intercom, time and attendance, etc. You can manage the added persons such as issuing cards to them in a batch, importing and exporting person information in a batch, etc.
  • Page 131 DS-K1T981 Series Access Control Terminal User Manual Import Person Information You can enter the information of multiple persons in a predefined template (CSV/Excel file) to import the information to the client in a batch. Steps 1. Enter the Person module.
  • Page 132 DS-K1T981 Series Access Control Terminal User Manual Note The (folder of) face pictures should be in ZIP format. ● Each picture file should be in JPG format and should be no larger than 200 KB. ● Each picture file should be named as "Person ID_Name". The Person ID should be the same ●...

  • Page 133: Get Person Information From Access Control Device

    DS-K1T981 Series Access Control Terminal User Manual Note The exported file is in ZIP format. ● The exported face picture is named as "Person ID_Name_0" ("0" is for a full-frontal face). ● 9.4.3 Get Person Information from Access Control Device...

  • Page 134: Issue Cards To Persons In Batch

    DS-K1T981 Series Access Control Terminal User Manual 9.4.4 Issue Cards to Persons in Batch The client provides a convenient way to issue cards to multiple persons in a batch. Steps 1. Enter Person module. 2. Click Batch Issue Cards. All the added persons with no card issued will be displayed in the right panel.

  • Page 135: Configure Schedule And Template

    DS-K1T981 Series Access Control Terminal User Manual the card number. If not, you can also swipe the card on the card reader of the added access control device to get the card number. As a result, before issuing a card to one person, you need to set the card issuing parameters including the issuing mode and related parameters.

  • Page 136: Add Holiday

    DS-K1T981 Series Access Control Terminal User Manual Note For access group settings, refer to Set Access Group to Assign Access Authorization to Persons . 9.5.1 Add Holiday You can create holidays and set the days in the holidays, including start date, end date, and holiday duration in one day.

  • Page 137: Add Template

    DS-K1T981 Series Access Control Terminal User Manual 9.5.2 Add Template Template includes week schedule and holiday. You can set week schedule and assign the time duration of access authorization for different person or group. You can also select the added holiday(s) for the template.

  • Page 138: Set Access Group To Assign Access Authorization To Persons

    DS-K1T981 Series Access Control Terminal User Manual 3) Optional: Click Add to add a new holiday. Note For details about adding a holiday, refer to Add Holiday . 4) Optional: Select a selected holiday in the right list and click to remove the selected one, or click Clear to clear all the selected holiday(s) in the right list.
  • Page 139 DS-K1T981 Series Access Control Terminal User Manual Figure 9-2 Display the Selected Person(s) and Access Point(s) 8. After adding the access groups, you need to apply them to the access control device to take effect. 1) Select the access group(s) to apply to the access control device.

  • Page 140: Configure Advanced Functions

    DS-K1T981 Series Access Control Terminal User Manual You can click the prompt to apply the changed data to the device. You can select either Apply Now or Apply Later. Figure 9-3 Data Synchronization 9.7 Configure Advanced Functions You can configure the advanced functions of access control to meet some special requirements in different scene, such as multi-factor authentication, anti-passback, etc.
  • Page 141 DS-K1T981 Series Access Control Terminal User Manual Note If you can not find Device Parameter in the Advanced Function list, hover the cursor on the Advanced Function, and then Click to select the Device Parameter to be displayed. 2. Select an access device to show its parameters on the right page.
  • Page 142 DS-K1T981 Series Access Control Terminal User Manual 4. Click OK. 5. Optional: Click Copy to, and then select the access control device(s) to copy the parameters in the page to the selected device(s). Configure Parameters for Door/Elevator After adding the access control device, you can configure its access point (door or floor) parameters.
  • Page 143 DS-K1T981 Series Access Control Terminal User Manual The door can be locked once it is closed even if the Door Locked Time is not reached. Duress Code The door can open by inputting the duress code when there is duress. At the same time, the client can report the duress event.
  • Page 144 DS-K1T981 Series Access Control Terminal User Manual Name Edit the card reader name as desired. OK LED Polarity/Error LED Polarity/Buzzer Polarity Set OK LED Polarity/Error LED Polarity/Buzzer LED Polarity of main board according to the card reader parameters. Generally, adopts the default settings.
  • Page 145 DS-K1T981 Series Access Control Terminal User Manual Face Recognition Timeout Value If the recognition time is more than the configured time, the device will remind you. Face Recognition Interval The time interval between two continuous face recognitions when authenticating. By default, it is 2s.
  • Page 146 DS-K1T981 Series Access Control Terminal User Manual Before You Start Add access control device to the client, and make sure the device supports alarm output. Steps 1. Click Access Control → Advanced Function → Device Parameter to enter access control parameter configuration page.

  • Page 147: Configure Other Parameters

    DS-K1T981 Series Access Control Terminal User Manual Set the barrier's opening and closing speed. You can select from 1 to 10. The greater the value, the faster the speed. Note The recommended value is 6. Audible Prompt Duration Set how long the audio will last, which is played when an alarm is triggered .
  • Page 148 DS-K1T981 Series Access Control Terminal User Manual select Deep Learning as the face picture database. Authenticate by QR Code If enabled, the device camera can scan the QR code to authenticate. By default, the function is disabled. Blocklist Authentication If enabled, the device will compare the person who want to access with the persons in the blocklist.
  • Page 149 DS-K1T981 Series Access Control Terminal User Manual Set Wiegand Parameters You can set the access control device's Wiegand channel and the communication mode. After setting the Wiegand parameters, the device can connect to Wiegand card reader via Wiegand communication. Before You Start Add access control device to the client, and make sure the device supports Wiegand.

  • Page 150: Door/Elevator Control

    DS-K1T981 Series Access Control Terminal User Manual 9.8 Door/Elevator Control In Monitoring module, you can view the real-time status of the doors or elevators managed by the added access control device. You can also control the doors and elevators such as open/close the door, or remain the door open/closed via the client remotely.

  • Page 151: Check Real-Time Access Records

    DS-K1T981 Series Access Control Terminal User Manual When the door is unlocked, lock it and it will be closed. The person who has the access authorization can access the door with credentials. Remain Unlocked The door will be unlocked (no matter closed or open). All the persons can access the door with no credentials required.
  • Page 152 DS-K1T981 Series Access Control Terminal User Manual Figure 9-4 Real-time Access Records Note You can right click the column name of access event table to show or hide the column according to actual needs. 2. Optional: Select an access point group from the drop-down list in the upper-right corner to show the real time access records of the selected group.

  • Page 153: Appendix A. Tips For Scanning Fingerprint

    DS-K1T981 Series Access Control Terminal User Manual Appendix A. Tips for Scanning Fingerprint Recommended Finger Forefinger, middle finger or the third finger. Correct Scanning The figure displayed below is the correct way to scan your finger: You should press your finger on the scanner horizontally. The center of your scanned finger should align with the scanner center.
  • Page 154 DS-K1T981 Series Access Control Terminal User Manual Others If your fingerprint is shallow, or it is hard to scan your fingerprint, we recommend you to use other authentication methods. If you have injuries on the scanned finger, the scanner may not recognize. You can change another...

  • Page 155: Appendix B. Tips When Collecting/Comparing Face Picture

    DS-K1T981 Series Access Control Terminal User Manual Appendix B. Tips When Collecting/Comparing Face Picture The position when collecting or comparing face picture is as below: Positions (Recommended Distance: 0.5 m) Expression Keep your expression naturally when collecting or comparing face pictures, just like the ●...
  • Page 156 DS-K1T981 Series Access Control Terminal User Manual...

  • Page 157: Appendix C. Tips For Installation Environment

    DS-K1T981 Series Access Control Terminal User Manual Appendix C. Tips for Installation Environment 1. Light Source Illumination Reference Value Candle: 10Lux Bulb: 100~850Lux Sunlight: More than 1200Lux 2. Avoid backlight, direct and indirect sunlight...

  • Page 158: Appendix D. Dimension

    DS-K1T981 Series Access Control Terminal User Manual Appendix D. Dimension Figure D-1 Dimension...

  • Page 159: Appendix E. Communication Matrix And Device Command

    Device Command Scan the following QR code to get the device common serial port commands. Note that the command list contains all commonly used serial ports commands for all Hikvision access control and video intercom devices. Figure E-2 Device Command...
  • Page 160 UD24933B...

This manual is also suitable for:

Ds-k1t981mDs-k1t981mf

Table of Contents
