Yale 626F Installation Instructions And Operators Manual

For use with all Yale® 7000, 2100,
1800 and 1500 Series Exit Devices
(Wood and Metal Doors)

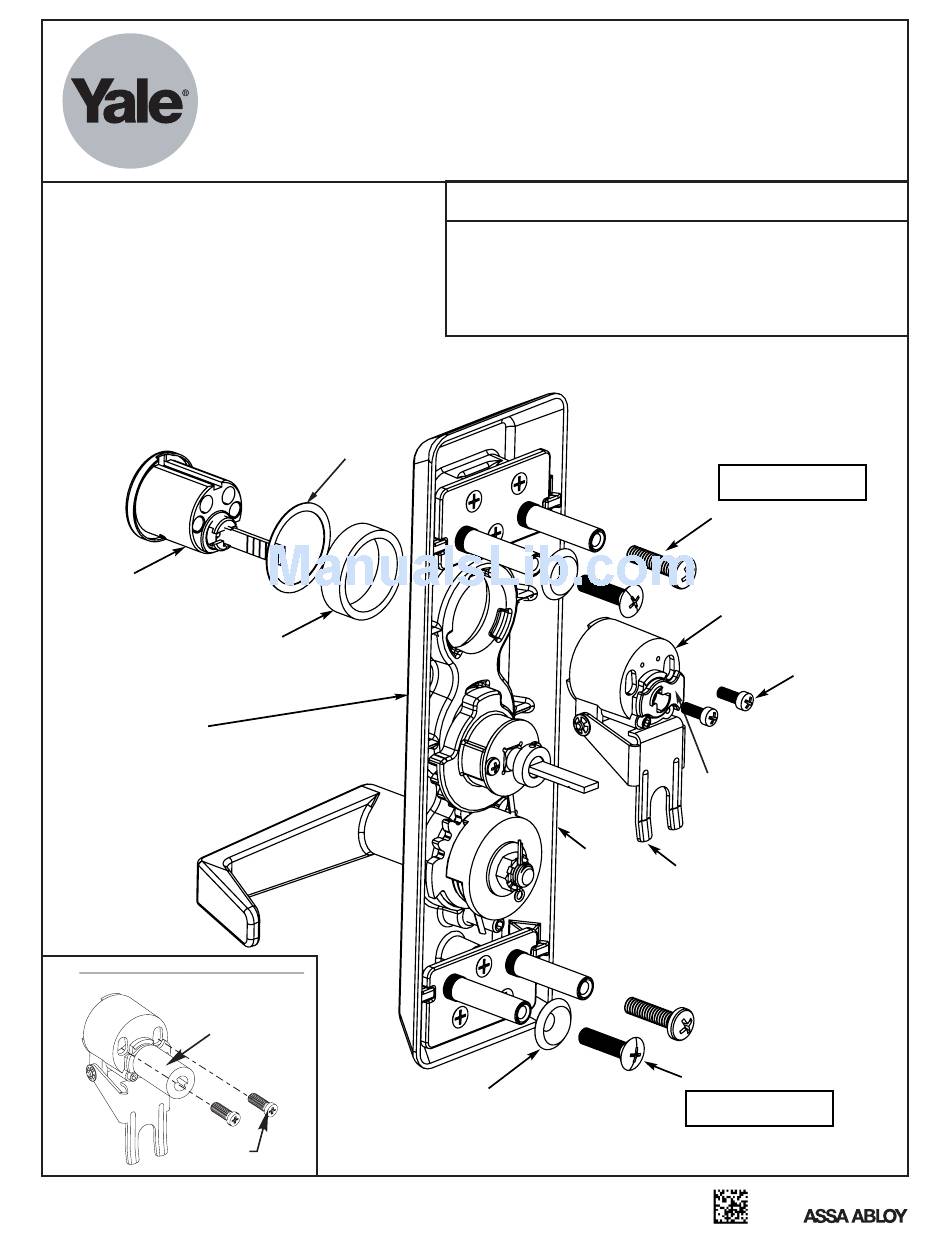

Rim Cylinder
Cylinder Collar
(when required)
Escutcheon Assembly
Lever is handed, RHR (shown)
or LHR.
Note: Lever return spring is universal
for easy field handing.
See page 5 to change handing.

*** - Double Cylinder Housing Assembly

Supplied with Exit Device
Connector Bar
(2) Cylinder
Mounting Screws
An ASSA ABLOY Group brand
626F Exit Device Trim
Installation Instructions
Any retrofit or other field modification to a fire rated opening can potentially
impact the fire rating of the opening, and Yale Locks & Hardware makes no
representations or warranties concerning what such impact may be in any
specific situation. When retrofitting any portion of an existing fire rated
opening, or specifying and installing a new fire-rated opening, please consult
with a code specialist or local code official (Authority Having Jurisdiction) to
ensure compliance with all applicable codes and ratings.
Wave Washer
(when required)
(2) #14 Finishing Washers
Attention Installer
2 STUDS TOWARDS
(2) 1/4-20 Pan Head
Machine Screws
Packed with device.
Cylinder Housing
Assembly
(*** For Double Cylinder
Device see below detail)
Cylinder Housing
Cam
Trim Spindle
Clutch Lever
Assembly
(2) 1/4-20 Oval Head
2 STUDS AWA Y
FROM LOCK EDGE
LOCK EDGE
(2) Cylinder
Mounting Screws
80-8470-0626-000 (01-13)
