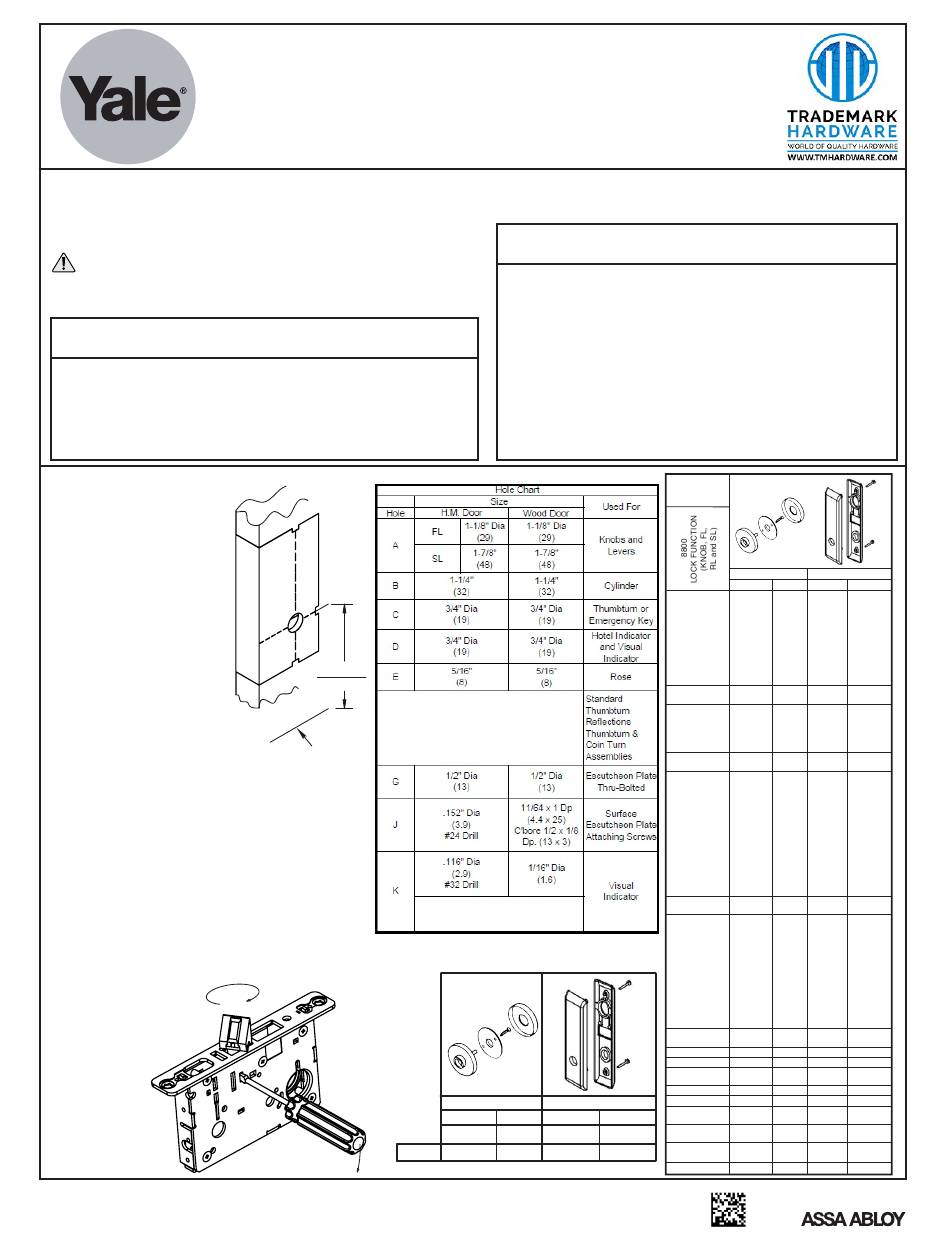

Yale 8800 Series Installation Instructions Manual

IMPORTANT: The accuracy of the door preparation is
critical for the proper functioning and security of this
mortise lock. Misalignment can cause premature wear and
tear and a lessening of security.
WARNING
This product can expose you to lead which is known to the state of California to
cause cancer and birth defects or other reproductive harm. For more information go
to www.P65warnings.ca.gov.
Tools Required
• 1/8" (3.2mm) allen wrench
• #2 phillips screw driver
See hole chart for hole saws needed for your particular
application.
Mark and drill door
Mark horizontal line
across face of door.
39-15/16" (101cm) is
the usual lever height
above the finished floor.
Using template provided,
fold template over edge of
door, centering on
horizontal line. Mark
centers of holes. See Hole
Function Chart to
determine holes needed.
See Hole Chart for drill sizes
needed. Drill holes that
correspond to your application.

Handing the Latchbolt

1. Insert flat blade screwdriver into cover slot.
2. Pull back on screwdriver until latchbolt
extends past base front and rotate the head
to the desired position.

Handing the Hubs

1. Locate RED MARK on locking piece.
2. Push toggle button slide away from "square
spindle hole".
3. With blade screw driver push RED MARK on
slide nearest "square spindle hole".
4. RED MARK indicates
locked side!
An ASSA ABLOY Group brand
8800 Series Mortise Lockset
Knob, Lever, Reflections and Security Trims
Installation Instructions
39 15/16"
(101cm)
Finished Floor
½ TRIM
®
Attention Installer
If installation instructions are not followed this may result in
damage to the lock and void the factory warranty. Removing
cover screws voids lock body warranty.
Any retrofit or other field modification to a fire rated opening can
potentially impact the fire rating of the opening, and Yale Locks &
Hardware makes no representations or warranties concerning
what such impact may be in any specific situation. When
retrofitting any portion of an existing fire rated opening, or
specifying and installing a new fire-rated opening, please consult
with a code specialist or local code official (Authority Having
Jurisdiction) to ensure compliance with all applicable codes and
ratings.
For attachment holes, see
page 4 for details.
Install Thumbturn Assemblies
and IND Assembly on door.
See page 4.
HOLE CHART
FOR 838A AND 838B
SECTIONAL TRIM THRU-BOLTED ESC.
OUTSIDE INSIDE
OUTSIDE
A,E A,E
A,G
NONE A,E
NONE
HOLE
CHART
SECTIONAL TRIM THRU-BOLTED ESC.
OUTSIDE INSIDE
8801
8870DT
8871DT
8872DT
8880
A,E A,E
8881
8884
8885
836A&B
838A&B
8802
A,C,E,F A,C,E,F
8865
8805
8807
8808 A,B,E A,E
8824
8831
8890
A,B*,E A,B*,E
8891
8808-2
8811-2
8812-2
8817-2
8818-2
8830-2
A,B,E A,B,E
8860-2
8894-2
8895-2
8896-2
8897-2
8898-2
8899-2
8820
A,B,D,E A,C,E,F A,B,D,G
8827
8809
8822
8832
8840
8847
A,B,E A,C,E,F
8860
8861
8867
8896
8897
8898
8899
8813ST
B
8815
A,E
8828 NONE
A,E
8833 B ONLY
8823
A,B,E NONE
8829
B, C
8813ST-2 B
8814 B NONE
8814-2
B
INSIDE
8833-2
8835
A,G A,E,*** A,C,E,F
8862
8834
A,B,E
A,J B
8834-2
8864 A,B,C,E A,C,E,F A,B,C,G
80-9086-0026-010 (12-18)
OUTSIDE INSIDE
A,G A,G
A,C,G A,C,G
A,B,G A,G
A,B*,G A,B*,G
A,B,G A,B,G
A,C,G
A,B,G A,C,G
B, G C, G
C
A,J**
NONE
A,J**
B ONLY
A,B,G G
B, G B, C, G
B, G G
B, G B, G
B
A,G,*** A,C,G
B,G A,B,G
A,C,G
