For use with Yale® 7000, 2100,
1800 or 1500 Series Exit Devices
(Wood and Metal Doors)

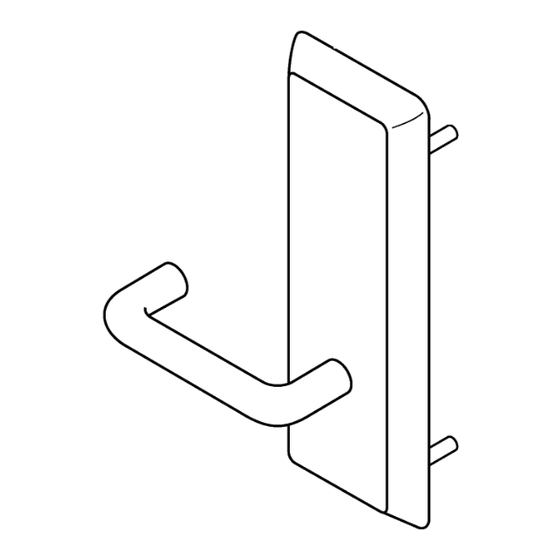

628F Series
Passage Function Trim
Handed (RHR or LHR)
Lever Always Active
An ASSA ABLOY Group brand
628F Exit Device Trim
Installation Instructions
Any retrofit or other field modification to a fire rated opening can potentially
impact the fire rating of the opening, and Yale Locks & Hardware makes no
representations or warranties concerning what such impact may be in any
specific situation. When retrofitting any portion of an existing fire rated
opening, or specifying and installing a new fire-rated opening, please consult
with a code specialist or local code official (Authority Having Jurisdiction) to
ensure compliance with all applicable codes and ratings.
3
(76)
Attention Installer
10-1/4
(260)
80-8470-0628-000 (11-18)
Advertisement
Related Manuals for Yale 628F
Summary of Contents for Yale 628F
- Page 1 Any retrofit or other field modification to a fire rated opening can potentially For use with Yale® 7000, 2100, impact the fire rating of the opening, and Yale Locks & Hardware makes no 1800 or 1500 Series Exit Devices representations or warranties concerning what such impact may be in any specific situation.
- Page 2 2 STUDS TOWARDS LOCK EDGE (2) 1/4-20 Pan Head Machine Screws Packed with device. Escutcheon Assembly Lever is handed, RHR (shown) or LHR. Note: Lever return spring is universal for easy field handing. See page 5 to change handing. Trim Spindle Assembly (2) 1/4-20 Oval Head (2) #14 Finishing Washers...
- Page 3 1. Assemble trim. See previous page for 3. Transfer Horizontal Reference Centerline from components. inside to outside door face. 2. After marking door inside face for device 4. Align trim template and tape to outside door location (Device Instructions) transfer Vertical face.
- Page 4 " " " 1-1/8 CAUTION: Office copiers and facsimile mach- (29) ines may change the size of a drawing and make the template inaccurate to use as a door marker. If this is not the original template packed with the trim, use only the holes on the door (do not use template as a door marker).
- Page 5 How to Change Handing 626F, 627F, 628F, 690F and 691F Series Exit Device Trim Left Hand Reverse Gear & Spring Orientation Right Hand Reverse Gear & Spring Orientation Notes: 1. During change ensure black driven gear does not rotate. 2. Please wear safety glasses and be aware of spring tension on spring hub upon removal and assembly.
- Page 6 Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company. Yale® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. Other products' brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only.
