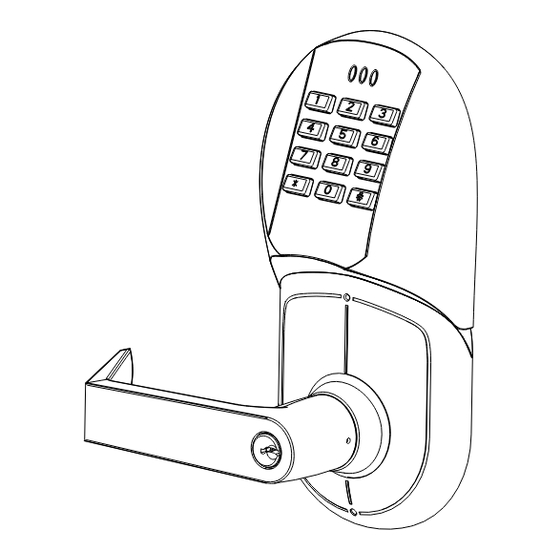

E5400LN
Cylindrical Keypad Lock
Installation Instructions
80-9150-8004-010 Rev. D
Electronic Battery Operated Security Solution
Operational Modes
Secure
Normal locked state. Any
assigned user code can gain
access. Lock/relocks
automatically.
Finish Care
This lockset is designed to provide the highest standard of product quality and performance. Care should be
taken to insure a long-lasting finish. When cleaning is required use a soft, damp cloth. Using lacquer thinner,
caustic soaps, abrasive cleaners or polishes could damage the coating and result in tarnishing,
Lockout
Lockset will not accept any
assigned user codes except
for the Supervisor and
Emergency Codes.
NOTE TO INSTALLER
NOTE TO INSTALLER
FAILURE TO FOLLOW THESE
FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT
INSTRUCTIONS COULD RESULT
IN DAMAGE TO THE LOCK AND
IN DAMAGE TO THE LOCK AND
VOID THE FACTORY WARRANTY.
VOID THE FACTORY WARRANTY.
FEATURES
Battery Operated (Hardwire Capable)
Motorized Grade 1
Cylindrical Lock
94 User Code Capacity
All Metal Escutcheon and
Pushbuttons
LED Function Indicator
5400LN Patented
Free-Wheeling Levers
Weather Resistant, ADA
Compliant 12-Button Keypad
Modular Design
(Simple Installation)
Audible Pushbutton
Patent Pending Keypad
Blinders
Request to enter input
Emergency, Supervisor, Passage,
Lockout and Master Codes
Passage
Maintains unlocked state.
Relocks by entering passage
code the second time

Advertisement

Table of Contents
loading

Related Manuals for Yale EBOSS E5400LN series

Summary of Contents for Yale EBOSS E5400LN series

  • Page 1 E5400LN NOTE TO INSTALLER NOTE TO INSTALLER FAILURE TO FOLLOW THESE FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT INSTRUCTIONS COULD RESULT Cylindrical Keypad Lock IN DAMAGE TO THE LOCK AND IN DAMAGE TO THE LOCK AND VOID THE FACTORY WARRANTY. VOID THE FACTORY WARRANTY.

  • Page 2: Table Of Contents

    STRIKE SCREW-PACK 1 KEYPAD INSIDE INSIDE LATCHBOLT OUTSIDE ASSEMBLY LEVER ESCUTCHEON LOCK CHASSIS ASSEMBLY ASSEMBLY SCREW-PACK 2 GROUNDING STRIP (See Template) REMOVE BEFORE Table of Contents Page Section Prepare the Door ...................3 -A Prepare the Door for Lock Body & Latch ............3 -B Locate and Drill Holes for Electronic Components ..........4 Section Prepare Lock for Installation ................4...

  • Page 3: Section I Prepare The Door

    IMPORTANT: The accuracy of the door preparation is critical for the proper functioning and security of this lever handle lock. Misalignment can cause premature wear and tear and a lessening of security. Tools Required SECTION PREPARE THE DOOR *Chisel & hammer *2-1/8”...

  • Page 4: I -B Locate And Drill Holes For Electronic Components

    -B. Locate and Drill Holes for Electronic Components. Fig. 3 1. Mark door and position templates (Included). a. Draw a horizontal centerline for the lock on both sides of INSTALLATION the door at the desired height above the finished floor TEMPLATE line.

  • Page 5: B How To Change Hands

    -B How to change hands (Interchangeable Core Cylinder & Non Cylinder Locks) Removable Core - Change Hands Refer to steps below to remove handle assembly from Lock Body. Rotate Handle & Retaining Ring 180° RH, RHR SHOWN Remove Retaining Ring & Handle Replace Handle &...

  • Page 6: D Re-Keying/Competitor Cylinder

    14-5407-9034 Cylinder Spacer 14-5407-9201 (Must be used with 6 Pin Cylinder Only) #1802 Cylinder ® For Yale 7 pin cylinder cut to 11/32” as shown Verify Cylinder Tailpiece Retainer Length (See Below). Spring Pad 11/32 (8.7) 2-5/8” (66.5) For 6 & 7 pin cylinders 1-3/4 - 2” thick doors Standard 2-7/8”...

  • Page 7: Section Iii Install Lockset

    SECTION INSTALL LOCKSET REMOVE TAB AFTER INSTALLATION 14-5496-0007-999 14-5496-0011-FIN See Page 10 before install of this screw. REMOVE BEFORE 14-5496-0902-048 (LOCKBODY) 14-5407-0108-048 (ROSE ASSY O/S) 14-5490-0002-048 14-5496-6012-FIN Disassemble components See Following Pages for Details. prior to install. 14-5496-6013-FIN SECTION INSTALL LOCKSET (CONTINUED) III-A.

  • Page 8: Iii-B . Install Electronic Components

    3. Installing Inside Trim Install Grounding Strip Wire to pass thru hole in Rose Plate SECTION INSTALL LOCKSET (CONTINUED) III-B . INSTALL ELECTRONIC COMPONENTS . Push connector thru 1” Dia Hole and Slide Keypad against door. CONTROLLER BOARD ASSEMBLY REMOVE BEFORE 1”...

  • Page 9: Electrical Connections

    ELECTRICAL CONNECTIONS Route Lock Motor Grounding Wires above Strip Cover Mtg. Tab See Page 10 for Screw Install REMOVE TAB AFTER INSTALLATION Inside Inside REMOVE BEFORE 6 AA Batteries Note 1: Caution make sure wires from Lock Body pass thru WIRING HARNESS slot in Rose Plate then CONNECTOR FROM...

  • Page 10: Hardwire Options Diagram

    HARDWIRE OPTION DIAGRAM 9VDC Power input Remote Entry Input Normally Open Momentary Switch (9 Volt Power Supply) Hardwiring Harnesses **Hook *Prior to installing the Controller Board Screw the clearance Controller Board Screw between the Battery Escutcheon *(See side note) and the Rose Escutcheon should **Battery Escutcheon be checked.

  • Page 11: C Installation Template

    Yale eBOSS E5400LN Series 7/16” Installation Template (11.1) Use with Door Marker 1” 80-8150-0036-010 (25.4) 5-1/16 (128.5) Grounding Strip (can be installed in either position) Inside of Door 5/16 (2 Holes) (8) Thru Door 3-5/8 (92) 2-3/4” (70) Horizontal 5/32”...
  • Page 12 Yale is a registered trademark of Yale Security Inc. Other product brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only. These materials are protected under US copyright laws. All contents current at time of publication.
