ORiNG DGS-9168GP-SS-AIO_S Quick Installation Manual

Desktop
SWITCH
Q I
I N D U S T R I A L uick nstallation
Introduction

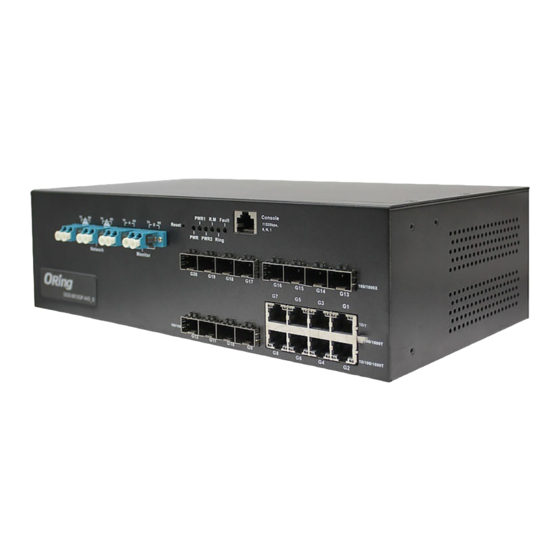

The DGS-9168GP-AIO_S series is a managed industrial Ethernet switch
with sixteen 10/100/1000Base-T(X) ports and eight 100/1000Base-X SFP
ports. With two sets of bypass ports (the optical ports) that ensure constant
network connectivity if power outage or node failure occurs, the traffic will
bypass the inactive switch and continue to transfer to the next active
switch. The switch supports Ethernet Redundancy protocols, O-Ring
(recovery time <30ms over 250units of connection) and MSTP
(RSTP/STP compatible) to protect mission-critical applications from
network interruptions or temporary malfunctions with fast recovery
technology. With a wide operating temperature from -40 C to 70 C, the
device can be managed centrally via ORing's proprietary Open-Vision
platform as well as via Web-based interfaces, Telnet, and console (CLI).
The switch is one of the most reliable choices for highly-managed and
fiber Ethernet applications.
Package Contents
The device is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative for
assistance.
Contents Pictures Number
DGS-9168GP-AIO_S
CD
Console Cable
QIG
Power Cable
Preparation
Before you begin installing the switch, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed or multi-unit rack
assembly, the operating ambient temperature of the rack environment may be
greater than room ambient. Therefore, consideration should be given to
installing the equipment in an environment compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Installation of the equipment in a rack should be such
that the amount of air flow required for safe operation of the equipment is
not compromised.
Mechanical Loading: Mounting of the equipment in the rack should be
such that a hazardous condition is not achieved due to uneven mechanical
loading.
Q I G
DGS-9168GP-AIO_S
DGS-9168GP-AIO_S
G
uide
Circuit Overloading: Consideration should be given to the connection of the equipment to
the supply circuit and the effect that overloading of the circuits might have on overcurrent
protection and supply wiring. Appropriate consideration of equipment nameplate ratings
should be used when addressing this concern.

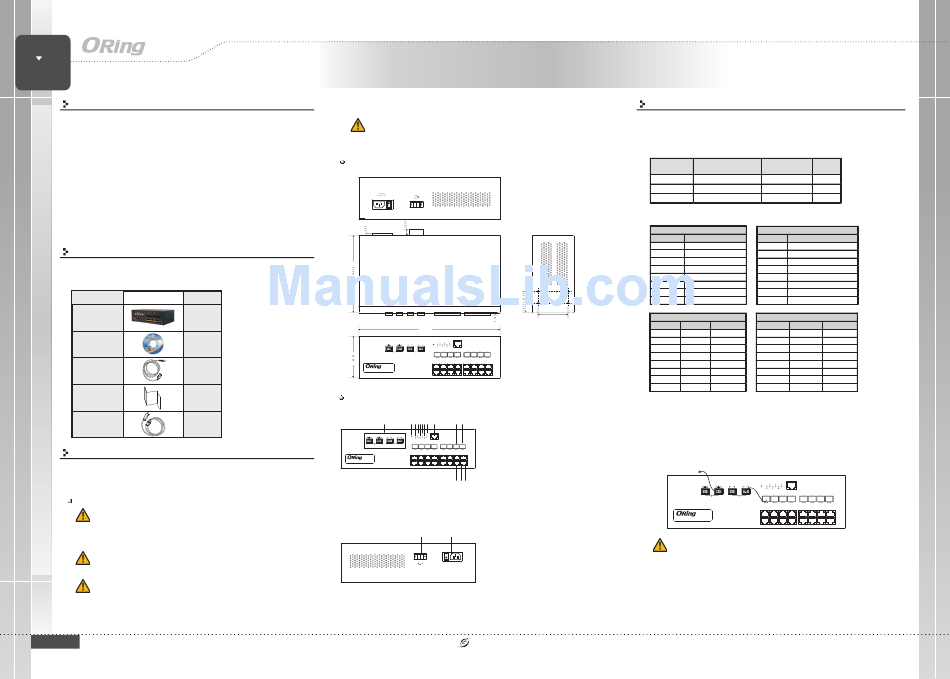

Dimension
o o
X 1
X 1
X 1
DGS-9168GP-AIO_S
Panel Layouts
X 1
X 1
TX RX TX
A B
Network
DGS-9168GP-AIO_S
1907-2-29-DGS9168GPAIO-1.0
63.60
300.00
Console
PWR1 R.M Fault
11520bps,
TX RX TX RX TX RX TX RX Reset 8, N, 1
A B A B
PWR PWR2 Ring
Network Monitor
100/1000X
G20 G23 G22 G21 G20 G19 G18 G17
G15 G13 G11 G9 G7 G5 G3 G1
10/100/1000T
G16 G14 G12 G10 G8 G6 G4 G2
Front Panel
1 2 345678 9 10 11
1. Fiber bypass ports
2. Reset button
Console
PWR1 R.M Fault 11520bps, 3. Power LED
8, N, 1
RX TX A RX TX B RX Reset
PWR PWR2 Ring
4. PWR1 LED
Monitor
100/1000X 5. PWR2 LED
G20 G23 G22 G21 G20 G19 G18 G17
G15 G13 G11 G9 G7 G5 G3 G1
6. Ring master LED
7. Ring status LED
10/100/1000T
G16 G14 G12 G10 G8 G6 G4 G2
8. Fault indicator
9. Console port
10. 100/1000 Base-X fiber port
12 13 14
11. LNK/ACT LED for fiber port
12. 10/100/1000 Base-T(X) LAN port
13. LNK/ACT LED for LAN port
14. Speed LED for LAN port
Rear Panel
2 1
1. Power socket of power input for
AC 100V~240V / 50~60Hz
2. Relay output to carry capacity of
Relay
AC 100-240V
50-60 HZ 1A at 24VDC
PRINTED ON RECYCLED PAPER
Industrial Desktop Managed Gigabit
Switch
Network Connection
The switch provides standard Ethernet ports. According to the link type, the switch uses CAT 3,
4, 5,5e UTP cables to connect to any other network devices (PCs, servers, switches, routers, or
hubs). Please refer to the following table for cable specifications.
Cable Types and Specifications:
Cable Type Max. Length
10BASE-T Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft)
100BASE-TX Cat. 5 100-ohm UTP UTP 100 m (328 ft)
1000BASE-T Cat. 5/Cat. 5e 100-ohm UTP UTP 100 m (328ft)
For pin assignments for different types of cables, please refer to the following tables.
1000Base-T RJ-45 Port 10/100 Base-T(X) RJ-45 Port
Pin Number Assignment Pin Number Assignments
1 BI_DA+ 1
2 BI_DA- 2
3 BI_DB+ 3
4 BI_DC+ 4 Not used
5 BI_DC- 5 Not used
6 BI_DB-
6
7 BI_DD+ 7 Not used
8 BI_DD- 8 Not used
1000Base-T MDI/MDI-X 10/100 Base-T(X) MDI/MDI-X
Pin Number MDI port MDI-X port Pin Number MDI port
1 BI_DA+ BI_DB+ 1 TD+(transmit)
2 BI_DA- BI_DB- 2 TD-(transmit)
3 BI_DB+ BI_DA+ 3 RD+(receive)
4 BI_DC+ BI_DD+ 4 Not used
5 BI_DC- BI_DD- 5 Not used
6 BI_DB- BI_DA- 6 RD-(receive)
7 BI_DD+ BI_DC+ 7 Not used
8 BI_DD- BI_DC- 8 Not used
Note: "+" and "-" signs represent the polarity of the wires that make up each wire pair.
Optical Bypass Connection
optical
The device provides two sets of bypass fiber ports, giving the SFP fiber ports
additional redundancy capabilities. Connect a LC fiber cable from a fiber port to a
monitor port on the front panel and another LC fiber cable from the corresponding network
port to another switch. When the switch breaks down, incoming traffic will travel through the
bypass module and onto another active switch connected to the network port.
Console
PWR1 R.M Fault
11520bps,
8, N, 1
TX RX TX RX TX A RX TX B RX Reset
A B
PWR PWR2 Ring
Network Monitor
G20 G23 G22 G21 G20 G19
G15 G13 G11 G9 G7 G5
DGS-9168GP-AIO_S
G16 G14 G12 G10 G8 G6
The fiber port will still work if it is not connected to any monitor port. However, the
fiber port will not have bypass ability when the device is down.
Console Port Pin Definition
To connect the console port to an external management device, you need an RJ-45 to DB-9
cable, which is also supplied in the package. Below is the console port pin assignment
information.
Quick Installation Guide
Version 1.0
