ORiNG IES-1240 Quick Installation Manual

ORing Industrial Networking Corp.
SWITCH
I N D U S T R I A L
Q I
uick nstallation
Introduction

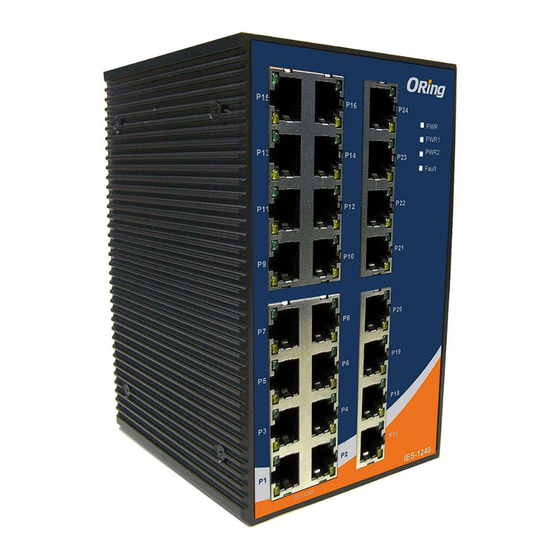

IES-1240 is unmanaged Ethernet switch with 24x10/100Base-T(X) port.
support redundant power inputs. relay output alarm, and surge protection.
o
wide operating temperature range from -40 C to 70 C can satisfy most of operating
environments. Especially, IES-1240 features dual different redundant DC power
inputs, two DC power inputs are on terminal block to avoid any unexpected fails on
power on. Thus, IES-1240 could guarantee a non-stop operation.
switch is one of the most reliable choice for highly-unmanaged Ethernet application.
Features
RJ-45 port support Auto MDI/MDI-X switching function
Provides Store-and-Forward switching architecture
Provides 4.8Gbps Back-plane (Switching Fabric)
Warning system by relay output
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled
Practical Operation
IES-1240 is usually deployed for connecting several Ethernet devices, such like
Ethernet I/O, IP-Camera, etc. The designs of rugged housing and wide operating
o
temperature, range form -40 ~ 70 C, makes IES-1240 r
industrial applications.
Connections of Ethernet devices
Q I G
IES-1240
G
uide
Specifications
IES-1240
The
ORing Switch Model
o
Physical Ports
Therefore, the
10/100 Base-T(X) Ports in RJ45
Auto MDI/MDIX
Technology
Ethernet Standards
MAC Table
Priority Queues
Processing
Switch Properties
LED indicators
Power Indicator
Fault Indicator
10/100 Base-T(X) RJ45 Port
Indicator
Power
Redundant Input power
Power consumption(Typ.)
eliably in any kinds of
Overload current protection
Reverse polarity protection
Physical Characteristic
Enclosure
Dimension (W x D x H)
Weight (g)
Environmental
Storage Temperature
Operating Temperature
Operating Humidity
Regulatory approvals
EMI
EMS
Shock
Free Fall
Vibration
Safety
Warranty
1907-2-29-IES1240-0
IES-1240
IES-1240
24
IEEE 802.3 for 10Base-T,
IEEE 802.3u for 100Base-TX
IEEE 802.3x for Flow control
8192 MAC addresses
4
Store-and-Forward
Switch latency: 9 us
Switch bandwidth: 4.8Gbps
Green: Power LED x3
Amber: Indicate power failure occurred
Green for port Link/Act. Amber for Duplex/Collision
Dual DC input 12-48VDC on 6-pin terminal block
12 Watts
Present
Present on terminal block
IP-30
96.4(W)x108.5(D)x154(H) mm (3.8x4.27x6.06 inch.)
1052g
o o
-40 to 85 C (-40 to 185 F)
o o
-40 to 70 C (-40 to 158 F)
5% to 95% Non-condensing
FCC Part 15, CISPR (EN55022) class A
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge),
EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
IEC60068-2-27
IEC60068-2-32
IEC60068-2-6
EN60950-1
5 years
PRINTED ON RECYCLED PAPER
Industrial Unmanaged Switch
Installation
DIN-Rail Install Step Wall-mountedl Install Step
Quick Installation Guide
Version 1.0
