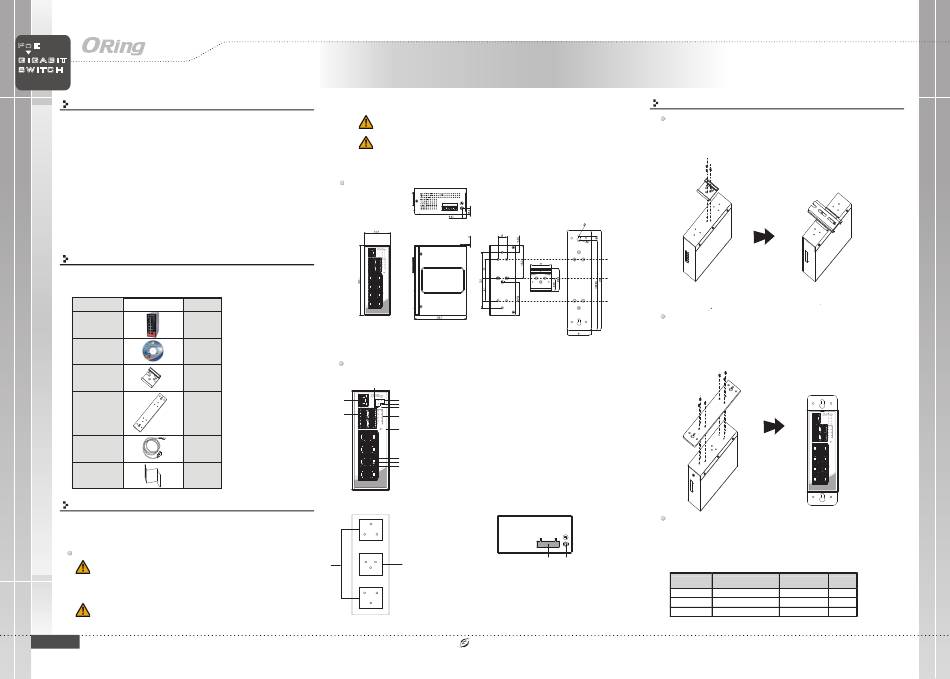

ORiNG IGPS-9084GP-LA Quick Installation Manual

PoE
GIGABIT
SWITCH Q I
uick nstallation
I N D U S T R I A L
Introduction
IGPS-9084GP-LA is layer2 managed PoE Ethernet switch with
8x10/100/1000Base-T(X) P.S.E. ports and 4x100/1000Base-X SFP ports.
The switch support Ethernet Redundancy protocol, O-Ring (recovery time <
20ms over 250 units of connection) and MSTP (RSTP/STP compatible) can
protect your mission-critical applications from network interruptions or
temporary malfunctions with its fast recovery technology. IGPS-9084GP-
LA also support Power over Ethernet, a system to transmit electrical power
up to 30 watts, total PoE power budget is 240W max, along with data, to
remote devices over standard twisted-pair cable in an Ethernet network.
IGPS-9084GP-LA switch has 8x10/100/1000Base-T(X) P.S.E. (Power
Sourcing Equipment) ports. P.S.E. is a device (switch or hub for instance)
that will provide power in a PoE connection. And support wide operating
o o
temperature from -40 C to 75 C. IGPS-9084GP-LA
centralized and convenient by Open-Vision, Except the Web-based
interface, Telnet and console (CLI) configuration.
Package Contents
The device is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative for
assistance.
Contents Pictures Number
IGPS-9084GP-LA
CD
DIN-rail Kit
Wall-mount Kit
Console Cable
QIG
Preparation
Before you begin installing the switch, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed or multi-unit rack
assembly, the operating ambient temperature of the rack environment may be
greater than room ambient. Therefore, consideration should be given to
installing the equipment in an environment compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Installation of the equipment in a rack should be such
that the amount of air flow required for safe operation of the equipment is
not compromised.
Q I G
IGPS-9084GP-LA
IGPS-9084GP-LA
G
uide
Dimension
can also be managed
Console
G12 G11
100/1000X G10 G9
G8
G6
G4
G2
10/100/1000T
IGPS-9084GP-LA
X 1
X 1
Panel Layouts

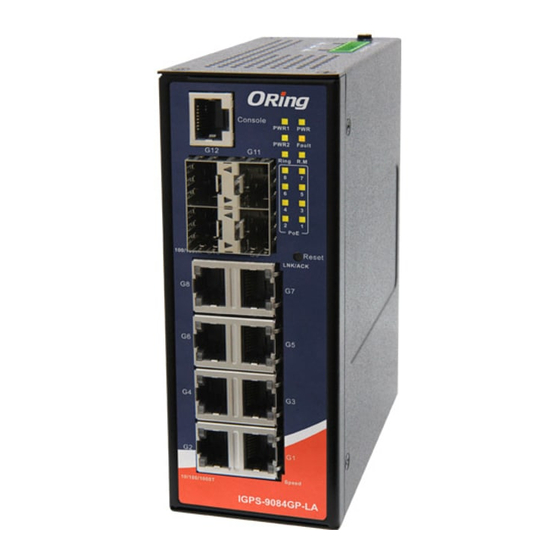

Front View
X 1
4
10
Console
PWR1
PWR2
G12 G11
Ring
X 1 8
11
6
4
2
PoE
100/1000X
G10 G9
LNK/ACK
G8 G7
X 1
G6 G5
G4 G3
X 1 G2 G1
Speed
10/100/1000T
IGPS-9084GP-LA
Rear View
1 1
1907-2-29-IGPS9084GP2LA-1.0
Mechanical Loading: Mounting of the equipment in the rack should be such that a
hazardous condition is not achieved due to uneven mechanical loading.
Circuit Overloading: Consideration should be given to the connection of the equipment
to the supply circuit and the effect that overloading of the circuits might have on overcurrent
protection and supply wiring. Appropriate consideration of equipment nameplate ratings
should be used when addressing this concern.
PWR1 PWR
PWR2 Fault
Ring R.M
8 7
6 5
4 3
2 1
PoE
Reset
LNK/ACK
G7
G5
G3
G1
Speed
Unit =mm (Tolerance ±0.5mm)
1. PWR indicators
1 2. Faulty relay indicator
PWR
2
Fault 3. R.M. status LED
3
R.M
7 4. Ring status LED
5 5
3 5. PoE indicators for LAN ports
1
6. Reset button
6
Reset
7. Link/Act LED for Gigabit LAN
ports
8. Gigabit PoE LAN ports
9. Speed LED for Gigabit LAN ports
7
10. Console port
8
9 11. SFP Ports
Top Panel
1. Wall-mount screw holes
2. Din-rail screw holes
1
2
1. Terminal blocks: PWR1, PWR2
, Relay
2. Ground wire.
PRINTED ON RECYCLED PAPER
Industrial Managed PoE Gigabit Switch
Installation
DIN-rail Installation
Step 1: Slant the switch and screw the Din-rail kit onto the back of the switch, right in
the middle of the back panel.
Step 2: Slide the switch onto a DIN-rail from the Din-rail kit and make sure the switch
clicks into the rail firmly.
Wall-mounting
Step 1: Screw the wall-mount kit onto the rear panel of the switch. A total of six
screws are required, as shown below.
Step 2: Use the switch, with wall mount plates attached, as a guide to mark the
correct locations of the four screws.
Step 3: Insert a screw head through the large parts of the keyhole-shaped apertures,
and then slide the switch downwards. Tighten the screws for added stability.
Network Connection
The switch provides standard Ethernet ports. According to the link type, the switch uses
CAT 3,4,5,5e UTP cables to connect to any other network devices (PCs, servers,
switches, routers, or hubs). Please refer to the following table for cable
specifications.
2
Cable Types and Specifications:
Cable Type
10BASE-T Cat. 3, 4, 5 100-ohm
100BASE-TX Cat. 5 100-ohm UTP
1000BASE-T Cat. 5 / Cat. 5e 100-ohm UTP
Version 1.0
Console
PWR1 PWR
PWR2 Fault
G12 G11
Ring R.M
8 7
6 5
4 3
2 1
PoE
100/1000X G10 G9 Reset
LNK/ACK
G8 G7
G6 G5
G4 G3
G2 G1
Speed
10/100/1000T
IGPS-9084GP-LA
Max. Length Connector
UTP 100 m (328 ft) RJ-45
UTP 100 m (328 ft) RJ-45
UTP 100 m (328 ft) RJ-45
Quick Installation Guide
