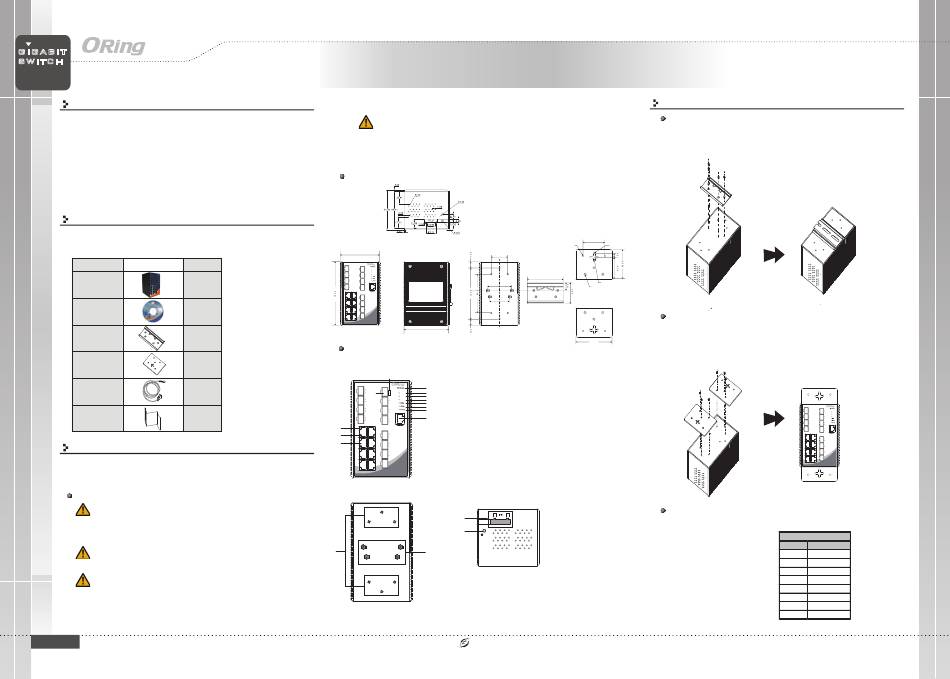

ORiNG IGS-9812GP Quick Installation Manual

GIGABIT
SWITCH
Q I
uick nstallation
I N D U S T R I A L

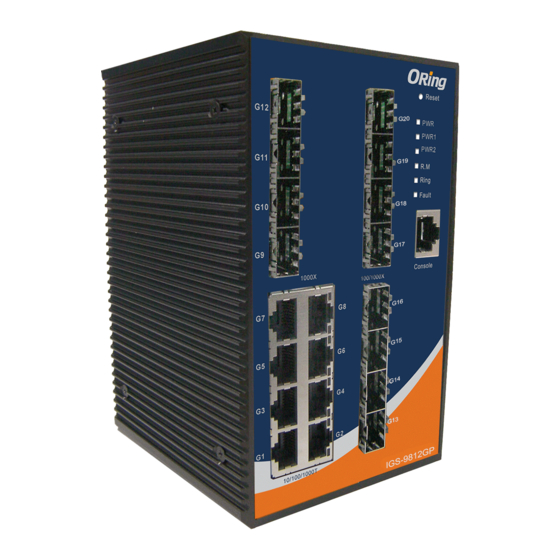

Introduction
I G S - 9 8 1 2 G P i s m a n a g e d r e d u n d a n t r i n g E t h e r n e t s w i t c h w i t h
8x10/100/1000Base-T(X) ports and 12x100/1000Base-X SFP ports. With
completely support of Ethernet Redundancy protocol, O-Ring (recovery
time < 30ms) and MSTP (RSTP/STP compatible) can protect your mission-
critical applications from network interruptions or temporary malfunctions
with its fast recovery technology. And support wide operating temperature
o o
from -40 C to 75 C. IGS-9812GP can also be managed centralized and
convenient by Open-Vision, Except the Web-based interface, Telnet and
console (CLI) configuration. Therefore, the switch is one of the most
reliable choice for highly-managed and Fiber Ethernet application.
Package Contents
The device is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative for
assistance.
Contents Pictures Number
IGS-9812GP
CD
DIN-rail Kit
Wall-mount Kit
Console Cable
QIG
Preparation
Before you begin installing the switch, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed or multi-unit rack
assembly, the operating ambient temperature of the rack environment may be
greater than room ambient. Therefore, consideration should be given to
installing the equipment in an environment compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Installation of the equipment in a rack should be such
that the amount of air flow required for safe operation of the equipment is
not compromised.
Mechanical Loading: Mounting of the equipment in the rack should be
such that a hazardous condition is not achieved due to uneven mechanical
loading.
Q I G
IGS-9812GP
G
uide
Dimension
96.4
G12
G20 PWR
PWR1
PWR2
G11
G19
G10
G18
X 1
G9
G17
100/1000X
100/1000X
G8 G7
G16
G6 G5
G15
X 1 G4 G3 G14
G13
G2 G1
10/100/1000T
IGS-9812GP
X 1
Panel Layouts
Front View
X 2
X 1
G12
11
G11
G10
X 1
G9
100/1000X
8
G8 G7
9
10
G6 G5
G4 G3
G2 G1
10/100/1000T
Rear View
1 1
1. Wall-mount screw holes
2. Din-rail screw holes
1907-2-2XX
IGS-9812GP
Circuit Overloading: Consideration should be given to the connection of the
equipment to the supply circuit and the effect that overloading of the circuits might have
on overcurrent protection and supply wiring. Appropriate consideration of equipment
nameplate ratings should be used when addressing this concern.
Unit =mm (Tolerance ±0.5mm)
40.0
88.0
58.0
48.0
108.5
12
13 1. Power LED
G20 1
PWR
2. PWR1 LED
PWR1 2
PWR2 3
G19 3. PWR2 LED
4
5
4. R.M. status LED
6
G18
5. Ring status LED
7
G17 6. Faulty relay indicator
100/1000X 7. Console port
8. Link/action LED for Gigabit Ethernet ports
G16
9. Speed LED for Gigabit Ethernet ports
G15
10. Gigabit Ethernet ports
G14 11. SFP port
12. Link/Act LED for SFP port
G13
13. Reset button
IGS-9812GP
Top Panel
PWR-2 Fault PWR-1
1 1A@24V
V2- V2+ V1- V1+ DC 48V
2
2
1. Terminal blocks: PWR1, PWR2
(12-48V DC), Relay
2. Ground wire.
PRINTED ON RECYCLED PAPER
Industrial Managed Gigabit Switch
Installation
DIN-rail Installation
Step 1: Slant the switch and screw the Din-rail kit onto the back of the switch, right in
the middle of the back panel.
Step 2: Slide the switch onto a DIN-rail from the Din-rail kit and make sure the switch
clicks into the rail firmly.
49.67
Ø4.00 Ø5.00
Ø8.00
Ø4.00
Wall-mounting
Step 1: Screw the two pieces of wall-mount kits onto both ends of the rear panel of the
switch. A total of six screws are required, as shown below.
Step 2: Use the switch, with wall mount plates attached, as a guide to mark the
87.9
correct locations of the four screws.
Step 3: Insert a screw head through the large parts of the keyhole-shaped apertures,
and then slide the switch downwards. Tighten the screws for added stability.
Network Connection
The IGS-9812GP has standard
Ethernet ports. According to the
link type, the switch uses CAT 3, 4,
5,5e UTP cables to connect to any
o t h e r n e t w o r k d e v i c e s ( P C s ,
s e r v e r s , s w i t c h e s , r o u t e r s , o r
hubs). Please refer to the following
table for cable specifications.
Version 1.1
G12
G20 PWR
PWR1
PWR2
G11
G19
G10
G18
G9
G17
100/1000X
100/1000X
G8 G7
G16
G6 G5
G15
G4 G3 G14
G13
G2 G1
10/100/1000T
IGS-9812GP
Cable Types and Specifications:
10/100 Base-T(X) RJ-45 Port
Pin Number Assignments
1 TD+
2 TD-
3 RD+
4 Not used
5 Not used
6 RD-
7 Not used
8 Not used
Quick Installation Guide
