Pellet Stoves & Inserts
GF40 Greenfire Pellet Stove

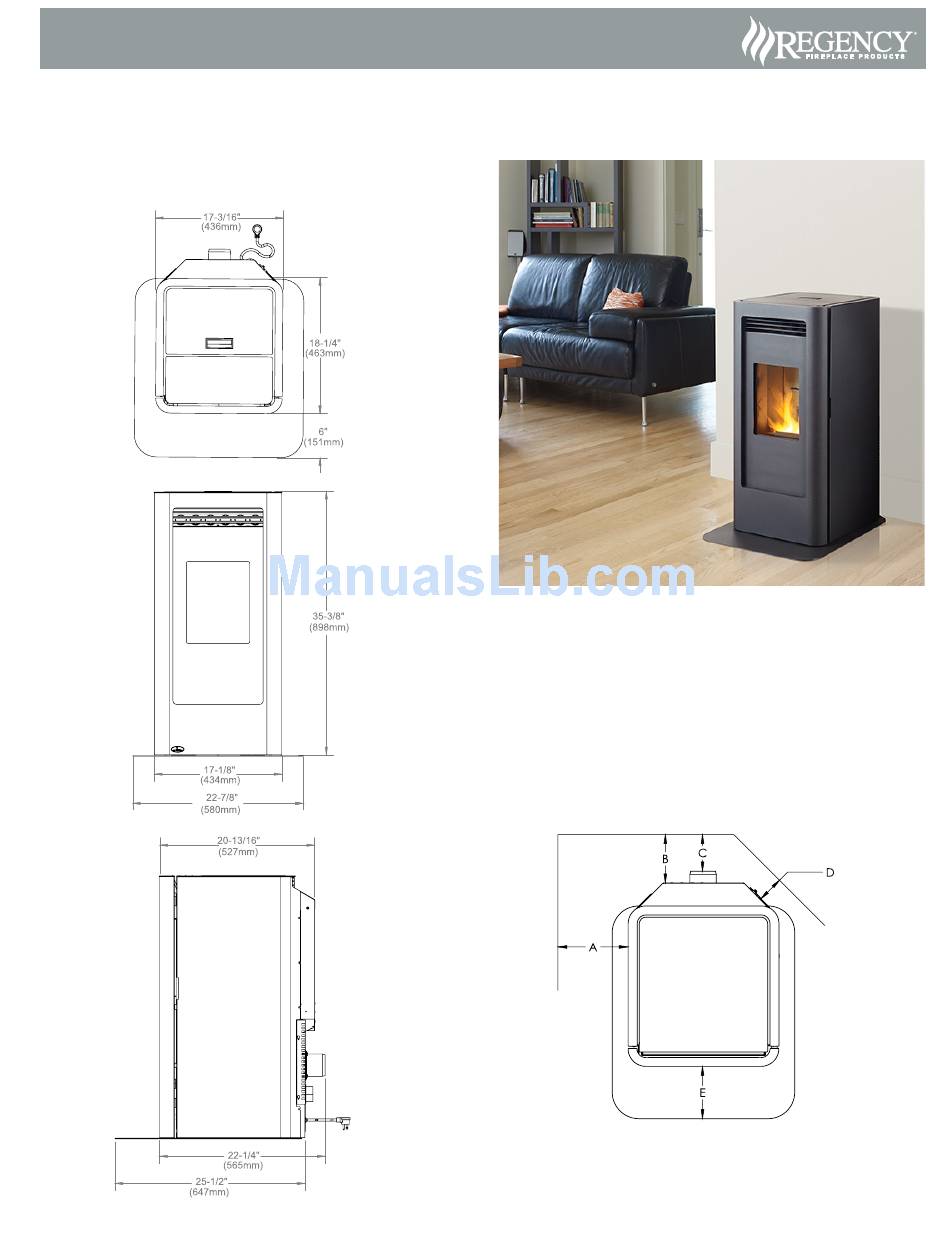

CLEARANCES TO COMBUSTIBLES
These dimensions are minimum clearances but it is recommended
that you ensure sufficient room for servicing, routine cleaning and
maintenance.
A. Side wall to unit
B. Back wall to unit
C. Back wall to Chimney Connector
D. Corner to unit
E. Glass to Hearth Pad
8 inches
(200 mm)
5.5 inches (140 mm)
4 inches (100 mm)
3 inches
(75 mm)
6 inches
(150 mm)
Advertisement
Related Manuals for Regency Fireplace Products GF40
Summary of Contents for Regency Fireplace Products GF40
- Page 1 Pellet Stoves & Inserts GF40 Greenfire Pellet Stove CLEARANCES TO COMBUSTIBLES These dimensions are minimum clearances but it is recommended that you ensure sufficient room for servicing, routine cleaning and maintenance. A. Side wall to unit 8 inches (200 mm) B.
-
Page 2: Alcove Clearances
Pellet Stoves & Inserts GF40 Wood Pellet Stove ALCOVE CLEARANCES EXHAUST AND FRESH AIR INTAKE LOCATION The unit may be installed in an alcove if desired. These minimum clearances to combustibles must be maintained at all times. Be sure to leave room for servicing, routine cleaning, and maintenance. These EXHAUST are inside dimensions.
