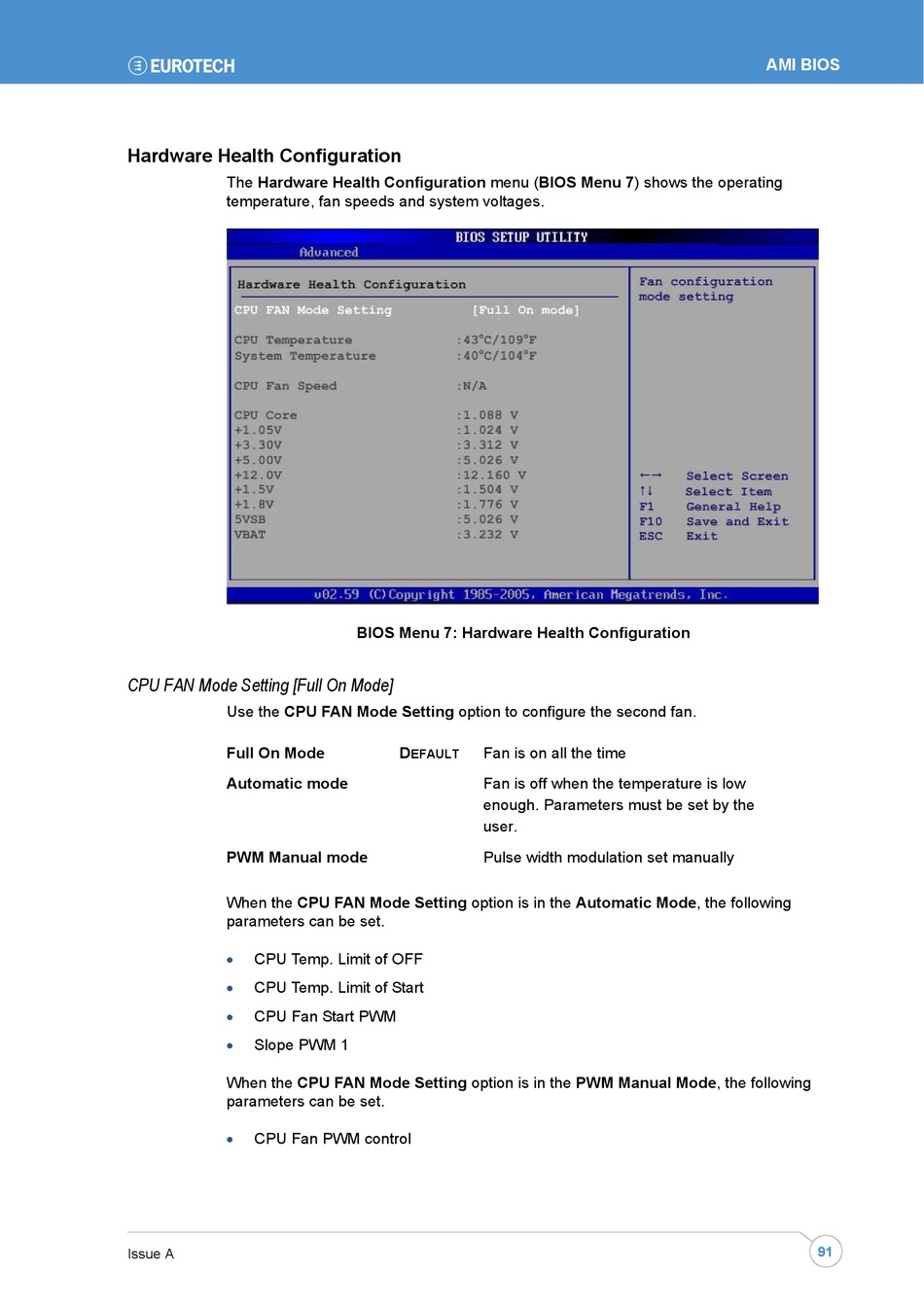

Eurotech ALUDRA User Manual page 91

Hardware Health Configuration
The Hardware Health Configuration menu (BIOS Menu 7) shows the operating
temperature, fan speeds and system voltages.
CPU FAN Mode Setting [Full On Mode]
Use the CPU FAN Mode Setting option to configure the second fan.
Full On Mode
Automatic mode
PWM Manual mode
When the CPU FAN Mode Setting option is in the Automatic Mode, the following
parameters can be set.

CPU Temp. Limit of OFF

CPU Temp. Limit of Start

CPU Fan Start PWM

Slope PWM 1
When the CPU FAN Mode Setting option is in the PWM Manual Mode, the following
parameters can be set.

CPU Fan PWM control
Issue A
BIOS Menu 7: Hardware Health Configuration
D Fan is on all the time
EFAULT
Fan is off when the temperature is low
enough. Parameters must be set by the
user.
Pulse width modulation set manually
AMI BIOS
91
