ALUDRA user manual

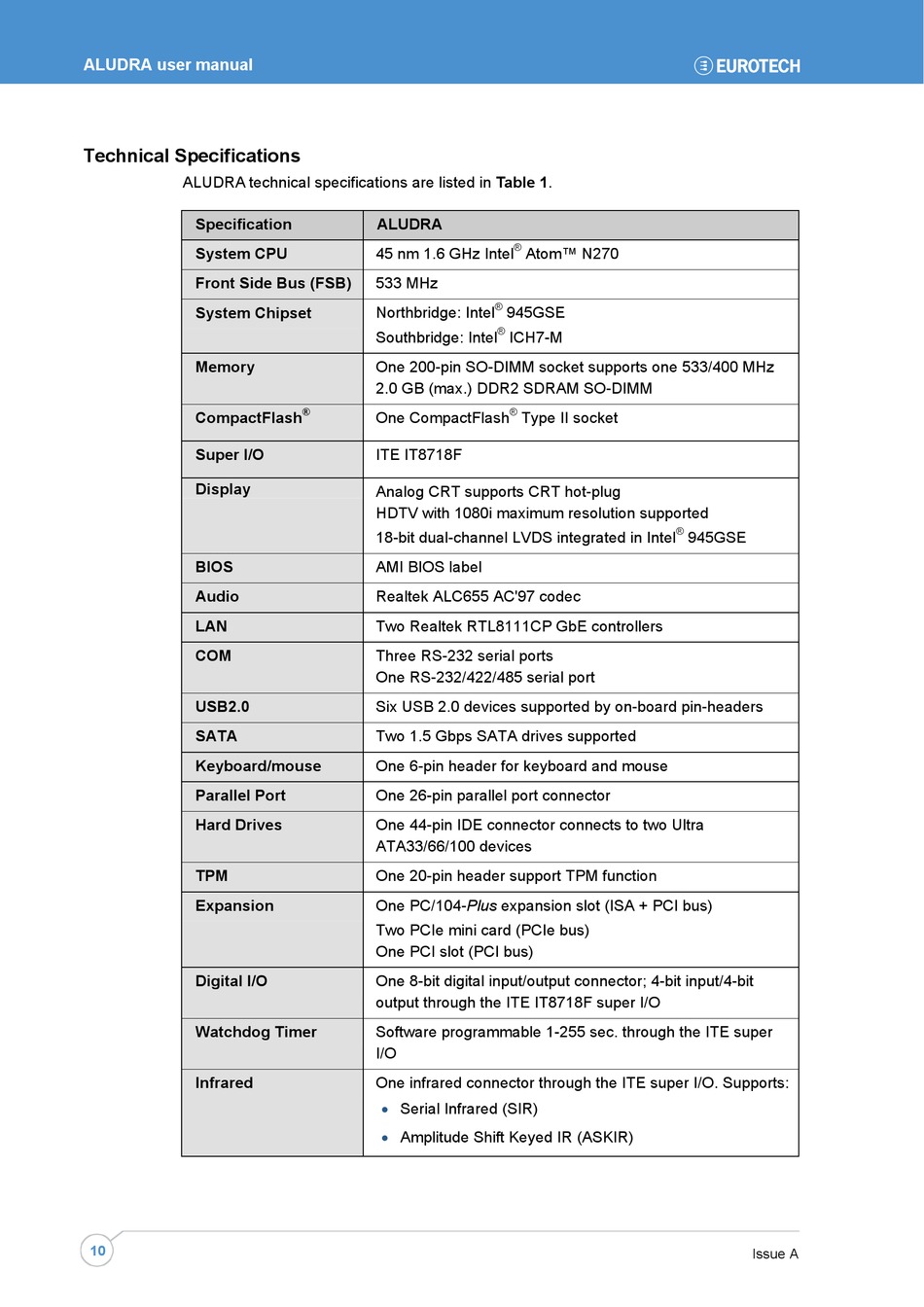

Technical Specifications
ALUDRA technical specifications are listed in Table 1.
Specification
System CPU
Front Side Bus (FSB)
System Chipset
Memory
CompactFlash
Super I/O
Display
BIOS
Audio
LAN
COM
USB2.0
SATA
Keyboard/mouse
Parallel Port
Hard Drives
TPM
Expansion
Digital I/O
Watchdog Timer
Infrared
10
ALUDRA
45 nm 1.6 GHz Intel
533 MHz
Northbridge: Intel
Southbridge: Intel
One 200-pin SO-DIMM socket supports one 533/400 MHz
2.0 GB (max.) DDR2 SDRAM SO-DIMM
®
One CompactFlash
ITE IT8718F
Analog CRT supports CRT hot-plug
HDTV with 1080i maximum resolution supported
18-bit dual-channel LVDS integrated in Intel
AMI BIOS label
Realtek ALC655 AC'97 codec
Two Realtek RTL8111CP GbE controllers
Three RS-232 serial ports
One RS-232/422/485 serial port
Six USB 2.0 devices supported by on-board pin-headers
Two 1.5 Gbps SATA drives supported
One 6-pin header for keyboard and mouse
One 26-pin parallel port connector
One 44-pin IDE connector connects to two Ultra
ATA33/66/100 devices
One 20-pin header support TPM function
One PC/104-Plus expansion slot (ISA + PCI bus)
Two PCIe mini card (PCIe bus)
One PCI slot (PCI bus)
One 8-bit digital input/output connector; 4-bit input/4-bit
output through the ITE IT8718F super I/O
Software programmable 1-255 sec. through the ITE super
I/O
One infrared connector through the ITE super I/O. Supports:

Serial Infrared (SIR)

Amplitude Shift Keyed IR (ASKIR)
®
Atom™ N270
®
945GSE
®
ICH7-M
®
Type II socket
®
945GSE
Issue A
