ALUDRA user manual
CF Card Installation
The ALUDRA can support both CF Type I cards and CF Type II cards.
To install the a CF card (Type I or Type II) onto the ALUDRA, please follow the steps
below:
1
Locate the CF card socket. Place the ALUDRA on an anti-static pad with the solder
side facing up. Locate the CF card.
2
Align the CF card. Make sure the CF card is properly aligned with the CF socket.
3
Insert the CF card. Gently insert the CF card into the socket making sure the socket
pins are properly inserted into the socket. See Figure 46.

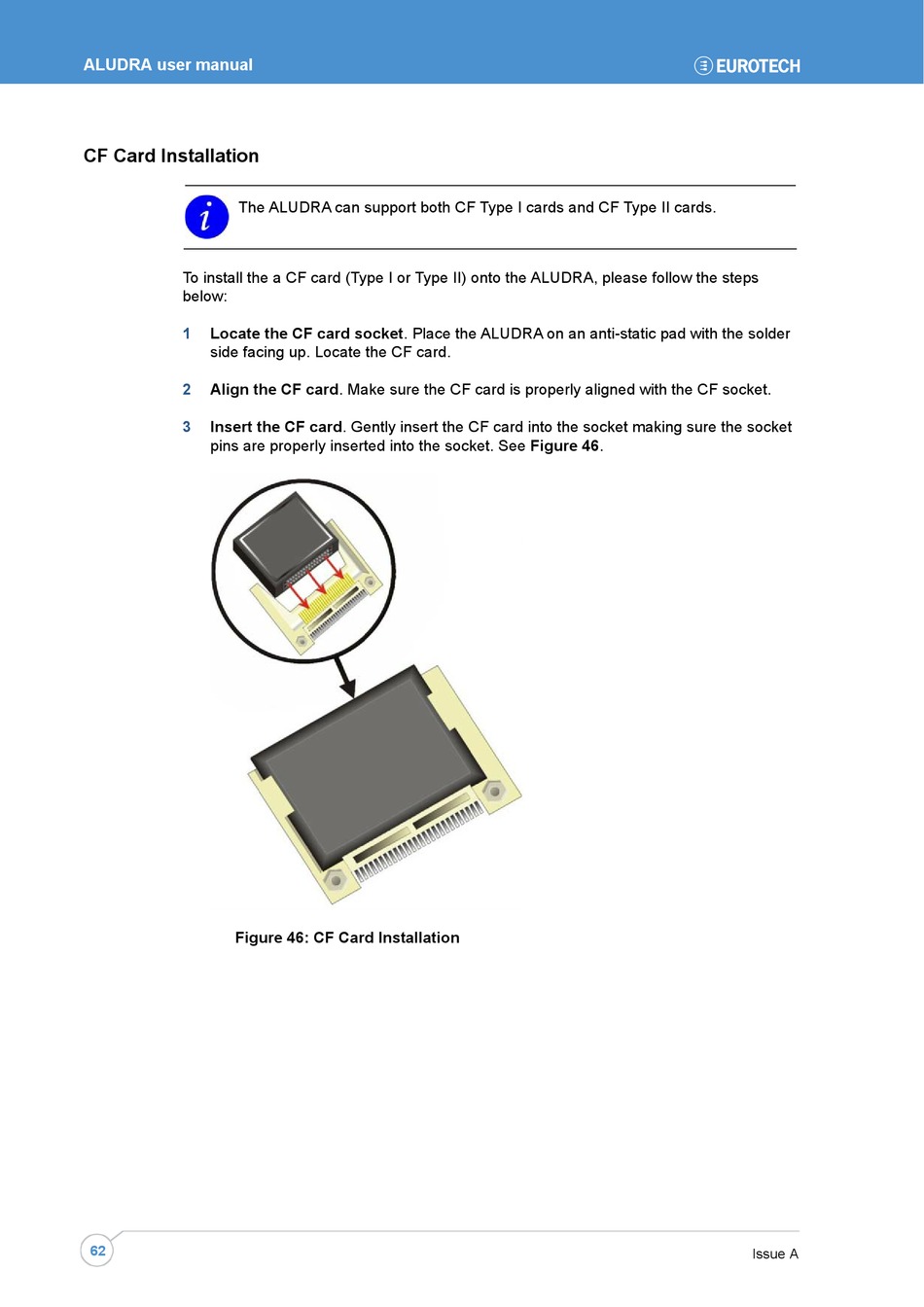

Figure 46: CF Card Installation
