Introduction

The ALUDRA 5.25" motherboard utilises a 45nm Intel
1.60 GHz clock, a 533 MHz FSB and a 512 KB L2 cache. The ALUDRA also supports
one 200-pin 533MHz 2.0GB (max.) DDR2 SDRAM SO-DIMM. The board comes with one
LVDS connector and supports 18-bit dual-channel LVDS screens. The ALUDRA also
comes with one PCI socket, two PCI Express (PCIe) sockets, a PC/104-Plus expansion
slot and two Gigabit Ethernet (GbE) connectors.
Issue A
®
Atom™ N270 processor with a

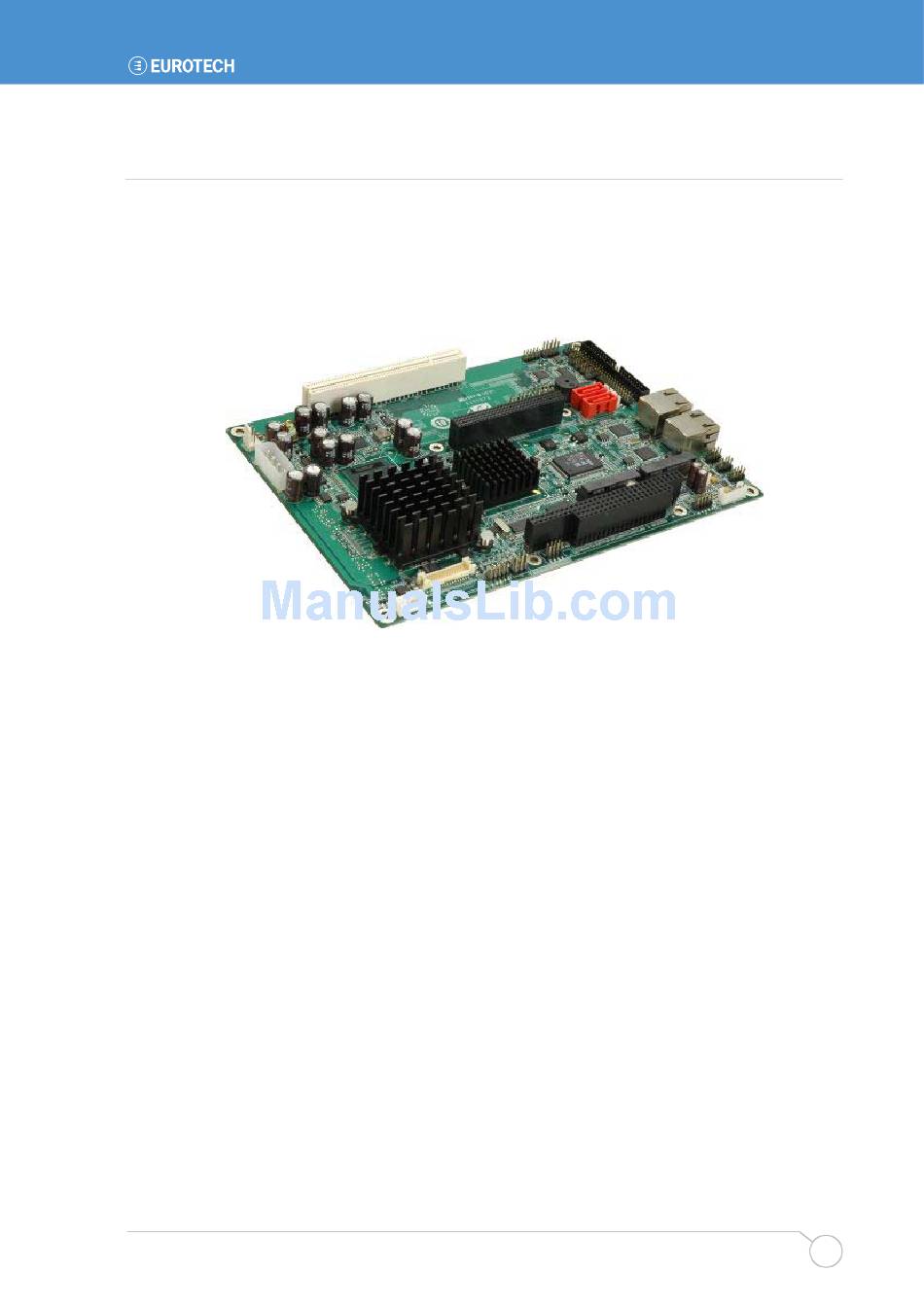

Figure 1: ALUDRA
Introduction
7
