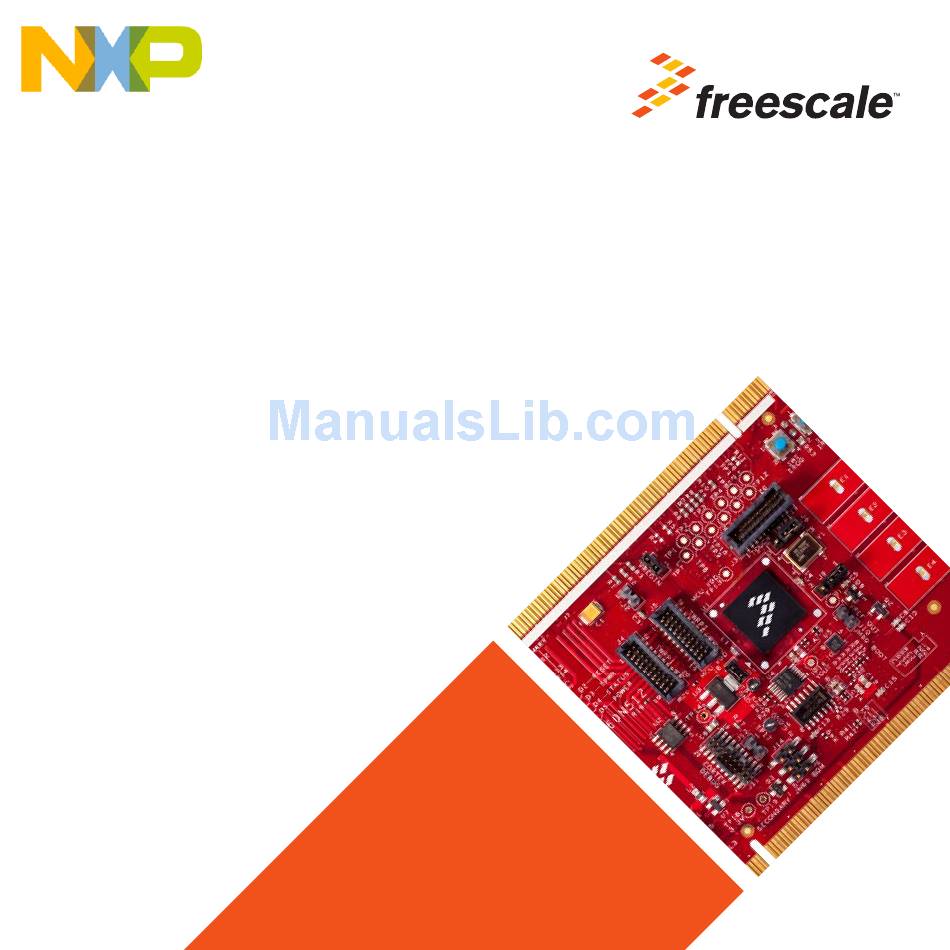

- Page 1 IAR KickStart Kit Quick Start Guide For the Freescale Kinetis K60 family of microcontrollers Tower System Development Board Platform...
- Page 2 Quick Start Guide Get to Know the TWR-K60N512-IAR Primary Connector Infra-Red Touch TWRPI Socket General-Purpose Tower Plug-In (TWRPI) Socket LED/Touch Buttons SW3 (Reset) E1–E4 Power/OSJTAG Mini-B USB MK60N512 Connector VMD100 Microcontroller Secondary MMA7660 Connector Accelerometer Figure 1: Front Side of TWR-K60N512 Board Not Including TWRPI...
- Page 3 freescale.com Potentiometer SD Card Socket VBAT (RTC) Battery Holder Figure 2: Back Side of TWR-K60N512 Board TWR-K60N512 Freescale Tower System Development Board Platform The TWR-K60N512 board is part of the Freescale Tower System, a modular development board platform that enables rapid prototyping and tool re-use through reconfigurable hardware.
- Page 4 Features of the Kinetis K60N512 Kit This guide briefly describes how to get • Tower connectivity for access to USB, Ethernet, RS232/RS485, CAN, SPI, I²C, started using IAR Embedded Workbench ® flexbus with IAR J-Link (Lite), USB-JTAG/SWD debug probe for an ARM Cortex -M core ®...
- Page 5 freescale.com Step-by-Step Installation Instructions The installation DVD contains all the software c. Install the P&E Micro Kinetis Tower and documentation you need to start Toolkit from the DVD to install the OSJTAG building and running embedded applications and USB-to-Serial drivers under Software. on the Freescale Kinetis K60N512 kit.
- Page 6 Quick Start Guide Step-by-Step Installation Instructions (cont.) Run Example Run RTOS Project a. Start IAR Embedded Workbench and a. Follow the links on the Getting Started click “EXAMPLE PROJECTS” in IAR DVD to download RTOS BSPs. Information Center. b. Set up the board or Tower System b.
- Page 7 TWR-K60N512-IAR Jumper Options The following is a list of all the jumper options for the TWR-K60N512 board. The default installed jumper settings are indicated in the shaded boxes. Jumper Option Setting Description Connect on-board 3.3 V supply to MCU...
- Page 8 Support Visit freescale.com/support for a list of phone numbers within your region. Warranty Visit freescale.com/warranty for complete warranty information. For more information, visit freescale.com/TWR-K60N512, iar.com/kit_updates, iar.com/video freescale.com/Tower Join the online Tower community at towergeeks.org Freescale, the Freescale logo and Kinetis are trademarks of Freescale Semiconductor, Inc., Reg.
