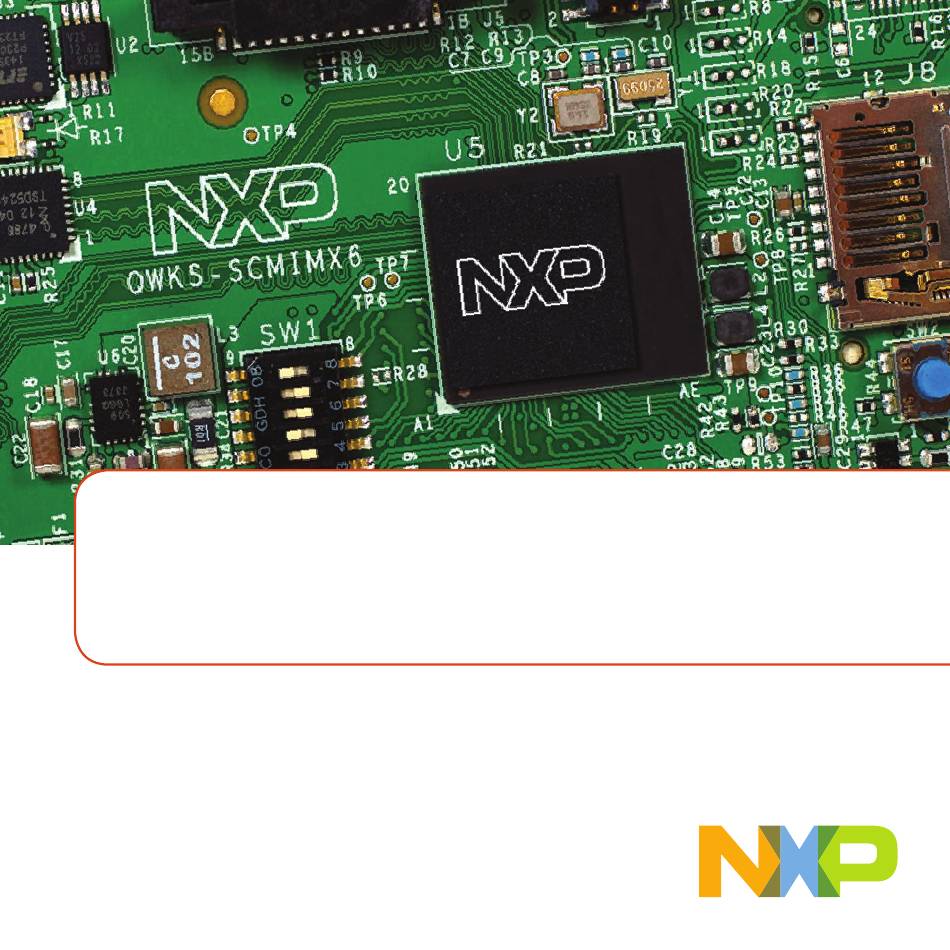

- Page 1 Quick Start Guide Quick Start Board for SCM-i.MX 6Dual/6Quad...
- Page 2 Quick Start Guide FEATURES The following features are available • USB OTG connector with the Quick Start Board for SCM: • MIPI CSI camera connector • SCM-i.MX 6Quad* • Arduino R-3 compatible headers—with i.MX 6Quad the exception of no ADC inputs PMIC MMPF0100 •...
- Page 3 www.nxp.com GET TO KNOW THE QUICK START BOARD FOR SCM-I.MX 6D/6Q LCD Touch HDMI Connector 5 V DC USB - UART (Serial Debug) Boot Select J2 I/O Switches Header J12 I/O Header Camera Connector J11 I/O JTAG Header J1 I/O Header i.MX 6 Reset micro SD...
- Page 4 Quick Start Guide DIP SWITCH CONFIGURATION AND RESET BUTTONS Table 1 shows the jumper configuration to boot the Quick Start board from the microSD slot. DIP# BOOT_ BOOT_ BOOT_ BOOT_ BOOT_ BOOT_ BOOT_ BOOT_ CFG1_ CFG1_ CFG1_ CFG2_ CFG2_ CFG3_ CFG3_ MODE1 DDR Memory...
- Page 5 www.nxp.com STEP-BY-STEP INSTRUCTIONS Getting Started Unpacking the Kit This section describes how to use the Quick Start Board and the components The Quick Start Board is shipped with the in the kit. This section also describes the items listed in Table 2. PC requirements to develop applications using the Quick Start Board.
- Page 6 Quick Start Guide STEP-BY-STEP INSTRUCTIONS CONTINUED Download Software Download installation software and documentation at nxp.com/qwks-scm-imx6dq. Table 3 lists the documents available on the kit website. ITEM DESCRIPTION Quick Start Board Design files, including hardware schematics, Gerbers, OrCAD documentation files, and QWKS-SCMIMX6DQ User’s Guide. Quick Start Guide (this document) Linux Patch Release Notes and User Guide Software...
- Page 7 www.nxp.com SETTING UP THE SYSTEM Insert microSD Connect Power Card Supply Insert the supplied microSD card into the Connect the 5 V power supply cable microSD card socket J8. to the 5 V DC power jack P1. When power is connected to the device, it will Connect USB Debug automatically begin the boot sequence.
- Page 8 SUPPORT Get Started Visit www.nxp.com/support for a list of phone numbers within your region. Download installation software and documentation WARRANTY at nxp.com/qwks-scm-imx6dq. Visit www.nxp.com/warranty for complete warranty information. www.nxp.com imxcommunity.org NXP and the NXP logo are trademarks of NXP B.V. All other product or service names are the property of their respective owners.
