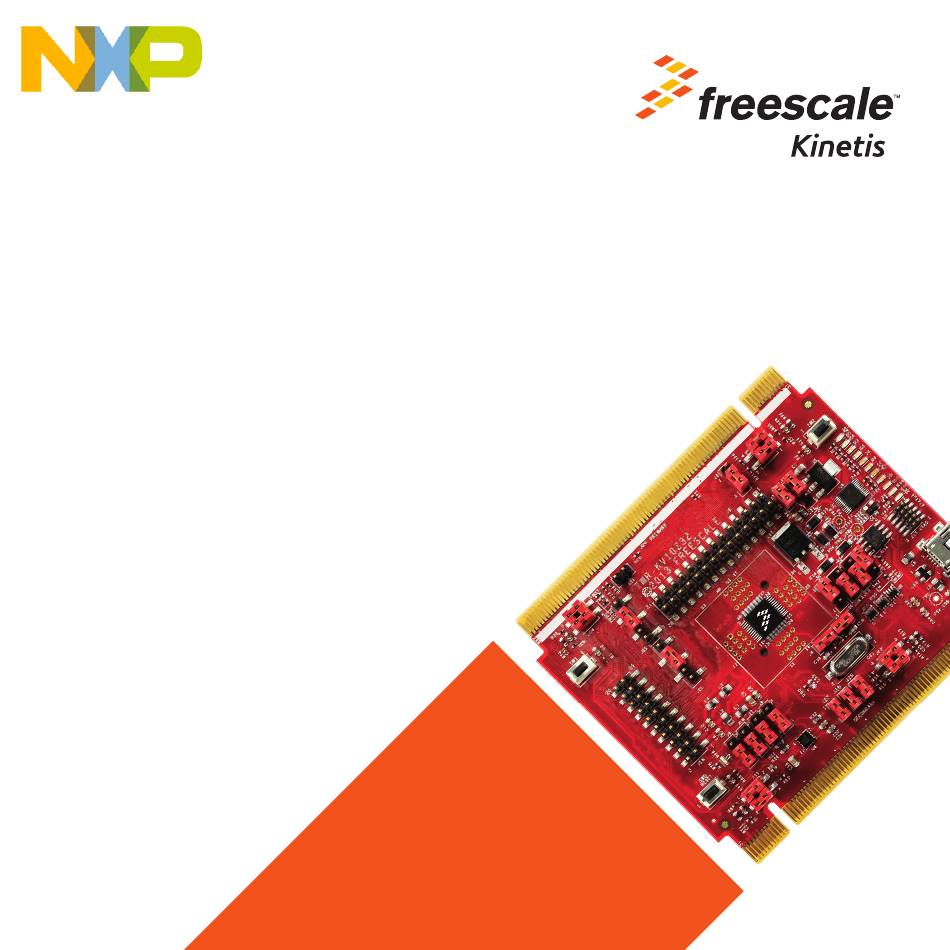

- Page 1 TWR-KV10Z32 Quick Start Guide Development Kit for Kinetis KV1x Family Tower System Development Board Platform...
- Page 2 Quick Start Guide Get to Know the TWR-KV10Z32 UART Select Motor Control Jumper Auxiliary Connector Thermistor RT3 Thermistor RT4 User’s button User’s Button KV1x Power Select Jumper +1.8 V LDO Motor Control +3.3 V LDO Auxiliary KV1x Debug Connector OpenSDA/JTAG Select Jumper JTAG Connector Reset Button...
- Page 3 freescale.com Introduction to TWR-KV10Z32 Tower System Module The TWR-KV10Z32 Tower System Module is a standalone development kit that can be used in conjunction with the Tower System development platform and the TWR-MC-LV3PH motor control module. To watch a video on how to configure the board, go to freescale.com/TWR-KV10Z32.
-
Page 4: Software Installation Instructions
Quick Start Guide Software Installation Instructions • Install the free debug monitoring Download Software and data visualization tool Freescale and Tools FreeMASTER v1.3.16, or later, at freescale.com/FreeMASTER. Download installation software and documentation under “Jump Start Your at freescale.com/ Design” TWR-KV10Z32. Install the Software and Tools •... - Page 5 freescale.com TWR-KV10Z32 Tower System Module Initial Configuration Default Jumper Verification of Settings Jumper Setting See the default jumper settings in the table TWR-KV10Z32 comes preloaded with below. Refer to the TWR-KV10Z32 User the P&E OpenSDA Applications (MSD flash programmer and debug) and the Guide at freescale.com/TWR-KV10Z32 accelerometer demo.
- Page 6 Quick Start Guide TWR-KV10Z32 Tower System Module Demo 3) Program a Precompiled Example for Program a Precompiled the KV1x Example Using the In the TWR-KV10Z32 drive, copy any OpenSDA MSD Application SREC file from the Precompiled Examples 1) Launch the Bootloader Mode folder of the Quick Start Package.
- Page 7 freescale.com Unplug and plug back the USB cable. In Clean the project before selecting the Device manager in control panel, Windows action Rebuild All. will detect two new peripherals: a PEMicro Note: The compilation may return warning messages OpenSDA Debug Driver in Jungo and without consequence.
- Page 8 Quick Start Guide Running BLDC Motor TWR-KV10Z32 and TWR-KV10Z32: Jumper Settings Option Setting Option Setting TWR-MC-LV3PH Set Up Open, Open 2–3 1) Load the OpenSDA P&E Debug 2–3 Application 2–3 2–3 Copy and paste DEBUG-APP_Pemicro. 2–3 SDA file from OpenSDA Applications 3–4 folder in quick start package to the TWR- 1–2...
-
Page 9: Iar Ewarm
freescale.com Working with Monitor the Project IAR EWARM with FreeMASTER 1) Compile the BLDC Sensorless Demo Launch Freescale FreeMASTER from the with IAR EWARM Windows Start menu. Open the IAR project file BLDC_ Note: At first start-up, you may have an error message regarding the COM connection. - Page 10 Quick Start Guide Or simply select in FreeMASTER speedometer the requested speed and the motor will spin automatically. In IAR EWARM, from the toolbar, suspend the demo using the Break option, or select Stop to return to the Edit Mode. In the Project Options, set the COM port affected as the OpenSDA -CDC Serial Port (info available in Device Manager) and set...
- Page 11 freescale.com TWR-KV10Z32 Jumper Map JTAG J8 J10 J7 J9 J19 J18 J27 J28 J26 OpenSDA RESET micro-USB Default Jumper Settings...
-
Page 12: Get Started
Get Started Download installation software and documentation under at freescale.com/ TWR-KV10Z32 “Jump Start Your Design” Support Visit freescale.com/support for a list of phone numbers within your region. Warranty Visit freescale.com/warranty for complete warranty information. For more information, visit freescale.com/TWR-KV10Z32, freescale.com/Kinetis freescale.com/Tower Join the online Tower community at towergeeks.org...
