Summary of Contents for NXP Semiconductors freescale TWR-K60D100M

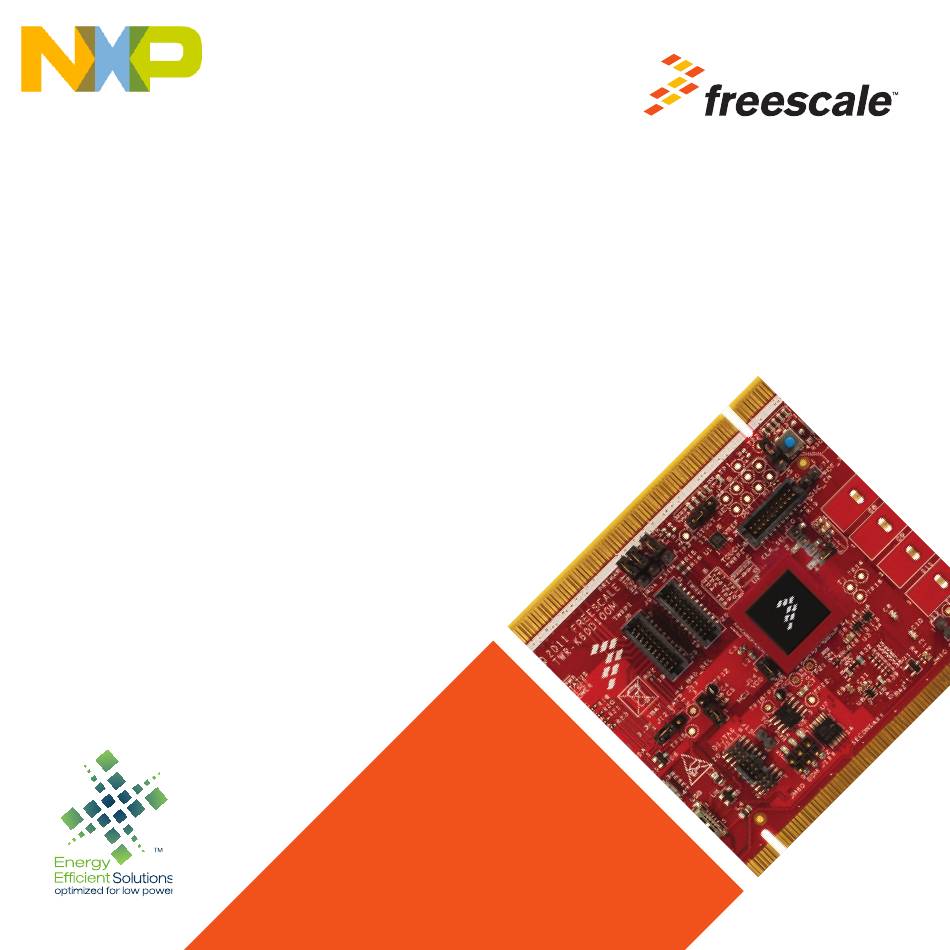

- Page 1 TWR-K60D100M Quick Start Guide Low-Power MCU with USB, Ethernet and Encryption Tower System...
- Page 2 Quick Start Guide freescale.com Get to Know the TWR-K60D100M Board Primary Potentiometer Connector SD Card General Purpose Socket Tower Plug-In MMA8451Q (TWRPI) Socket Accelerometer Touch TWRPI Socket Infra-Red VBAT (RTC) LED/Touch Battery SW3 (Reset) Buttons Holder D7, D8, D9, and D11 Power/OSJTAG Mini-B USB Connector...
- Page 3 Quick Start Guide freescale.com TWR-K60D100M Features Step-by-Step Installation Instructions • MK60DN512VMD10 MCU (100 MHz ARM Cortex -M4 core, 512 KB flash, Ethernet, ® ® USB FS OTG, encryption, 144 MAPBGA) In this Quick Start Guide, you will learn how to set up the TWR-K60D100M module • Integrated open source JTAG (OSJTAG) circuit and run the default demonstration.
- Page 4 Quick Start Guide freescale.com Step-by-Step Installation TWR-K60D100M Jumper Options (cont.) Instructions (cont.) Jumper Option Setting Description Connect main EXTAL to on-board 50 MHz oscillator (Y1) Explore Learn more about the Clock Input Connect EXTAL to the CLKIN0 signal on the elevator connector Further Kinetis K60 MCUs Source Selection...
-
Page 5: Get Started
Get Started Download installation software and documentation under “Jump Start Your Design” at freescale.com/ TWR-K60D100M . Visit freescale.com/K60 or freescale.com/Kinetis for information on the TWR-K60D100M module, including: • TWR-K60D100M user guide • TWR-K60D100M schematics • Tower System fact sheet Support Visit freescale.com/support for a list of phone numbers within your region.
