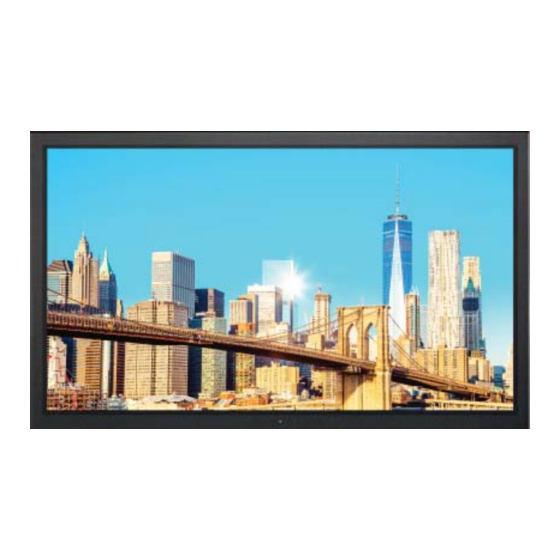

Austin Hughes AP-K55 User Manual

55” 4k 3840 x 2160 lcd
Hide thumbs Also See for AP-K55:
Table of Contents

Advertisement

Quick Links

Download this manual
dedicated LCD display solutions
User Manual
55" 4K 3840 x 2160 LCD
AP-K55
8mm Aluminum front bezel
NAP-K55
Front NEMA4 / IP65
DP-K55
Aluminum Front Panel
OP-K55
Universal Open Frame
Designed and manufactured by Austin Hughes
UM-UV-621-K55-Q318V3
www.austin-hughes.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP-K55 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Austin Hughes AP-K55

Summary of Contents for Austin Hughes AP-K55

  • Page 1 LCD display solutions User Manual 55” 4K 3840 x 2160 LCD AP-K55 8mm Aluminum front bezel NAP-K55 Front NEMA4 / IP65 DP-K55 Aluminum Front Panel OP-K55 Universal Open Frame Designed and manufactured by Austin Hughes UM-UV-621-K55-Q318V3 www.austin-hughes.com...
  • Page 2 Legal Information First English printing, January 2018 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < Part. 1 > AP-K55 / NAP-K55 Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation P.4 - 5 < Part. 2 > DP-K55 Package Content Structure Diagram & Dimension P.7 - 8 Mounting Hardware & Installation P.9 - 10...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
  • Page 5 < Part 1 > < 1.1 > Package Content - AP / NAP-K55 55" 4K LCD Display AP-K55 / NAP-K55 55" 4K LCD display X 1 6ft DP cable X 1 Power cord X 1 Remote controller X 1 Wall-mount bracket set X 1...
  • Page 6 < 1.2 > Structure Diagram - AP / NAP-K55 Front view AP-K55 NAP-K55 Bottom view Rear case Rear view LCD panel 8mm aluminum front bazel Audio speaker, pair LCD membrane Wall-mount bracket Remote sensor Product Dimension Packing Dimension Gross Model...

  • Page 7: Ap-K55 / Nap-K55

    < 1.2 > Dimension - AP / NAP-K55 55" 4K LCD Display Side View AP-K55 NAP-K55 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-K55-Q318V3 www.austin-hughes.com...
  • Page 8 < 1.3 > Wall-mount Installation - AP / NAP-K55 Front wall-mount bracket Step ■ Install left & right front wall-mount brackets at the rear side of the LCD shown above. ■ M5 screw x 8 pcs included ( Left & right side ). Rear side Step Rear wall-mount bracket...
  • Page 9 < 1.3 > VESA Installation - AP / NAP-K55 55” 4K LCD Display M8 screw VESA mount ( 600*400mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided UM-UV-621-K55-Q318V3 www.austin-hughes.com...

  • Page 10: Package Content

    < Part 2 > < 2.1 > Package Content - DP-K55 DP-K55 55" 4K LCD display X 1 6ft DP cable X 1 Power cord X 1 Remote controller X 1 Wall-mount bracket set X 1 Basic I/O Audio Power HDMI 1.4 HDMI 2.0 UM-UV-621-K55-Q318V3...
  • Page 11 < 2.2 > Structure Diagram - DP-K55 55” 4K LCD Display Front view DP-K55 Bottom view Rear case Rear view LCD panel 8mm aluminum front cover Audio speaker, pair LCD membrane Wall-mount bracket Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight...

  • Page 12: Part. 2 > Dp-K55

    < 2.2 > Dimension - DP-K55 55" 4K LCD Display Side View DP-K55 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-K55-Q318V3 www.austin-hughes.com...
  • Page 13 < 2.3 > Wall-mount Installation - DP-K55 55” 4K LCD Display Front wall-mount bracket Step ■ Install left & right front wall-mount brackets at the rear side of the LCD shown above. ■ M5 screw x 8 pcs included ( Left & right side ). Rear side Step Rear wall-mount bracket...
  • Page 14 < 2.3 > VESA Installation - DP-K55 M8 screw VESA mount ( 600*400mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided P.10 UM-UV-621-K55-Q318V3 www.austin-hughes.com...

  • Page 15: Package Content

    < Part 3 > < 3.1 > Package Content - OP-K55 55" 4K LCD Display OP-K55 55" 4K LCD display X 1 6ft DP cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Audio Power HDMI 1.4 HDMI 2.0 P.11 UM-UV-621-K55-Q318V3...
  • Page 16 < 3.2 > Structure Diagram - OP-K55 Front view OP-K55 Bottom view Rear case LCD panel Rear view Universal open frame mounting Audio speaker, pair LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Packing Dimension Gross...

  • Page 17: Part. 3 > Op-K55

    < 3.2 > Dimension - OP-K55 55" 4K LCD Display Front View Side View OP-K55 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View P.13 UM-UV-621-K55-Q318V3 www.austin-hughes.com...
  • Page 18 < 3.3 > Installation - OP-K55 ( I ) Universal mount ( II ) VESA mount ( 600*400mm ) M8 screw VESA mount ( 600*400mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided P.14 UM-UV-621-K55-Q318V3 www.austin-hughes.com...
  • Page 19 < Part 4 > < 4.1 > Product Specifi cations 55" 4K LCD Display AP-K55 NAP-K55 DP-K55 OP-K55 Mechanical Design Protection 8mm front bezel NEMA 4 / IP65 front cover open frame Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005...
  • Page 20 Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical AP-K55 / NAP-K55 DP-K55 OP-K55 Specifi cation Product 1295 x 89.3 x 776 mm 1269 x 83.1 x 750 mm 1292 x 81.3 x 773 mm ( W x D x H ) 51 x 3.5 x 30.6 inch...

  • Page 21: On-Screen Display Operation ( Osd )

    < 4.2 > On-screen Display Operation ( OSD ) 55” 4K LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen...
  • Page 22 < 4.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the difference between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
  • Page 23 < 4.2 > On-screen Display Operation ( OSD ) 55” 4K LCD Display Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen...

  • Page 24: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )

    < 4.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 4.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position...
  • Page 25 55” 4K LCD Display < 4.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080...

  • Page 26: Remote Controller ( Rc-2 )

    < 4.4 > Remote Controller ( RC-2 ) INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds.

  • Page 27: Part 5 > Options

    < Part 5 > Options 55” 4K LCD Display < 5.1 > Option Table Options AP / NAP MCS multi-screen control Touchscreen MIL-type / lockable connector DC Power P.23 UM-UV-621-K55-Q318V3 www.austin-hughes.com...
  • Page 28 < 5.2 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with UltraView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
  • Page 29 More control is always good. Especially when it is necessary and ( Multi-display Control ) easy. Austin Hughes provides MCS solution to control the OSD of various UltraView LCD display up to 64 units. The RS-232C is used for the communication between the PC and the fi...
  • Page 30 < 5.4 > Options : Touchscreen & driver K55" USB Touchscreen Specifi cation Model K55-IR10 Multi-touch Technology Infrared Touch Point Input Type Pen, Finger, Finger of gloved hand activation Touch Point Accuracy ± 2 mm Response Speed ≤ 15 ms Activation Force No minimum touch activation force Touch Durability...
  • Page 31 < 5.5 > Options : DC Power 55” 4K LCD Display Model 125V Input rating Input voltage: 24-Volt 48-Volt 110-Volt Input range: 18 ~ 36V 36 ~ 75V 43 ~ 160V Input current - No load 100 mA 50 mA 10 mA - Full load 7386 mA...
  • Page 32 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2018 Austin Hughes Electronics Ltd. All rights reserved. P.28 UM-UV-621-K55-Q318V3...
