dedicated professional display solutions
User Manual

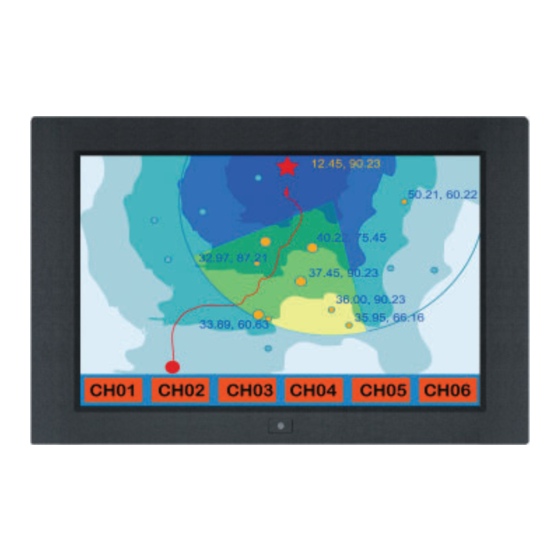

19" Widescreen LED-backlit LCD
AP-W19 / HAP-W19
Aluminum front bezel
NAP-W19 / HNAP-W19
Front NEMA4 / IP65
DP-W19 / HDP-W19
Aluminum Front Panel
OP-W19 / HOP-W19
Universal Mounting Open Frame
Designed and manufactured by Austin Hughes
UM-UV-621-W19-Q124V1
www.austin-hughes.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UltraView AP-W19 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Austin Hughes UltraView AP-W19

Summary of Contents for Austin Hughes UltraView AP-W19

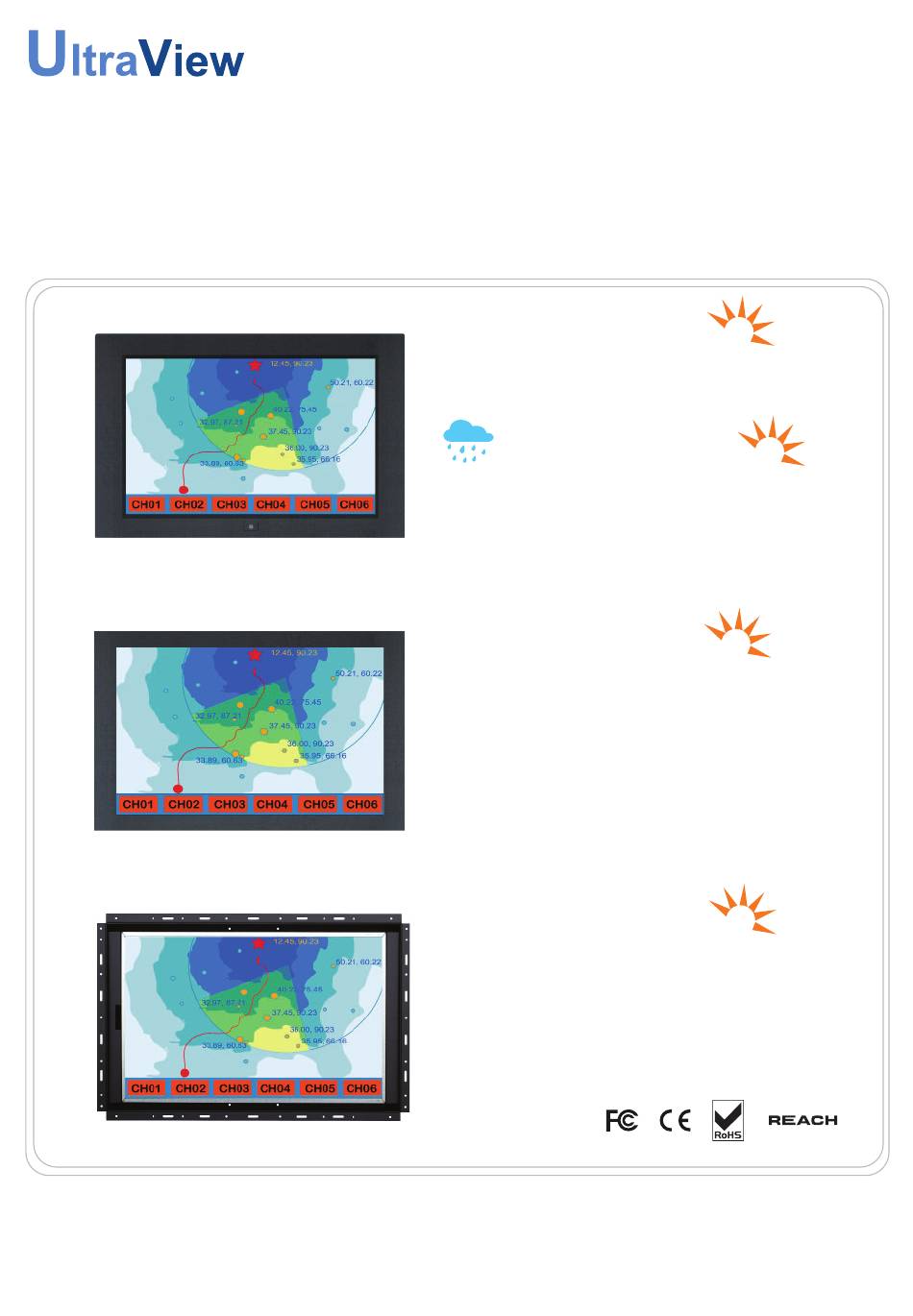

  • Page 1 User Manual 19” Widescreen LED-backlit LCD AP-W19 / HAP-W19 Aluminum front bezel NAP-W19 / HNAP-W19 Front NEMA4 / IP65 DP-W19 / HDP-W19 Aluminum Front Panel OP-W19 / HOP-W19 Universal Mounting Open Frame Designed and manufactured by Austin Hughes UM-UV-621-W19-Q124V1 www.austin-hughes.com...
  • Page 2 Legal Information First English printing, January 2024 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < Part. 1 > AP-W19 / NAP-W19 / HAP-W19 / HNAP-W19 Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 2 > DP-W19 / HDP-W19 Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 3 > OP-W19 / HOP-W19 Package Content Structure Diagram &...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
  • Page 5 < Part 1 > AP-W19 / NAP-W19 / HAP-W19 / HNAP-W19 < 1.1 > Package Content 19" Widescreen Display AP-W19 / NAP-W19 HAP-W19 / HNAP-W19 19" Widescreen LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack - Mounting bracket x 4 pcs...
  • Page 6 < 1.2 > Structure Diagram Front view Side View AP-W19 / NAP-W19 HAP-W19 / HNAP-W19 Bottom view Rear case Rear view LCD panel Protective 3mm glass 6mm aluminum front bazel Audio speaker ( optional ) LCD membrane Remote sensor Product Dimension Packing Dimension Gross Model...

  • Page 7: Ap-W19 / Nap-W19 / Hap-W19 / Hnap-W19

    < 1.2 > Dimension 19" Widescreen Display Front View Side View AP-W19 / NAP-W19 HAP-W19 / HNAP-W19 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-W19-Q124V1 www.austin-hughes.com...
  • Page 8 < 1.3 > Installation ( I ) Panel mount M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Hardware set part no. UV-BK#2 Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■...

  • Page 9: Package Content

    < Part 2 > DP-W19 / HDP-W19 19" Widescreen Display < 2.1 > Package Content DP-W19 / HDP-W19 19" Widescreen LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Audio Power DVI-D HDMI out - in - in Video PC...

  • Page 10: Structure Diagram & Dimension

    < 2.2 > Structure Diagram Front view Side View DP-W19 / HDP-W19 Bottom view Rear view Rear case LCD panel 6mm aluminum front cover Audio speaker, pair LCD membrane Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight DP-W19...

  • Page 11: Part. 2 > Dp-W19 / Hdp-W19

    19" Widescreen Display < 2.2 > Dimension Front View Side View DP-W19 / HDP-W19 UNIT : mm 1mm = 0.03937 inch Rear View Bottom View UM-UV-621-W19-Q124V1 www.austin-hughes.com...
  • Page 12 < 2.3 > VESA mount Installation - DP / HDP M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided UM-UV-621-W19-Q124V1 www.austin-hughes.com...

  • Page 13: Package Content

    < Part 3 > OP-W19 / HOP-W19 < 3.1 > Package Content 19" Widescreen Display OP-W19 / HOP-W19 19" Widescreen LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Audio Power DVI-D HDMI out - in - in Video PC...

  • Page 14: Structure Diagram & Dimension

    < 3.2 > Structure Diagram Front view Side View OP-W19 / HOP-W19 Bottom view Rear case LCD panel Audio speaker ( for HDMI, Audio or TV option ) Rear view Universal open frame mounting LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Packing Dimension...

  • Page 15: Part. 3 > Op-W19 / Hop-W19

    < 3.2 > Dimension 19" Widescreen Display Front View Side View OP-W19 / HOP-W19 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-W19-Q124V1 P.11 www.austin-hughes.com...
  • Page 16 < 3.3 > Installation ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) M4 screw Hardware and M4*4 pcs for VESA mounting are not pro- vided UM-UV-621-W19-Q124V1 P.12 www.austin-hughes.com...
  • Page 17 Intentionally Left Blank UM-UV-621-W19-Q124V1 P.13 www.austin-hughes.com...

  • Page 18: Product Specifi Cations

    < Part 4 > < 4.1 > Product Specifi cations AP-W19 / NAP-W19 / DP-W19 / OP-W19 / Mechanical Design HAP-W19 HNAP-W19 HDP-W19 HOP-W19 Protection 6mm front bezel NEMA 4 / IP65 front cover open frame Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005 VESA mount...
  • Page 19 < 4.1 > Product Specifi cations 19" Widescreen Display Environmental Conditions Operating Temperature 0 to 55°C degree Humidity 10~90%, non-condensing Altitude 16,000 ft Storage / Temperature -20 to 60°C degree Non-operating Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration AP-W19 /...
  • Page 20 Intentionally Left Blank UM-UV-621-W19-Q124V1 P.16 www.austin-hughes.com...

  • Page 21: On-Screen Display Operation ( Osd )

    < 4.2 > On-screen Display Operation ( OSD ) 19" Widescreen Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen...
  • Page 22 < 4.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
  • Page 23 < 4.2 > On-screen Display Operation ( OSD ) 19" Widescreen Display Reset Reset : Return the adjustment back to factory setting PIP ( Not Applicable to F17 / MF17 ) PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen )

  • Page 24: Option Table

    < Part 5 > Options < 5.1 > Option Table AP / HAP / Options HNAP SDI * ✓ ✓ ✓ ✓ ✓ ✓ DVI-D ** ✓ ✓ ✓ ✓ ✓ ✓ Composite ( BNC ) ✓ ✓ ✓ ✓ ✓...
  • Page 25 < 5.2 > Options : 3G / HD / SD-SDI input 19" Widescreen Display Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with UltraView displays, a SDI input...
  • Page 26 < 5.3 > Options : MCS More control is always good. Especially when it is necessary and easy. Austin Hughes provides MCS solution to control the OSD of ( Multi-display Control ) various UltraView LCD display up to 64 units.
  • Page 27 < 5.4 > Options : 19" Widescreen Display Speaker Option Side View speaker DVI-D Option - DVI-D ( DVI-D, TMDS single link ) - Audio ( Audio input & output ) - Speaker Audio Power DVI-D HDMI out - in - in Video PC BNC Option - BNC...
  • Page 28 < 5.5 > Options : Touchscreen & driver W19" USB Touchscreen Specifi cation Model e-Resistive Technology 5-Wire Resistive Touch Point Single Input Type Finger or Stylus Resolution 2048 x 2048 Touch Point Accuracy Response Speed 15 ms Activation Force ≤ 50 g Surface Hardness Light Transmission 80% ±...
  • Page 29 < 5.5 > Options : Touchscreen & driver 19" Widescreen Display TRB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc or download the driver from the link below : http://www.austin-hughes.com/resources/driver/ultraview Step 2.
  • Page 30 < 5.6 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...

  • Page 31: Tv ( Analog )

    < 5.7 > Options : TV ( Analog ) 19" Widescreen Display Audio Power HDMI out - in - in Video PC *** For TV option : ( 1 ) It comes with HDMI, VGA, BNC, audio inputs and RC-2 remote controller. ( 2 ) Casing dimensions will be changed.

  • Page 32: Remote Controller ( Rc-2 )

    < 5.8 > How to Use RC-2 Remote Controller INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 and 0 - 9 above, enter the second digit within two seconds.

  • Page 33: Sunlight Readable : Auto Dimming

    < 5.9 > Sunlight Readable : Auto Dimming 19" Widescreen Display DA-01 Light sensor on OP model DA-01 Light sensor on AP model ( 66cm from AD board to sensor end ) DA-01 light sensor installed on the display front panel. Users can set auto dimming ON or OFF from OSD menu.
  • Page 34 < 6 > Ultraview W19 Family 250 cd/m Brightness 1000 cd/m Sunlight Readable Brightness 6mm aluminum front bezel 6mm aluminum front bezel AP-W19 HAP-W19 6mm aluminum front bezel 6mm aluminum front bezel NEMA 4 / IP65 front protection NEMA 4 / IP65 front protection NAP-W19 HNAP-W19 Aluminum front cover...
  • Page 35 Intentionally Left Blank UM-UV-621-W19-Q124V1 P.31 www.austin-hughes.com...
  • Page 36 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2024 Austin Hughes Electronics Ltd. All rights reserved. UM-UV-621-W19-Q124V1 www.austin-hughes.com...
