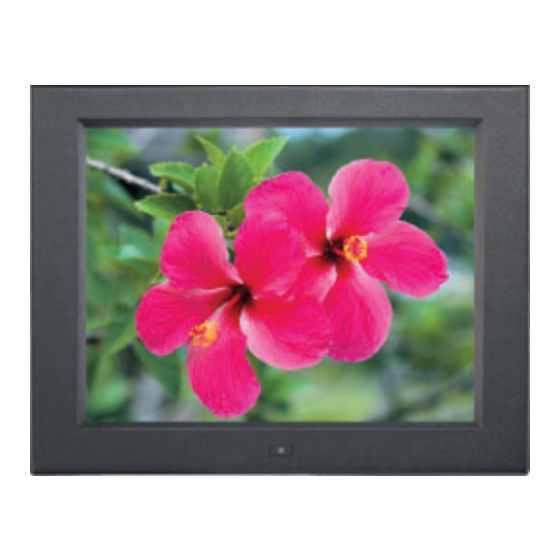

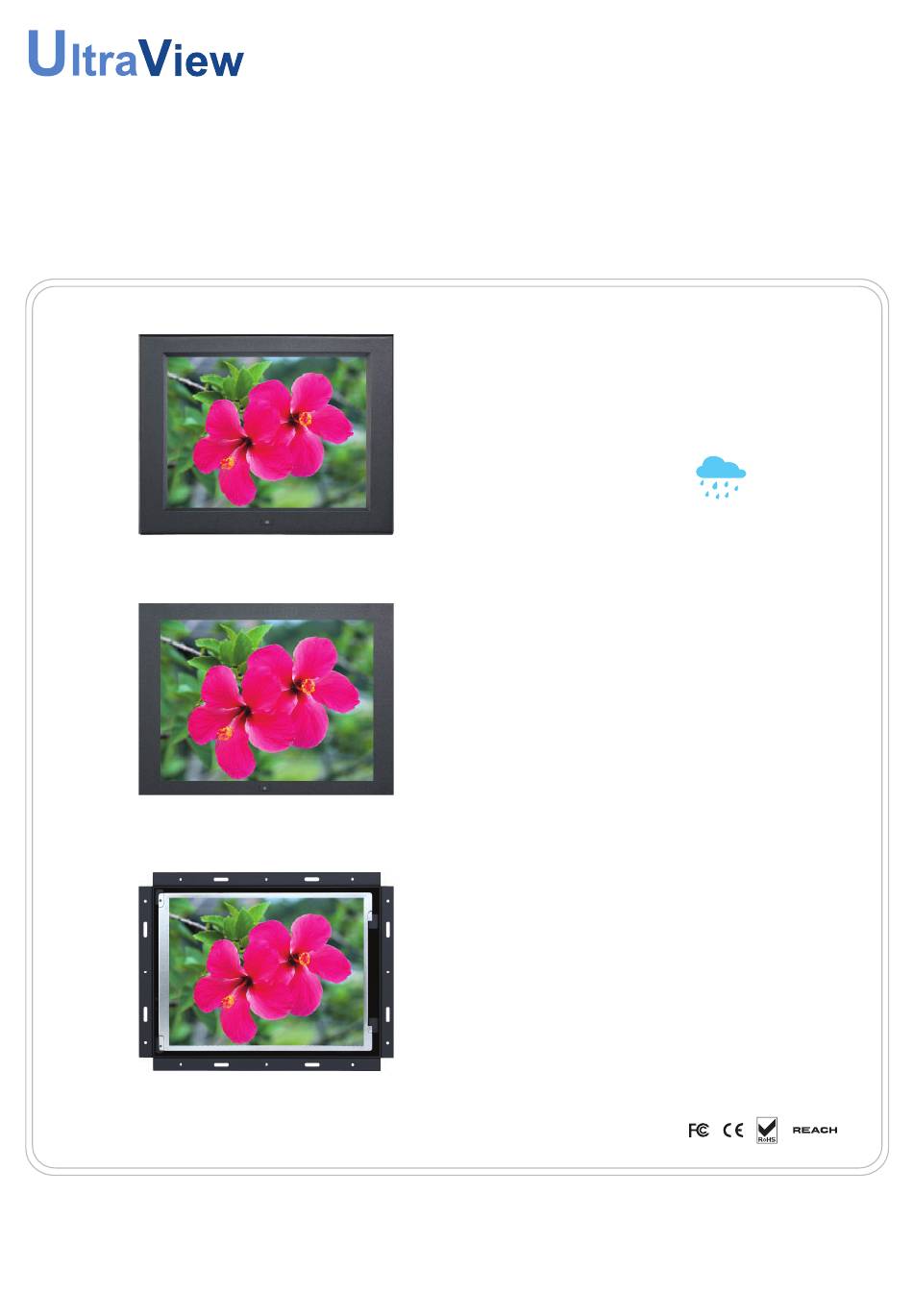

- Page 1 LCD display solutions User Manual 10.4” LCD AP-10 Aluminum front bezel NAP-10 Front NEMA4 / IP65 DP-10 Aluminum front cover OP-10 Universal Mounting Open Frame Designed and manufactured by Austin Hughes UM-UV-621-10-Q420V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > AP-10 / NAP-10 Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation < Part. 2 > DP-10 Package Content Structure Diagram & Dimension P.6 - 7 Mounting Hardware & Installation < Part. 3 > OP-10 Package Content Structure Diagram &... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Part 1 > Ap-10 / Nap-10
< Part 1 > AP-10 / NAP-10 < 1.1 > Package Content 10.4” LCD Display AP-10 / NAP-10 10.4" LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack - Mounting bracket x 2 pcs - M4* 6mm screw x 4 pcs - M4* 50mm screw x 4 pcs... -
Page 6: Structure Diagram & Dimension
< 1.2 > Structure Diagram Front view Side View AP-10 NAP-10 Bottom view Rear case LCD panel Rear view 3mm protective glass ( NEMA 4 / IP65 front protection for NAP series ) 6mm aluminum front bazel Audio speaker ( for Audio or TV option ) LCD membrane Remote sensor Product Dimension... - Page 7 < 1.2 > Dimension 10.4” LCD Display Front View Side View AP-10 NAP-10 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-10-Q420V1 www.austin-hughes.com...
- Page 8 < 1.3 > Installation ( I ) Panel mount M4*50mm screw M4*6mm screw Mounting bracket x 4 pcs x 4 pcs x 2 pcs Hardware set part no. UV-BK#1 Steps ■ Install 2 mounting brackets with 4 x M4*6mm screws ■...
-
Page 9: Part 2
< Part 2 > DP-10 < 2.1 > Package Content 10.4” LCD Display DP-10 10.4" LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Power AV1.2 upgrade I/O Audio Power S-Video BNC in - in - out PC Video... -
Page 10: Structure Diagram & Dimension
< 2.2 > Structure Diagram Front view Side View Front view DP-10 Bottom view Rear case Rear view LCD panel 6mm aluminum front cover Audio speaker, pair LCD membrane Remote sensor Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 253.7 x 58.1 x 191 mm... - Page 11 < 2.2 > Dimension 10.4” LCD Display Front View Side View DP-10 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-10-Q420V1 www.austin-hughes.com...
- Page 12 < 2.3 > VESA mount Installation M4 screw VESA mount ( 75*75mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided UM-UV-621-10-Q420V1 www.austin-hughes.com...
-
Page 13: Part 3
< Part 3 > OP-10 < 3.1 > Package Content 10.4” LCD Display OP-10 10.4" LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Power AV1.2 upgrade I/O Audio Power S-Video BNC in - in - out PC Video... -
Page 14: Structure Diagram & Dimension
< 3.2 > Structure Diagram Front view Side View OP-10 Bottom view Rear case LCD panel Rear view Audio speaker ( for Audio or TV option ) Universal open frame mounting LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Packing Dimension Gross... - Page 15 < 3.2 > Dimension 10.4” LCD Display Front View Side View OP-10 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-10-Q420V1 P.11 www.austin-hughes.com...
- Page 16 < 3.3 > Installation ( I ) Universal mount ( II ) VESA mount ( 75*75mm ) M4 screw Hardware and M4*4 pcs for VESA mounting are not provided UM-UV-621-10-Q420V1 P.12 www.austin-hughes.com...
-
Page 17: Product Specifi Cations
< Part 4 > < 4.1 > Product Specifi cations 10.4” LCD Display Mechanical Design AP-10 NAP-10 DP-10 OP-10 Protection 6mm front bezel NEMA 4 / IP65 front cover open frame Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005 VESA mount 75 x 75 mm Universal mount... - Page 18 < 4.1 > Product Specifi cations Environmental Conditions Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Temperature -20 to 60°C degree Non-operating Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration Physical Specifi...
-
Page 19: On-Screen Display Operation ( Osd )
< 4.2 > On-screen Display Operation ( OSD ) 10.4” LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen... -
Page 20: Option Table
< Part 5 > Option < 5.1 > Option Table Options AP / NAP ✓ ✓ ✓ S-Video + Composite ( BNC ) ✓ ✓ ✓ Audio ✓ ✓ ✓ Touchscreen ✓ ✓ ✓ DC Power ✓ ✓ ✓ TV * Remote Controller ( 1 ) AV1.2 upgrade comes with RC-2 remote controller. - Page 21 < 5.2 > AV1.2 Upgrade Options : 10.4” LCD Display - AV ( S-Video + Composite, BNC - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) Audio Power S-Video BNC in - in - out PC Video...
-
Page 22: Projected Capacitive ( 10-Point Touch )
< 5.3 > Options : Touchscreen & driver 10.4" USB Touchscreen Specifi cation Model e-Resistive TPC-10 Multi-touch e-Capacitive Technology Projected Capacitive 5-Wire Resistive Capacitive Touch Point Single Single Input Type Finger or Capacitive Stylus Finger or Stylus Finger Resolution 2048 x 2048 2048 x 2048 2048 x 2048 Touch Point Accuracy... - Page 23 < 5.3 > Options : Touchscreen & driver 10.4” LCD Display TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. TRB / TCB Driver Please follow the below steps to setup the touch screen:- Step 1.
- Page 24 < 5.4 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
-
Page 25: Tv ( Analog )
< 5.5 > Options : TV ( Analog ) 10.4” LCD Display Audio Power S-Video BNC in - in - out PC Video For TV option : ( 1 ) 1 x RC-2 remote controller included. ( 2 ) Casing dimensions will be changed. UM-UV-621-10-Q420V1 P.21 www.austin-hughes.com... - Page 26 How to Use RC-2 Remote Controller INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 and 0 - 9 above, enter the second digit within two seconds.
- Page 27 Intentionally Left Blank UM-UV-621-10-Q420V1 www.austin-hughes.com...
- Page 28 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2020 Austin Hughes Electronics Ltd. All rights reserved. UM-UV-621-10-Q420V1 P.24...
