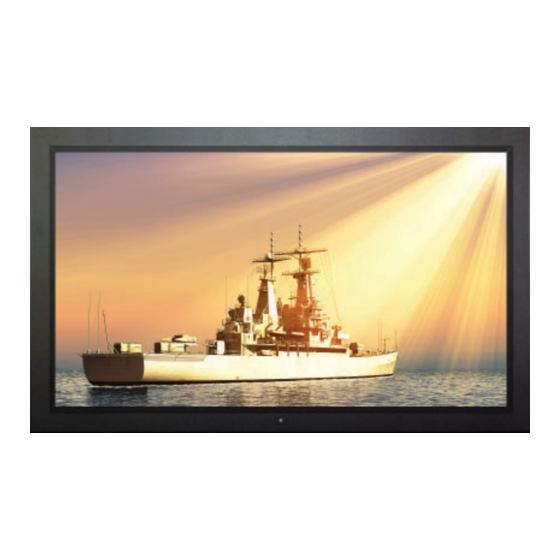

Austin Hughes UltraView HAP-K32 User Manual

32” 4k 3840 x 2160@60hz lcd
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
dedicated LCD display solutions
User Manual
32" 4K 3840 x 2160@60Hz LCD
AP-K32 / HAP-K32
Aluminum front bezel
NAP-K32 / HNAP-K32
Front NEMA4 / IP65
DP-K32 / HDP-K32
Aluminum Front Panel
OP-K32 / HOP-K32
Universal Open Frame
Designed and manufactured by Austin Hughes
UM-UV-621-K32-Q322V1
www.austin-hughes.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UltraView HAP-K32 and is the answer not in the manual?

Questions and answers

Related Manuals for Austin Hughes UltraView HAP-K32

Summary of Contents for Austin Hughes UltraView HAP-K32

  • Page 1 User Manual 32” 4K 3840 x 2160@60Hz LCD AP-K32 / HAP-K32 Aluminum front bezel NAP-K32 / HNAP-K32 Front NEMA4 / IP65 DP-K32 / HDP-K32 Aluminum Front Panel OP-K32 / HOP-K32 Universal Open Frame Designed and manufactured by Austin Hughes UM-UV-621-K32-Q322V1 www.austin-hughes.com...
  • Page 2 Legal Information First English printing, July 2022 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < Part. 1 > AP-K32 / NAP-K32 Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 2 > DP-K32 Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 3 > OP-K32 Package Content Structure Diagram &...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
  • Page 5 < Part 1 > AP-K32 / NAP-K342 < 1.1 > Package Content 32” 4K LCD Display AP-K32 / NAP-K32 32” 4K LCD Display X 1 6ft DP cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Power Audio HDMI 1.4...
  • Page 6 < 1.2 > Structure Diagram Front view Side view AP-K32 / NAP-K32 Bottom view Rear case Rear view LCD panel Protective 3mm glass 6mm aluminum front bazel Audio speaker, pair LCD membrane Remote sensor Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H)

  • Page 7: Part. 1 > Ap-K32 / Nap-K32

    < 1.2 > Dimension 32” 4K LCD Display Front View Side View AP-K32 / NAP-K32 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-K32-Q322V1 www.austin-hughes.com...
  • Page 8 < 1.3 > VESA Installation M8 screw VESA mount ( 300*300mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided UM-UV-621-K32-Q322V1 www.austin-hughes.com...

  • Page 9: Package Content

    < Part 2 > DP-K32 < 2.1 > Package Content 32” 4K LCD Display DP-K32 32” 4K LCD Display X 1 6ft DP cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Power Audio HDMI 1.4 HDMI 2.0 UM-UV-621-K32-Q322V1 www.austin-hughes.com...

  • Page 10: Structure Diagram & Dimension

    < 2.2 > Structure Diagram Side view Front view DP-K32 Bottom view Rear case Rear view LCD panel 6mm aluminum front cover Audio speaker, pair LCD membrane Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 758 x 84.2 x 452 mm...

  • Page 11: Part. 2 > Dp-K32

    < 2.2 > Dimension 32” 4K LCD Display Front View Side View DP-K32 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-K32-Q322V1 www.austin-hughes.com...
  • Page 12 < 2.3 > VESA Installation M8 screw VESA mount ( 300*300mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided UM-UV-621-K32-Q322V1 www.austin-hughes.com...

  • Page 13: Package Content

    < Part 3 > OP-K32 < 3.1 > Package Content 32” 4K LCD Display OP-K32 32” 4K LCD Display X 1 6ft DP cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Power Audio HDMI 1.4 HDMI 2.0 UM-UV-621-K32-Q322V1 www.austin-hughes.com...

  • Page 14: Structure Diagram & Dimension

    < 3.2 > Structure Diagram Front view Side view OP-K32 Bottom view Rear case LCD panel Rear view Universal open frame mounting Audio speaker, pair LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Packing Dimension Gross...

  • Page 15: Part. 3 > Op-K32

    < 3.2 > Dimension 32” 4K LCD Display Front View Side View OP-K32 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-K32-Q322V1 P.11 www.austin-hughes.com...
  • Page 16 < 3.3 > Installation ( I ) Universal mount ( II ) VESA mount ( 300*300mm ) VESA mount ( 300*300mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided UM-UV-621-K32-Q322V1 P.12 www.austin-hughes.com...

  • Page 17: Product Specifi Cations

    < Part 4 > < 4.1 > Product Specifi cations 32” 4K LCD Display Mechanical Design AP-K32 NAP-K32 DP-K32 OP-K32 Protection 6mm front bezel NEMA 4 / IP65 front cover open frame Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005 VESA mount 300 x 300 mm Universal mount...
  • Page 18 < 4.1 > Product Specifi cations Environmental Conditions Operating Temperature 0 to 55°C degree Humidity 10~90%, non-condensing Altitude 16,000 ft Storage / Temperature -20 to 60°C degree Non-operating Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration Physical Specifi...

  • Page 19: On-Screen Display Operation ( Osd )

    < 4.2 > On-screen Display Operation ( OSD ) 32” 4K LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen...
  • Page 20 < 4.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
  • Page 21 < 4.2 > On-screen Display Operation ( OSD ) 32” 4K LCD Display Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen...

  • Page 22: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )

    < 4.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 4.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position...
  • Page 23 32” 4K LCD Display < 4.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080...

  • Page 24: Remote Controller ( Rc-2 )

    < 4.4 > Remote Controller ( RC-2 ) INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 and 0 - 9 above, enter the second digit within two seconds.

  • Page 25: Option Table

    < Part 5 > Options < 5.1 > Option Table 32” 4K LCD Display Options AP / NAP ✓ ✓ ✓ MCS multi-screen control ✓ ✓ ✓ Touchscreen ✓ ✓ ✓ DC Power ✓ ✓ ✓ MIL-type / lockable connector ✓...
  • Page 26 < 5.2 > Options : 12G / 4K60 / SD-SDI Austin Hughes’ SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed for use with displays, a SDI input module can support up to 3840 x 2160p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
  • Page 27 < 5.3 > Options : 3G / HD / SD-SDI input 32” 4K LCD Display Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with UltraView displays, a SDI input...
  • Page 28 More control is always good. Especially when it is necessary and ( Multi-display Control ) easy. Austin Hughes provides MCS solution to control the OSD of various UltraView LCD display up to 64 units. The RS-232C is used for the communication between the PC and the fi...
  • Page 29 < 5.5 > Options : Touchscreen & driver 32” 4K LCD Display K32" USB Touchscreen Specifi cation Model TPC-10 Multi-touch IR-10 Infrared Technology Projected Capacitive Infrared Touch Point Input Type Pen, Finger, Finger of gloved hand Finger or Capacitive Stylus activation Resolution 4096 x 4096...
  • Page 30 < 5.6 > Options : DC Power Model 125V Input rating Input voltage: 24-Volt 48-Volt 110-Volt Input range: 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 40 mA - Full load 4880 mA 2442 mA 993 mA...
  • Page 31 < 5.7 > Options : MIL-type or Lockable Connector 32” 4K LCD Display Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl...
  • Page 32 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2022 Austin Hughes Electronics Ltd. All rights reserved. UM-UV-621-K32-Q322V1 P.28...
