Austin Hughes UltraView AP-32W User Manual

32" wide lcd
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Options :
- TV tuner
All manuals and user guides at all-guides.com

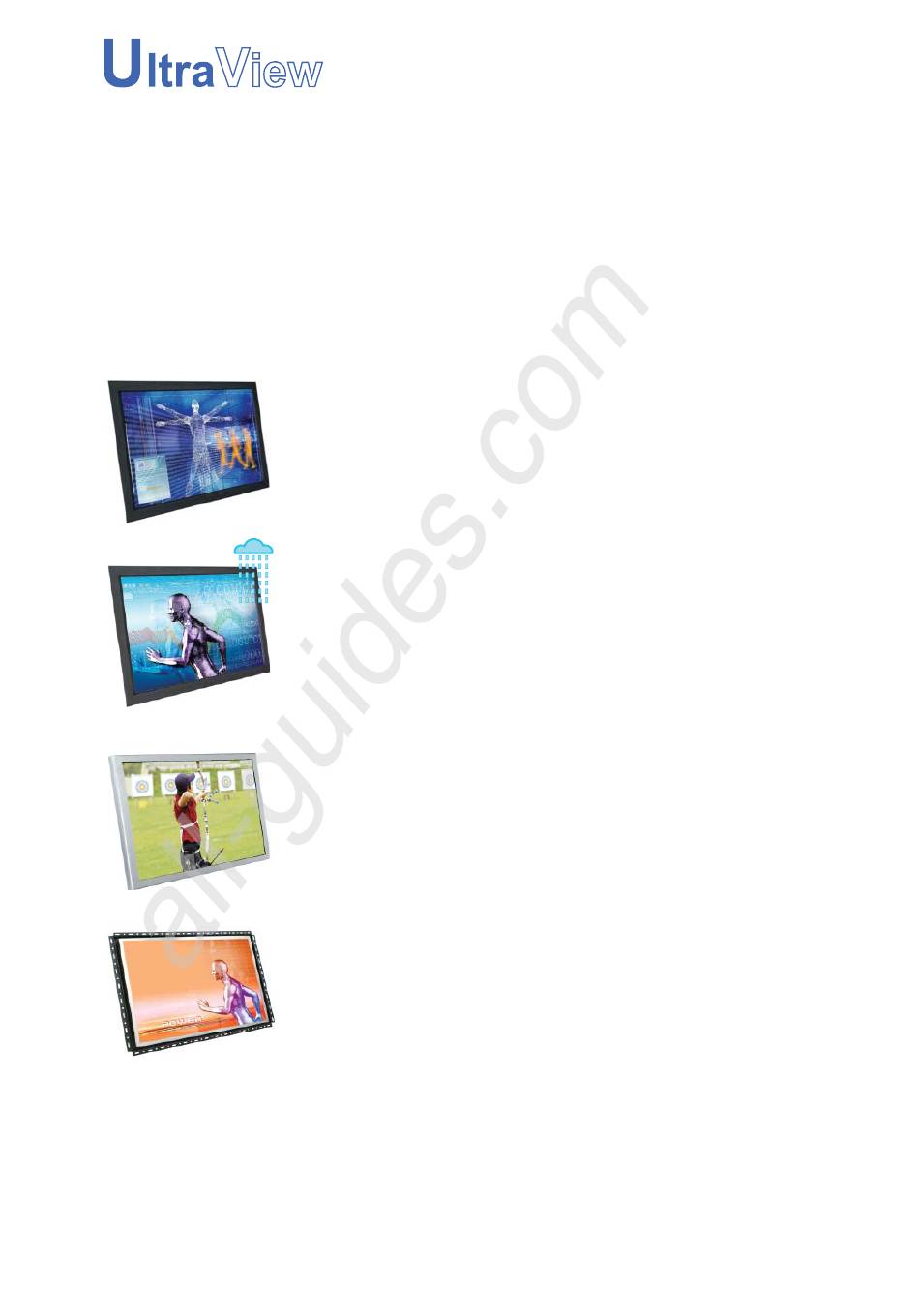

Innovative LCD Display
AP-32W
Front aluminum LCD panel
NAP-32W
Front NEMA4 / IP 65 LCD panel
DP-32W
Stylish front aluminum cover LCD panel
OP-32W
Open frame LCD panel
32" wide LCD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UltraView AP-32W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Austin Hughes UltraView AP-32W

Summary of Contents for Austin Hughes UltraView AP-32W

  • Page 1 All manuals and user guides at all-guides.com Innovative LCD Display User Manual 32" wide LCD AP-32W Front aluminum LCD panel NAP-32W Front NEMA4 / IP 65 LCD panel DP-32W Stylish front aluminum cover LCD panel OP-32W Open frame LCD panel Options : - TV tuner...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com Contents Chapter 1 Getting Started Important Safeguards............1 Before Installation.............2 Unpacking................2 Optional Accessories............2 Chapter 2 AP-32W front aluminum LCD panel Package Contents.............3 Structure Diagram ................. Dimension Diagram ..............Mounting Method................Chapter 3 NAP-32W front NEMA4 / IP 65 LCD panel Package Contents.............7 Structure Diagram...
  • Page 3 All manuals and user guides at all-guides.com Contents Chapter 6 Connection ..............19 Chapter 7 Operation On-screen Display Operation........20 On-screen Menu............21 Chapter 8 LCD Specifi cations ..........22 Chapter 9 TV Tuner Options TV Tuner Options............23 How to Use Remote Controller.........24-25 Chapter 10 Troubleshooting ............26 Chapter 11 Dimensions ..............27...

  • Page 4: Important Safeguards

    All manuals and user guides at all-guides.com Chapter 1 1.1 Important Safeguards Please read all of these instructions carefully before you use the device. Save this manual for future reference. What the warranty does not cover ■ Any product, on which the serial number has been defaced, modifi ed or removed. ■...

  • Page 5: Before Installation

    All manuals and user guides at all-guides.com Chapter 1 1.2 Before Installation ■ It is very important to locate the LCD Display in a suitable environment. ■ The surface for placing and fi xing the LCD Display should be stable. ■...

  • Page 6: Front Aluminum Lcd Panel Package Contents

    All manuals and user guides at all-guides.com Chapter 2 2.1 AP-32W series Package Contents LCD display x 1 pc 6' VGA cable (male to male) x 1 pc User manual x 1 pc Power cord x 1 pc S-Video cable x 1pc RCA cable x 1 pcs...
  • Page 7 All manuals and user guides at all-guides.com Chapter 2 2.2 AP-32W series Structure Diagram Front View Rear View Rear case LCD membrane SAMSUNG LCD panel Wall-mount bracket 6mm aluminum front bezel...
  • Page 8 All manuals and user guides at all-guides.com Chapter 2 2.3 AP-32W series Dimension Diagram UNIT : mm 1mm = 0.03937 inch Front View Rear View...
  • Page 9 All manuals and user guides at all-guides.com Chapter 2 2.4 AP-32W series Mounting Method UNIT : mm 1mm = 0.03937 inch Wall mounting Remarks ■ Hardware and M5*8pcs for Wall mounting is not provided 100mm VESA standard Remarks ■ Hardware and M6*8pcs for VESA mounting is not provided...

  • Page 10: Front Nema4 / Ip 65 Lcd Panel Package Contents

    All manuals and user guides at all-guides.com Chapter 3 NAP-32W series Package Contents LCD display x 1 pc 6' VGA cable (male to male) x 1 pc User manual x 1 pc Power cord x 1 pc S-Video cable x 1pc RCA cable x 1 pcs...
  • Page 11 All manuals and user guides at all-guides.com Chapter 3 NAP-32W series Structure Diagram Front View Rear View Rear case 6mm aluminum front bezel SAMSUNG LCD panel LCD membrane 4mm protective glass (Front Nema 4 / IP 65 protection) Wall-mount bracket...
  • Page 12 All manuals and user guides at all-guides.com Chapter 3 NAP-32W series Dimension Diagram UNIT : mm 1mm = 0.03937 inch Front View Rear View...

  • Page 13: Mounting Method

    All manuals and user guides at all-guides.com Chapter 2 3.4 NAP-32W series Mounting Method UNIT : mm 1mm = 0.03937 inch Wall mounting Remarks ■ Hardware and M5*8pcs for Wall mounting is not provided 100mm VESA standard Remarks ■ Hardware and M6*8pcs for VESA mounting is not provided P.10...

  • Page 14: Stylish Front Aluminum Cover Lcd Panel Package Contents

    All manuals and user guides at all-guides.com Chapter 4 4.1 DP-32W series Package Contents LCD display x 1 pc 6' VGA cable (male to male) x 1 pc User manual x 1 pc Power cord x 1 pc S-Video cable x 1pc RCA cable x 1 pcs P.11...
  • Page 15 All manuals and user guides at all-guides.com Chapter 4 4.2 DP-32W series Structure Diagram Front View Rear View Rear case 1.2mm front aluminum cover SAMSUNG LCD panel LCD membrane P.12...
  • Page 16 All manuals and user guides at all-guides.com Chapter 4 4.3 DP-32W series Dimension Diagram UNIT : mm 1mm = 0.03937 inch Front View Rear View P.13...
  • Page 17 All manuals and user guides at all-guides.com Chapter 2 3.4 DP-32W series Mounting Method UNIT : mm 1mm = 0.03937 inch 100mm VESA standard Remarks ■ Hardware and M6*8pcs for VESA mounting is not provided P.14...

  • Page 18: Open Frame Lcd Panel Package Contents

    All manuals and user guides at all-guides.com Chapter 5 5.1 OP-32W series Package Contents LCD display x 1 pc 6' VGA cable (male to male) x 1 pc User manual x 1 pc Power cord x 1 pc S-Video cable x 1pc RCA cable x 1 pcs P.15...
  • Page 19 All manuals and user guides at all-guides.com Chapter 5 5.2 OP-32W series Structure Diagram Front View Rear View Rear case Universal open frame mounting SAMSUNG LCD panel LCD membrane P.16...
  • Page 20 All manuals and user guides at all-guides.com Chapter 5 5.3 OP-32W series Dimension Diagram UNIT : mm 1mm = 0.03937 inch Front View Rear View P.17...
  • Page 21 All manuals and user guides at all-guides.com Chapter 2 3.4 OP-32W series Mounting Method UNIT : mm 1mm = 0.03937 inch 100mm VESA standard Remarks ■ Hardware and M6*8pcs for VESA mounting is not provided Universal open frame mounting Remarks ■...

  • Page 22: Chapter 6 Connection

    All manuals and user guides at all-guides.com Chapter 6 6.1 Connection Audio in with speaker Component Video Connector Power Input Device HDMI S-Video Video Audio-R Audio-L The LCD Display are hot-pluggable, but components of connected devices may Caution : not be hot-pluggable. Plugging and unplugging cables while connected devices are pow- ered on may cause irreversible damage of the devices and LCD Display.

  • Page 23: On-Screen Display Operation

    All manuals and user guides at all-guides.com Chapter 7 7.1 On-screen Display Operation LCD membrane Power light Green = On Orange = Power saving Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control Exit the OSD screen Shortcut key to auto adjustment by pressed the button for 5 seconds Toggle analog, digital &...

  • Page 24: On-Screen Menu

    All manuals and user guides at all-guides.com Chapter 7 7.2 On-screen Menu OSD Confi guration Page Image: To enter into the scheme, brighness, contrast, saturation, hue, sharpness, advanced and reset scheme sub-menu Display: To enter into the auto auto AR, aspect ratio and PIP sub-menu To enter into the 5 band graphic equalizer Clock / Timer: To enter into sleep timer...

  • Page 25: Lcd Specifications

    All manuals and user guides at all-guides.com Chapter 8 8.1 LCD Specifi cations Item Description LCD Manufacturer 32" TFT Diagonal Size 1366 x 768 Max. Resolution Brightness (cd/m²) 16.7 Mil. Color Support 1000:1 Contrast Ratio (typ.) 178˚ x 178˚ Viewing Angle (H/V) 885 x 498 Display Area (mm) Tr Response Time (ms)

  • Page 26: Tv Tuner Options

    All manuals and user guides at all-guides.com Chapter 9 9.1 TV Tuner Options Audio in with speaker Component Video Connector Power Input Device HDMI S-Video Video Audio-R Audio-L Remarks ■ Package includes a remote controller P.23...

  • Page 27: How To Use Remote Controller

    All manuals and user guides at all-guides.com 9.2 How to Use Remote Controller POWER MUTE INPUT DISPLAY CLEAR SELECT BACK MENU EXIT ENTER AUDIO FREEZE ZOOM ASPECT ADJUST SOURCE SWAP POSITION SLEEP AUDIO ASPECT P.24...
  • Page 28 All manuals and user guides at all-guides.com Chapter 9 9.2 How to Use Remote Controller Switches on or off the TV POWER Only use in TV mode. Select channels. For channel numbers 10 and above, enter the second digit within two seconds. 1 - 9 Press this button will show the current input source DISPLAY...

  • Page 29: Troubleshooting

    All manuals and user guides at all-guides.com Chapter 11 10.1 Troubleshooting 1. The membrane button power light is not ON ■ Press the power On /Off on LCD membrane button to check if the monitor is in the ON mode. ■...

  • Page 30: Chapter 11 Dimensions

    All manuals and user guides at all-guides.com Chapter 12 11.1 Dimensions Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 850 x 125 x 520 mm 963 x 240 x 632 mm 23 kg 39 kg AP-32W series...

  • Page 31: Cleaning The Lcd Display

    All manuals and user guides at all-guides.com Chapter 13 the LCD display 12.1 Cleaning You may need the following precautions before you begin to clean the LCD display, please read and understand the details below fully. 1. Make sure the monitor is turned off 2.
  • Page 32 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2007 Austin Hughes Electronics Ltd. All rights reserved. UV-32W-1107V2...

This manual is also suitable for:

Ultraview nap-32wUltraview dp-32wUltraview op-32w
