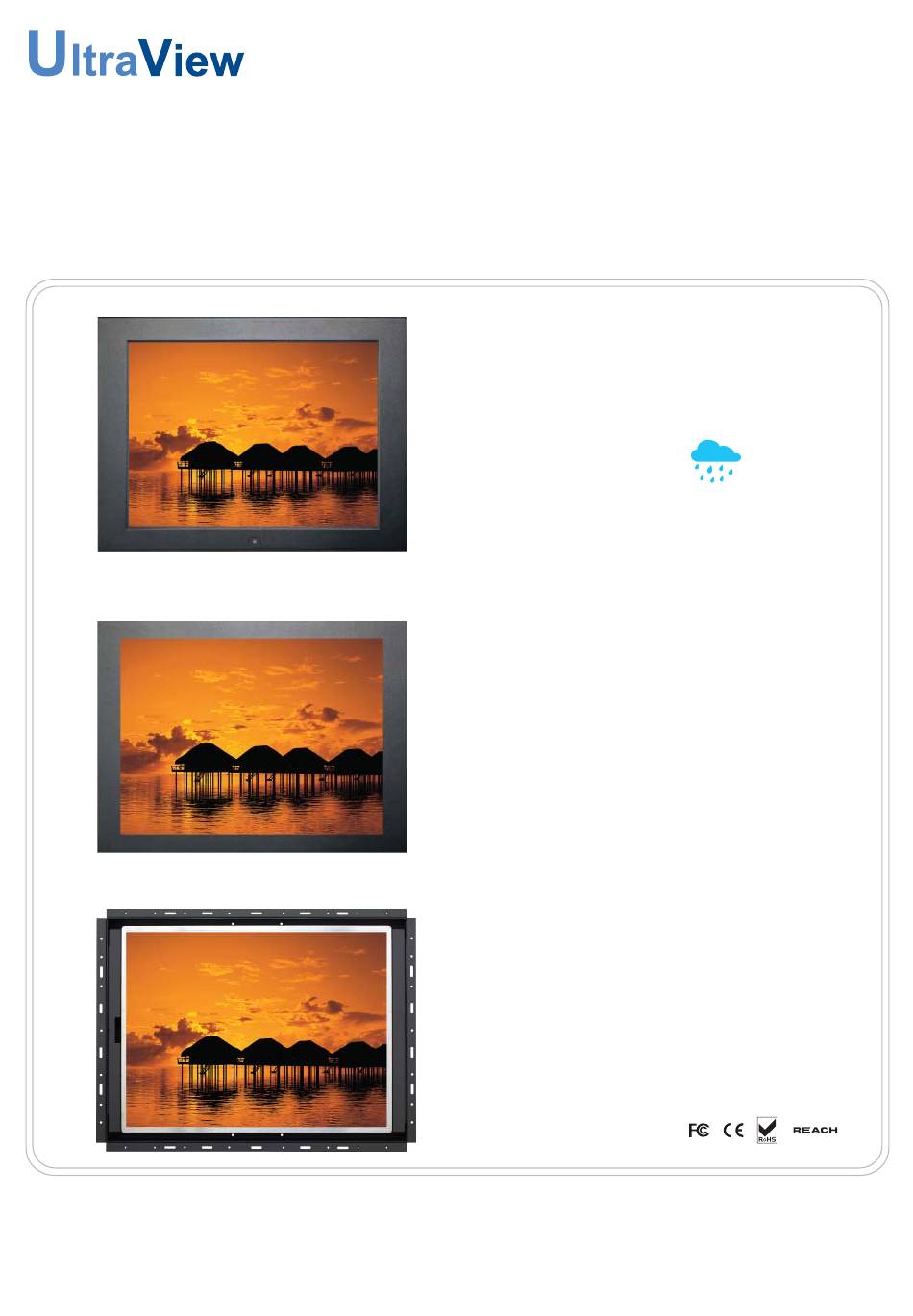

  • Page 1 LCD display solutions User Manual 20” LCD AP-20 Aluminum front bezel NAP-20 Front NEMA4 / IP65 DP-20 Aluminum front cover OP-20 Universal Mounting Open Frame Designed and manufactured by Austin Hughes UM-UV-621-20-Q319V1 www.austin-hughes.com...
  • Page 2 Legal Information First English printing, July 2019 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < Part. 1 > AP-20 / NAP-20 Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation < Part. 2 > DP-20 Package Content Structure Diagram & Dimension P.6 - 7 Mounting Hardware & Installation < Part. 3 >...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 5: Part 1 > Ap-20 / Nap-20

    < Part 1 > AP-20 / NAP-20 20” LCD Display < 1.1 > Package Content AP-20 / NAP-20 20" LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack...

  • Page 6: Structure Diagram & Dimension

    < 1.2 > Structure Diagram Front view Side View AP-20 NAP-20 Bottom view Rear case Rear view LCD panel Protective 3mm glass 6mm aluminum front bazel Audio speaker ( for HDMI, Audio or TV option ) LCD membrane Remote sensor...
  • Page 7 < 1.2 > Dimension 20” LCD Display Front View Side View AP-20 NAP-20 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-20-Q319V1 www.austin-hughes.com...
  • Page 8 < 1.3 > Installation ( I ) Panel mount ( I ) Panel mount M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Hardware set part no. UV-BK#2 Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■...

  • Page 9: Part 2

    < Part 2 > DP-20 20” LCD Display < 2.1 > Package Content DP-20 20" LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Power DVI-D AV2.2D upgrade I/O Audio Power S-Video DVI-D...

  • Page 10: Structure Diagram & Dimension

    < 2.2 > Structure Diagram Front view Front view Side View DP-20 Bottom view Rear case Rear view LCD panel 6mm aluminum front cover Audio speaker, pair LCD membrane Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight...
  • Page 11 < 2.2 > Dimension 20” LCD Display Front View Side View DP-20 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-20-Q319V1 www.austin-hughes.com...
  • Page 12 < 2.3 > VESA mount Installation M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided UM-UV-621-20-Q319V1 www.austin-hughes.com...

  • Page 13: Part 3

    < Part 3 > OP-20 20” LCD Display < 3.1 > Package Content OP-20 20" LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Power DVI-D AV2.2D upgrade I/O Audio Power S-Video DVI-D...

  • Page 14: Structure Diagram & Dimension

    < 3.2 > Structure Diagram Front view Side View OP-20 Bottom view Rear case LCD panel Audio speaker ( for HDMI, Audio or TV option ) Rear view Universal open frame mounting LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Packing Dimension Gross...
  • Page 15 < 3.2 > Dimension 20” LCD Display Front View Side View OP-20 UNIT : mm Rear View 1mm = 0.03937 inch Bottom View UM-UV-621-20-Q319V1 P.11 www.austin-hughes.com...
  • Page 16 < 3.3 > Installation ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) M4 screw Hardware and M4*4 pcs for VESA mounting are not provided UM-UV-621-20-Q319V1 P.12 www.austin-hughes.com...

  • Page 17: Product Specifi Cations

    < Part 4 > < 4.1 > Product Specifi cations 20” LCD Display AP-20 NAP-20 DP-20 OP-20 Mechanical Design Protection 6mm front bezel NEMA 4 / IP65 front cover open frame Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005...
  • Page 18 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration AP-20 NAP-20 DP-20 OP-20 Physical Specifi cation Product ( W x D x H ) 512.5 x 72.1 x 391.6 481.5 x 67.4 x 360.6 509.5 x 66.1 x 388.6...

  • Page 19: On-Screen Display Operation ( Osd )

    < 4.2 > On-screen Display Operation ( OSD ) 20” LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen...

  • Page 20: Options

    < Part 5 > Option < 5.1 > Option Table Options AP / NAP ✓ ✓ ✓ SDI *** ✓ ✓ ✓ HDMI * or DVI-D ✓ ✓ ✓ S-Video * + Composite ( BNC ) ✓ ✓ ✓ Audio ✓...
  • Page 21 < 5.2 > Options : 3G / HD / SD-SDI input 20” LCD Display Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with UltraView displays, a SDI input...
  • Page 22 < 5.3 > Options : MCS More control is always good. Especially when it is necessary and easy. Austin Hughes provides MCS solution to control the OSD of ( Multi-display Control ) various UltraView LCD display up to 64 units.
  • Page 23 < 5.4 > Options : 20” LCD Display AV2.2D Upgrade Options ( DVI-D TMDS single link - DVI-D ( S-Video + Composite, BNC ) - AV ( Built-in Dual Stereo Speakers, 2W x 2 ) - Audio ( 3.5mm audio jacks for audio in & out ) Audio Power S-Video...
  • Page 24 < 5.5 > AV3.0 Upgrade Options : ( HDMI 1.3, CEA-861-D - HMDI ( DVI-D TMDS single link - DVI-D ( S-Video + Composite, BNC ) - AV ( Built-in Dual Stereo Speakers, 2W x 2 ) - Audio ( 3.5mm audio jacks for audio in & out ) Audio Power S-Video...

  • Page 25: Resistive ( 1-Point Touch )

    < 5.6 > Options : Touchscreen & driver 20” LCD Display 20" USB Touchscreen Specifi cation e-Resistive Model 5-Wire Resistive Technology Single Touch Point Finger or Stylus Input Type 2048 x 2048 Resolution Touch Point Accuracy 15 ms Response Speed ≤...
  • Page 26 < 5.6 > Options : Touchscreen & driver 20” LCD Display TRB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc or download the driver from the link below : http://www.austin-hughes.com/resources/driver/ultraview Step 2.
  • Page 27 < 5.7 > Options : DC Power 20” LCD Display Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA...
  • Page 28 < 5.8 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MS3470W8-33P MIL - DTL - 26482 DC Power MIL - type ( Male ) Connector MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl...

  • Page 29: Tv ( Analog )

    < 5.9 > Options : TV ( Analog ) 20” LCD Display Audio Power S-Video HDMI out - in - in Video PC For TV option : ( 1 ) The AD board comes standard with HDMI, VGA, S-Video, BNC, audio inputs and RC-2 remote controller.
  • Page 30 How to Use RC-2 Remote Controller INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO Select the source INPUT Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds.
  • Page 31 Intentionally Left Blank UM-UV-621-20-Q319V1 www.austin-hughes.com...
  • Page 32 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2019 Austin Hughes Electronics Ltd. All rights reserved. UM-UV-621-20-Q319V1 P.28...
