Summary of Contents for Austin Hughes UltraView AP-19

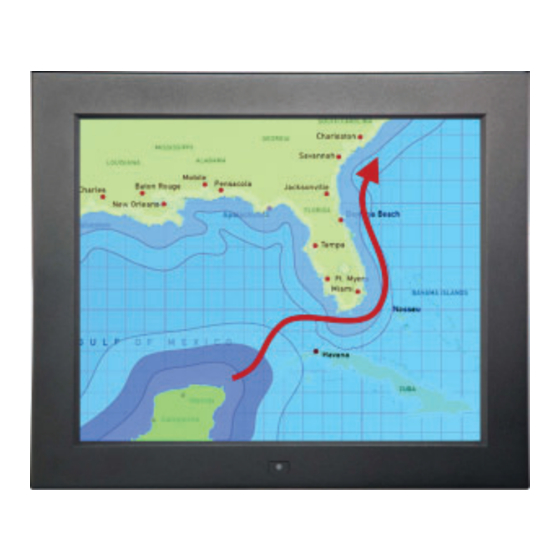

- Page 1 LCD display solutions User Manual 19” LCD AP-19 / HAP-19 Aluminum front bezel NAP-19 / HNAP-19 Front NEMA4 / IP65 DP-19 / HDP-19 Aluminum Front Panel OP-19 / HOP-19 Universal Open Frame Designed and manufactured by Austin Hughes UM-UV-621-19-Q322V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, July 2022 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > AP-19 / NAP-19 / HAP-19 / HNAP-19 Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 2 > DP-19 / HDP-19 Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 3 > OP-19 / HOP-19 Package Content Structure Diagram &... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
- Page 5 < Part 1 > AP-19 / NAP-19 / HAP / HNAP-19 < 1.1 > Package Content 19” LCD Display AP-19 / NAP-19 HAP-19 / HNAP-19 19" LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack - Mounting bracket x 4 pcs - M4* 6mm screw x 8 pcs...
-
Page 6: Nap-19 / Hap-19 / Hnap-19
< 1.2 > Structure Diagram Front view Side View AP-19 / NAP-19 HAP-19 / HNAP-19 Bottom view Rear case Rear view LCD panel Protective 3mm glass 6mm aluminum front bazel Audio speaker ( for HDMI, Audio or TV option ) LCD membrane Remote sensor Product Dimension... - Page 7 < 1.2 > Dimension 19” LCD Display Front View Side View AP-19 / NAP-19 HAP-19 / HNAP-19 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-19-Q322V1 www.austin-hughes.com...
- Page 8 < 1.3 > Installation ( I ) Panel mount M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Hardware set part no. UV-BK#2 Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■...
-
Page 9: Package Content
< Part 2 > DP-19 / HDP-19 19” LCD Display < 2.1 > Package Content DP-19 / HDP-19 17” FHD LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack - Mounting bracket x 4 pcs - M4* 6mm screw x 8 pcs - M4* 50mm screw x 8 pcs... -
Page 10: Structure Diagram & Dimension
< 2.2 > Structure Diagram Front view Side View DP-19 / HDP-19 Bottom view Rear case Rear view LCD panel 6mm aluminum front cover Audio speaker, pair LCD membrane Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight DP-19... -
Page 11: Hdp-19
< 2.2 > Dimension 19” LCD Display Front View Side View DP-19 / HDP-19 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-19-Q322V1 www.austin-hughes.com... - Page 12 < 2.3 > VESA mount Installation M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided UM-UV-621-19-Q322V1 www.austin-hughes.com...
-
Page 13: Package Content
< Part 3 > OP-19 / HOP-19 < 3.1 > Package Content 19” LCD Display OP-19 / HOP-19 19" LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Power DVI-D AV2.2D upgrade I/O Audio Power... -
Page 14: Structure Diagram & Dimension
< 3.2 > Structure Diagram Front view Side View OP-19 / HOP-19 Bottom view Rear case LCD panel Rear view Audio speaker ( for HDMI, Audio or TV option ) Universal open frame mounting LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Packing Dimension... -
Page 15: Hop-19
< 3.2 > Dimension 19” LCD Display Front View Side View OP-19 / HOP-19 UNIT : mm Rear View 1mm = 0.03937 inch Bottom View UM-UV-621-19-Q322V1 P.11 www.austin-hughes.com... - Page 16 < 3.3 > Installation ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) M4 screw Hardware and M4*4 pcs for VESA mounting are not provided UM-UV-621-19-Q322V1 P.12 www.austin-hughes.com...
- Page 17 Intentionally Left Blank UM-UV-621-19-Q322V1 P.13 www.austin-hughes.com...
-
Page 18: Product Specifi Cations
< Part 4 > < 4.1 > Product Specifi cations Mechanical Design AP-19 / NAP-19 / DP-19 / OP-19 / HAP-19 HNAP-19 HDP-19 HOP-19 Protection 6mm front bezel NEMA 4 / IP65 front cover open frame Front panel Black, RAL 9005 Rear casing Black, RAL 9005 VESA mount... - Page 19 < 4.1 > Product Specifi cations 19” LCD Display Environmental Conditions Operating Temperature 0 to 55°C degree Humidity 10~90%, non-condensing Altitude 16,000 ft Storage / Temperature -20 to 60°C degree Non-operating Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration Physical Specifi...
- Page 20 Intentionally Left Blank UM-UV-621-19-Q322V1 P.16 www.austin-hughes.com...
-
Page 21: On-Screen Display Operation ( Osd )
< 4.2 > On-screen Display Operation ( OSD ) 19” LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen... - Page 22 < 4.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
- Page 23 < 4.2 > On-screen Display Operation ( OSD ) 19” LCD Display Reset Reset : Return the adjustment back to factory setting PIP ( Not Applicable to F17 / MF17 ) PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen )
-
Page 24: Options
< Part 5 > Option < 5.1 > Option Table AP / HAP / Options HNAP ✓ ✓ ✓ ✓ ✓ ✓ SDI *** ✓ ✓ ✓ ✓ ✓ ✓ HDMI ** S-Video * + Composite ( BNC ) ✓ ✓... - Page 25 < 5.2 > Options : 3G / HD / SD-SDI input 19” LCD Display Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with UltraView displays, a SDI input...
- Page 26 < 5.3 > Options : MCS More control is always good. Especially when it is necessary and easy. Austin Hughes provides MCS solution to control the OSD of ( Multi-display Control ) various UltraView LCD display up to 64 units.
- Page 27 < 5.4 > Options : 19” LCD Display AV2.2D Upgrade Options - DVI-D ( DVI-D TMDS single link - AV ( S-Video + Composite, BNC ) - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) Audio Power S-Video...
-
Page 28: Projected Capacitive ( 10-Point Touch )
< 5.5 > Options : Touchscreen & driver 19" USB Touchscreen Specifi cation Model TPC-10 Multi-touch e-Resistive e-Capacitive Technology Projected Capacitive 5-Wire Resistive Capacitive Touch Point Single Single Input Type Finger or Capacitive Stylus Finger or Stylus Finger Resolution 2048 x 2048 2048 x 2048 2048 x 2048 Touch Point Accuracy... - Page 29 < 5.5 > Options : Touchscreen & driver 19” LCD Display TPC-10 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. TRB / TCB Driver Please follow the below steps to setup the touch screen:- Step 1.
- Page 30 < 5.6 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
-
Page 31: Mil-Type Or Lockable Connector
< 5.7 > Options : MIL-type or Lockable Connector 19” LCD Display Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl... -
Page 32: Tv ( Analog )
< 5.8 > Options : TV ( Analog ) Audio Power S-Video HDMI out - in - in Video PC For TV option : ( 1 ) The AD board comes standard with HDMI, VGA, S-Video, BNC, audio inputs and RC-2 remote controller. - Page 33 How to Use RC-2 Remote Controller 19” LCD Display INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 and 0 - 9 above, enter the second digit within two seconds.
-
Page 34: Options For Sunlight Readable : Auto Dimming
< 5.9 > Options for Sunlight Readable : Auto Dimming DA-01 Light sensor on OP model DA-01 Light sensor on AP model ( 66cm from AD board to sensor end ) DA-01 light sensor installed on the display front panel. Users can set auto dimming ON or OFF from OSD menu. -
Page 35: Ultraview Family
< 6 > Ultraview 19” Family 19” LCD Display 250 cd/m Brightness 1000 cd/m Sunlight Readable Brightness 6mm aluminum front bezel 6mm aluminum front bezel AP-19 HAP-19 6mm aluminum front bezel 6mm aluminum front bezel NEMA 4 / IP65 front protection NEMA 4 / IP65 front protection NAP-19 HNAP-19... - Page 36 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2022 Austin Hughes Electronics Ltd. All rights reserved. UM-UV-621-19-Q322V1 P.32...
