dedicated LCD display solutions
User Manual

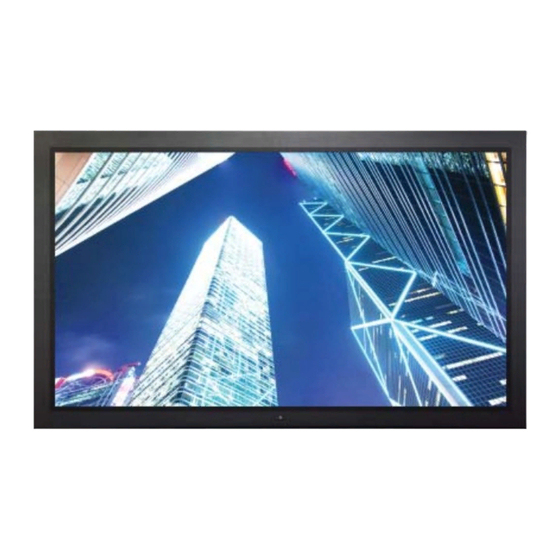

43" 4K 3840 x 2160 LCD
AP-K43 / HAP-K43
Aluminum front bezel
NAP-K43 / HNAP-K43
Front NEMA4 / IP65
DP-K43 / HDP-K43
Aluminum Front Panel
OP-K43 / HOP-K43
Universal Open Frame
Designed and manufactured by Austin Hughes
UM-UV-621-K43-Q319V1
www.austin-hughes.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UltraView AP-K43 and is the answer not in the manual?

Questions and answers

Related Manuals for Austin Hughes UltraView AP-K43

Summary of Contents for Austin Hughes UltraView AP-K43

  • Page 1 User Manual 43” 4K 3840 x 2160 LCD AP-K43 / HAP-K43 Aluminum front bezel NAP-K43 / HNAP-K43 Front NEMA4 / IP65 DP-K43 / HDP-K43 Aluminum Front Panel OP-K43 / HOP-K43 Universal Open Frame Designed and manufactured by Austin Hughes UM-UV-621-K43-Q319V1 www.austin-hughes.com...
  • Page 2 Legal Information First English printing, July 2019 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < Part. 1 > AP-K43 / NAP-K43 / HAP-K43 / HNAP-K43 Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation < Part. 2 > DP-K43 / HDP-K43 Package Content Structure Diagram & Dimension P.6 - 7 Mounting Hardware &...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
  • Page 5 < Part 1 > AP-K43 / NAP-K43 / HAP-K43 / HNAP-K43 43” 4K LCD Display < 1.1 > Package Content AP-K43 / NAP-K43 HAP-K43 / HNAP-K43 43" 4K LCD display X 1 6ft DP cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Power...
  • Page 6 < 1.2 > Structure Diagram Front View Side view AP-K43 / NAP-K43 HAP-K43 / HNAP-K43 Bottom view Rear case Rear View LCD panel 6mm aluminum front bazel Audio speaker, pair LCD membrane Remote sensor Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight...

  • Page 7: Ap-K43 / Nap-K43 / Hap-K43 / Hnap-K43

    < 1.2 > Dimension 43” 4K LCD Display Front View Side View AP-K43 / NAP-K43 HAP-K43 / HNAP-K43 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-K43-Q319V1 www.austin-hughes.com...
  • Page 8 < 1.3 > VESA Installation M8 screw VESA mount ( 600*400mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided UM-UV-621-K43-Q319V1 www.austin-hughes.com...

  • Page 9: Package Content

    < Part 2 > DP-K43 / HDP-K43 < 2.1 > Package Content 43” 4K LCD Display DP-K43 / HDP-K43 43” 4K LCD display X 1 6ft DP cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Power Audio HDMI 1.4...

  • Page 10: Structure Diagram & Dimension

    < 2.2 > Structure Diagram Front View Side view DP-K43 / HDP-K43 Bottom view Rear case Rear View LCD panel 6mm aluminum front cover Audio speaker, pair LCD membrane Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight...

  • Page 11: Part. 2 > Dp-K43 / Hdp-K43

    < 2.2 > Dimension 43” 4K LCD Display Side View Front View DP-K43 / HDP-K43 UNIT : mm 1mm = 0.03937 inch Rear View Bottom View UM-UV-621-K43-Q319V1 www.austin-hughes.com...
  • Page 12 < 2.3 > VESA Installation M8 screw VESA mount ( 600*400mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided UM-UV-621-K43-Q319V1 www.austin-hughes.com...

  • Page 13: Package Content

    < Part 3 > OP-K43 / HOP-K43 < 3.1 > Package Content 43” 4K LCD Display OP-K43 / HOP-K43 43” 4K LCD display X 1 6ft DP cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Power Power Audio...

  • Page 14: Structure Diagram & Dimension

    < 3.2 > Structure Diagram Front View Side view OP-K43 / HOP-K43 Bottom view Rear case LCD panel Rear View Universal open frame mounting Audio speaker, pair LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Packing Dimension Gross...

  • Page 15: Part. 3 > Op-K43 / Hop-K43

    < 3.2 > Dimension 43” 4K LCD Display Front View Side View OP-K43 / HOP-K43 UNIT : mm 1mm = 0.03937 inch Rear View Bottom View UM-UV-621-K43-Q319V1 P.11 www.austin-hughes.com...
  • Page 16 < 3.3 > Installation ( I ) Universal mount ( II ) VESA mount ( 600*400mm ) M8 screw VESA mount ( 600*400mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided UM-UV-621-K43-Q319V1 P.12 www.austin-hughes.com...

  • Page 17: Product Specifi Cations

    < Part 4 > < 4.1 > Product Specifi cations 43” 4K LCD Display 43” 4K LCD Display Mechanical Design AP-K43 / NAP-K43 / DP-K43 / OP-K43 / HAP-K43 HNAP-K43 HDP-K43 HOP-K43 Protection 6mm front bezel NEMA 4 / IP65 front cover open frame Front Panel...
  • Page 18 < 4.1 > Product Specifi cations Environmental Conditions Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Temperature -20 to 60°C degree Non-operating Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration Physical Specifi...

  • Page 19: On-Screen Display Operation ( Osd )

    < 4.2 > On-screen Display Operation ( OSD ) 43” 4K LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen...
  • Page 20 < 4.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the difference between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
  • Page 21 < 4.2 > On-screen Display Operation ( OSD ) 43” 4K LCD Display Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen...

  • Page 22: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )

    < 4.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 4.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position...
  • Page 23 43” 4K LCD Display < 4.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080...

  • Page 24: Remote Controller ( Rc-2 )

    < 4.4 > Remote Controller ( RC-2 ) INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds.

  • Page 25: Option Table

    < Part 5 > Options < 5.1 > Option Table 43” 4K LCD Display AP / HAP / Options HNAP ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ MCS multi-screen control ✓ ✓ ✓ ✓ ✓ ✓...
  • Page 26 < 5.2 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with UltraView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
  • Page 27 More control is always good. Especially when it is necessary and ( Multi-display Control ) easy. Austin Hughes provides MCS solution to control the OSD of various UltraView LCD display up to 64 units. The RS-232C is used for the communication between the PC and the fi...

  • Page 28: Infrared ( 10-Point Touch )

    < 5.4 > Options : Touchscreen & driver K43" USB Touchscreen Specifi cation Model IR10 Multi-touch Technology Infrared Touch Point Input Type Pen, Finger, Finger of gloved hand activation Touch Point Accuracy ± 2 mm Response Speed ≤ 15 ms Activation Force No minimum touch activation force Touch Durability...
  • Page 29 < 5.5 > Options : DC Power 43” 4K LCD Display Model 125V Input rating Input voltage: 24-Volt 48-Volt 110-Volt Input range: 18 ~ 36V 36 ~ 75V 43 ~ 160V Input current - No load 100 mA 50 mA 10 mA - Full load 7386 mA...

  • Page 30: Mil-Type Or Lockable Connector

    < 5.6 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl...
  • Page 31 < 5.7 > Options : Quad Display 43” 4K LCD Display QD Specifi cation Item Description Model Number QD (NTSC) QD (PAL) Number of Color 16.7 M 16.7 M Imaging System NTSC Resolution 1024 x 525 1024 x 625 Refresh Rate 1.0 Vpp, 75 Ohm x 4 Camera Input Video Input...

  • Page 32: Options For Sunlight Readable : Auto Dimming

    < 5.8 > Options for Sunlight Readable : Auto Dimming DA-01 Light sensor on OP model DA-01 Light sensor on AP model ( 66cm from AD board to sensor end ) DA-01 light sensor installed on the display front panel. Users can set auto dimming ON or OFF from OSD menu.
  • Page 33 < 6 > Ultraview K43 Family 43” 4K LCD Display 350 cd/m Brightness 1500 cd/m Sunlight Readable Brightness 6mm aluminum front bezel 6mm aluminum front bezel AP-K43 HAP-K43 6mm aluminum front bezel 6mm aluminum front bezel NEMA 4 / IP65 front protection NEMA 4 / IP65 front protection NAP-K43 HNAP-K43...
  • Page 34 Intentionally Left Blank UM-UV-621-K43-Q319V1 P.30 www.austin-hughes.com...
  • Page 35 Intentionally Left Blank UM-UV-621-K43-Q319V1 P.31 www.austin-hughes.com...
  • Page 36 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2019 Austin Hughes Electronics Ltd. All rights reserved. UM-UV-621-K43-Q319V1 P.32...
