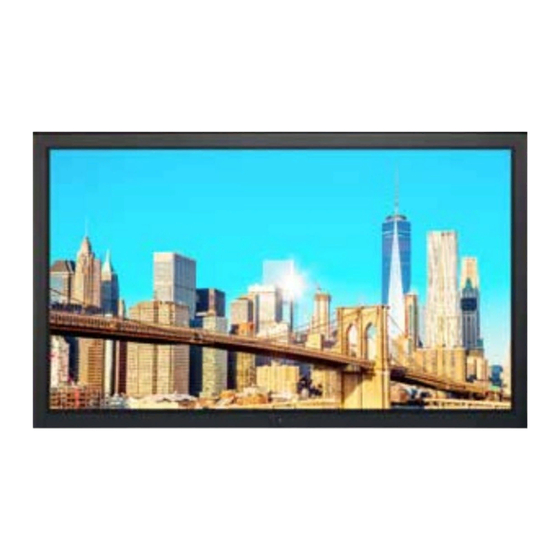

Austin Hughes UltraView AP-K55 User Manual

55 inch 4k 3840 x 2160 lcd. aluminum front bezel. front nema4 / ip65. aluminum front panel. universal open frame
Hide thumbs Also See for UltraView AP-K55:
Table of Contents

Advertisement

Quick Links

Download this manual
dedicated LCD display solutions

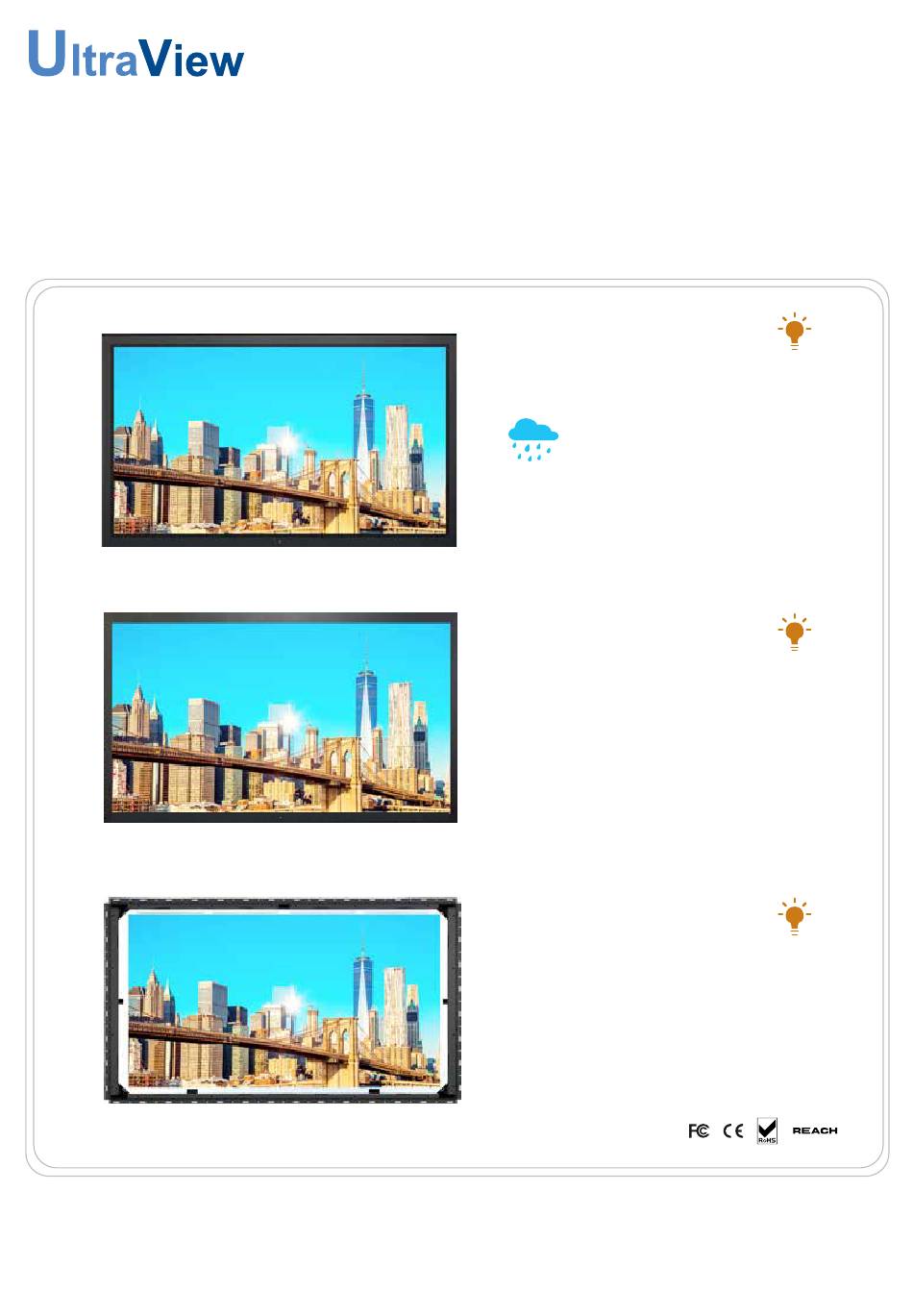

User Manual
55" 4K 3840 x 2160@60Hz LCD
AP-K55 / HAP-K55
Aluminum front bezel
NAP-K55 / HNAP-K55
Front NEMA4 / IP65
DP-K55 / HDP-K55
Aluminum Front Panel
OP-K55 / HOP-K55
Universal Open Frame
Designed and manufactured by Austin Hughes
UM-UV-621-K55-Q121V1
www.austin-hughes.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UltraView AP-K55 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Austin Hughes UltraView AP-K55

Summary of Contents for Austin Hughes UltraView AP-K55

  • Page 1 User Manual 55” 4K 3840 x 2160@60Hz LCD AP-K55 / HAP-K55 Aluminum front bezel NAP-K55 / HNAP-K55 Front NEMA4 / IP65 DP-K55 / HDP-K55 Aluminum Front Panel OP-K55 / HOP-K55 Universal Open Frame Designed and manufactured by Austin Hughes UM-UV-621-K55-Q121V1 www.austin-hughes.com...
  • Page 2 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 3: Table Of Contents

    Contents < Part. 1 > AP-K55 / NAP-K55 / HAP-K55 / HNAP-K55 Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 2 > DP-K55 / HDP-K55 Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 3 > OP-K55 / HOP-K55 Package Content Structure Diagram &...
  • Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
  • Page 5 < Part 1 > AP-K55 / NAP-K55 / HAP-K55 / HNAP-K55 < 1.1 > Package Content 55” 4K LCD Display AP-K55 / NAP-K55 HAP-K55 / HNAP-K55 55" 4K LCD display X 1 6ft DP cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Power...
  • Page 6 < 1.2 > Structure Diagram Front view Side View AP-K55 / NAP-K55 HAP-K55 / HNAP -K55 Bottom view Rear case Rear view LCD panel Protective 3mm glass 8mm aluminum front bazel Audio speaker, pair LCD membrane Remote sensor Product Dimension Packing Dimension Gross Model...

  • Page 7: Ap-K55 / Nap-K55 / Hap-K55 / Hnap-K55

    < 1.2 > Dimension 55” 4K LCD Display Front View Side View AP-K55 / NAP-K55 HAP-K55 / HNAP-K55 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-K55-Q121V1 www.austin-hughes.com...
  • Page 8 < 1.3 > VESA Installation M8 screw VESA mount ( 600*400mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided UM-UV-621-K55-Q121V1 www.austin-hughes.com...

  • Page 9: Package Content

    < Part 2 > DP-K55 / HDP-K55 55” 4K LCD Display < 2.1 > Package Content DP-K55 / HDP-K55 55" 4K LCD display X 1 6ft DP cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Power Audio HDMI 1.4...

  • Page 10: Structure Diagram & Dimension

    < 2.2 > Structure Diagram Front view Side view DP-K55 / HDP-K55 Bottom view Rear case Rear view LCD panel 8mm aluminum front cover Audio speaker, pair LCD membrane Remote sensor Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight DP-K55...

  • Page 11: Part. 2 > Dp-K55 / Hdp-K55

    < 2.2 > Dimension 55” 4K LCD Display Front View Side View DP-K55 / HDP-K55 Rear View UNIT : mm UNIT : mm 1mm = 0.03937 inch 1mm = 0.03937 inch Bottom View UM-UV-621-K55-Q121V1 www.austin-hughes.com...
  • Page 12 < 2.3 > VESA Installation M8 screw VESA mount ( 600*400mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided UM-UV-621-K55-Q121V1 www.austin-hughes.com...

  • Page 13: Package Content

    < Part 3 > OP-K55 / HOP-K55 < 3.1 > Package Content 55” 4K LCD Display OP-K55 / HOP-K55 55" 4K LCD display X 1 6ft DP cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Power Audio HDMI 1.4...

  • Page 14: Structure Diagram & Dimension

    < 3.2 > Structure Diagram Front view Side view OP-K55 / HOP-K55 Bottom view Rear case LCD panel Rear view Universal open frame mounting Audio speaker, pair LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Packing Dimension Gross...

  • Page 15: Part. 3 > Op-K55 / Hop-K55

    < 3.2 > Dimension 55” 4K LCD Display Front View Side View OP-K55 / HOP-K55 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-K55-Q121V1 P.11 www.austin-hughes.com...
  • Page 16 < 3.3 > Installation ( I ) Universal mount ( II ) VESA mount ( 600*400mm ) M8 screw VESA mount ( 600*400mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided UM-UV-621-K55-Q121V1 P.12 www.austin-hughes.com...
  • Page 17 < Part 4 > 55” 4K LCD Display < 4.1 > Product Specifications Mechanical Design AP-K55 / NAP-K55 / DP-K55 / OP-K55 / HAP-K55 HNAP-K55 HDP-K55 HOP-K55 Protection 8mm front bezel NEMA 4 / IP65 front cover open frame Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005...
  • Page 18 < 4.1 > Product Specifications Environmental Conditions Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Temperature -20 to 60°C degree Non-operating Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration Physical Specification...

  • Page 19: On-Screen Display Operation ( Osd )

    < 4.2 > On-screen Display Operation ( OSD ) 55” 4K LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen...
  • Page 20 < 4.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the difference between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
  • Page 21 < 4.2 > On-screen Display Operation ( OSD ) 55” 4K LCD Display Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen...

  • Page 22: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )

    < 4.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 4.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position...
  • Page 23 55” 4K LCD Display < 4.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080...

  • Page 24: Remote Controller ( Rc-2 )

    < 4.4 > Remote Controller ( RC-2 ) INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER EXIT BACK SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds.

  • Page 25: Options

    < Part 5 > Options 55” 4K LCD Display < 5.1 > Option Table AP / HAP / Options HNAP ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ MCS multi-screen control ✓ ✓ ✓ ✓ ✓ ✓...
  • Page 26 < 5.2 > Options : 12G / 4K60 / SD-SDI Austin Hughes’ SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed for use with displays, a SDI input module can support up to 3840 x 2160p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
  • Page 27 < 5.3 > Options : 3G / HD / SD-SDI input 55” 4K LCD Display Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with UltraView displays, a SDI input...
  • Page 28 More control is always good. Especially when it is necessary and ( Multi-display Control ) easy. Austin Hughes provides MCS solution to control the OSD of various UltraView LCD display up to 64 units. The RS-232C is used for the communication between the PC and...
  • Page 29 < 5.5 > Options : Touchscreen & driver 55” 4K LCD Display K55" USB Touchscreen Specification Model IR10 Multi-touch Technology Infrared Touch Point Input Type Pen, Finger, Finger of gloved hand activation Touch Point Accuracy ± 2 mm Response Speed ≤...
  • Page 30 < 5.6 > Options : DC Power Model 125V Input rating Input voltage: 24-Volt 48-Volt 110-Volt Input range: 18 ~ 36V 36 ~ 75V 43 ~ 160V Input current - No load 100 mA 50 mA 10 mA - Full load 7386 mA 3611 mA 1540 mA...
  • Page 31 < 5.7 > Options : MIL-type or Lockable Connector 55” 4K LCD Display Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design flexibility possible.
  • Page 32 < 5.8 > Options : Quad Display QD Specification Item Description Model Number QD (NTSC) QD (PAL) Number of Color 16.7 M 16.7 M Imaging System NTSC Resolution 1024 x 525 1024 x 625 Refresh Rate Video Input 1.0 Vpp, 75 Ohm x 4 Camera Input 1.0 Vpp, 75 Ohm x 1 VCR Input...

  • Page 33: Options For Sunlight Readable : Auto Dimming

    < 5.9 > Options for Sunlight Readable : Auto Dimming 55” 4K LCD Display DA-01 Light sensor on OP model DA-01 Light sensor on AP model ( 66cm from AD board to sensor end ) DA-01 light sensor installed on the display front panel. Users can set auto dimming ON or OFF from OSD menu.
  • Page 34 < 6 > Ultraview K55 Family 450 cd/m Brightness 700 cd/m Sunlight Readable Brightness 8mm aluminum front bezel 8mm aluminum front bezel AP-K55 HAP-K55 8mm aluminum front bezel 8mm aluminum front bezel NEMA 4 / IP65 front protection NEMA 4 / IP65 front protection NAP-K55 HNAP-K55 Aluminum front cover...
  • Page 35 Intentionally Left Blank UM-UV-621-K55-Q121V1 P.31 www.austin-hughes.com...
  • Page 36 The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2020 Austin Hughes Electronics Ltd. All rights reserved. UM-UV-621-K55-Q121V1 P.32...

This manual is also suitable for:

Ultraview hap-k55Ultraview nap-k55Ultraview hnap-k55Ultraview dp-k55Ultraview hdp-k55Ultraview op-k55 ... Show all
